Zurn Z6000-WS1-VC-YB-YC | AquaFlush Series Manual Flush Valve | Van...

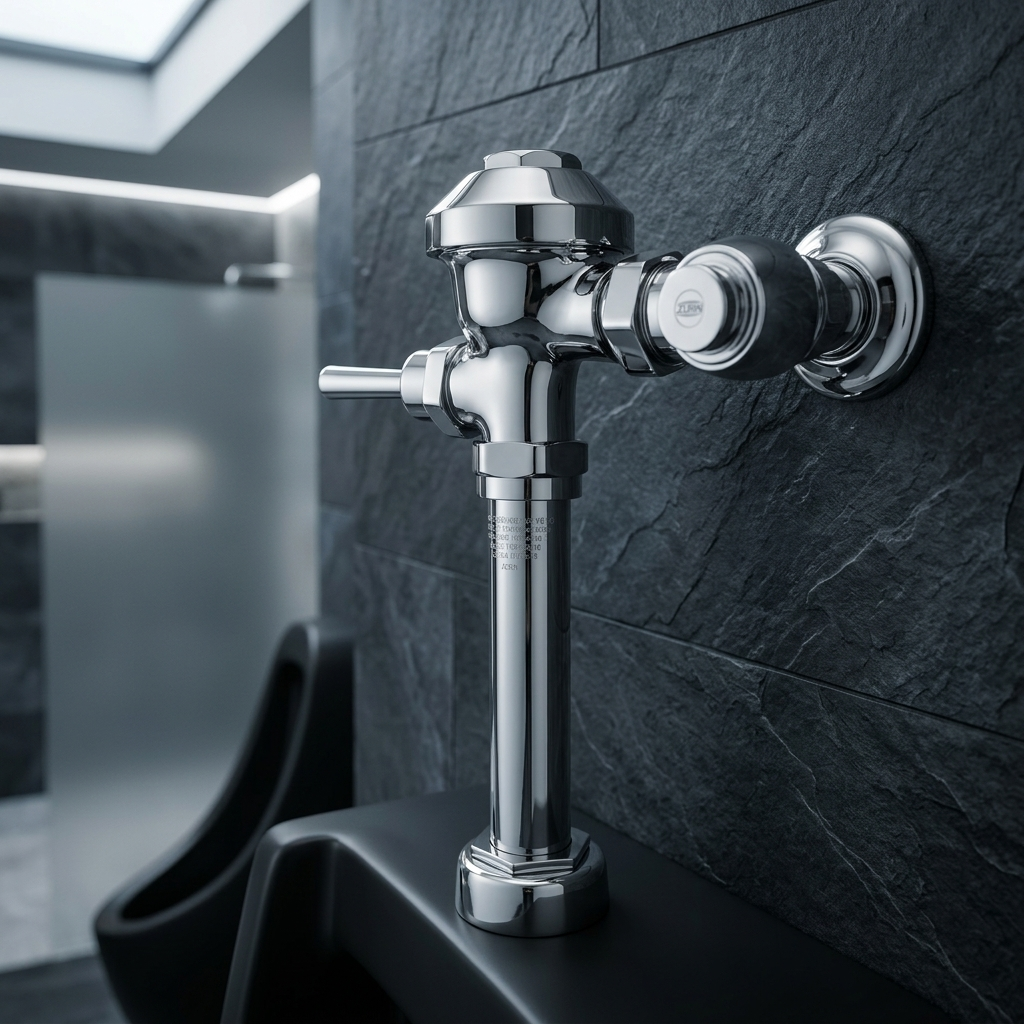

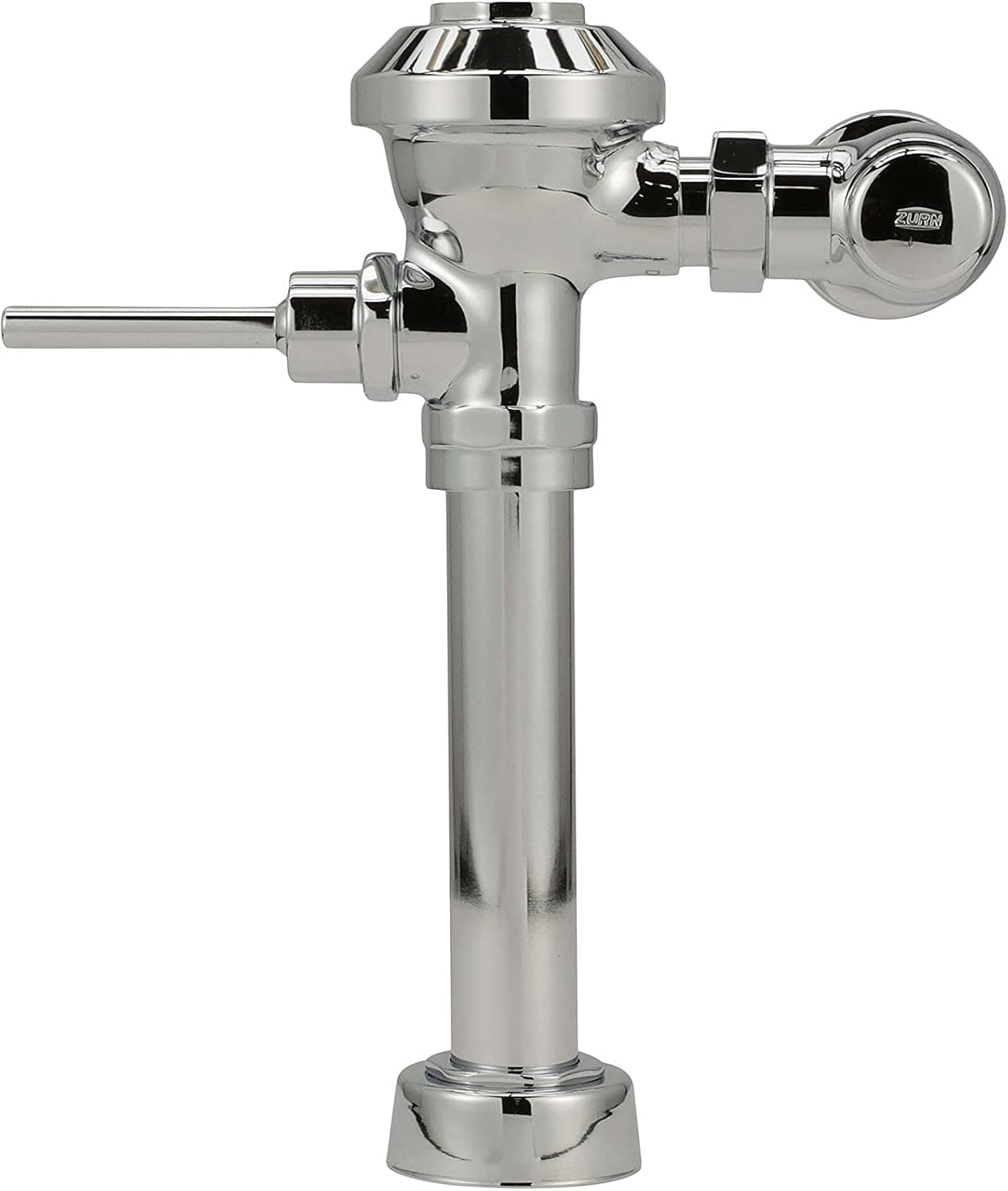

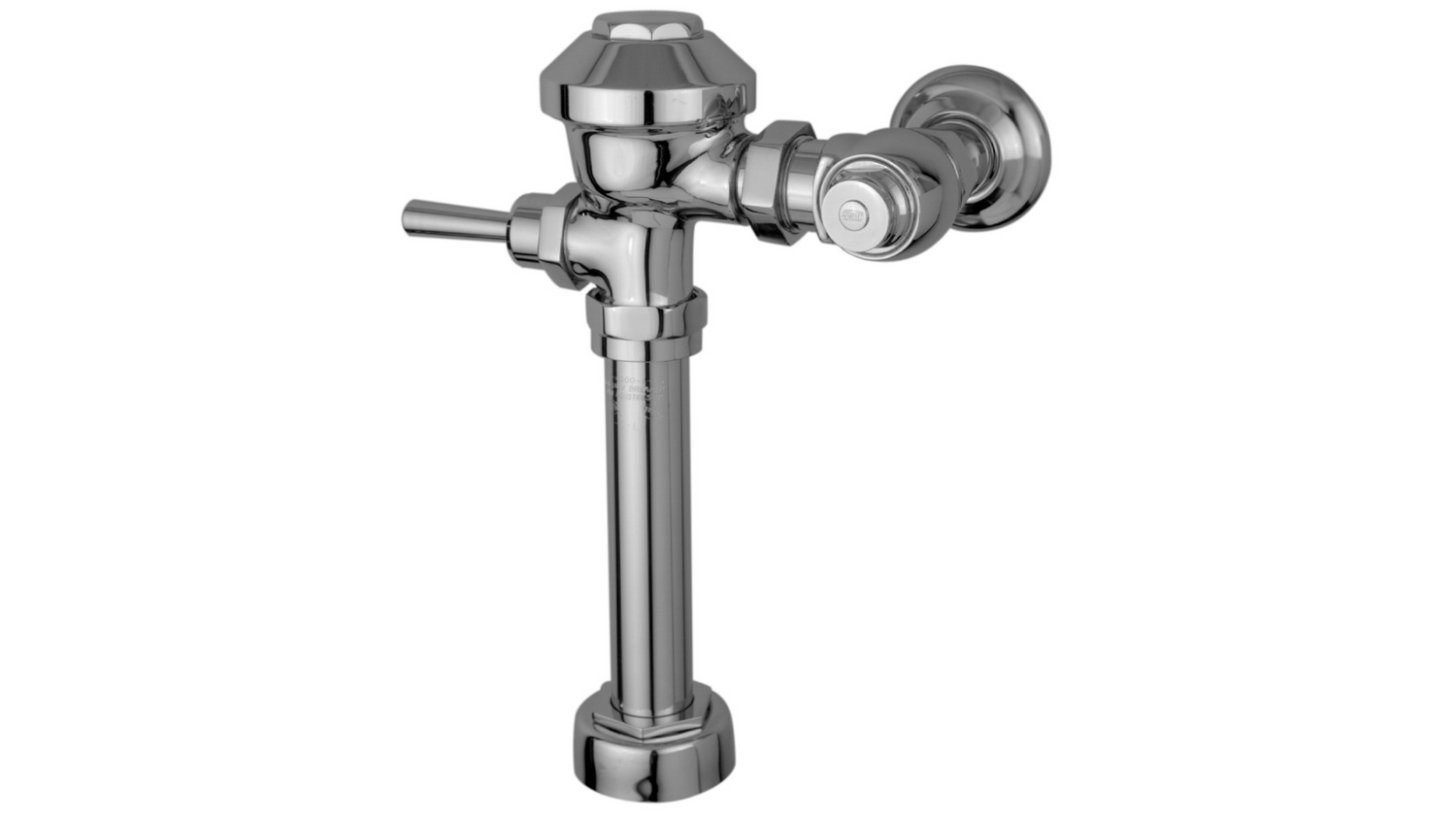

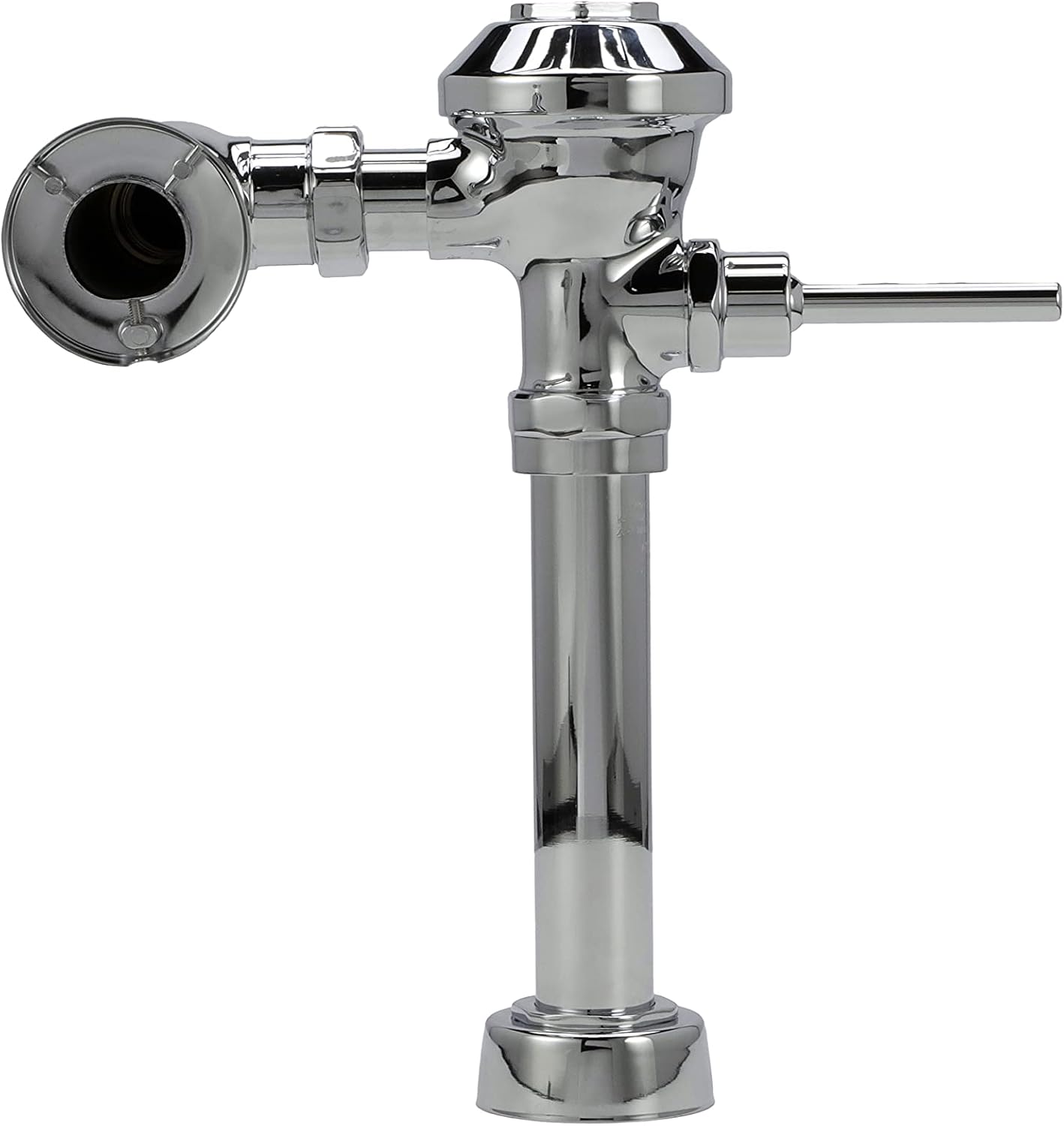

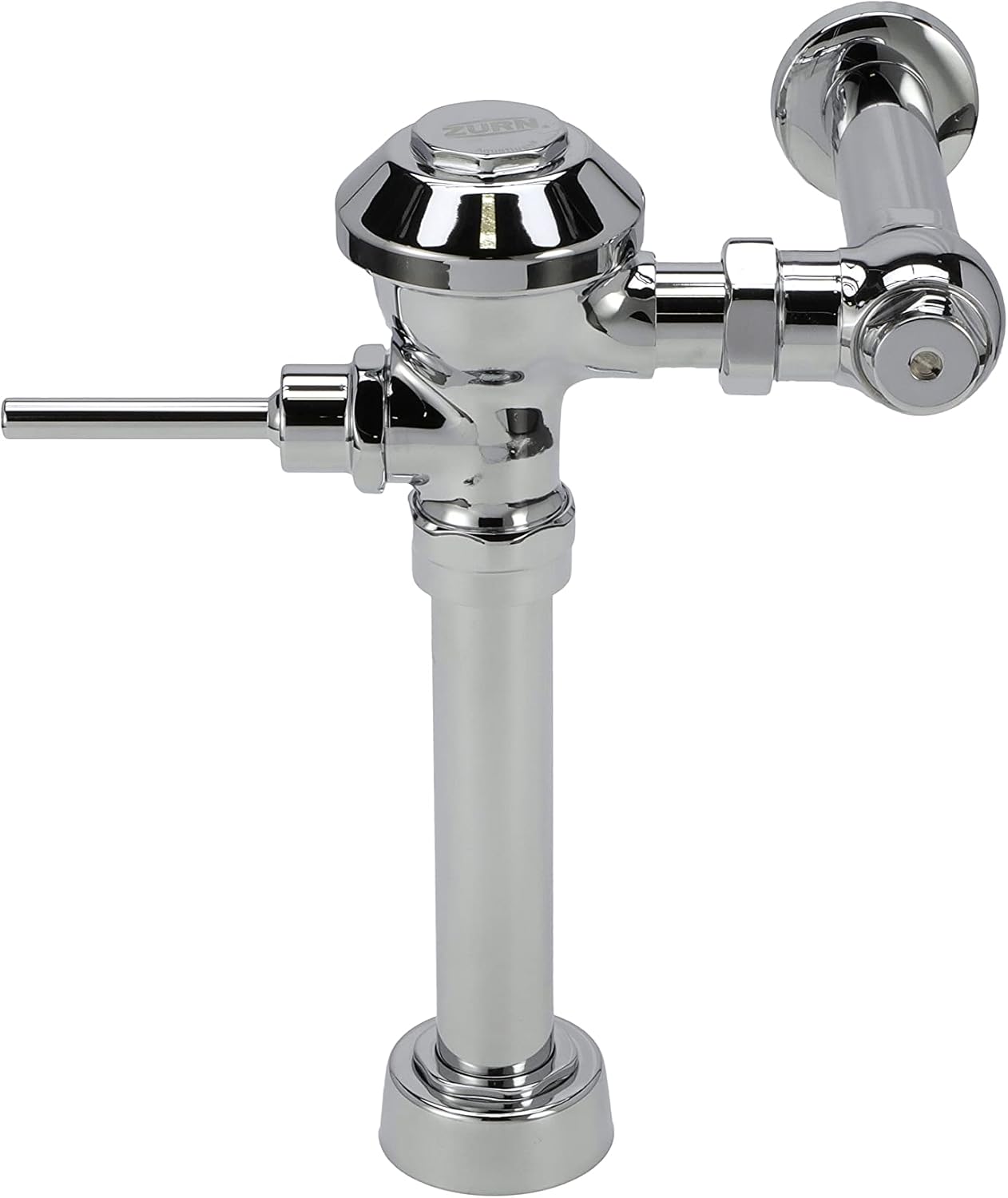

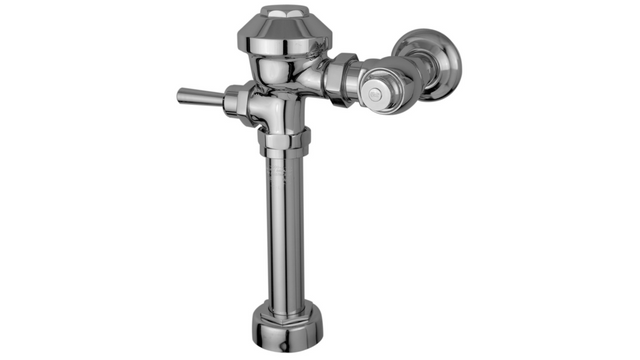

The Zurn Z6000‑WS1‑VC‑YB‑YC Aquaflush® Exposed Manual Diaphragm Flush Valve is a polished chrome‑plated flushometer engineered for water closets. It combines a chloramine‑resistant diaphragm, vandal‑resistant stop cover, and sweat solder kit with cast wall flange for reliable performance in commercial restrooms. This ADA‑compliant valve delivers low‑consumption 1.6 gpf operation with durable construction for high‑traffic environments.

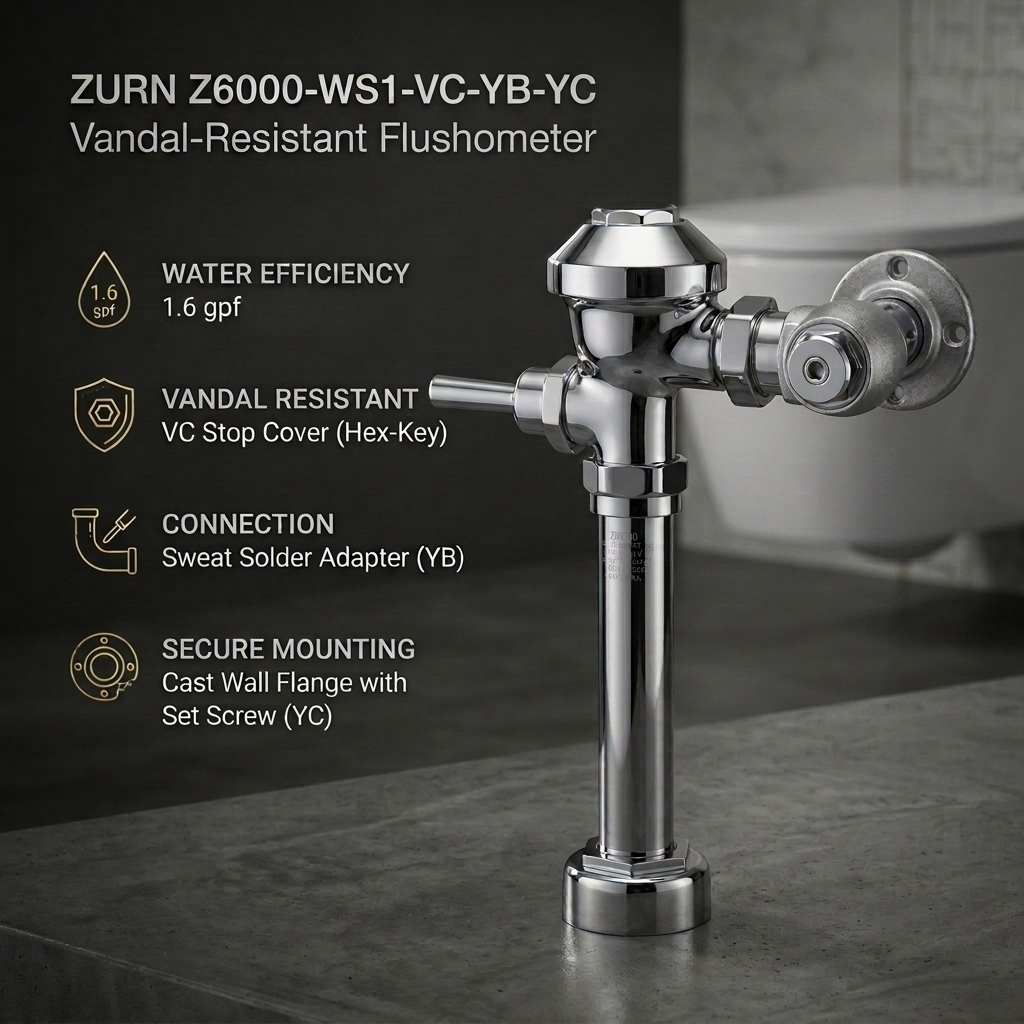

Key Specifications:
- Design: Exposed manual diaphragm flush valve with non‑hold open ADA handle
- Finish: Polished chrome‑plated brass with cast wall flange
- Flow Rate: 1.6 gallons per flush (WS1 low consumption)
- Special Features: Vandal‑resistant stop cover, sweat solder kit, chloramine‑resistant seals
- Compliance: ADA, ASSE 1037, CSA B125.37, WaterSense compatible
Features & Benefits:
- Water Conservation: 1.6 gpf low‑consumption design reduces water use compared to standard 3.5 gpf valves
- Durable Construction: Chrome‑plated brass body with chloramine‑resistant diaphragm and seals
- Reliable Performance: Clog‑resistant by‑pass and dual seal diaphragm for consistent operation
- ADA Compliant: Non‑hold open ADA handle ensures accessibility and ease of use
- Vandal Resistance: Stop cover and cast wall flange provide added protection in public restrooms
What's Included:
- Zurn Z6000‑WS1‑VC‑YB‑YC flush valve assembly
- Sweat solder kit
- Vandal‑resistant stop cover
- Cast wall flange with setscrew
- Installation instructions and warranty
Comparison of Zurn Flush Valves:
| Feature | Z6000‑WS1‑VC‑YB‑YC | Z6000‑HET‑YB‑YC | Z6000AV‑BWN‑FF |
|---|---|---|---|
| Finish | Polished chrome | Polished chrome | Polished chrome |
| Flow Rate | 1.6 gpf (WS1 low consumption) | 1.28 gpf (HET high efficiency) | 4.5 gpf (Full Flow with bedpan washer) |
| Special Features | Vandal‑resistant stop cover, sweat solder kit, cast wall flange | Sweat solder kit, cast wall flange, WaterSense labeled | Bedpan washer attachment, full flow diaphragm |
| Best For | Commercial restrooms needing durable low‑consumption flush valves | Facilities prioritizing water savings with high‑efficiency toilets | Healthcare or institutional settings requiring bedpan washing capability |
FAQ
Q: What Is The Flush Volume Of The Zurn Z6000‑WS1‑VC‑YB‑YC?
A: The Zurn Z6000‑WS1‑VC‑YB‑YC delivers 1.6 gallons per flush, designed as a low‑consumption Water Saver (WS1) valve.
Q: Is The Zurn Z6000‑WS1‑VC‑YB‑YC ADA Compliant?
A: Yes. It features a non‑hold open ADA handle and complies with ADA and ICC A117.1 accessibility standards.
Q: What Makes The Zurn Z6000‑WS1‑VC‑YB‑YC Vandal Resistant?
A: It includes a vandal‑resistant stop cover and cast wall flange with setscrew, protecting against tampering in public restrooms.
Q: What Accessories Are Included With The Zurn Z6000‑WS1‑VC‑YB‑YC?
A: The valve comes with a sweat solder kit, vandal‑resistant stop cover, and cast wall flange. Additional handle options and push button assemblies are available separately.
Q: How Does The Zurn Z6000‑WS1‑VC‑YB‑YC Compare To High‑Efficiency Models?
A: While the Z6000‑WS1‑VC‑YB‑YC operates at 1.6 gpf, the Z6000‑HET variant provides 1.28 gpf for high‑efficiency toilets, offering greater water savings.
NOTICE: Installations must follow local plumbing codes. Do not use with water supply below 25 psi for low‑consumption fixtures.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Zurn Z6000‑WS1‑VC‑YB‑YC AquaFlush® Series Flush Valve is a 1.6 GPF water closet valve engineered for vandal‑resistant performance. Featuring a cast brass body, chrome‑plated exterior, and ADA‑compliant non‑hold‑open handle, it is ideal for commercial restrooms requiring durability and water conservation.

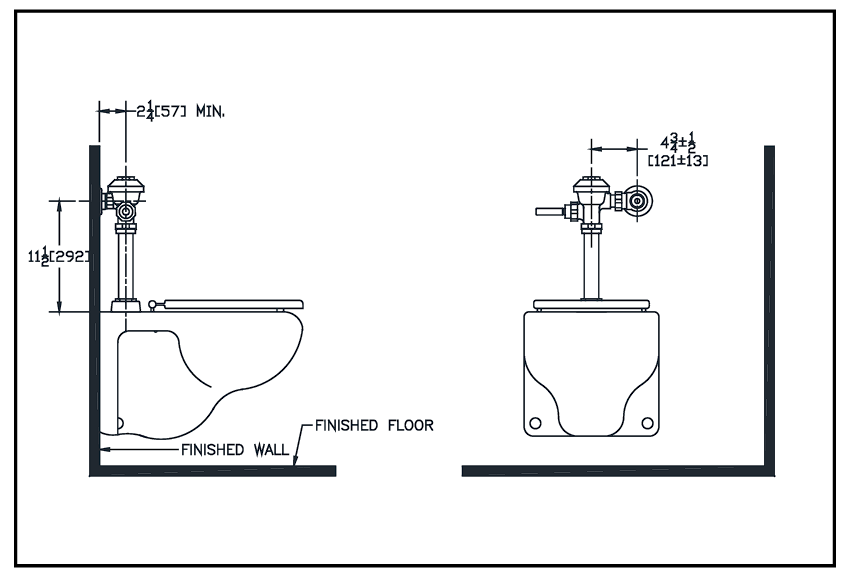

Key Installation Requirements:
- Install on standard water closet with 1‑1/2" top spud connection
- Supply line pressure: 25–100 PSI (regulator required if above 100 PSI)
- Install vacuum breaker and spud coupling per plumbing code
- Ensure proper alignment of handle assembly for ADA compliance
- Use supplied tailpiece, control stop, and mounting hardware
- Follow local plumbing codes and regulations for installation
Important Notes Before Installing:
- Do not use pipe dope or sealant on diaphragm assembly
- Flush supply line thoroughly before connecting valve
- Depressurize system before servicing or replacing diaphragm
- Ensure vacuum breaker is installed to prevent backflow
- Use only genuine Zurn replacement parts to maintain warranty
- Check handle operation after installation to confirm non‑hold‑open function
Basic Installation Overview:
- Shut off water supply and remove existing flush valve if present
- Install new control stop and tailpiece into supply line
- Attach flush valve body to spud coupling and tighten securely
- Connect vacuum breaker tube and flange to valve outlet
- Install handle assembly and vandal‑resistant stop cap
- Turn on water supply and check for leaks
- Test flush cycle; adjust flow regulator if needed
- Verify ADA handle operation and secure all components
For complete specifications and installation guidelines, download the official Z6000 Spec Sheet and the Installation & Maintenance Manual.
