Elkay LZSTL8WSMP-PF | Enhanced ezH2O® Bi-Level PFOA/PFOS Reduction ...

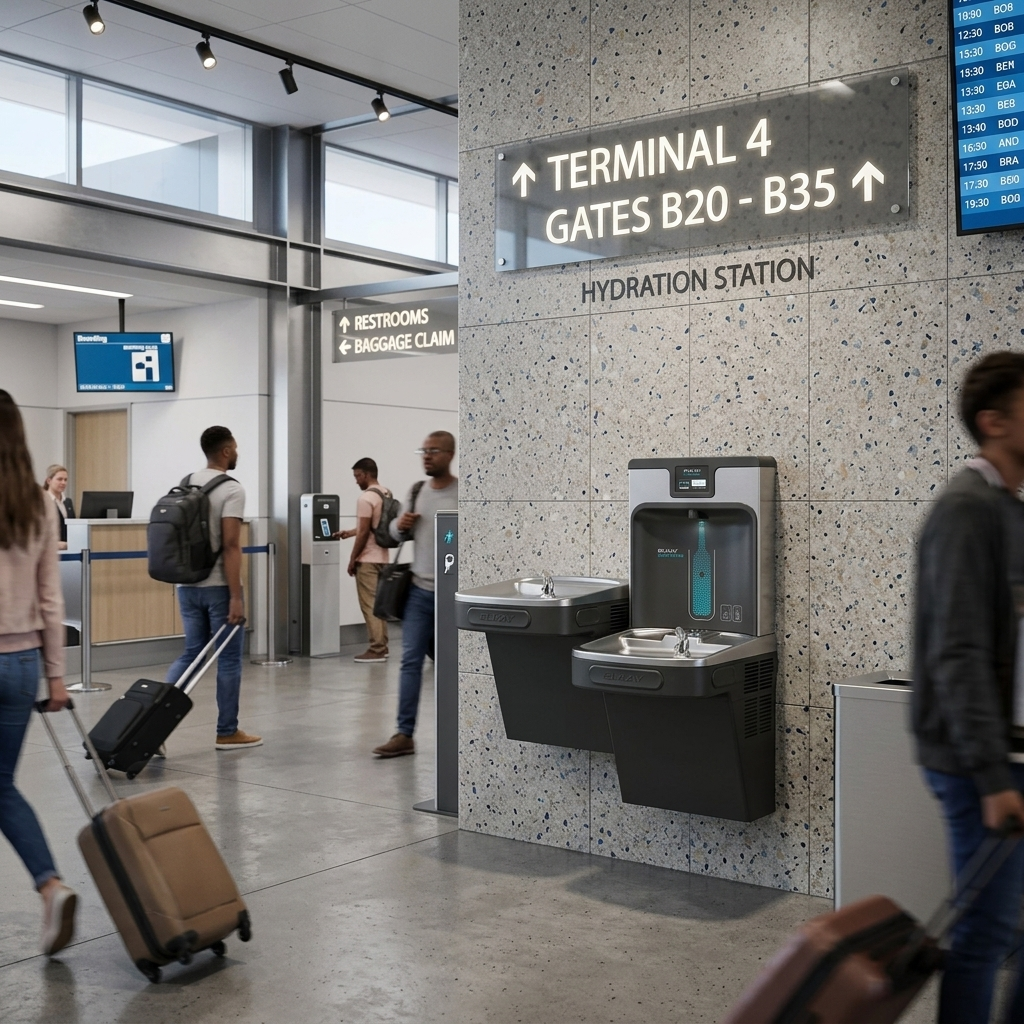

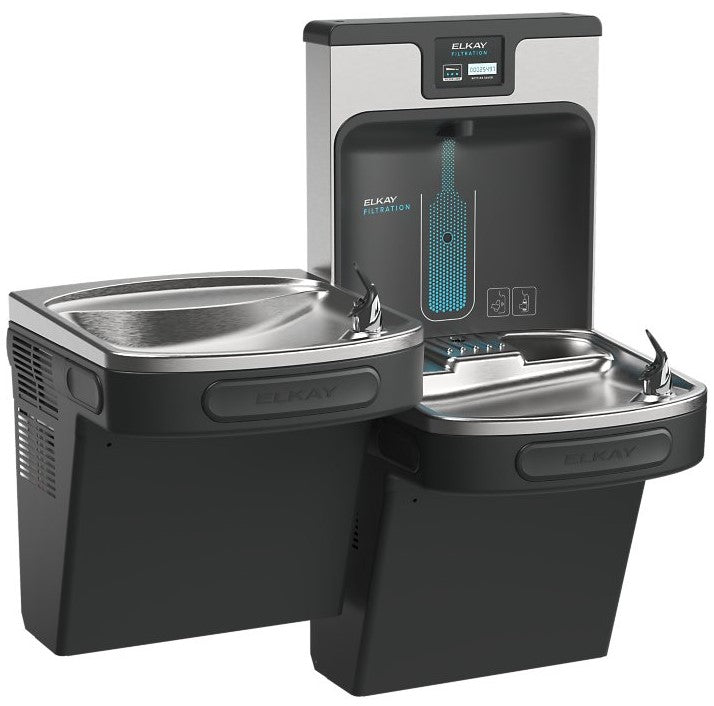

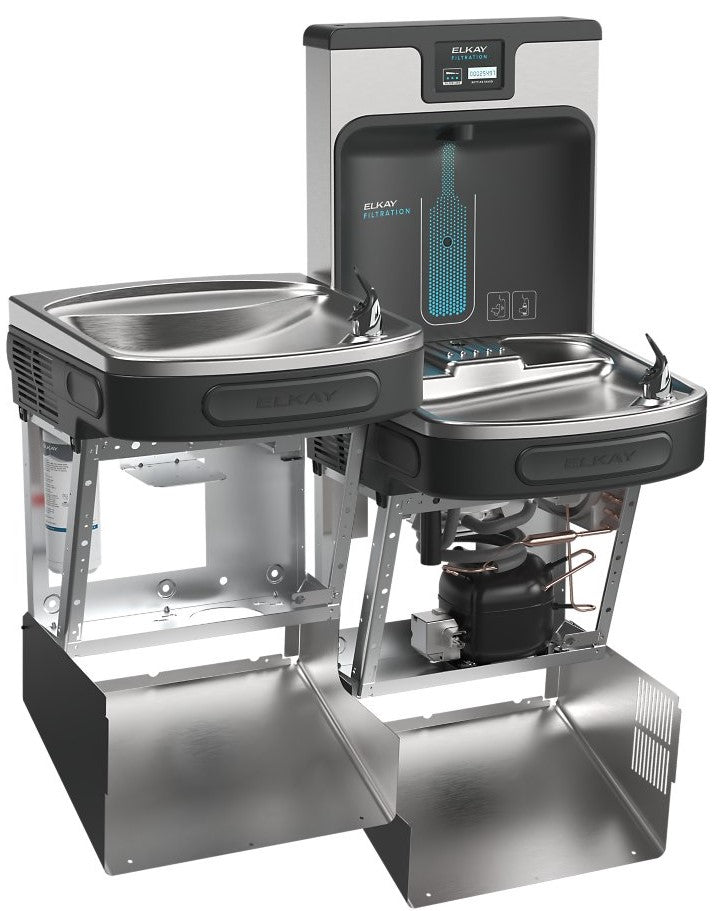

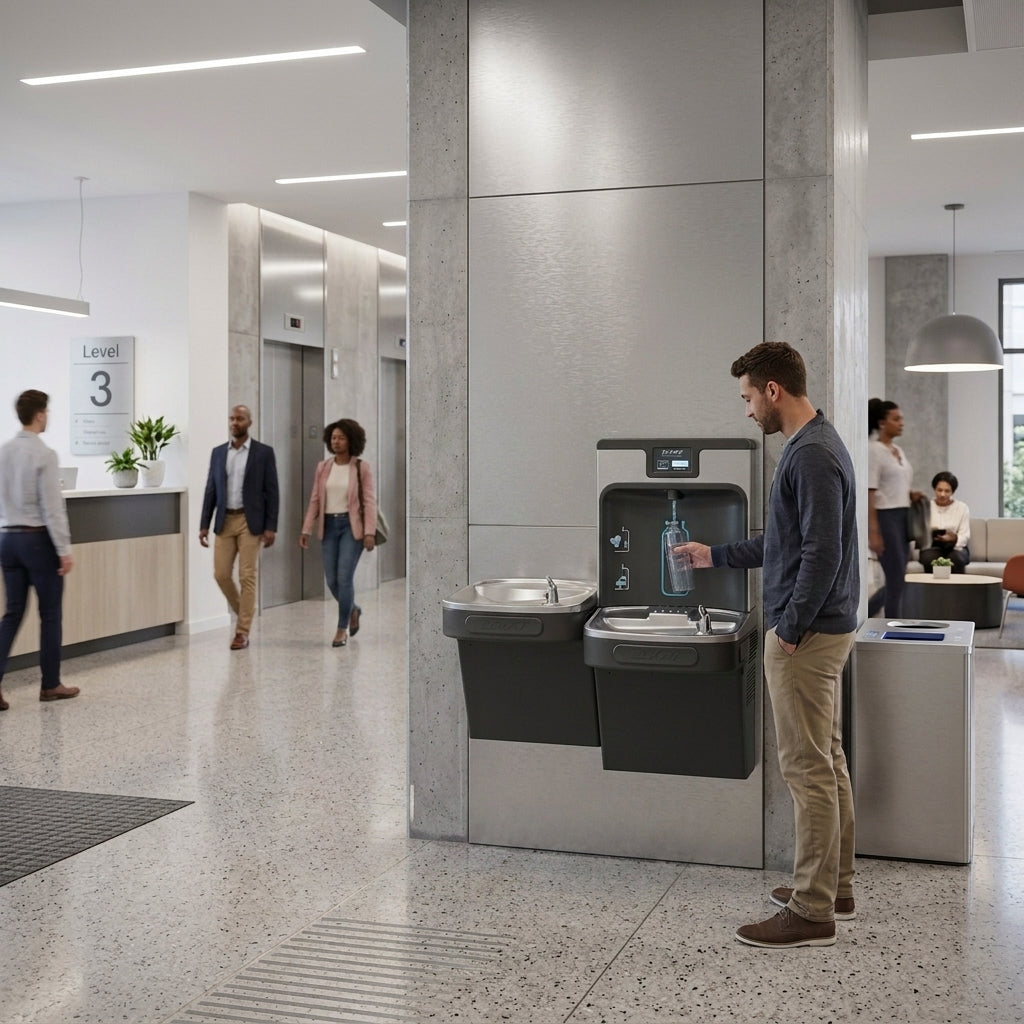

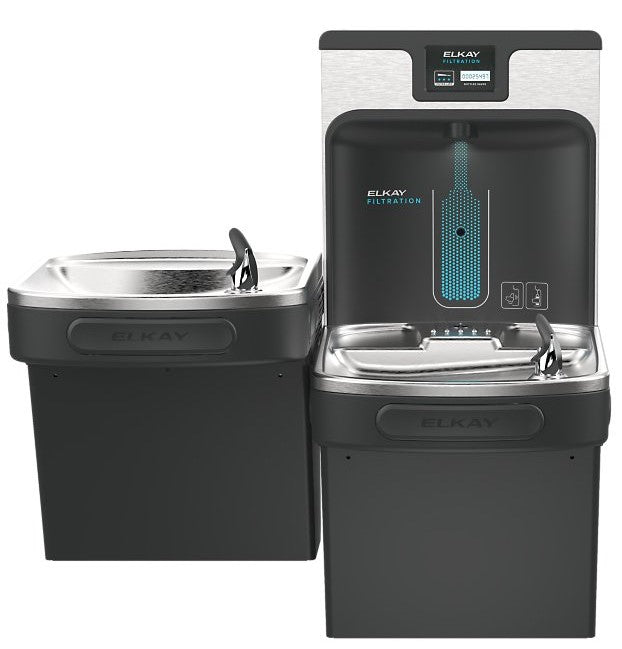

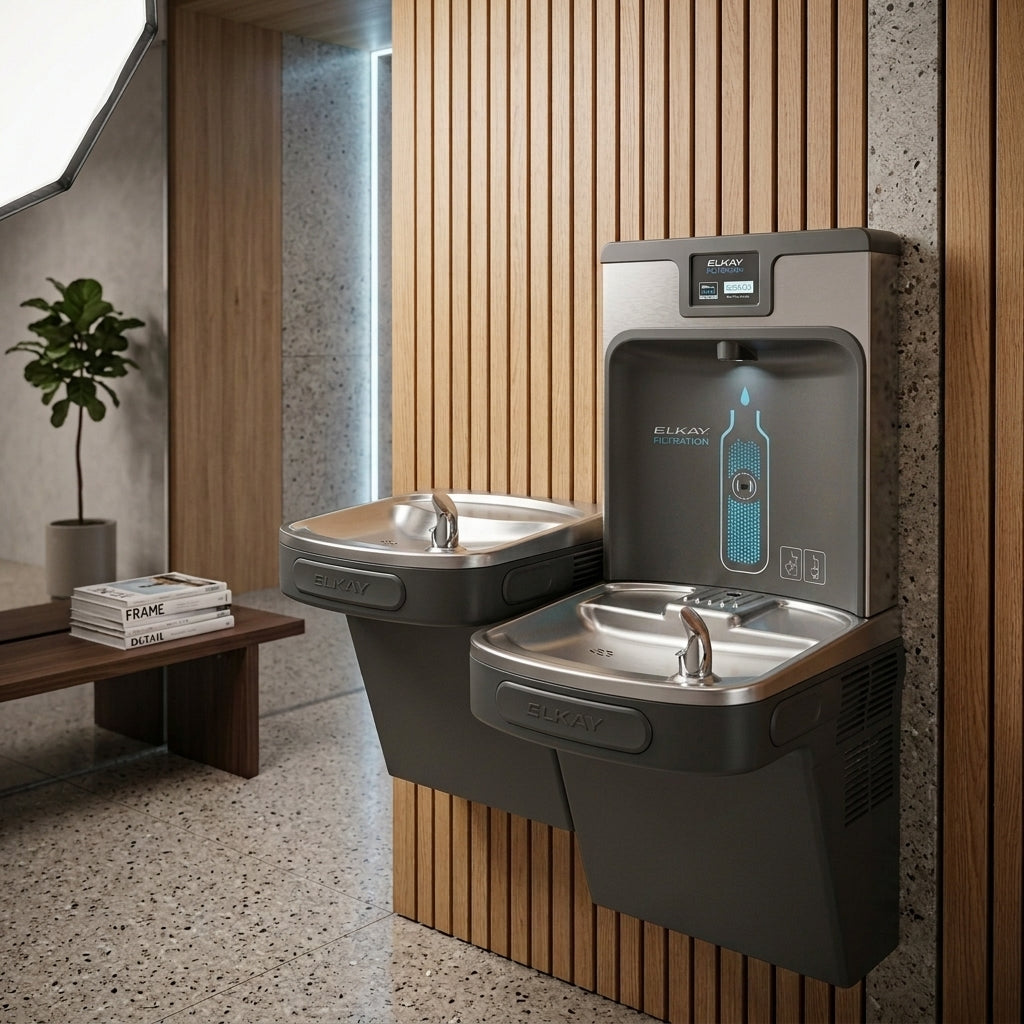

The Elkay LZSTL8WSMP‑PF Enhanced ezH2O® Versatile Bi‑Level ADA Cooler is a refrigerated, filtered unit in Midnight Black finish. It features PFAS (PFOA/PFOS) reduction filtration, quick filter change access, and advanced enhancements like Green Ticker™, antimicrobial protection, and energy savings mode, making it ideal for high‑traffic indoor facilities.
Key Specifications:
| Design | Versatile bi‑level ADA cooler with integrated bottle filler, electronic sensor activation, Flexi‑Guard® Safety Bubblers |
| Finish | Midnight Black (BK). Also available in Stainless Steel (LZSTL8WSSP‑PF) and Arctic White (LZSTL8WSAP‑PF). |
| Filtration | Equipped with the 71300C PFAS Reduction Filter (2,250 gal capacity). Reduces PFOA/PFOS, microplastics, lead, chlorine taste & odor, and particulates. |
| Refrigeration | 8.0 gallons per hour of 50°F chilled water (based on 80°F inlet and 90°F ambient temperature) |
| Stations Served | 2 (bi‑level drinking fountains & bottle filler) |
Features & Benefits:
- PFAS Reduction: Certified to NSF/ANSI standards for PFOA/PFOS and microplastics reduction, ensuring safer water.
- Quick Filter Change: Wrapper design allows front and side access for filter replacement in under a minute.
- Visual Filter Monitor: LED indicator shows filter status and resets automatically when replaced.
- Energy Savings Mode: Reduces power consumption during low‑use periods.
- Hands‑Free Bottle Filler: Electronic sensor activation with laminar flow for clean, splash‑free filling.
What's Included:
- LZSTL8WSMP‑PF Bottle Filling Station & Versatile Bi‑Level ADA Cooler unit
- WaterSentry® PFAS Reduction Filter (71300C)
- Flexi‑Guard® Safety Bubblers
Comparison of ADA Bottle Filling Coolers:
| Feature | LZSTL8WSMP‑PF | LZSTL8WSMP‑W1 | LZSTL8WSBPRO |
|---|---|---|---|
| Finish | Midnight Black (Stainless Steel & Arctic White options available) | Midnight Black | Stainless Steel |
| Filtration | 71300C PFAS Reduction Filter, 2,250 gal capacity | High‑capacity lead reduction filter, 6,000 gal capacity with Wi‑Fi monitoring | Pro Filtration, FL10 10,000 gal capacity |
| Best For | Facilities needing PFAS reduction and ADA bi‑level access | Facilities requiring connected monitoring and higher capacity filtration | High‑traffic facilities needing advanced Pro Filtration and dual‑station service |
| Features | PFAS reduction, quick filter change, energy savings mode, ADA compliant | Wi‑Fi monitoring, high‑capacity filtration, ADA compliant | Pro Filtration system, advanced contaminant reduction, ADA compliant |
| Activation | Electronic bottle filler sensor with front and side bubbler pushbar | Electronic bottle filler sensor with front and side bubbler pushbar | Hands‑free sensor activation |
FAQ
Q: What Contaminants Does the LZSTL8WSMP‑PF Filter Reduce?
A: The 71300C Filter reduces PFAS (PFOA/PFOS), microplastics, lead, chlorine taste & odor, and particulates.
Q: What Is the Filter Capacity of This Unit?
A: The PFAS filter provides 2,250 gallons of capacity. For higher capacity lead reduction, see the LZSTL8WSMP‑W1 connected model with Wi‑Fi monitoring.
Q: How Often Should the Filter Be Replaced?
A: Replace the filter annually or when capacity is reached. The LED monitor will indicate when replacement is required.
Q: Is This Unit ADA Compliant?
A: Yes. The versatile bi‑level design meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Is There a Bottle Filler Available With Higher Capacity and Performance?
A: Yes. For facilities requiring higher performance filtration, visit the Elkay Pro Filtration Collection.
Q: What Is the Difference Between LZSTL8WSMP‑PF and LZSTL8WSMP‑W1?
A: LZSTL8WSMP‑PF: PFAS reduction model with 71300C filter for PFOA/PFOS and microplastics. LZSTL8WSMP‑W1: Connected model with Wi‑Fi monitoring and enhanced capacity tracking.
Q: What Accessories Are Available for This Unit?
A: For added support and customization, order the MLP200 In‑Wall Carrier for bi‑level installations and the Stainless Steel Back Panel for enhanced durability and aesthetics.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us Now
The Elkay LZSTL8WSMP‑PF Enhanced EZH2O Bi‑Level Bottle Filling Station provides filtered, refrigerated water with advanced PFAS (PFOA/PFOS) reduction. Its dual‑level ADA design offers accessible hydration while supporting sustainability and reducing plastic waste.
Key Installation Requirements:
- Wall‑mounted installation with hanger bracket support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz with GFCI outlet required
- Water supply line: 3/8" O.D. copper tube with shut‑off valve (not included)
- Drain connection: 1‑1/4" O.D. trap (not included)
- Maintain 6" clearance from cabinet louvers to wall for ventilation
- Allow proper clearance for filter cartridge changes
Important Notes Before Installing:
- Do not connect to hot water line.
- Replace filter cartridge (71300C PFAS reduction) annually or when flow rate slows.
- Stream height is factory set for 35 PSI; adjust if supply pressure varies.
- Certified to meet ADA requirements when installed at proper height.
- Always refer to the official Elkay LZSTL8WSMP‑PF Spec Sheet for detailed specifications and compliance information.
Basic Installation Overview:
- Remove hanger bracket from cooler and mount securely to wall using all six bolt holes.
- Hang cooler on bracket, ensuring proper engagement with slots on the back.
- Connect water inlet line to shut‑off valve and 3/8" tubing.
- Install 1‑1/4" trap to drain line and tighten securely.
- Plug unit into grounded GFCI electrical outlet.
- Install PFAS reduction filter cartridge (71300C) into filter head and rotate clockwise until seated.
- Turn on water supply, flush system, and check for leaks.
- Reinstall front panel and confirm proper operation.
For complete step‑by‑step instructions, download the official Elkay Enhanced EZH2O Installation & Maintenance Guide
