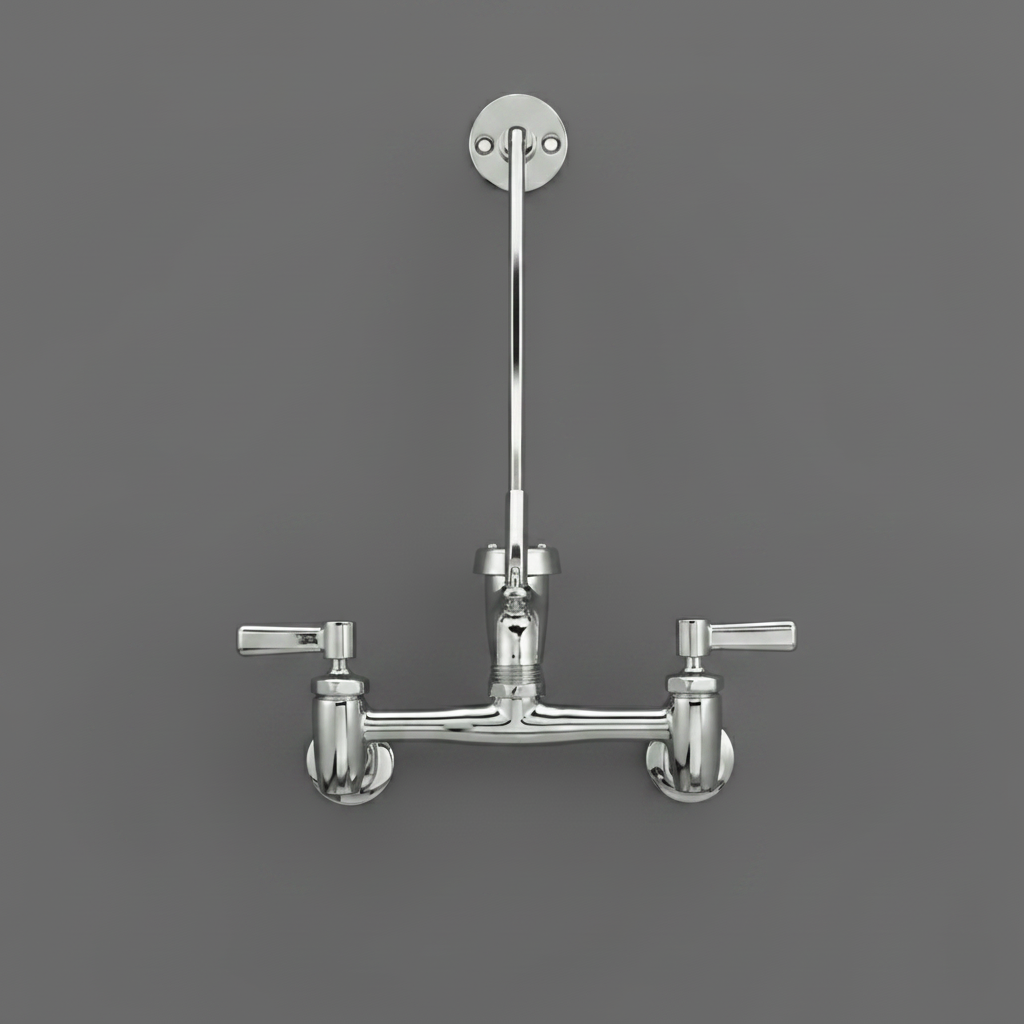

Zurn Z843M1-XL | Wall-Mount Sink Faucet | 6" Vacuum Breaker Spout
The Zurn Z843M1‑XL is a wall‑mount sink faucet with a 6" vacuum breaker spout, designed for service sinks and utility applications. Built from polished chrome‑plated cast brass, it features ceramic disc cartridges, vandal‑resistant lever handles, and ADA compliance for durability and safety in commercial environments.
Key Specifications:
- Design: 8" wall‑mount sink faucet with 6" vacuum breaker spout and pail hook
- Finish: Polished chrome‑plated cast brass body
- Cartridges: Quarter‑turn ceramic disc cartridges for reliable operation
- Handles: 2‑1/2" vandal‑resistant color‑coded brass lever handles
- Compliance: ADA, ASME A112.18.1/CSA B125.1, NSF 372, IPC
Features & Benefits:
- Vacuum Breaker Spout: Certified to ASSE 1001 and CSA B64‑01, prevents backflow contamination
- Durable Construction: Chrome‑plated cast brass body ensures long service life
- Easy Operation: Quarter‑turn ceramic disc cartridges provide smooth handle action
- ADA Compliant: Lever handles meet accessibility requirements
- Utility Ready: Includes 3/4" hose threaded outlet, wall brace, and pail hook
What's Included:
- Z843M1‑XL faucet body with 6" vacuum breaker spout
- Vandal‑resistant lever handles
- Wall brace and pail hook
- Installation instructions
- Warranty documentation
Comparison of Zurn Service Sink Faucets:
| Feature | Z843M1‑XL | Z843M1‑XL‑CS |
|---|---|---|
| Finish | Polished chrome‑plated cast brass | Polished chrome‑plated cast brass |
| Spout | 6" vacuum breaker spout with 3/4" hose outlet | 6" vacuum breaker spout with 3/4" hose outlet |
| Handles | 2‑1/2" vandal‑resistant lever handles | 2‑1/2" vandal‑resistant lever handles |
| Special Features | Wall brace, pail hook, ceramic disc cartridges | Includes check stops (-CS suffix) for added shut‑off control |
| Best For | Commercial service sinks requiring hose connection and backflow protection | Facilities needing service sink faucet with integrated check stops for maintenance flexibility |
FAQ
Q: Is The Zurn Z843M1‑XL ADA Compliant?
A: Yes. The Zurn Z843M1‑XL complies with ADA and ICC A117.1 accessibility standards when installed correctly.
Q: What Type Of Cartridges Does The Zurn Z843M1‑XL Use?
A: It uses quarter‑turn ceramic disc cartridges, which provide smooth operation and long service life.
Q: What Makes The Zurn Z843M1‑XL Suitable For Service Sinks?
A: It includes a 6" vacuum breaker spout with hose threaded outlet, wall brace, and pail hook, making it ideal for utility and janitorial applications.
Q: What Is The Difference Between Zurn Z843M1‑XL And Z843M1‑XL‑CS?
A: The Z843M1‑XL‑CS includes check stops (-CS suffix) for added shut‑off control, while the Z843M1‑XL does not.
Q: How Should The Zurn Z843M1‑XL Be Maintained?
A: Clean the chrome finish with mild soap and water. Do not use acids or harsh cleaners. Cartridges require no maintenance but can be replaced if needed.
NOTICE: This faucet is not intended for continuous pressure applications when used with atmospheric vacuum breakers. Install according to local plumbing codes.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Zurn Z843M1‑XL Wall‑Mount Sink Faucet is a durable commercial fixture featuring a cast brass body, polished chrome finish, and ceramic disc cartridges for long‑lasting performance. Designed for wall‑mount installations, it provides reliable manual operation with ADA compliance.

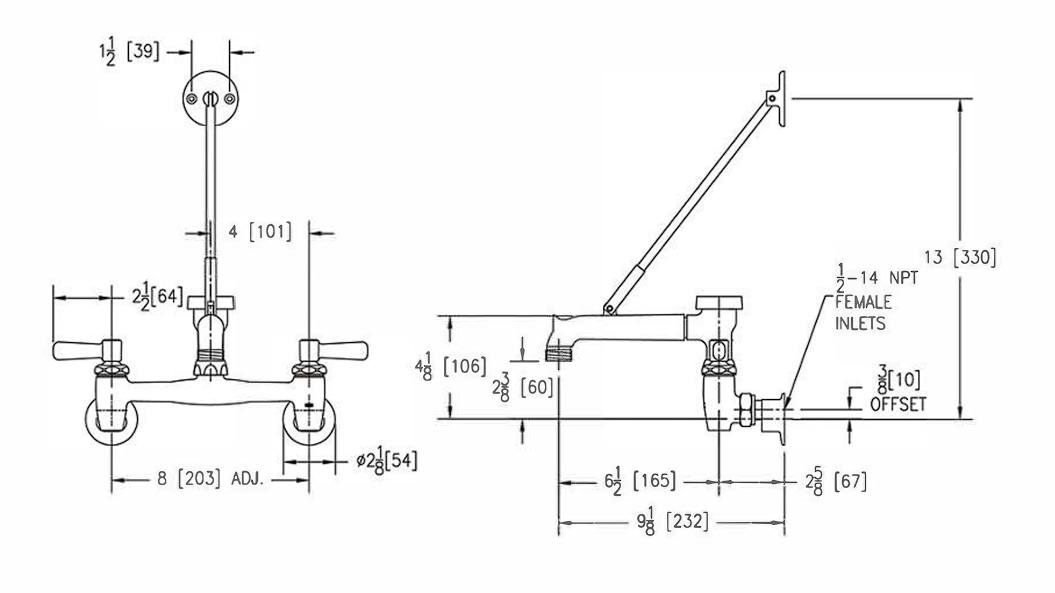

Key Installation Requirements:
- Wall‑mount installation with 8" center spacing
- Supply connections: 1/2" NPT female inlets
- Install with proper wall support and mounting hardware
- Ensure ceramic disc cartridges are properly seated
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not overtighten supply connections — use hand tools only
- Flush supply lines thoroughly before installation to remove debris
- Verify water pressure is within recommended range for proper flow
- Use only genuine Zurn replacement cartridges and aerators
- Check compliance with local plumbing codes before installation
- Inspect gasket and mounting hardware to ensure leak‑free performance
Basic Installation Overview:
- Position faucet on wall with 8" centers and secure with mounting hardware
- Connect hot and cold supply lines to 1/2" NPT inlets
- Install ceramic disc cartridges and handles
- Turn on water supply and check for leaks
- Test faucet operation and adjust flow as needed
- Install trim and finish components
For complete specifications and installation guidelines, download the official Z843M1‑XL Spec Sheet and the Installation & Maintenance Manual.
Want to Order the Z843M1‑XL Wall‑Mount Faucet or Get a Custom Quote?
