Zurn P6000-HW6 | Hardwired Power Converter | 7.6 VDC

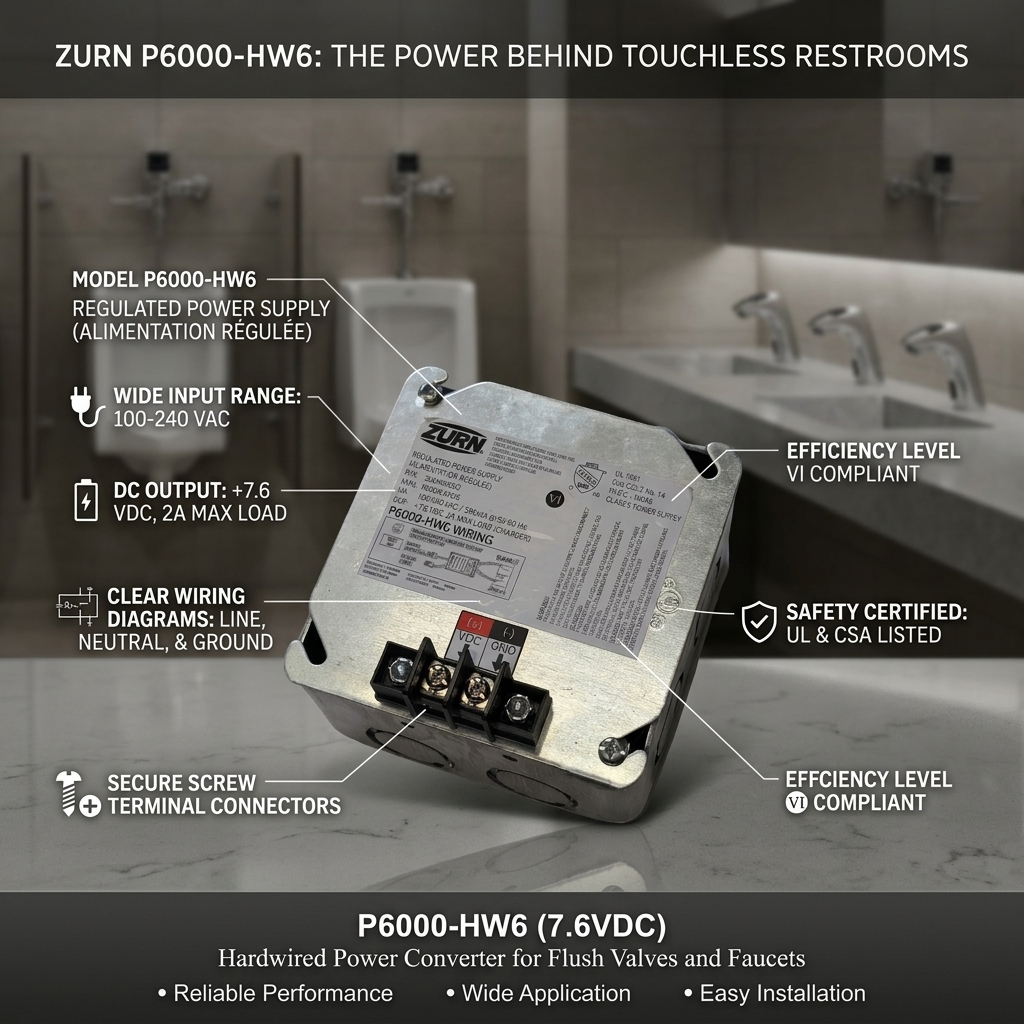

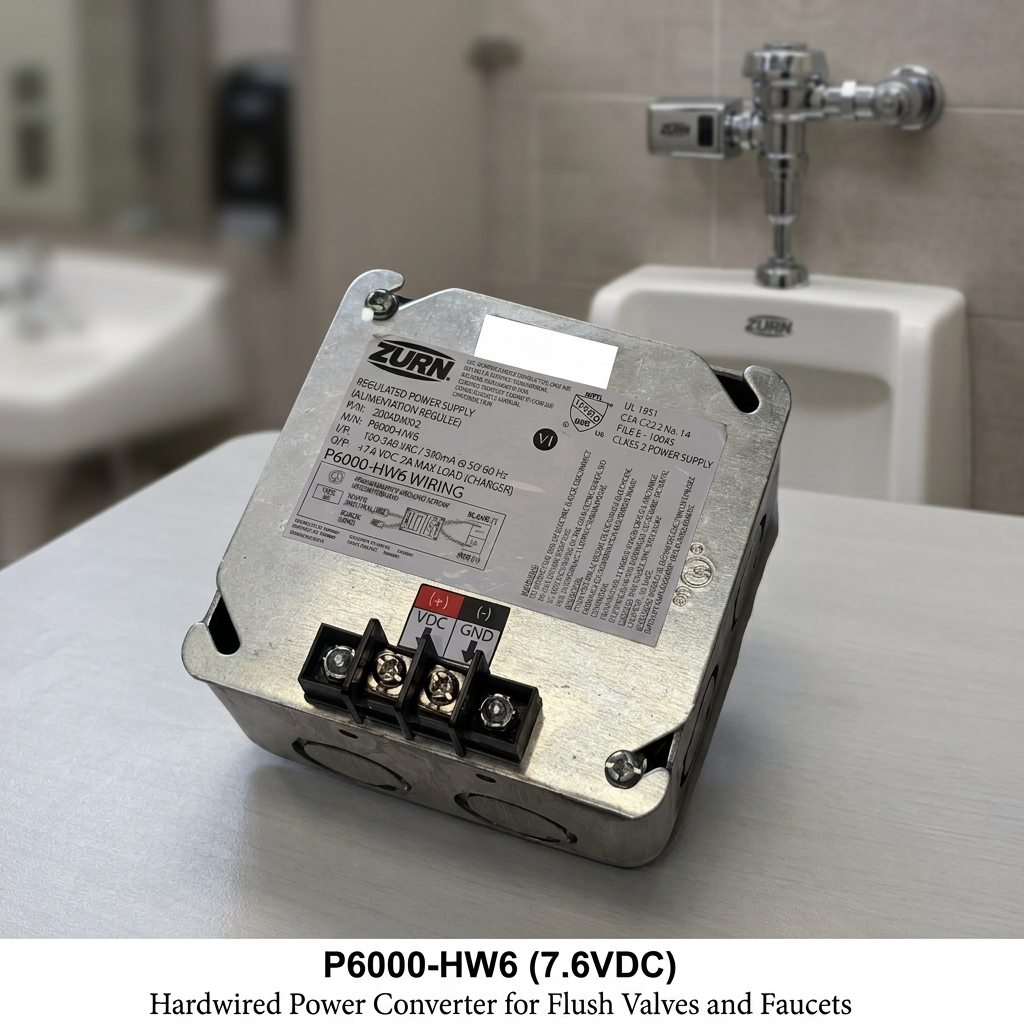

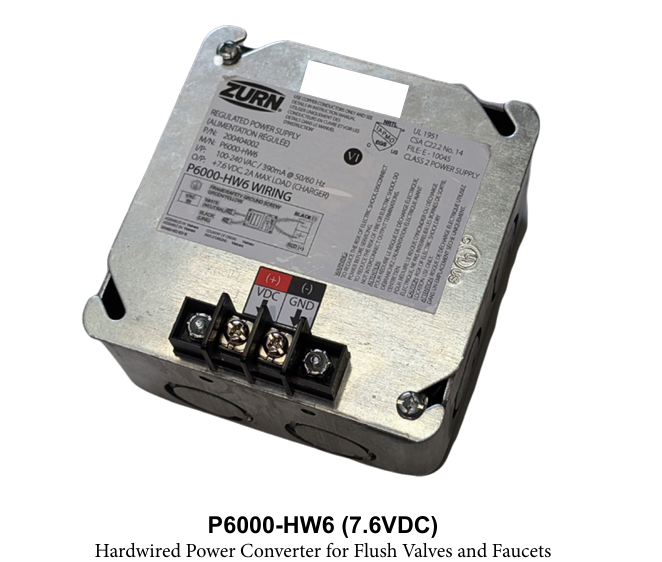

The Zurn P6000‑HW6 is a hardwired power converter designed to provide reliable 7.6 VDC regulated output for powering up to 8 sensors used in flush valves and faucets. Integrated into a standard electrical box, it ensures consistent performance and simplified installation for commercial restroom applications.
Key Specifications:
- Output Voltage: 7.6 VDC regulated
- Output Current: 2.0A maximum load
- Input Voltage: 100–240V AC, 50–60 Hz
- Electrical Box Size: 4" L × 4" W × 2‑1/8" D
- Compatibility: Powers up to 8 Zurn sensors, faucets, or flush valves
Features & Benefits:
- Multi‑Device Support: Operates up to 8 ZEMS, ZEMS‑IS, ZESS sensors, sensor faucets, or pint urinal valves
- Universal Voltage Compatibility: Accepts 100–240V AC input for flexible installation worldwide
- Compact Integration: Fits into a standard 4" electrical box with external low‑voltage output terminals
- Reliable Power Delivery: Provides consistent 7.6 VDC regulated output at 2.0A for dependable sensor performance
- Durable Construction: UL and CSA certified Class 2 power supply for safe, long‑term use
FAQ
Q: What Devices Are Compatible with Zurn P6000‑HW6?
A: The P6000‑HW6 is compatible with Zurn ZEMS, ZEMS‑IS, and ZESS sensors/actuators, sensor faucets, and pint urinal valves. It can power up to 8 hardwire‑fitted devices simultaneously.
Q: What Electrical Box Size Is Required for Installation?
A: The P6000‑HW6 integrates into a standard 4" × 4" × 2‑1/8" electrical box. AC input connections terminate inside the box, while the 7.6 VDC output terminals are externally mounted on the cover plate.
Q: What Input Voltage Does Zurn P6000‑HW6 Accept?
A: The converter accepts 100–240V AC input at 50–60 Hz, converting it to a regulated 7.6 VDC output at 2.0A.
Q: How Many Sensors Can Zurn P6000‑HW6 Operate?
A: The P6000‑HW6 can reliably power up to 8 Zurn sensors or devices, making it suitable for multi‑fixture installations in commercial restrooms.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

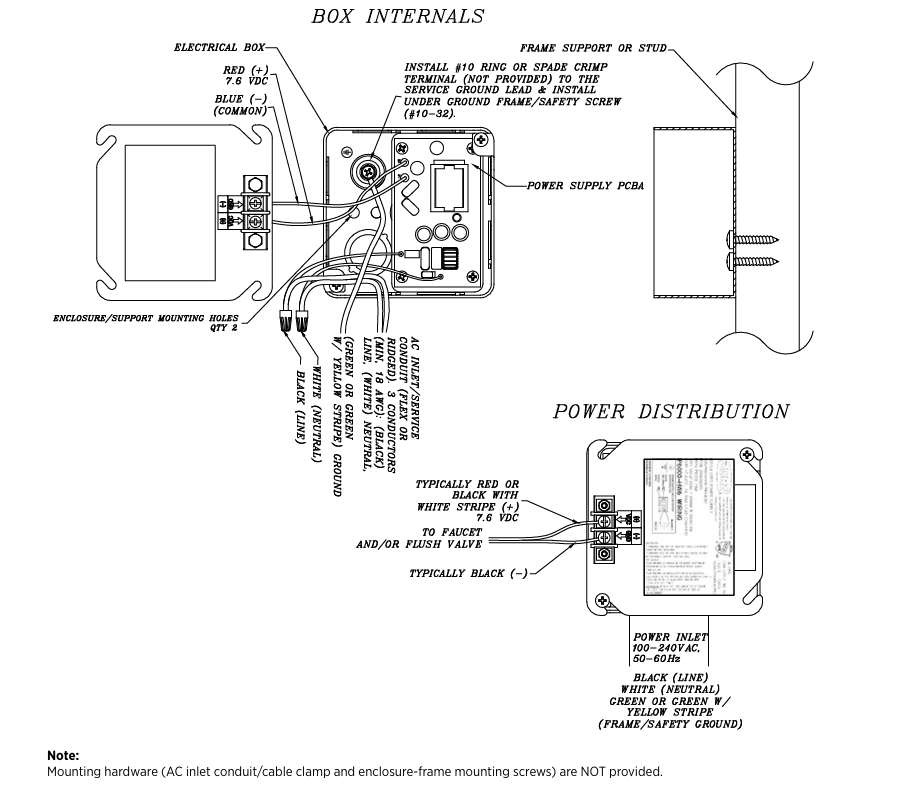

- Verify that AC power is turned OFF using a voltmeter or inductive probe; follow lock‑out/tag‑out procedures before installation.
- Loosen the two cover screws and rotate the integrated cover plate to access the internal enclosure (4" x 4" x 2‑1/8").
- Secure the P6000‑HW6 enclosure to a frame or stud using at least two suitable fasteners; do not remove the supply from the enclosure.
- Connect AC service conductors: black (line), white (neutral), and green/green‑yellow (frame ground) using UL‑approved terminals or connectors per NEC/local code.
- Verify continuity between the enclosure and the frame/safety ground supply line.
- Form conductor leads to allow proper cover installation; secure the cover with the two screws.
- Restore AC power and measure low‑voltage output with a DC voltmeter; verify ~7.6 VDC output.
- Attach product leads to low‑voltage output terminals using M4.0 or #8 ring/spade crimp terminals (not provided); red (+), black (–).
- For remote runs under 40', use 18AWG UL‑rated cable (CMP, CMR, CMX) as specified in NEC for plenum or wall installations.
- Ensure ground jumper remains installed for sensor circuit noise reduction; do not remove.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed electrician.
- Disconnect AC power before servicing to avoid electric shock.
- Inspect wiring connections periodically for secure terminations and signs of wear.
- Check enclosure mounting screws to ensure the P6000‑HW6 remains securely fastened.
- Verify low‑voltage output (~7.6 VDC) during routine checks; replace unit if output is unstable.
- Clean exterior surfaces with a dry cloth; avoid moisture or chemicals inside the enclosure.
- Confirm ground jumper is intact and properly connected for reliable sensor operation.
- For service or repairs, consult the manual or a certified service representative.
