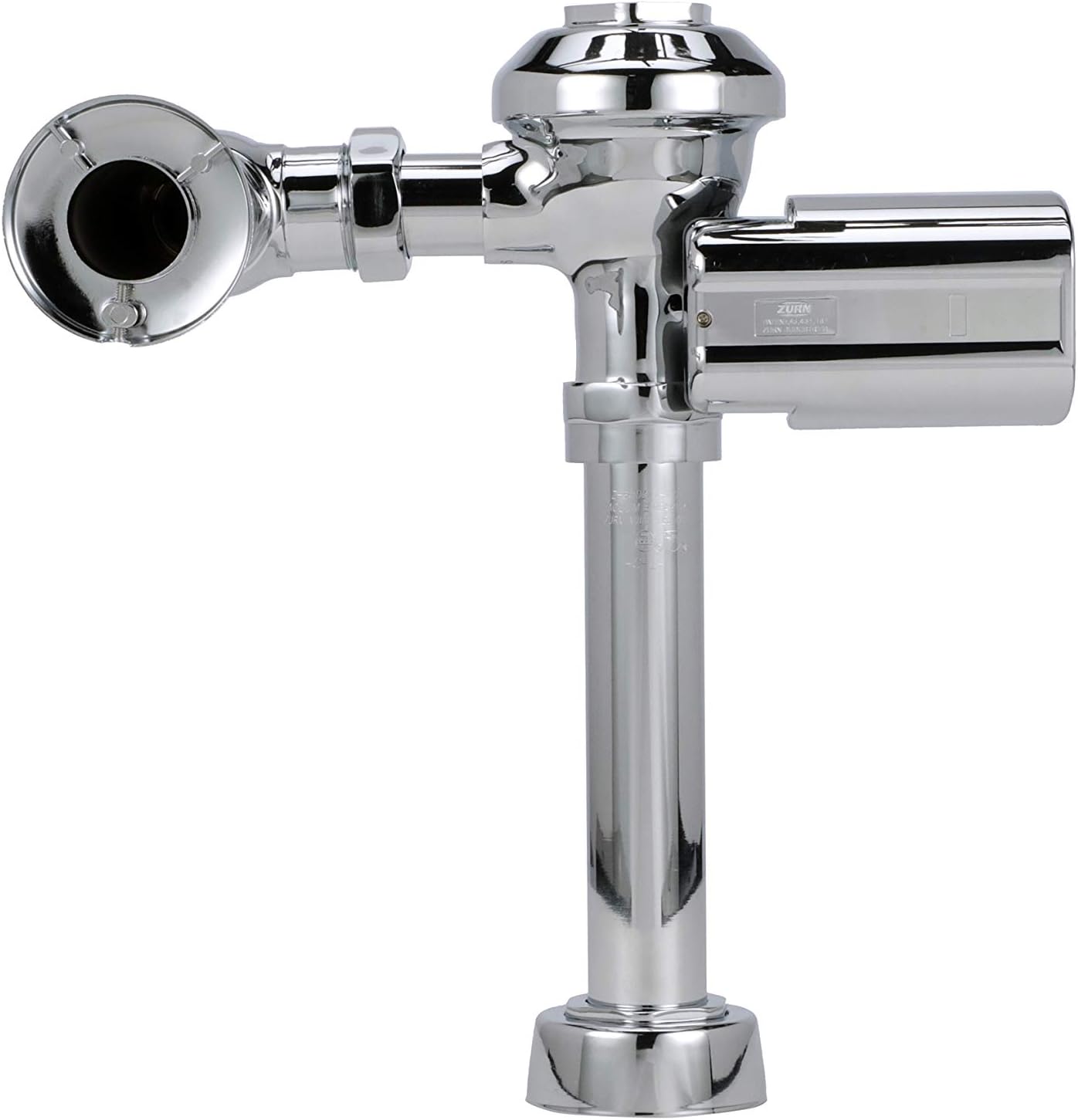

Zurn ZER6000PL-CPM | Sensor Operated Battery Powered Flush Valve for Water Closets | 1.28 - 3.5 GPF
Zurn ZER6000PL-CPM | Sensor Operated Battery Powered Flush Valve for Water Closets | 1.28 - 3.5 GPF - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6000PL-CPM | Sensor Operated Battery Powered Flush Valve fo...
The Zurn ZER6000PL-CPM offers a clean, hands-free solution for modern commercial restrooms. Its durable design supports enhanced hygiene and reliable performance, making it an excellent choice for high-traffic environments requiring robust flushing capabilities.
Key Specifications:
- Flow Rate: 3.5 gallons per flush (Standard).
- Power: 6VDC motor with battery-powered sensor.
- Body: AquaFlush Plus chrome-plated brass.
- Sensor: Infrared with 10-degree angle for optimal detection.
- Diaphragm: AquaVantage TPE with triple filtered by-pass.
Features & Benefits:
- Touchless Operation: Sensor activation eliminates cross-contamination in public restrooms.
- Powerful Performance: Standard 3.5 gpf design delivers robust flushing action suitable for demanding commercial applications.
- Premium Components: AquaFlush Plus body offers enhanced durability and dezincification resistance.
- Smart Sensing: 3-second delay prevents false flushes with 24-hour auto-flush capability.
- Reliable Performance: Triple filtered by-pass prevents clogging and extends service life.
Options Available:

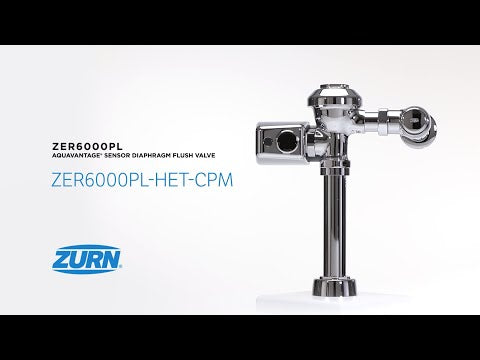

- ZER6000PL-HET-CPM: High-efficiency model with 1.28 gpf for water conservation applications.
- ZER6000PL-WS1-CPM: Water-saving model with 1.6 gpf for balanced efficiency and performance.
What's Included:
- 1 x ZER6000PL-CPM Sensor Flush Valve
- 1 x AquaVantage® TPE Diaphragm Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 4 x "C" Size Batteries
- 1 x Installation Wrench
- 1 x Allen Key for Battery Compartment
FAQ
Q: What makes this flush valve ideal for commercial applications?
A: The ZER6000PL-CPM delivers powerful 3.5 gpf performance that provides robust waste evacuation in demanding commercial environments. The sensor activation enhances hygiene while eliminating the need for manual handles, and the durable brass construction with chloramine-resistant components ensures long-term reliability even in high-traffic settings. This combination of performance and durability makes it particularly suitable for facilities requiring dependable operation with minimal maintenance.
Q: Is this compatible with existing plumbing systems?
A: Yes, this flush valve is designed for versatile installation in both new construction and retrofit applications. It features a standard top spud connection and adjustable tailpiece that adapts to various plumbing configurations. The standard 3.5 gpf flow rate is compatible with most existing water closet fixtures, making it an excellent choice for upgrading older manual flush valves to touchless operation without requiring fixture replacement.
Detailed Features & Benefits
Advanced Sensor Technology: The ZER6000PL-CPM utilizes a sophisticated infrared sensor system with precision-engineered components for reliable operation. The 10-degree angled sensor optimizes detection range while minimizing false activations. A 3-second delay prevents unnecessary flushes when someone briefly walks by, and the 24-hour auto-flush feature ensures fresh bowl conditions even in low-use periods. The high-impact polycarbonate housing with chrome-plated metal cover protects the electronics while maintaining an upscale appearance. A convenient manual override button provides backup operation when needed.
Premium AquaFlush Plus Construction: The AquaFlush Plus designation indicates this model features Zurn's premium valve body constructed of proprietary dezincification-resistant low-lead brass alloy. This enhanced material composition provides superior durability in aggressive water conditions and extends the product lifecycle in demanding commercial environments. Combined with the AquaVantage TPE diaphragm featuring a triple filtered by-pass, this flush valve delivers exceptional resistance to chloramines, debris, and water pressure fluctuations. The system comes complete with a vandal-resistant stop cap and internal siphon-guard protection to prevent tampering and maintain reliable operation.
Powerful Standard Performance: With a 3.5 gallons per flush flow rate, the ZER6000PL-CPM provides the robust flushing action needed for high-traffic commercial applications with demanding waste evacuation requirements. The standard flow rate ensures complete bowl clearing even in the most challenging situations, while the precise sensor activation prevents overuse. The battery-powered operation provides reliable service even during power outages, with long-lasting batteries that typically require replacement only once per year in normal commercial applications. This combination of powerful performance and dependable operation makes it an ideal choice for facilities where consistent functionality is the primary concern.
NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality.
