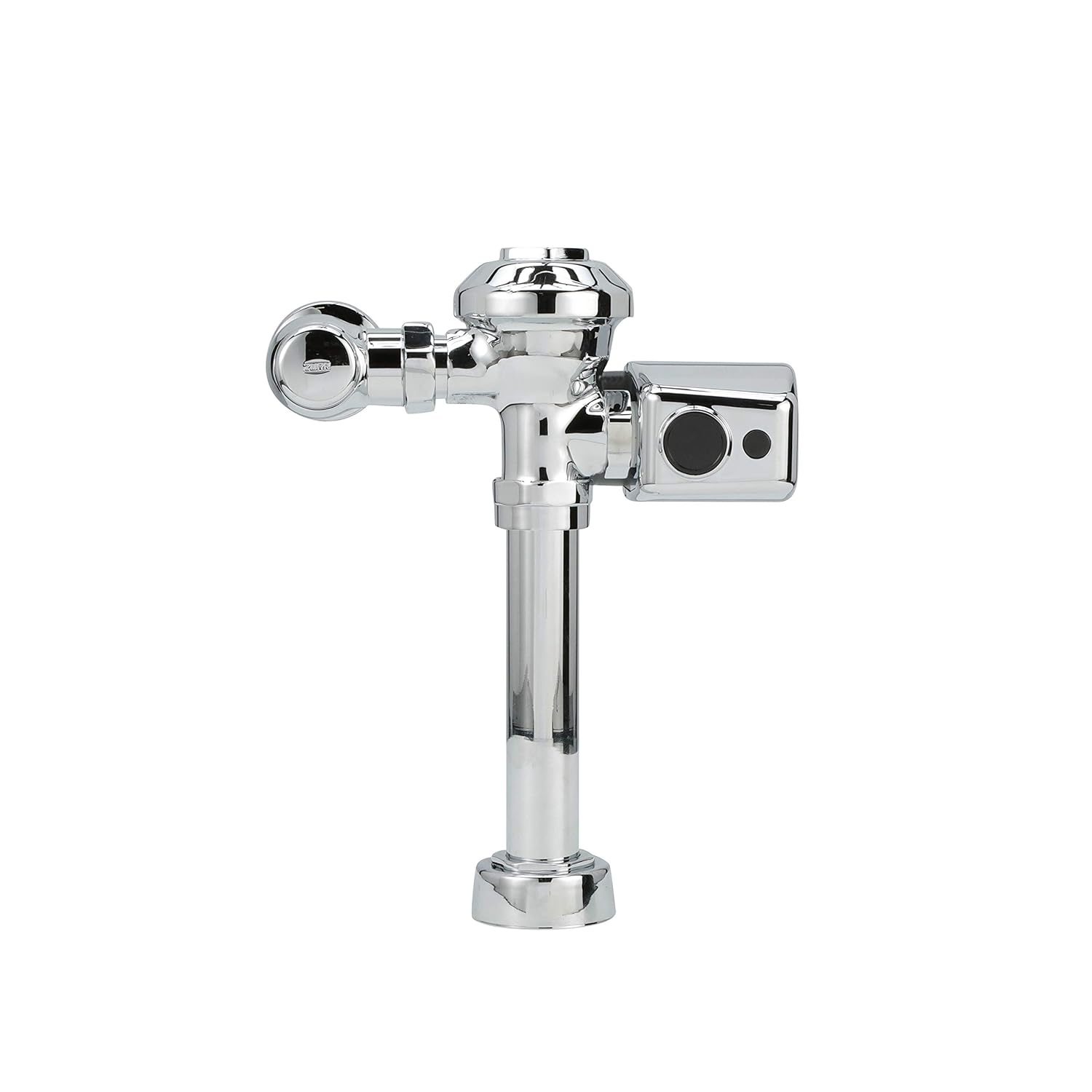

Zurn ZER6000AV-CPM | Exposed Sensor Flush Valve for Water Closets

The Zurn ZER6000AV-CPM Sensor Operated Battery Powered Flush Valve delivers reliable hands-free operation with exceptional durability for water closets in commercial restrooms. Its advanced AquaVantage design combines sophisticated sensor technology with proven diaphragm performance, making it an ideal solution for facilities seeking dependable operation with minimal maintenance.

Key Specifications:

• Type: Sensor-operated, battery-powered flushometer valve.
• Power Supply: 4 "C" size batteries (included) with ultra-energy efficient electronics.
• Construction: Chrome-plated brass with polished exterior and impact-resistant polycarbonate housing.
• Activation: Automatic infrared sensor with user-in-view L.E.D. and courtesy flush button.
• Diaphragm: AquaVantage TPE, chloramine resistant, dual seal with clog-resistant triple filtered by-pass.

Features & Benefits:

• Touchless Operation: The automatic infrared sensor eliminates cross-contamination for improved hygiene in public restrooms.
• Optimized Sensor Design: 10-degree angled sensor provides superior user detection with a 3-second delay to prevent false activations.
• Visual Indicators: User-in-view yellow L.E.D. and low battery indicator provide clear operational status.
• Programmable Features: Includes 24-hour auto-flush option to maintain fixture cleanliness during periods of non-use.
• Durable Construction: High impact-resistant polycarbonate housing with chrome-plated metal cover ensures long-term reliability.

Options Available:

• ZER6000AV-ONE-CPM: 1.1 gallons per flush model, WaterSense certified for maximum water conservation.
• ZER6000AV-HET-CPM: 1.28 gallons per flush model, WaterSense certified for high-efficiency operation.
• ZER6000AV-WS1-CPM: 1.6 gallons per flush model, WaterSense certified for balanced performance.

What's Included:

• 1 x ZER6000AV-CPM Sensor Flush Valve
• 1 x AquaVantage TPE Diaphragm
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange for Top Spud Connection
• 1 x Sweat Solder Kit with Cast Wall Flange
• 1 x Vandal Resistant Stop Cap
• 4 x "C" Size Batteries
• 1 x Battery Compartment Wrench
• 1 x Sensor Adjustor Tool
• 1 x Allen Key for Battery Compartment

FAQ

Q: How does the sensor system prevent false activations in busy restrooms?

A: The ZER6000AV-CPM incorporates sophisticated infrared sensor technology with a 3-second delay flush mechanism that prevents unwanted flushes when someone simply walks by the fixture. The 10-degree angled sensor is specifically designed for optimal user detection while minimizing false readings from other fixtures or reflective surfaces. Additionally, during the initial 10-minute start-up sequence, the system continuously monitors the environment to establish proper operating parameters, further enhancing reliable performance in high-traffic commercial settings.

Q: What features make this flush valve easy to maintain?

A: The ZER6000AV-CPM was designed with maintenance simplicity in mind. The battery compartment is easily accessible with the included wrench, and the low battery indicator provides clear notification when replacement is needed. The clog-resistant triple filtered by-pass in the AquaVantage diaphragm significantly reduces service calls by preventing debris from affecting valve operation. Additionally, the courtesy flush button allows for manual activation when needed, and the built-in sensor adjustor tool (stored within the unit) makes field adjustments straightforward without requiring additional tools or specialized training.

Detailed Features & Benefits

Advanced Sensor Technology: The ZER6000AV-CPM utilizes sophisticated infrared sensor technology with a 10-degree angled sensor for optimal user detection. The system includes a User-in-View yellow L.E.D. that flashes three times (after a 5-second delay) when a user is detected, providing visual confirmation of proper operation. This carefully calibrated delay prevents unwanted flushes when someone simply walks by, while ensuring reliable activation when needed. The sensor range can be easily field-adjusted using the built-in sensor adjustor tool, allowing customization for various fixture types and installation environments.

Ultra Energy-Efficient Design: The E-Z Flush electronics are specifically engineered for optimal battery life, allowing the four "C" size batteries to provide extended service. A convenient red L.E.D. indicator flashes when batteries need replacement, preventing unexpected downtime. The programmable 24-hour auto-flush feature maintains fixture cleanliness during periods of non-use while conserving water and battery power through intelligent activation timing.

AquaVantage Diaphragm Technology: The heart of the ZER6000AV-CPM is Zurn's AquaVantage TPE diaphragm with dual seal design and clog-resistant triple filtered by-pass. This chloramine-resistant construction prevents premature deterioration in treated water supplies, while the filtered by-pass protects against debris that can cause malfunction. The proven diaphragm technology ensures consistent water delivery and reliable shut-off, minimizing maintenance requirements and extending the service life of the valve.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
