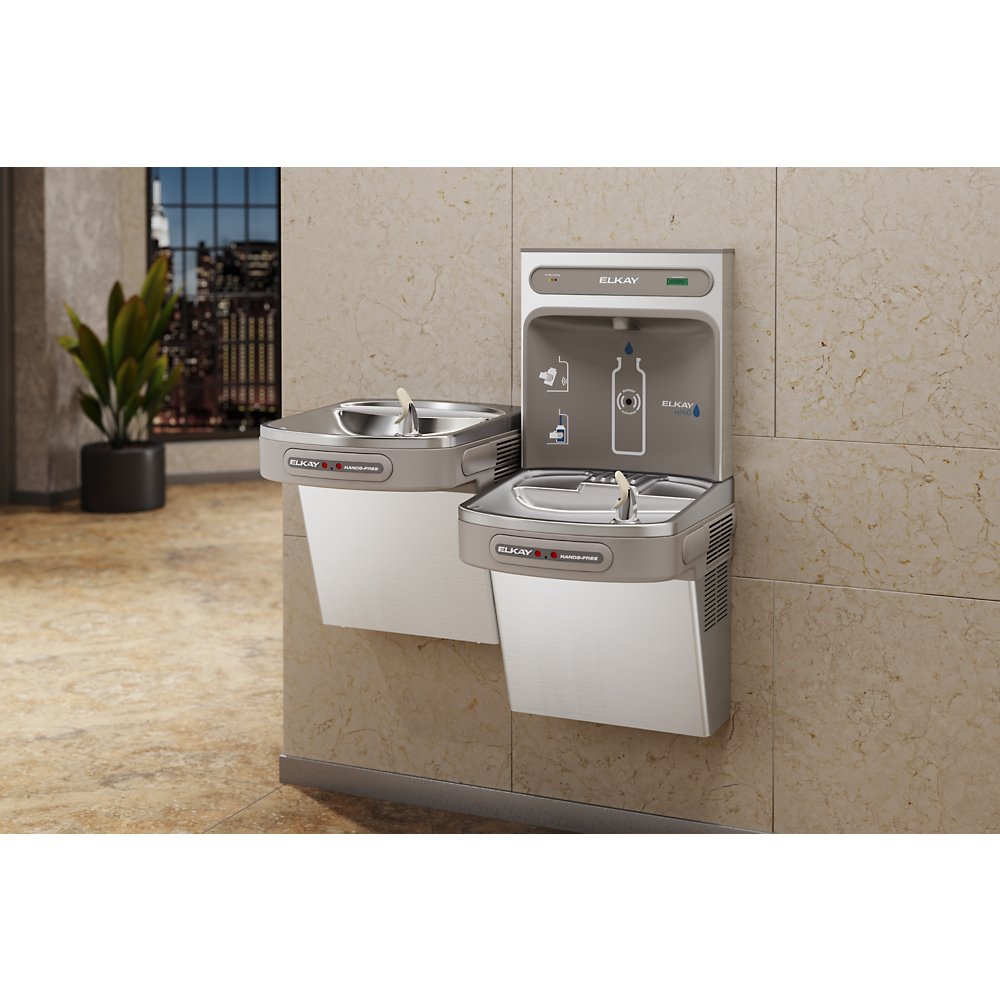

Elkay LZOOTL8WSSK | ezH2O Bi-Level ADA Bottle Filler | Filtered, Refrigerated

Elkay LZOOTL8WSSK is a filtered, refrigerated ezH2O® bottle filling station with bi-level ADA cooler. This stainless steel unit delivers 8.0 GPH of chilled water through dual hands-free activation, combining modern design, advanced filtration, and hygienic operation. Ideal for schools, offices, and public facilities, it promotes sustainability and accessibility in high-traffic environments.

Key Specifications:

• Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
• Design: Bi-level, wall-mounted configuration with stainless steel finish, suitable for indoor use.
• Filtration: Built-in WaterSentry® Plus filter certified to NSF/ANSI 42, 53, 372, and 401 standards. Reduces lead, microplastics, Class 1 particulates, cysts, chlorine taste and odor. Capacity: 3,000 gallons or 1 year. Replacement filter: 51300C.
• Activation: Dual electronic sensors for bottle filler and bubbler, providing touchless hands-free operation.
• Refrigeration: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, EPS-insulated copper tubing. Uses R-134a refrigerant with factory-preset thermostat.
• Stations Served: 2.
• Power: 115V/60Hz, 370 rated watts, 6 full load amps.

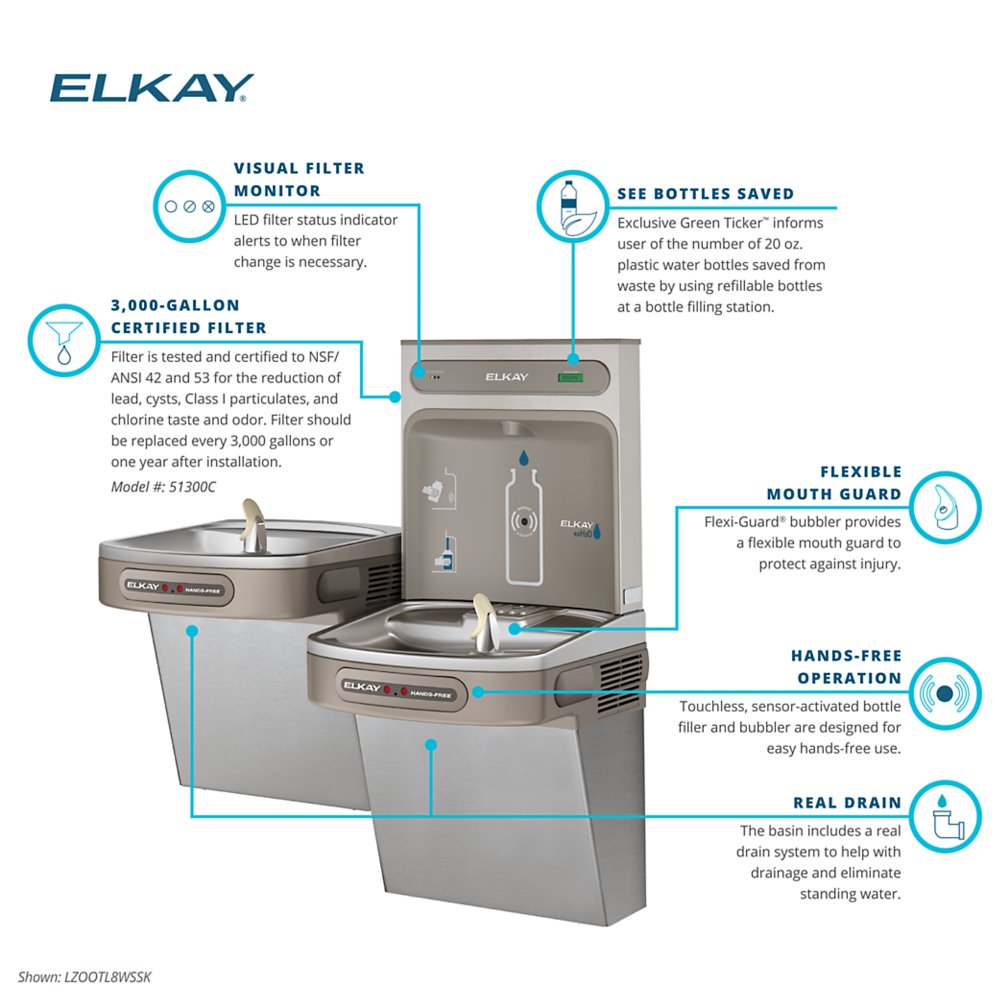

Features & Benefits:

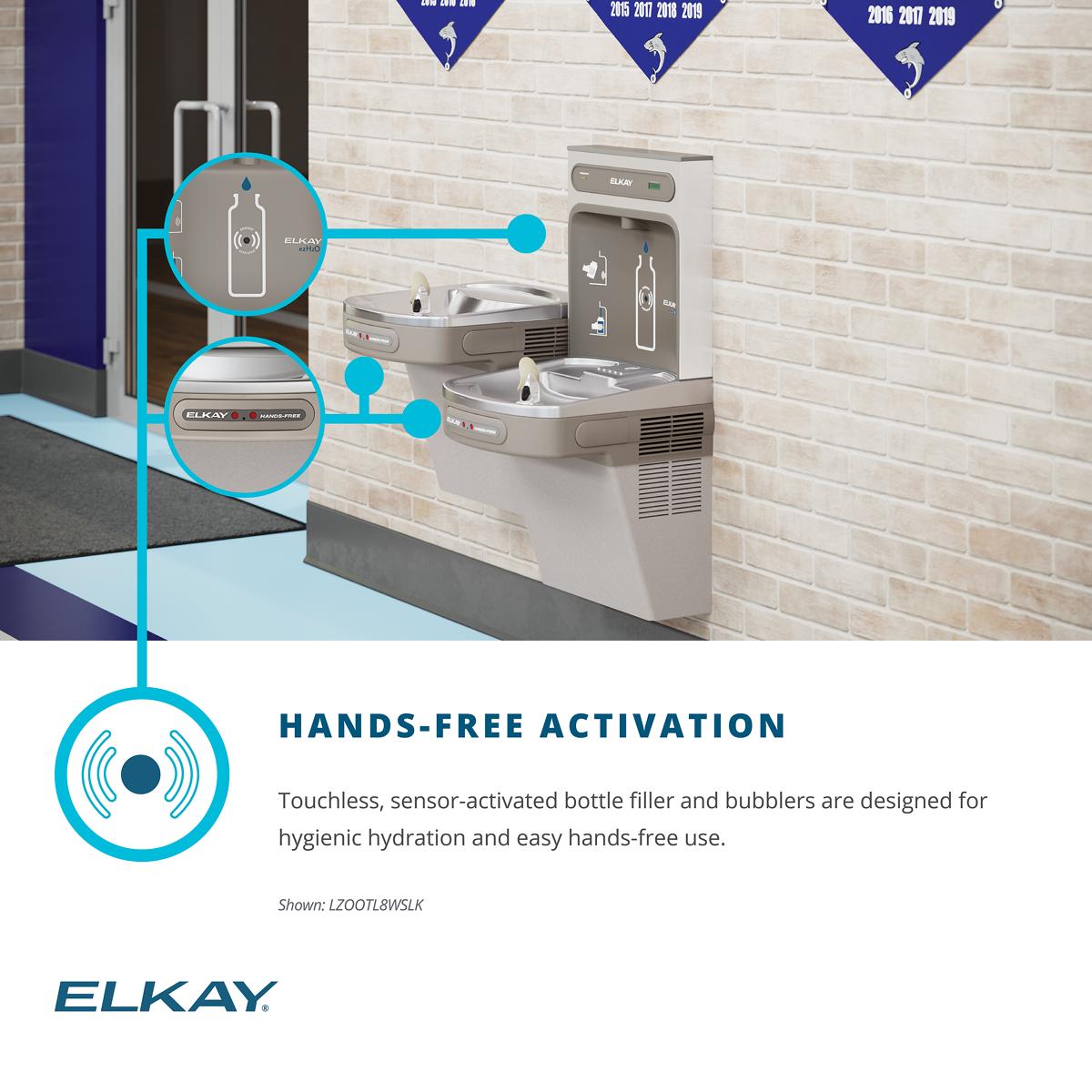

• Dual Hands-Free Operation: Touchless sensor activation for both bottle filler and bubbler eliminates contact points, promoting hygiene and reducing germ transmission in high-traffic areas.
• Space-Saving Bi-Level Design: Consolidated unit combines cooler and bottle filling station while maintaining accessibility requirements, maximizing functionality in limited installation spaces.
• Environmental Sustainability: Green Ticker™ displays plastic bottles saved from waste, encouraging eco-conscious hydration habits while reducing dependency on single-use disposable bottles.
• Superior Filtration System: NSF-certified 3,000-gallon filter reduces lead, microplastics, chlorine, Class 1 particulates, and cysts. Visual LED monitor indicates when replacement is needed.
• Enhanced Hygiene: Flexi-Guard® Safety Bubbler with antimicrobial mouth guard protects against injury and contamination.
• Durability: Stainless steel construction resists corrosion and complements modern architectural styles.

What's Included:

• LZOOTL8WSSK Bottle Filling Station & Bi-Level Cooler unit
• Built-in WaterSentry® Plus filtration system
• Installation hardware and mounting bracket
• User manual and installation guide
• Warranty documentation

FAQ

Q: How does the antimicrobial protection work on the LZOOTL8WSSK?

A: Key plastic components are manufactured with silver ion antimicrobial agents that inhibit growth of mold, mildew, and bacteria, helping maintain clean, stain-free, and odor-free surfaces throughout the unit's lifespan.

Q: What certifications does the LZOOTL8WSSK hold for water quality and safety?

A: The unit is certified to NSF/ANSI 42, 53, 61, 372 (lead-free), and 401 standards, plus UL 399 and CAN/CSA C22.2 No. 120 for electrical safety, ensuring comprehensive compliance with drinking water quality standards.

Q: Can the bi-level cooler configuration be reversed during installation?

A: Yes. The versatile bi-level design allows for standard high-left/low-right installation or alternate reverse configuration, providing flexibility to accommodate specific site requirements and accessibility needs.

Q: How often should the filter be replaced?

A: Replace the filter when the LED status indicator turns red or annually, whichever comes first. The LZOOTL8WSSK uses the 51300C WaterSentry® Plus replacement filter.

Q: What warranty does this unit include?

A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.

Q: Are accessories available for the LZOOTL8WSSK?

A: Yes. Elkay offers accessories to enhance installation and compliance. The LKAPREZL Cane Apron improves ADA accessibility, while the MLP200 In-Wall Carrier provides additional structural support for bi-level installations.

Detailed Features & Benefits

Advanced Refrigeration System: Hermetically-sealed reciprocating compressor with sealed-in lifetime lubrication and fan-cooled condenser using R-134a refrigerant. Combination tube-tank cooling unit with continuous copper tubing delivers 8.0 GPH of 50°F drinking water. Factory-preset adjustable thermostat requires minimal maintenance beyond altitude adjustments.

Laminar Flow Technology with Real Drain: Provides a clean, smooth water stream that minimizes splashing during bottle filling. Proprietary Real Drain system eliminates standing water, preventing bacterial growth and stagnant water concerns. Combined with the Flexi-Guard® safety bubbler’s antimicrobial mouth guard, these features ensure clean, safe water delivery.

Comprehensive Filtration and Monitoring: WaterSentry® Plus filter tested and certified to NSF/ANSI 42, 53, 372, and 401 standards. Reduces lead, microplastics, Class 1 particulates, cysts, chlorine taste and odor. Visual Filter Monitor with LED status indicator alerts users when replacement is necessary, ensuring optimal water quality.

Dual Hands-Free Accessibility: Electronic sensors for both bottle filler and bubbler provide touchless operation, enhancing hygiene and convenience in high-traffic environments.

Sustainability: Green Ticker™ displays the number of 20 oz. plastic bottles saved from waste, encouraging reusable bottle use and reducing facility plastic waste.

Durability & Safety: Stainless steel construction resists corrosion and tampering. Certified to UL 399 and CAN/CSA C22.2 No. 120 for electrical safety and performance.

NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
