Elkay LZS8WSSP-W1 | Enhanced Connected ezH2O Bottle Filling Station, Filtered, Refrigerated, Stainless

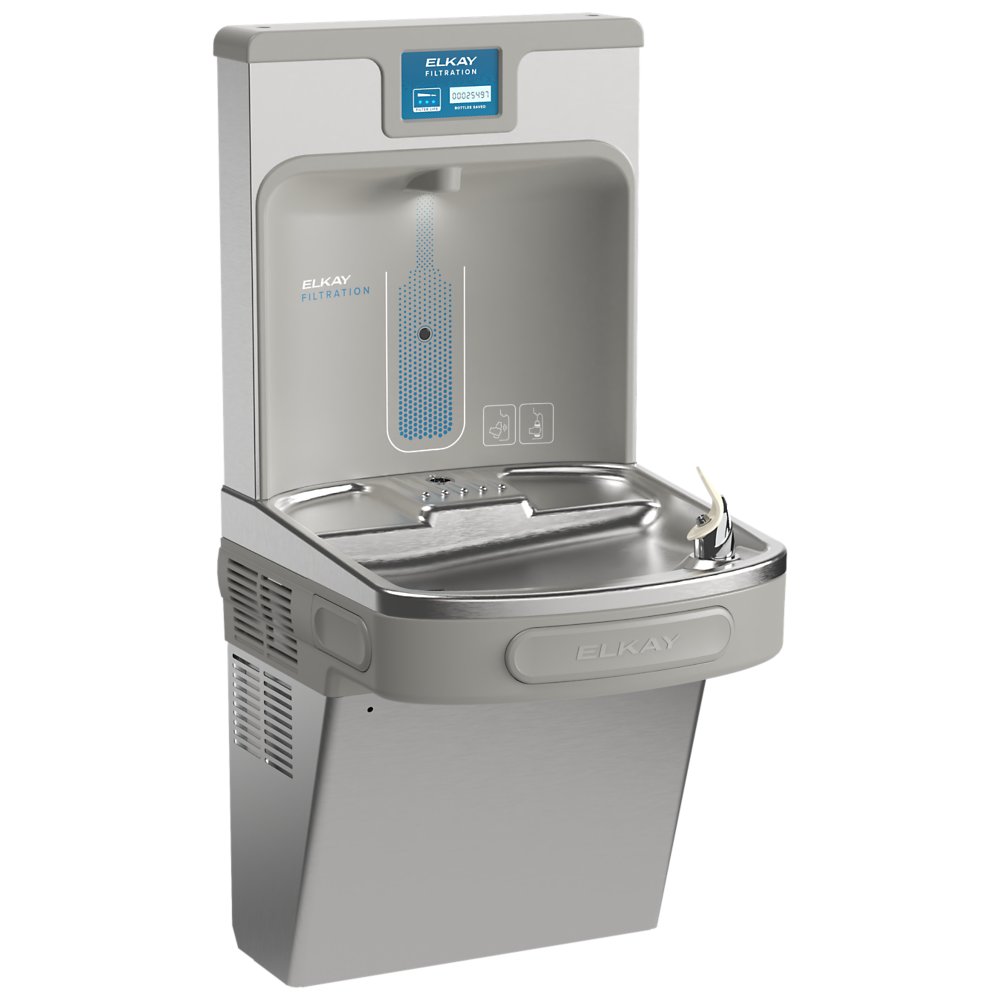

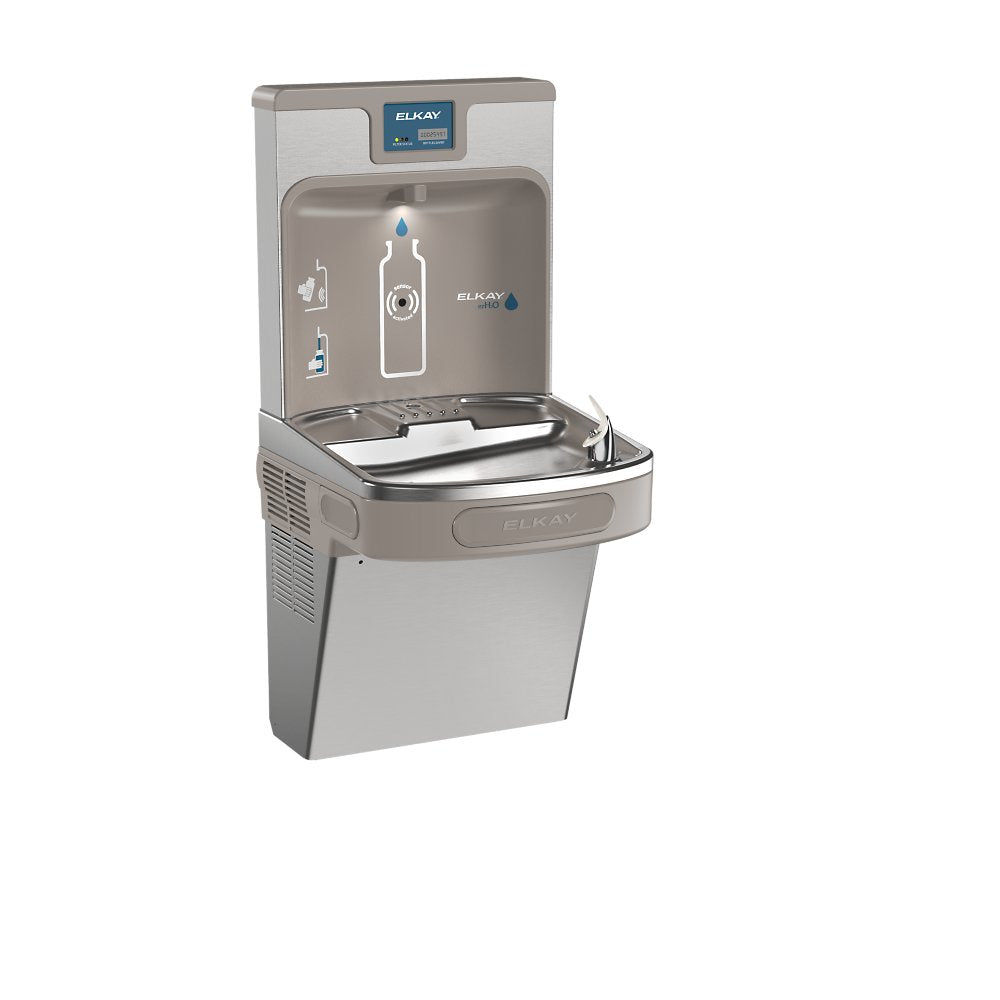

Elkay LZS8WSSP-W1 is an enhanced connected ezH2O® bottle filling station with single ADA cooler. This stainless steel unit delivers 8.0 GPH of chilled water through hands-free activation, combining advanced filtration, smart connectivity, and hygienic operation. Ideal for schools, offices, and public facilities, it promotes sustainability, accessibility, and digital monitoring in high-traffic environments.

Key Specifications:

• Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
• Design: Single-station ADA cooler with integrated bottle filler, wall-mounted indoor installation.
• Finish: Stainless Steel. Also available in Midnight Black (LZS8WSMP-W1) and Arctic White (LZS8WSAP-W1).
• Filtration: Built-in WaterSentry® Plus high-capacity filter certified to NSF/ANSI 42, 53, 372, and 401 standards. Reduces lead, microplastics, Class 1 particulates, cysts, chlorine taste and odor. Capacity: 6,000 gallons or 1 year. Replacement filter: 51600C. Premium upgrade option: 71300C.
• Activation: Electronic bottle filler sensor with electronic front and side bubbler pushbar activation.
• Refrigeration: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, EPS-insulated copper tubing. Uses R-134a refrigerant with factory-preset thermostat.
• Stations Served: 1.
• Power: 115V/60Hz, 370 rated watts, 5 full load amps.
• Compliance: Certified to UL 399 and CAN/CSA C22.2 No. 120; ADA & ICC A117.1 accessibility standards; FCC & ISED compliance for connected features.
• Connectivity: Smart Connected-ready with plumbSMART® dashboard integration (requires Zurn Gateway).

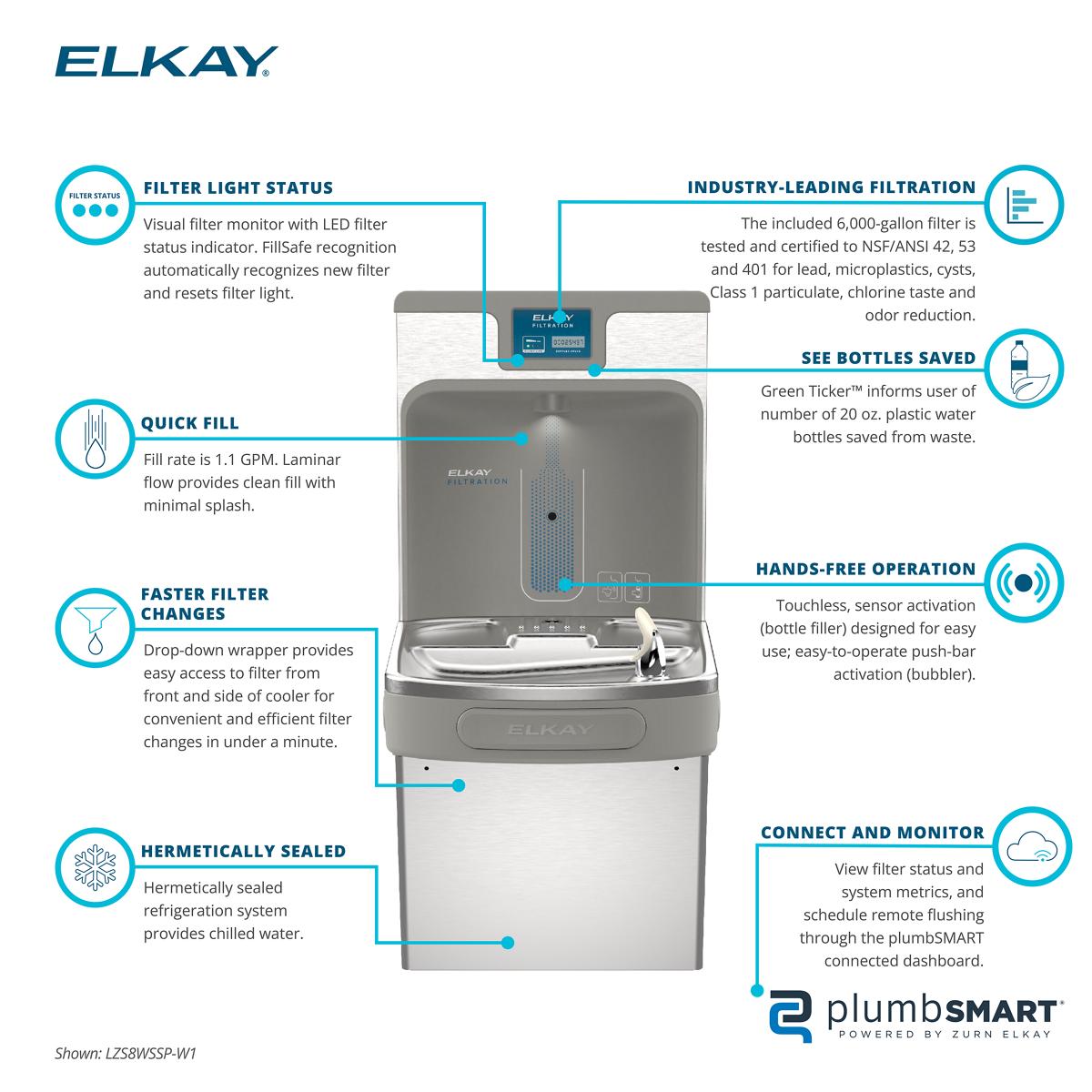

Features & Benefits:

• Hands-Free Operation: Touchless sensor activation for bottle filler and electronic pushbars reduces contact points and promotes hygiene.
• Smart Connected Monitoring: plumbSMART® dashboard allows facility managers to monitor filter status, schedule flushing events, and track hydration usage remotely.
• High-Capacity Filtration: WaterSentry® Plus filter provides 6,000-gallon capacity with automatic filter recognition and LED status indicator for timely replacement.
• Quick Filter Change: Drop-down wrapper design enables efficient filter replacement in under a minute.
• Laminar Flow & Real Drain: Provides clean, splash-free bottle filling while eliminating standing water for improved hygiene.
• Energy Savings Mode: Reduces energy consumption during off-peak hours, lowering operational costs.
• Enhanced Hygiene: Flexi-Guard® Safety Bubbler with antimicrobial mouth guard protects against injury and contamination.
• Sustainability: Green Ticker™ displays the number of 20 oz. plastic bottles saved from waste, encouraging reusable bottle use.

What's Included:

• LZS8WSSP-W1 Bottle Filling Station & Single ADA Cooler unit
• Built-in WaterSentry® Plus filtration system
• Installation hardware and mounting bracket
• User manual and installation guide
• Warranty documentation

FAQ

Q: How does the antimicrobial protection work on the LZS8WSSP-W1?

A: Key plastic components are manufactured with silver ion antimicrobial agents that inhibit growth of mold, mildew, and bacteria, helping maintain clean, stain-free, and odor-free surfaces throughout the unit's lifespan.

Q: What certifications does the LZS8WSSP-W1 hold for water quality and safety?

A: The unit is certified to NSF/ANSI 42, 53, 61, 372 (lead-free), and 401 standards, plus UL 399 and CAN/CSA C22.2 No. 120 for electrical safety, ensuring comprehensive compliance with drinking water quality standards. It also meets FCC & ISED requirements for connected devices.

Q: How often should the filter be replaced?

A: Replace the filter when the LED status indicator turns red or annually, whichever comes first. The LZS8WSSP-W1 normally uses the 51600C WaterSentry® Plus replacement filter. For facilities seeking a premium upgrade, Elkay also offers the 71300C WaterSentry® replacement cartridge, which provides the same NSF/ANSI certifications with enhanced performance positioning.

Q: What warranty does this unit include?

A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.

Q: Are accessories available for the LZS8WSSP-W1?

A: Yes. Elkay offers accessories to enhance installation and compliance. The LKAPREZL Cane Apron improves ADA accessibility.

Q: Is the LZS8WSSP-W1 part of a larger collection?

A: Yes. It belongs to the Enhanced ezH2O® Collection, which includes multiple models and finishes designed for high-capacity, connected hydration solutions.

Detailed Features & Benefits

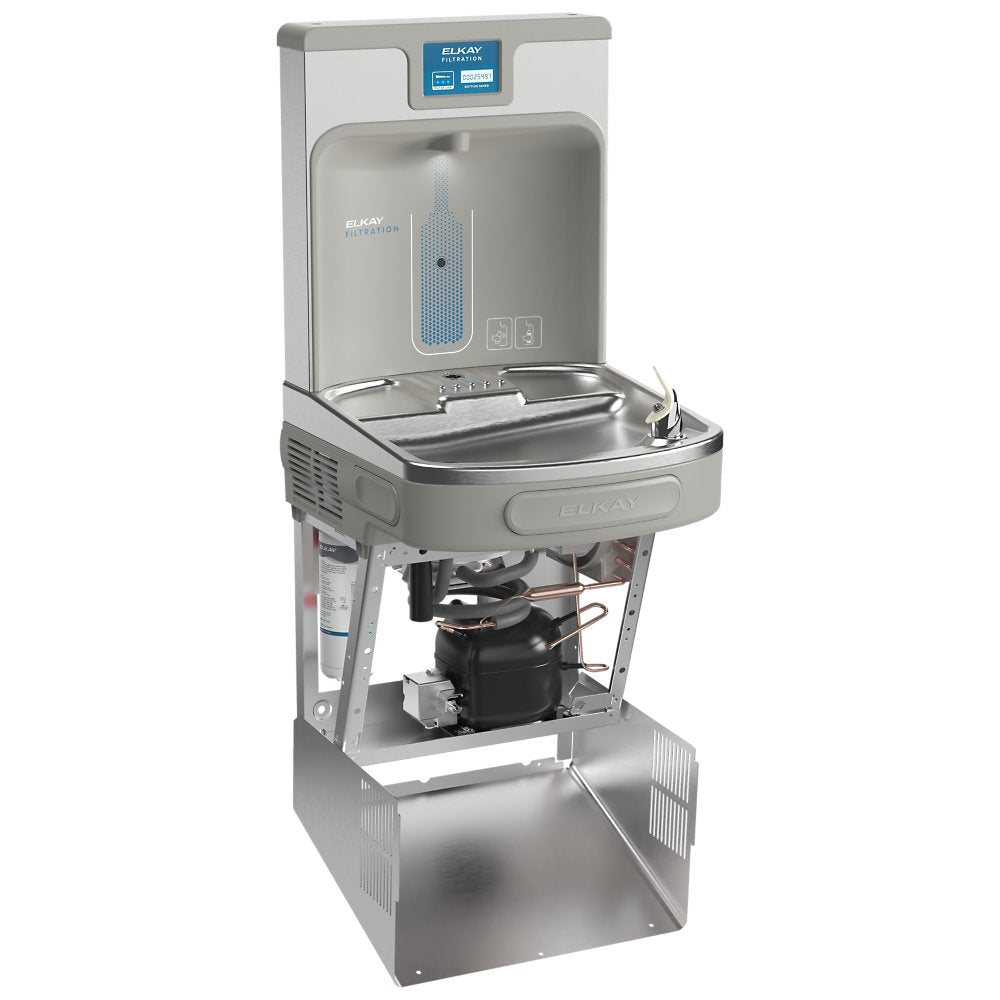

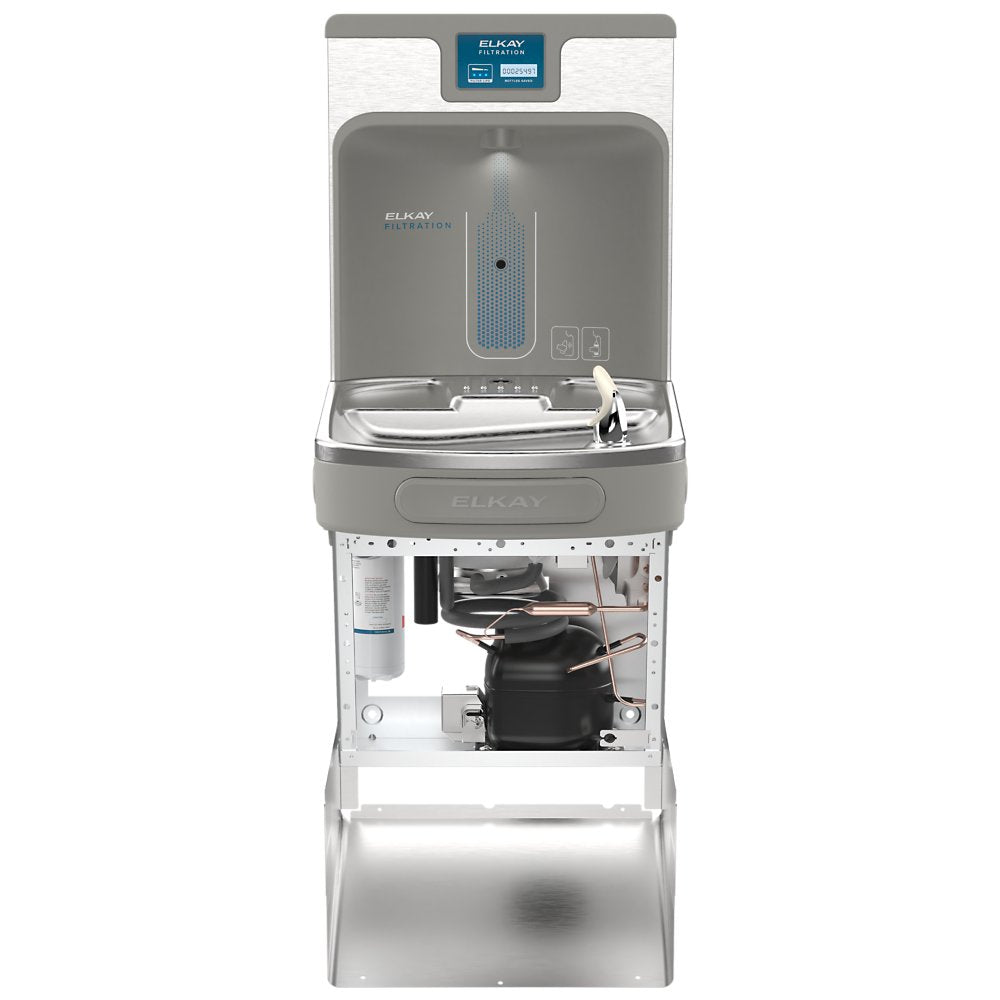

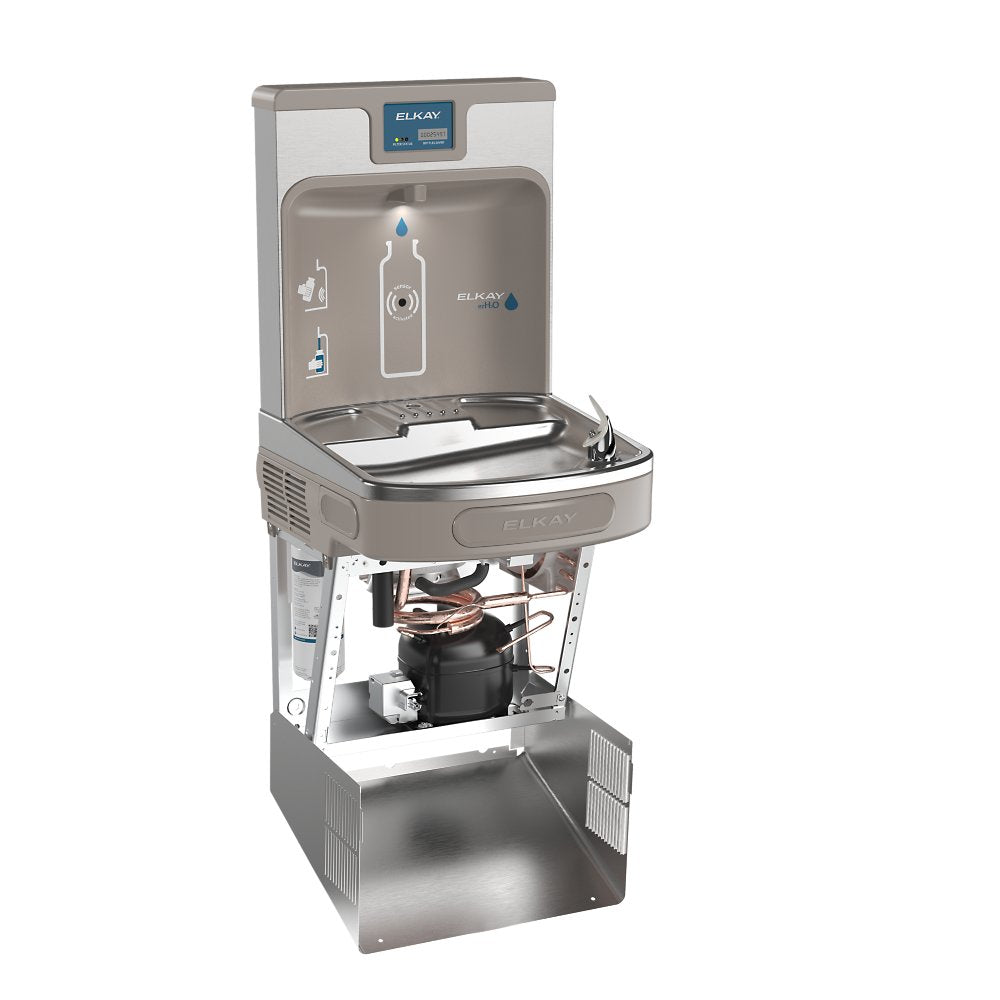

Advanced Refrigeration System: Hermetically-sealed reciprocating compressor with sealed-in lifetime lubrication and fan-cooled condenser using R-134a refrigerant. Combination tube-tank cooling unit with continuous copper tubing delivers 8.0 GPH of 50°F drinking water. Factory-preset adjustable thermostat requires minimal maintenance beyond altitude adjustments.

Smart Connected Features: plumbSMART® dashboard integration allows remote monitoring of filter status, hydration usage, and scheduling of flushing events, improving facility management efficiency.

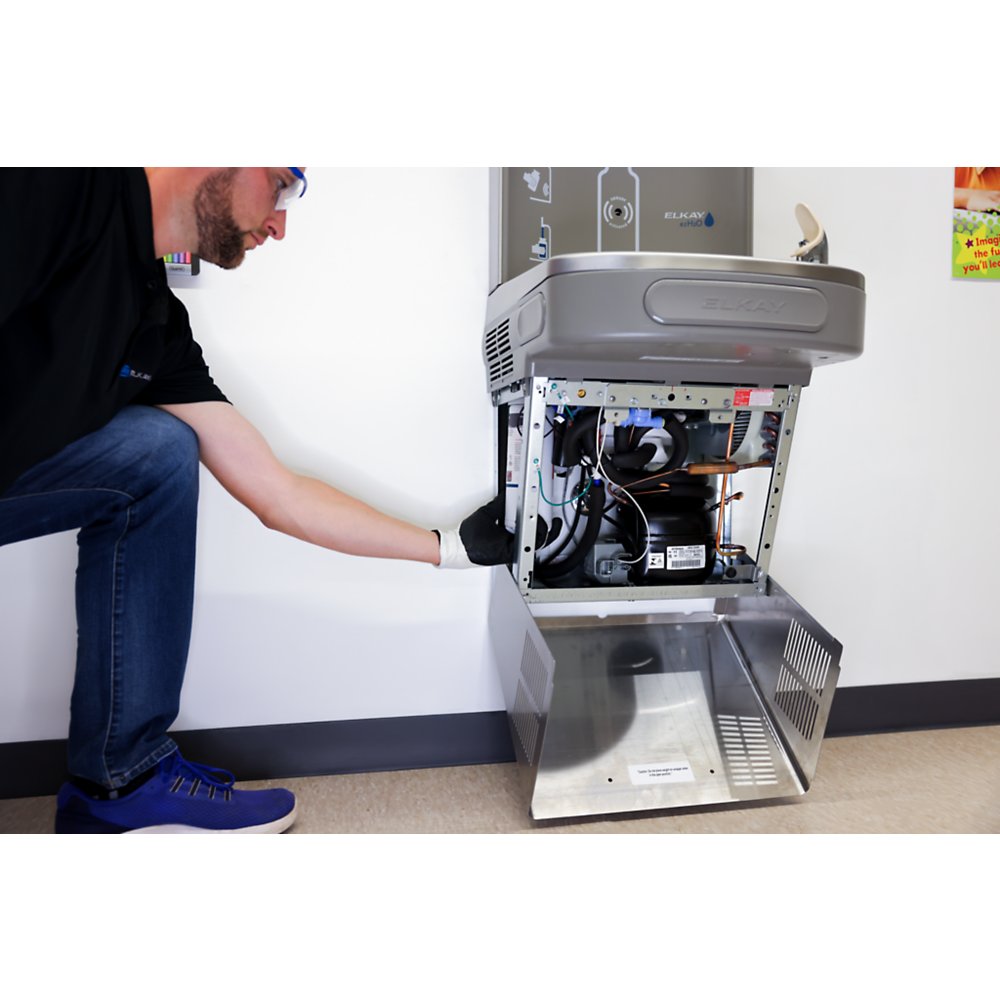

Quick Filter Change Wrapper: Drop-down wrapper design provides easy front and side access for filter replacement in under a minute, reducing maintenance time.

Comprehensive Filtration: WaterSentry® Plus filter tested and certified to NSF/ANSI 42, 53, 372, and 401 standards. Reduces lead, microplastics, Class 1 particulates, cysts, chlorine taste and odor. Automatic filter recognition resets LED status indicator when replaced. Standard cartridge: 51600C. Premium upgrade option: 71300C.

Laminar Flow & Real Drain: Provides clean, splash-free bottle filling while eliminating standing water in the basin, preventing bacterial growth and ensuring hygienic operation.

Sustainability & Energy Savings: Green Ticker™ displays bottles saved from waste, encouraging reusable bottle use. Energy-savings mode reduces power consumption during off-peak hours.

Durability & Safety: Stainless steel construction resists corrosion and tampering. Certified to UL 399 and CAN/CSA C22.2 No. 120 for electrical safety and performance.

NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
