Elkay LZS8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Filtered, Refrigerated, Stainless
Elkay LZS8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Filtered, Refrigerated, Stainless is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
INSTALLATION.
- During a plumbing circuit inspection, be aware that the line might be grounded at a location away from the installation site, which could be outside the building or the area where the unit is being installed.
- It is essential to consult local plumbing codes before beginning installation.
MAINTENANCE
- Clean the entire unit, including the basin and bottle filler.
- Clean the condenser and louvers if the unit is refrigerated.
- Replace the filter if the unit is equipped with one.
- If the bubbler orifice is scaly, clean it carefully to ensure proper water flow.
- Inspect the height of the bubbler stream and adjust if needed. This task should be performed after changing the filter and cleaning the orifice.
- Ensure the refrigeration system is cycling correctly by verifying that both the compressor and the fan activate and deactivate as intended.
- Testing the activation of the bottle filler is essential to ensure it responds promptly and accurately when a bottle is placed for filling.
- Testing the 20-second timeout feature of the bottle filler is essential.
- Ensure that the water flow from the bottle filler is laminar, and clean, repair, or replace the nozzle as needed.
Elkay LZS8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Filtered...
The Elkay LZS8WSSP-PF Enhanced ezH2O® Bottle Filling Station with Single ADA Cooler delivers advanced filtration, refrigerated hydration, and a sleek stainless steel design. Featuring a drop-down wrapper for quick filter changes, LED filter monitoring, and PFOA/PFOS reduction, this model is ideal for schools, healthcare facilities, offices, and public spaces seeking reliable, ADA-compliant hydration solutions with enhanced filtration performance.
Key Specifications:
- Design: Single ADA cooler with integral bottle filling station, serving 1 station.
- Finish: Stainless Steel. Additional finishes available: Arctic White (LZS8WSAP-PF) and Midnight Black (LZS8WSMP-PF).
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with electronic front and side bubbler pushbar.
- Bubbler Style: Flexi-Guard® Safety Bubbler.
- Power: 115V/60Hz, 370W, 5 full load amps.
- Filtration: Includes WaterSentry® Plus filter tested and certified to NSF/ANSI 42, 53, 372, and 401 for reduction of PFOA/PFOS (PFAS), lead, microplastics, particulates, cysts, and chlorine taste and odor. 2,250-gallon capacity or 1 year after installation. Compatible replacement filters: 51600C (6,000-gallon), 51300C (3,000-gallon), and 71300C (PFAS reduction, 2,250-gallon).
Features & Benefits:
- Enhanced Filtration: Certified to reduce PFOA/PFOS (PFAS), lead, microplastics, particulates, cysts, and chlorine taste and odor.

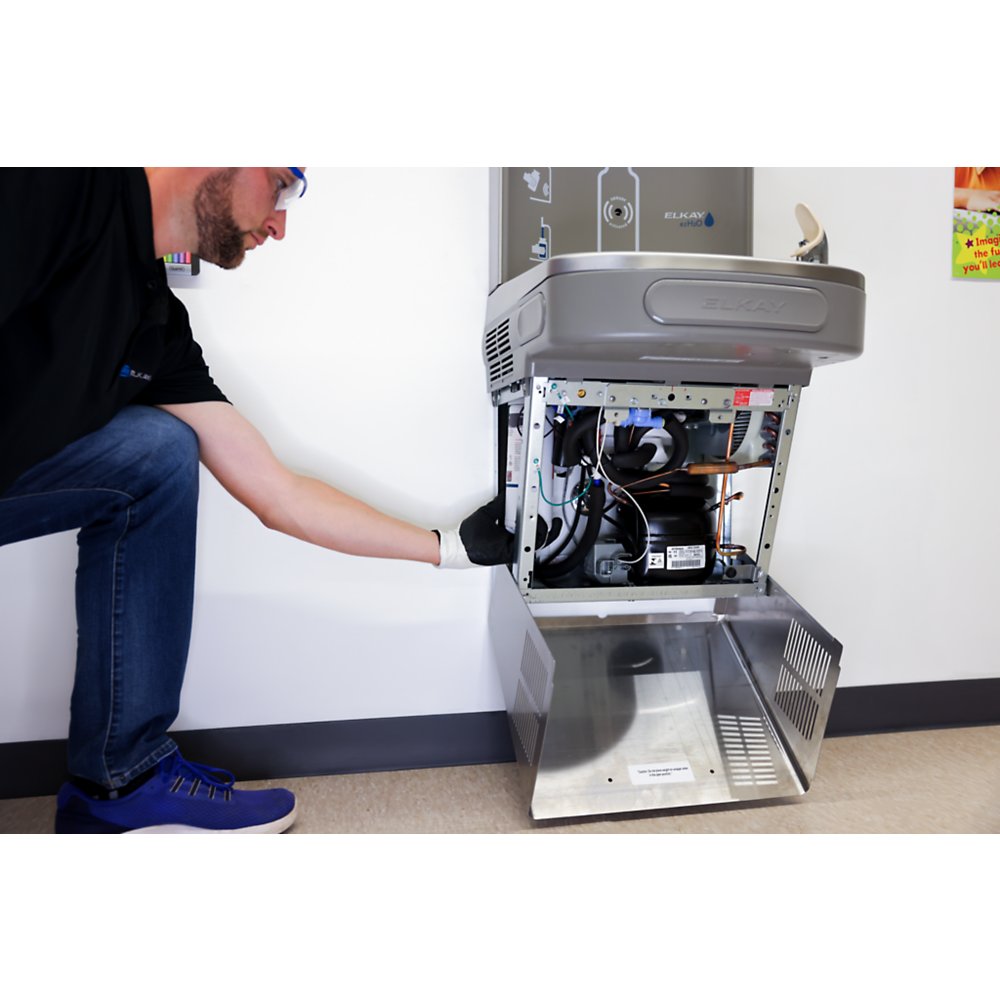

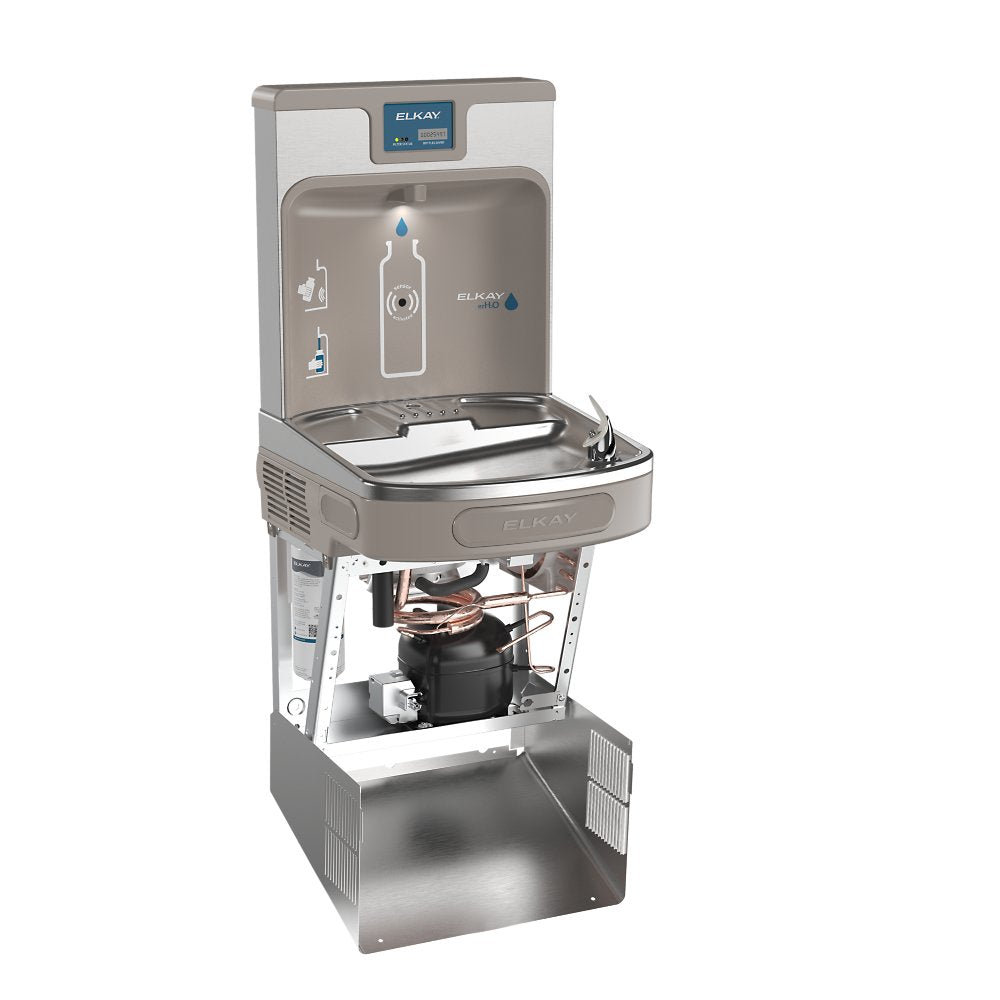

- Quick Filter Change: Drop-down wrapper design allows filter replacement in under a minute.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Automatic Filter Reset: FillSafe™ technology resets filter status automatically when a new filter is installed.
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Energy Savings Mode: Reduces energy consumption during periods of non-use.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- ADA Accessibility: Single cooler design meets ADA requirements, providing inclusive access for all users.
What's Included:
- LZS8WSSP-PF Bottle Filling Station & ADA Cooler
- WaterSentry® Plus PFAS Reduction Filter (included)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus PFAS Reduction filter should be replaced every 2,250 gallons or 12 months. Compatible replacements include the 51600C, 51300C, and 71300C.
Q: Is this unit ADA compliant?
A: Yes, the LZS8WSSP-PF meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Are there accessories available for this model?
A: Yes. Optional accessories include the LKAPREZL Cane Apron for ADA compliance, the MLP100 In-Wall Carrier for secure mounting support, and compatible replacement filters such as the 71300C PFAS Reduction Filter.
Q: What makes this model part of the Enhanced Collection?
A: The LZS8WSSP-PF is part of Elkay’s Enhanced Collection, which features advanced filtration (including PFAS reduction), quick filter change wrappers, LED lighting, and energy-saving technology designed for superior performance in high-traffic environments.
Q: Do you offer this model in other finishes?
A: Yes. This stainless steel model has finish variants available: Arctic White (LZS8WSAP-PF) and Midnight Black (LZS8WSMP-PF).
Detailed Features & Benefits
Advanced Filtration: Certified to reduce PFAS (PFOA/PFOS), lead, microplastics, particulates, cysts, and chlorine taste and odor, ensuring cleaner, safer hydration.
Quick Filter Change: Drop-down wrapper design allows filters to be replaced in under a minute, minimizing downtime and simplifying maintenance.
Energy Efficiency: Built-in energy-savings mode reduces power consumption during periods of non-use, lowering operating costs and supporting sustainability goals.
ADA Accessibility: Designed to meet ADA requirements, the single cooler configuration provides accessible hydration for all users.
Durability: Stainless steel construction and Flexi-Guard® safety bubbler ensure long-lasting performance in demanding environments such as schools, hospitals, and public facilities.
Enhanced User Experience: LED illumination helps with filling in low-light conditions and encourages use; laminar flow and real drain minimize splash and standing water.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
