Elkay LZSTL8WSBPRO | Bi-level Ultra Capacity Filter Pro Filtration ...

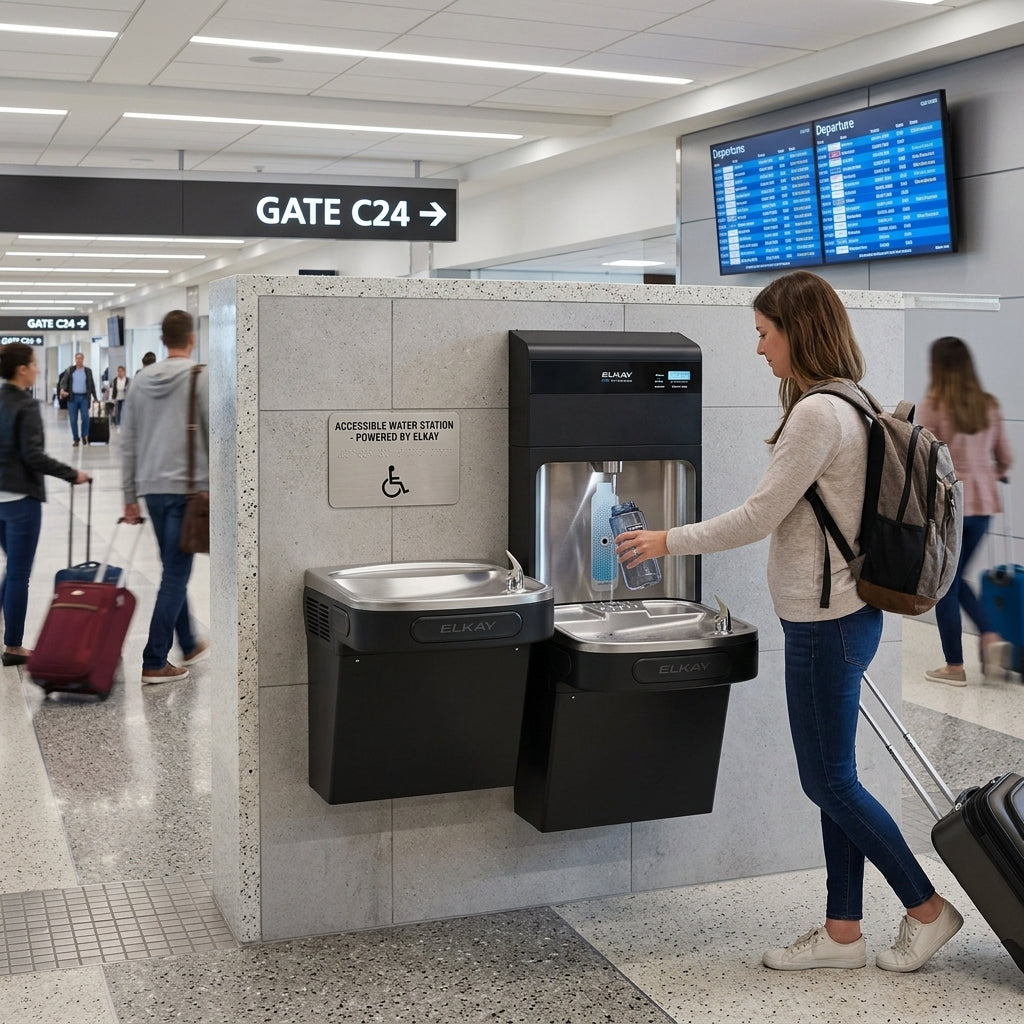

The Elkay LZSTL8WSBPRO Pro Filtration® Bottle Filling Station & Bi-Level ADA Cooler is a refrigerated, ultra-capacity lead reduction unit. Equipped with advanced Pro Filtration technology, antimicrobial protection, and hands-free activation, it delivers sustainable hydration with enhanced water quality for schools, offices, and public facilities.
Key Specifications:

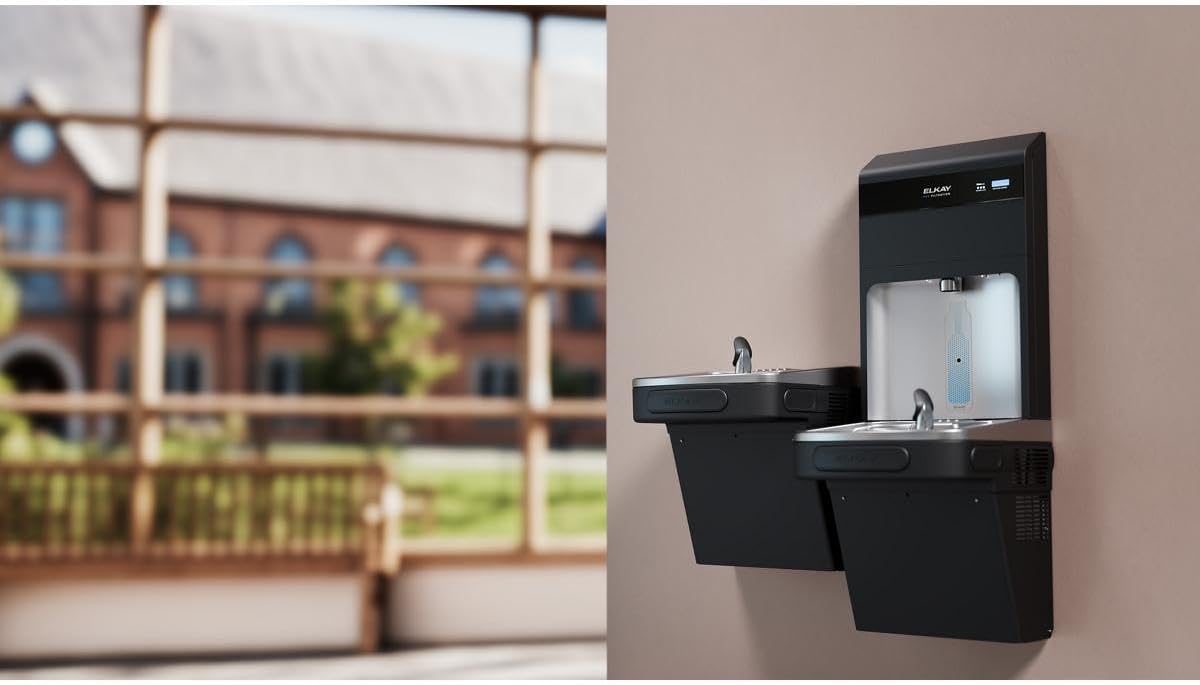

- Design: Bi-level ADA bottle filling station and cooler, wall-mount indoor installation
- Finish: Black Stainless Steel
- Filtration: Equipped with FL10 Ultra-Capacity Lead + Microplastics Filter (10,000-gallon capacity)
- Refrigeration: 8.0 GPH chilled water at 50°F, hermetically-sealed compressor, fan-cooled condenser, EPS-insulated copper tubing
- Stations Served: 2 (bi-level coolers and bottle filler)
Features & Benefits:
- Pro Filtration System: Certified to NSF/ANSI 42, 53, 61, 372, and 401 for lead, PFAS, microplastics, chlorine, taste, odor, and more
- Automatic Filter Reset & Flush: System recognizes new filter, flushes automatically, and resets filter status lights
- Visual Filter Monitor: LED indicators track filter capacity and replacement needs
- Hands-Free Operation: Electronic sensor activation ensures hygienic bottle filling
- Laminar Flow & Real Drain: Provides clean, splash-free filling while eliminating standing water
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards
Other Related Variants:
- LZSTL8WSBPRO-2FL10 – Dual 10,000-gallon filters for extended capacity
- LZSTL8WSBPRO-FLP4 – Single PFAS + Lead filter (4,000-gallon capacity)
- LZSTL8WSBPRO-2FLP4 – Dual PFAS + Lead filters for maximum protection
- LZSTL8WSBPRO-FSR5 – Two-stage filtration with sediment prefilter
- LZSTL8WSBPRO-UV – UV protection with filtration
What's Included:
- LZSTL8WSBPRO Bottle Filling Station & Bi-Level Cooler
- Ultra-Capacity FL10 Filter
- Installation instructions
- Warranty documentation
FAQ
Q: What Filter Is Included with the LZSTL8WSBPRO?
A: This model comes equipped with the FL10 Ultra-Capacity Filter, certified for lead, microplastics, chlorine, taste, odor, and more.
Q: What Accessories Are Recommended for Installation?
A: Recommended accessories include the MLP200 In-Wall Carrier for secure mounting and the Zurn Elkay ZGW-LORA-W1 LTE Wireless Gateway for connected monitoring.
Q: What Warranty Coverage Is Provided?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on water system components.
Q: Is the LZSTL8WSBPRO ADA Compliant?
A: Yes. When installed according to ADA and ICC A117.1 standards, this unit meets accessibility requirements.
Q: How Does the Visual Filter Monitor Work?
A: LED indicators display filter capacity and status, alerting users when replacement is needed. The system automatically resets after filter changes.
Q: Is the Elkay LZSTL8WSBPRO Difficult to Install?
A: The unit is designed for wall-mount installation and ships in one box with comprehensive installation instructions. Professional installation is recommended to ensure proper connection to water supply and drainage systems.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
