Elkay LVRCTL8WSC | Vandal-Resistant Bi-Level Cooler for LVRCTL8WSK ...

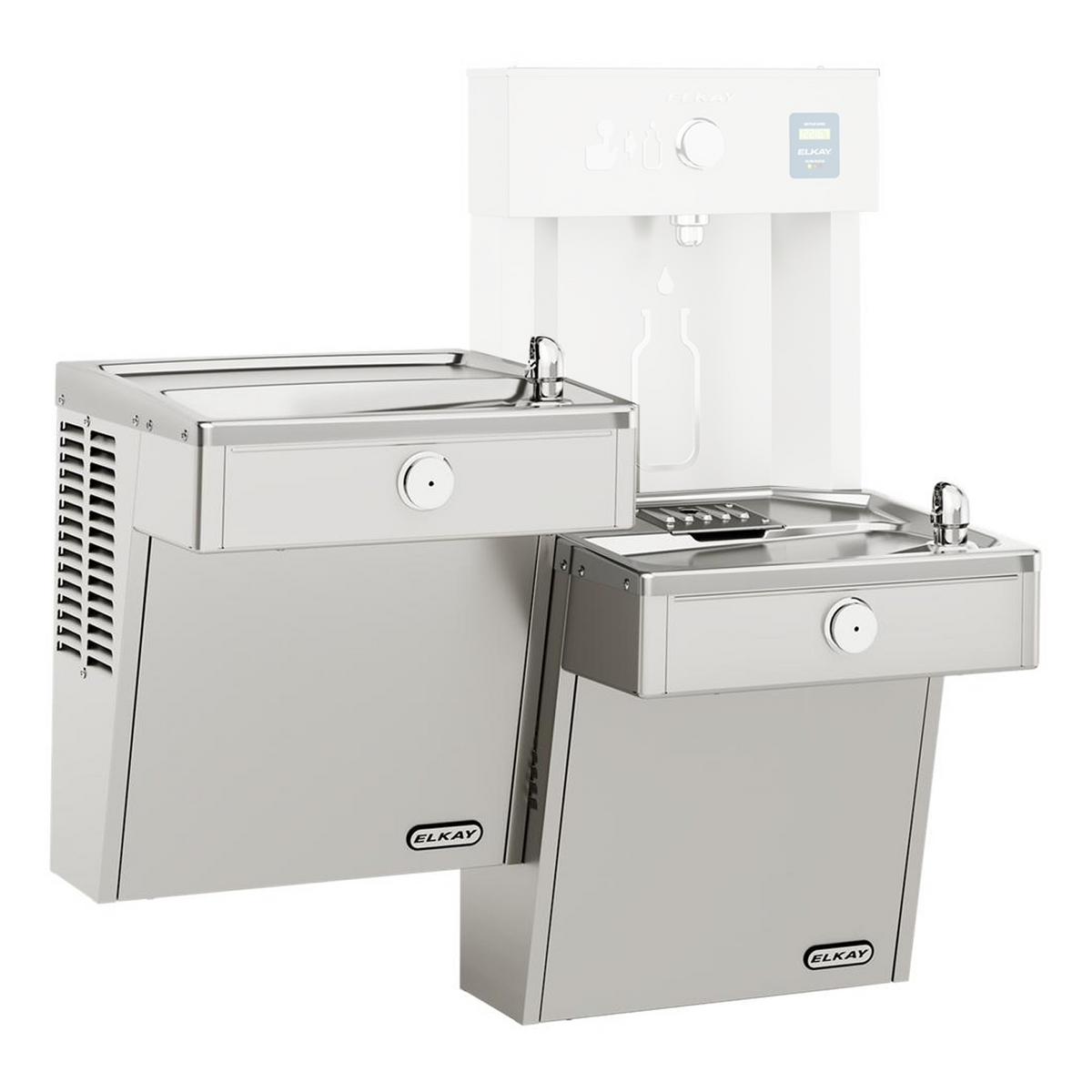

The Elkay LVRCTL8WSC is a vandal-resistant, refrigerated lower cooler component designed for compatibility with the Elkay LVRCTL8WSK bottle-filling station configuration. It is not a complete standalone bottle-filling station.
Key Specifications:
| Finish | Stainless Steel |
| What's Included | Cooler Only |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz Electrical Connection |
| Compatible Model | Elkay LVRCTL8WSK |
Why Choose the Elkay LVRCTL8WSC?
- Compatible with Elkay LVRCTL8WSK: Designed for use with the Elkay LVRCTL8WSK configuration, making it a suitable component for the compatible drinking fountain and bottle-filling station setup.
- Vandal-Resistant Design: Built for demanding public environments, with protective features intended to help resist tampering and withstand frequent use.
- Filtered, Chilled Drinking Water: Combines water filtration with an included 8.0 GPH water chiller to provide chilled drinking water.
- Durable Stainless Steel: Features a stainless steel finish suited to high-traffic commercial and institutional settings.
- Replacement Component: Intended for a compatible Elkay installation rather than use as a complete, standalone bottle-filling station.

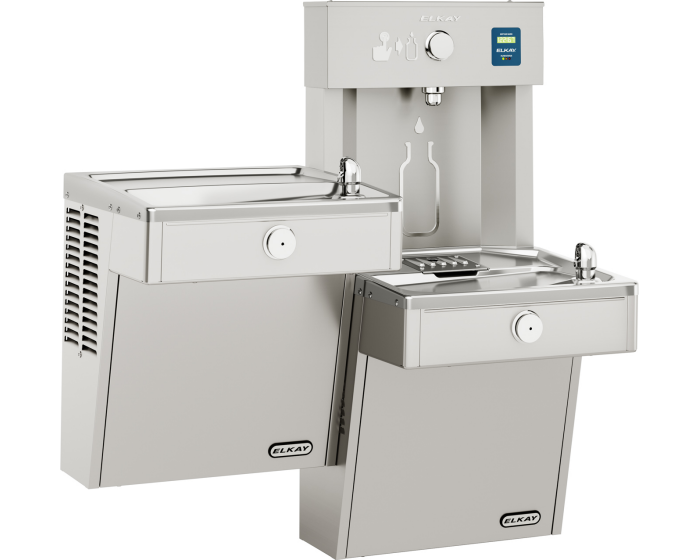

Looking for the Complete Unit Instead?
FAQ
Q: Is the Elkay LVRCTL8WSC compatible with the Elkay LVRCTL8WSK?
A: Yes. The LVRCTL8WSC is designed to be compatible with the Elkay LVRCTL8WSK configuration.
Q: Is the Elkay LVRCTL8WSC a complete bottle-filling station and cooler unit?
A: No. The LVRCTL8WSC is a lower cooler component intended for use with a compatible Elkay configuration. It should not be treated as a complete standalone bottle-filling station.
Q: Does the LVRCTL8WSC include refrigeration and filtration?
A: The listed configuration includes filtration and an 8.0 GPH water chiller for chilled drinking water.
Q: What electrical supply does the LVRCTL8WSC require?
A: The listed electrical requirement is 115V/60Hz.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LVRCTL8WSC is a filtered, wall-mounted bi-level cooler that can be installed independently or paired with the LVRCTL8WSK bottle filling station.
Before You Begin
- Tools: Safety glasses, gloves, drill, wrenches, utility knife, tape measure, pencil, center punch, socket and ratchet, and 5/32" Allen wrench. Torx bits are sold separately.
- Plumbing: Provide a 3/8" O.D. unplated copper water supply with shutoff valve (maximum 3" from wall), maximum 105 PSI pressure, and a 1-1/2" O.D. drain stub extending 2" from the wall. Trap not included.
- Electrical and ventilation: Provide a recessed 3-wire electrical box and GFCI protection for new installations. Maintain 6" clearance between cabinet louvers and the wall.
- Safety and support: Use plastic drain fittings for electrical isolation. Disconnect power before servicing and secure the hanger bracket to adequate wall support.
- Installation reference: When pairing with the LVRCTL8WSK, install the cooler first but do not connect power or water until the bottle filler is installed. See the owner's manual for rough-in dimensions and detailed instructions.
Step-by-Step Installation Guide
- Prepare the mounting area: Remove the hanger bracket and mount it securely using all five 1/4" mounting holes. Follow the manual's rough-in diagrams and position the trap centerline 4-1/8" from the wall.
- Mount the cooler: Install a straight valve on the water supply tube, hang the cooler on the bracket, and ensure it engages properly with the rear slots.
- Connect plumbing: Remove the lower front panel, connect the water inlet according to the manual, and secure the waste line to the trap with its gasket and slip nut.
- Install the filter: Remove the cartridge's protective cap, insert it into the filter head, and turn clockwise to lock. Use a retrofit kit for horizontal mounting below the unit if cabinet space is insufficient.
- Check connections and power: Turn on the water and inspect for leaks. Once connections are secure, restore electrical power.
- Adjust and finish: Check the water stream, factory-set for 45–50 PSI. Adjust through the pushbutton access hole if needed, aiming for the basin approximately 6-1/2" from the bubbler. Reinstall the front panel after testing.
Looking for the Elkay LVRCTL8WSC ezH2O Vandal-Resistant Bi-Level Cooler?
