Haws 1011 | Hi-Lo Dual Wall Mount Fountain | 0.45 GPM

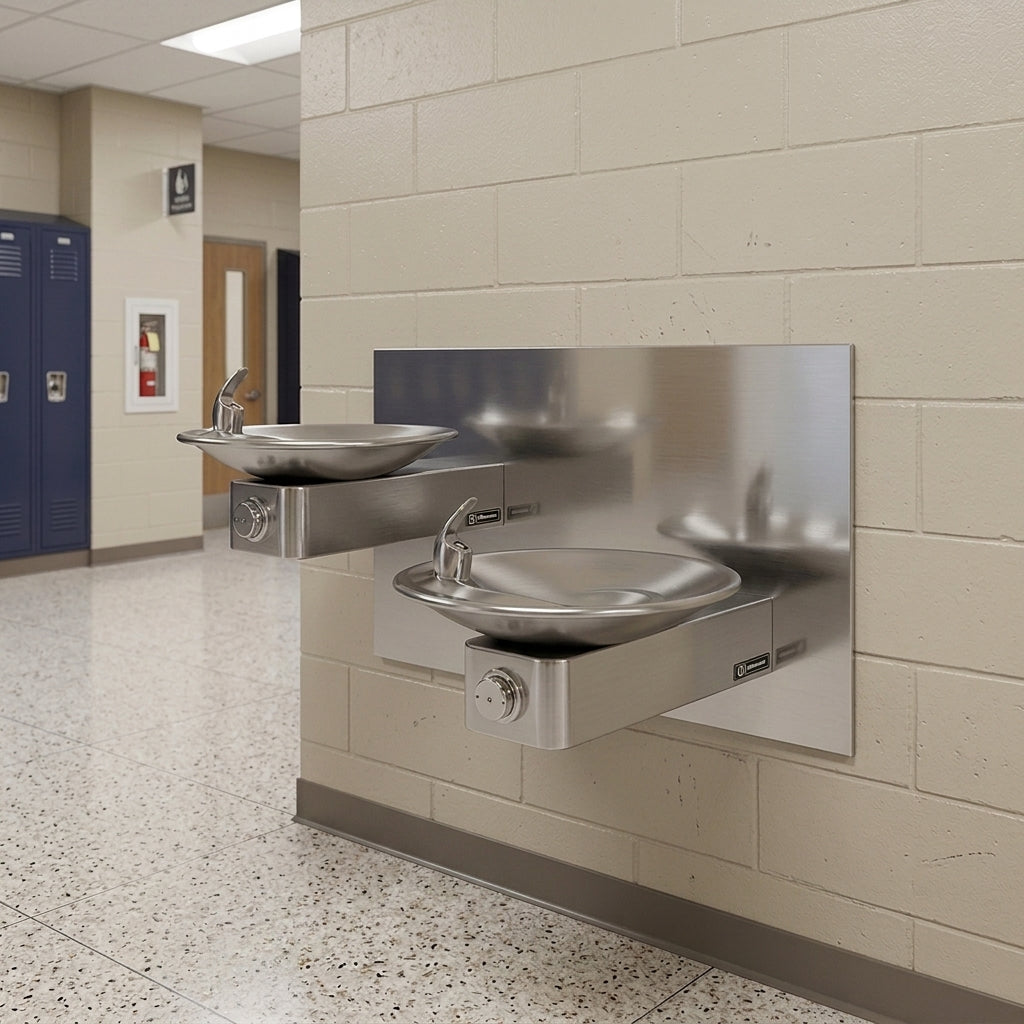

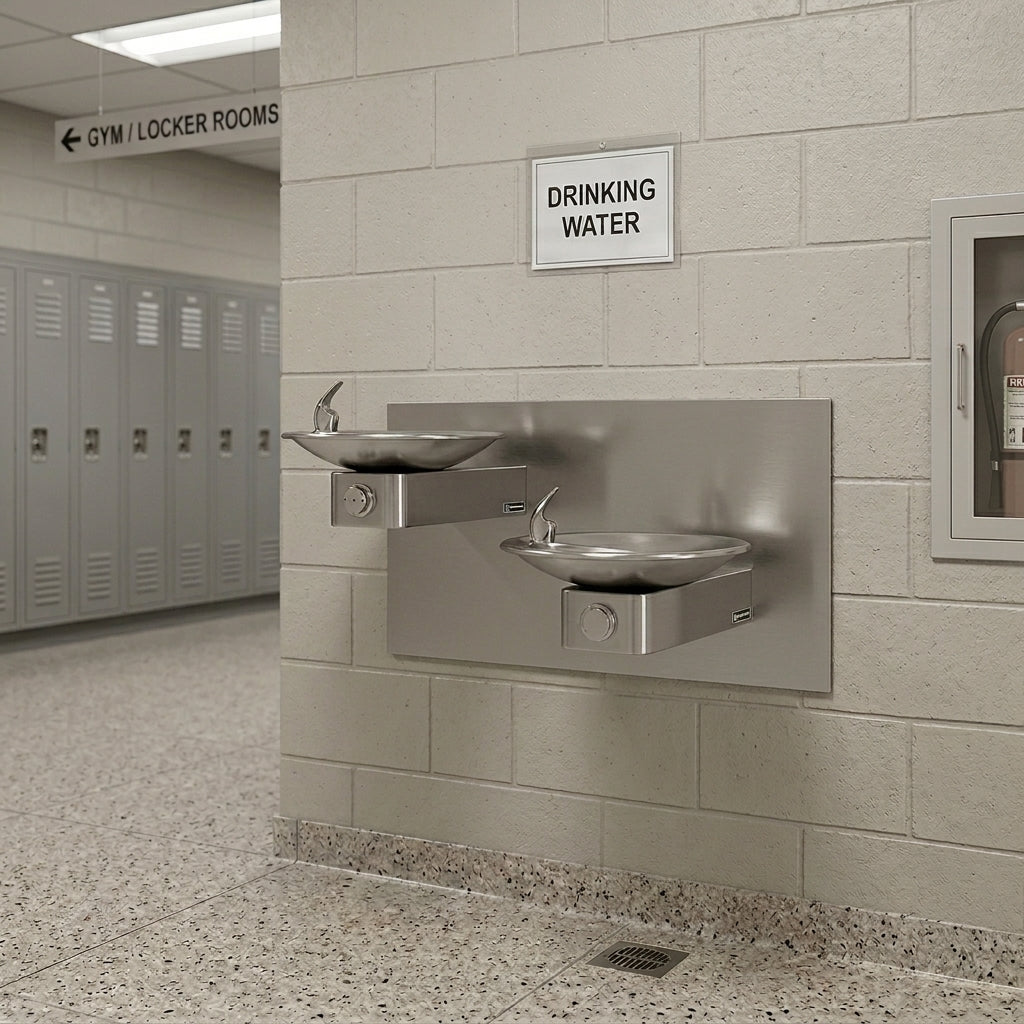

The Haws 1011 Series is a hi-lo dual-level wall-mounted drinking fountain built with Type 304 Stainless Steel for durability and long-term reliability.
Note: This product requires the Model 6700 in-wall mounting plate, which must be purchased separately.
Key Specifications:
- Design: Hi-lo dual vandal-resistant ADA drinking fountain with push-button activation
- Finish: Satin Stainless Steel basins with polished chrome-plated brass bubbler heads
- Filtration: Non-filtered; compatible with optional 6480 Drinking Fountain Filter Kit
- Refrigeration: Not included; see refrigerated variants under Related Variants
- Stations Served: 2 (hi-lo ADA-compliant fountains)
Features & Benefits:
- Dual-Level Accessibility: Hi-lo mounting design accommodates users of varying heights
- Vandal-Resistant Construction: Chrome-plated brass bubbler heads, waste strainers, and bottom plates deter tampering
- Lead-Free Waterways: 100% lead-free waterways compliant with NSF/ANSI standards
- Front-Accessible Valve Maintenance: Push-button valve assembly allows cartridge replacement and flow adjustment from the front
- Durable Build: Heavy-duty stainless steel construction ensures long-term reliability in high-traffic environments
Other Related Variants:
- 1011.8: Hi-lo with integrated chiller and in-wall mounting frame
- 1011.8B: Hi-lo bundle with upper unit on left side, chiller, and in-wall mounting frame
- 1011.8HO2: Hi-lo with chiller, in-wall mounting frame, and touchless operation
- 1011B: Hi-lo with round sculpted bowls and in-wall mounting plate bundle
FAQ
Q: Does the Haws 1011 require any additional components for installation?
A: Yes, the Haws 1011 requires the Model 6700 in-wall mounting plate, which must be purchased separately.
Q: Is a water filter available for the Haws 1011?
A: Yes, the optional 6480 Drinking Fountain Filter Kit can be added to improve water quality.
Q: Can additional accessories be added to the Haws 1011 after installation?
A: Yes, accessories include the stainless steel access panel (Model 6603), fountain skirt (Model SK3), and universal in-wall support frame (Model 6800).
Q: What operating pressure is required for the Haws 1011?
A: The fountain operates within a pressure range of 30–90 PSI (2.1–6.2 bar).
Q: Is the Haws 1011 suitable for outdoor installation?
A: The standard 1011 is intended for indoor use, but it can be installed outdoors in environments where temperatures remain above freezing. For freeze-resistant applications, see other Haws variants.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

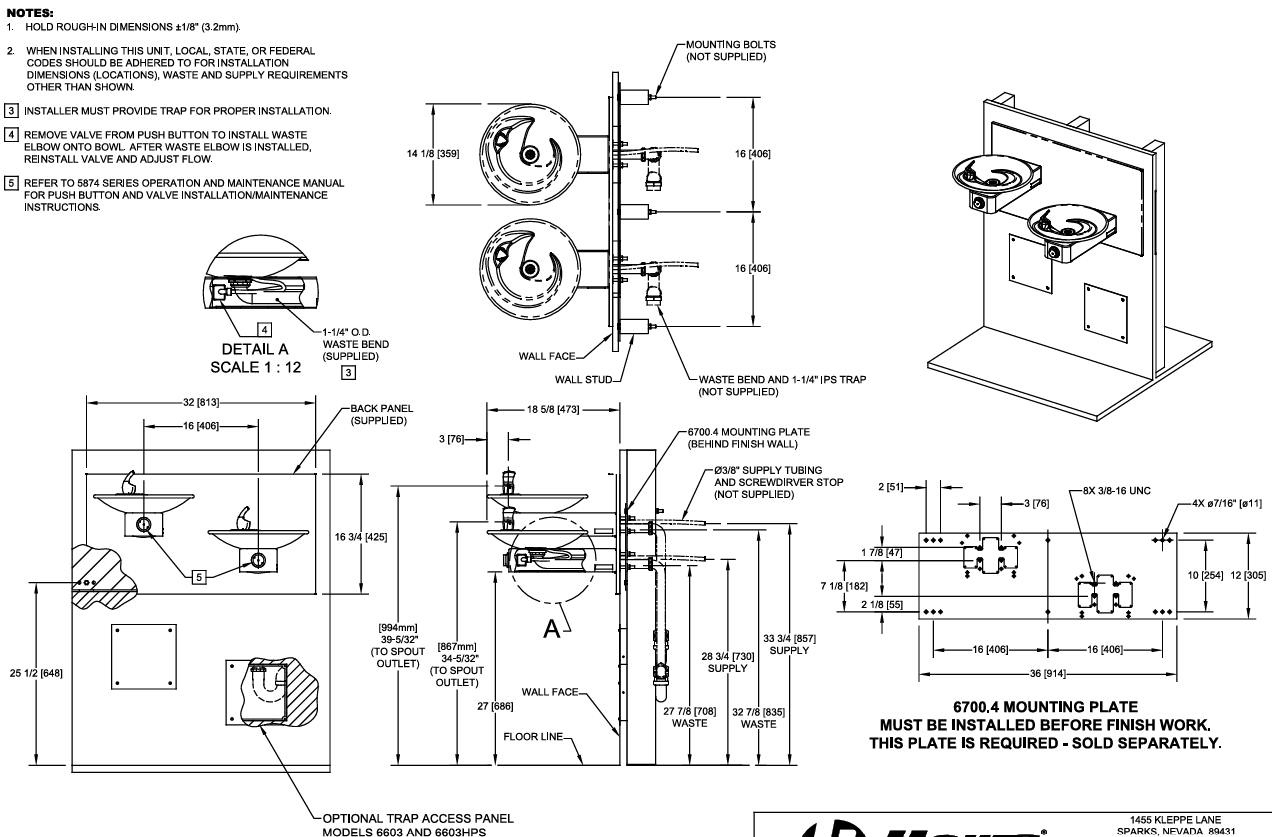

- Position the unit at ADA‑compliant height or adjust dimensions as required by local code.
- Secure the fountain firmly to the wall using hanger brackets or optional mounting plate; ensure all fasteners engage structural members.
- Connect the 1/2" IPS supply line with flowing pressure between 30–90 psi; install an inlet filter if sediment or mineral content is high.
- Attach the 3/8" O.D. push‑in type inlet fitting; cut tubing square, insert fully to depth, and verify watertight connection.
- Connect the 1‑1/4" O.D. waste tube to the trap provided; maintain proper alignment and check for leaks.
- Ensure the bubbler valve and push button assembly are properly aligned and tightened; apply thread sealant where specified.
- Verify clearances and level the unit before final tightening of all fasteners.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Periodically clean the strainer to maintain proper flow.
- Inspect the bubbler head, push button, and valve assembly for wear; replace with repair kits if needed.
- Check water pressure regularly to ensure it remains within the recommended 30–90 psi range.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners.
- Inspect tubing connections for leaks and re‑seat if necessary.
- Disconnect power or water supply before servicing to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
