Hoshizaki H9320-52 | Twin 4HC-H Water Filter System with Manifold &...
IN STOCK FOR IMMEDIATE SHIPMENT! Ships within 24 hours.

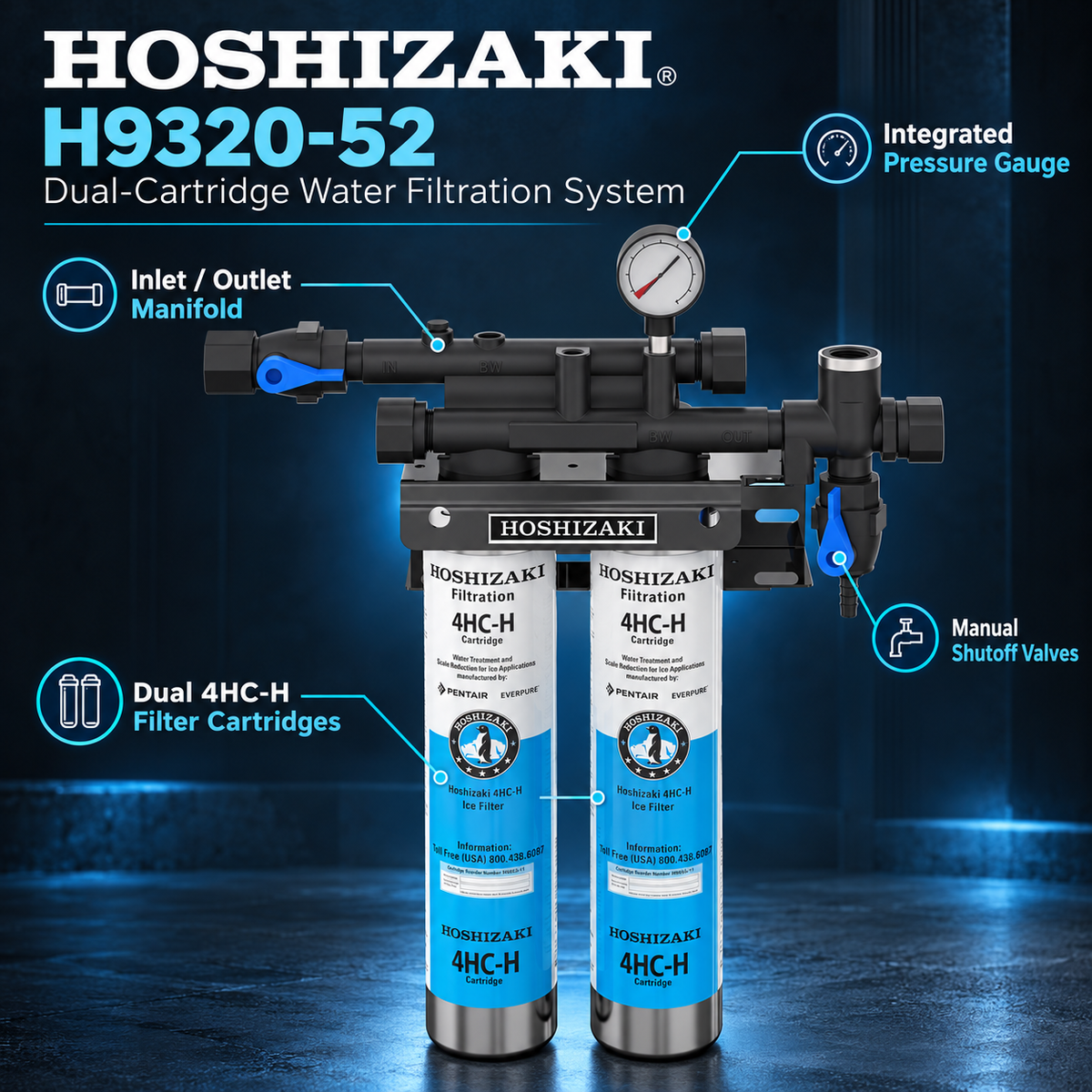

The Hoshizaki H9320-52 is a twin-configuration water filtration system engineered for medium- to high-volume ice machines. Utilizing two 4HC-H filter cartridges, this NSF-certified system reduces chlorine taste and odor, particulates, and sediment while helping minimize scale buildup for cleaner ice and reduced machine maintenance.
Key Specifications:
| Contaminants Filtered | Chlorine taste & odor, particulate matter (1 micron nominal), sediment, and filterable cysts |
| Filter Capacity | 42,000 Gallons |
| Compatibility | Recommended for KM-901, KM-1100, KMD-860, KMS-822, KMS-1122, KMS-1402, and IM-50BAA-Q ice machines |
| Certifications | NSF/ANSI Standard 42, Class 1 for chlorine, taste, odor, and particulate reduction |
| Number of Filters | Twin Configuration (2 × 4HC-H Replacement Cartridges) |
Features & Benefits:
- NSF Certified Filtration: Certified to NSF/ANSI Standard 42 for chlorine, taste, odor, and particulate reduction.
- Twin-Filter Configuration: Dual cartridge design provides higher flow rates and increased filtration capacity for larger ice machines.
- Scale Reduction Support: Helps minimize lime scale formation that can reduce ice machine efficiency.
- Crystal-Clear Ice Production: One-micron nominal filtration helps remove particulates that affect ice quality.
- Reduces Equipment Maintenance: Improves incoming water quality to help protect internal ice machine components.
- Maintains Full Production Capacity: Designed to support demanding commercial ice machine applications.
What's Included:
- H9320-52 Twin Filtration Manifold Assembly
- Two 4HC-H Filter Cartridges
- Pressure Gauge
- Mounting Assembly
- Installation Instructions
Hoshizaki H9320 System Series Comparison:
| System Model | H9320-51 | H9320-52 (This System) | H9320-53 |
|---|---|---|---|
| Cartridges Used | (1) 4HC-H Cartridge | (2) 4HC-H Cartridges | (3) 4HC-H Cartridges |
| Total Capacity | 21,000 Gallons | 42,000 Gallons | 63,000 Gallons |
| Maximum Flow Rate | 2.0 GPM | 4.0 GPM | 6.0 GPM |
| Recommended Applications | Small Ice Machines | Medium-Volume Commercial Ice Machines | High-Volume Commercial Ice Machines |
How to Replace the Hoshizaki H9320-52 Filters:
- Turn Off Water Supply: Shut off incoming water before servicing the filtration system.
- Relieve Pressure: Open a downstream water source to relieve pressure within the system.
- Remove Existing Cartridges: Rotate each 4HC-H replacement cartridge counterclockwise until released from the manifold.
- Install New Cartridges: Insert new cartridges and rotate clockwise until securely locked into place.
- Flush the System: Restore water supply and flush the new cartridges thoroughly before returning the ice machine to service.
- Inspect for Leaks: Verify all fittings and cartridge connections are properly sealed.
Tip: The Hoshizaki E-20 Prefilter System is recommended for twin and triple H9320 configurations in areas with elevated sediment levels.
FAQ
Q: What Ice Machines Are Compatible with the H9320-52?
A: The H9320-52 is recommended for KM-901, KM-1100, KMD-860, KMS-822, KMS-1122, KMS-1402, and IM-50BAA-Q series ice machines.
Q: What Replacement Cartridge Does the H9320-52 Use?
A: The correct replacement element is the Hoshizaki H9655-11 4HC-H Replacement Cartridge. Two cartridges are required for each filter change.
Q: Can This System Be Used in Areas with High Sediment Levels?
A: Yes. Hoshizaki recommends pairing the system with the E-20 Prefilter System in areas with excessive dirt or sediment.
Q: How Often Should the Filters Be Replaced?
A: Replace cartridges when system performance decreases or before reaching the 42,000-gallon capacity. Annual replacement is generally recommended for optimal performance.
Q: What Is the Maximum Flow Rate of the H9320-52?
A: The twin-configuration system provides a maximum flow rate of 4.0 gallons per minute.
Q: Is the H9320-52 Certified for Chlorine Reduction?
A: Yes. The system is NSF/ANSI Standard 42 certified and provides an average chlorine reduction of approximately 97.3%, helping improve ice taste and odor.
Q: Is the H9320-52 Certified for Cyst Reduction?
A: Yes. The H9320 filtration system can be used with water that may contain filterable cysts and provides mechanical filtration down to one micron nominal.
Q: What Warranty Coverage Is Included?
A: Hoshizaki provides a one-year warranty on the complete system and a one-year warranty on replaceable filter elements against defects in materials and workmanship.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Hoshizaki H9320‑52 is a twin‑cartridge water filtration system designed to improve water quality for commercial ice machines and foodservice equipment. Featuring dual 4HC‑H filter cartridges and a high‑capacity manifold system, it helps reduce chlorine taste and odor, sediment, and scale‑causing contaminants while extending equipment life.
Key Installation Requirements:
- Wall‑mounted installation using the included manifold assembly
- Cold water line connection only
- Install in a location with adequate clearance for cartridge replacement
- Mount system vertically with cartridges hanging downward
- Follow local plumbing codes during installation
- Suitable for commercial ice machine and foodservice equipment applications
Important Notes Before Installing:
- Always shut off water supply before installation or filter replacement
- Flush water lines before connecting the filtration system
- Use only genuine Hoshizaki replacement cartridges for proper performance
- Do not connect to hot water lines
- Inspect all fittings and connections for leaks after installation
- Replace cartridges according to water conditions and maintenance schedules
Basic Installation Overview:
- Select a mounting location with adequate access for service
- Secure the manifold assembly to a wall or suitable support surface
- Connect the incoming water supply to the manifold inlet
- Install both filter cartridges into the manifold heads
- Connect the outlet line to the equipment being served
- Turn on the water supply and inspect all connections for leaks
- Flush the system according to manufacturer recommendations
- Verify proper water flow to connected equipment
For complete specifications and filtration details, download the official H9320‑52 Spec Sheet.
