Elkay VRC8S | Wall-mount VRC-style Drinking Fountain | Filterless, Refrigerated, Fully Vandal-resistant
Elkay VRC8S | Wall-mount VRC-style Drinking Fountain | Filterless, Refrigerated, Fully Vandal-resistant is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay VRC8S | Wall-mount VRC-style Drinking Fountain | Filterless, ...

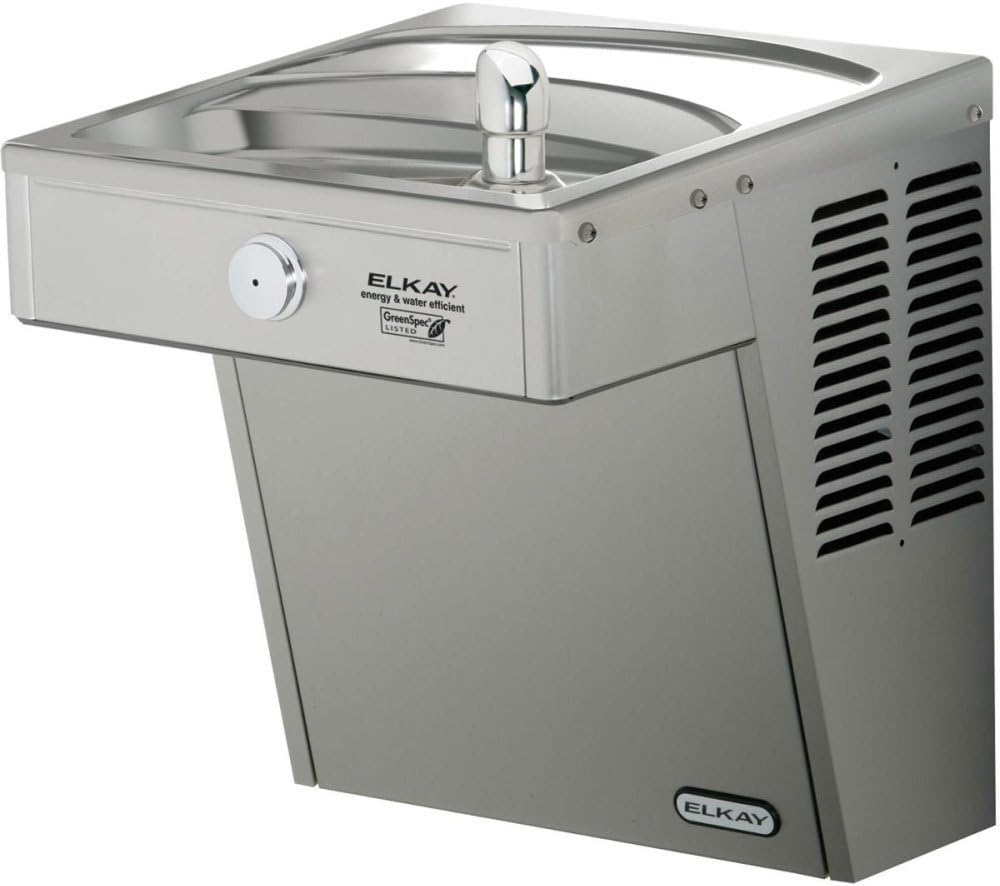

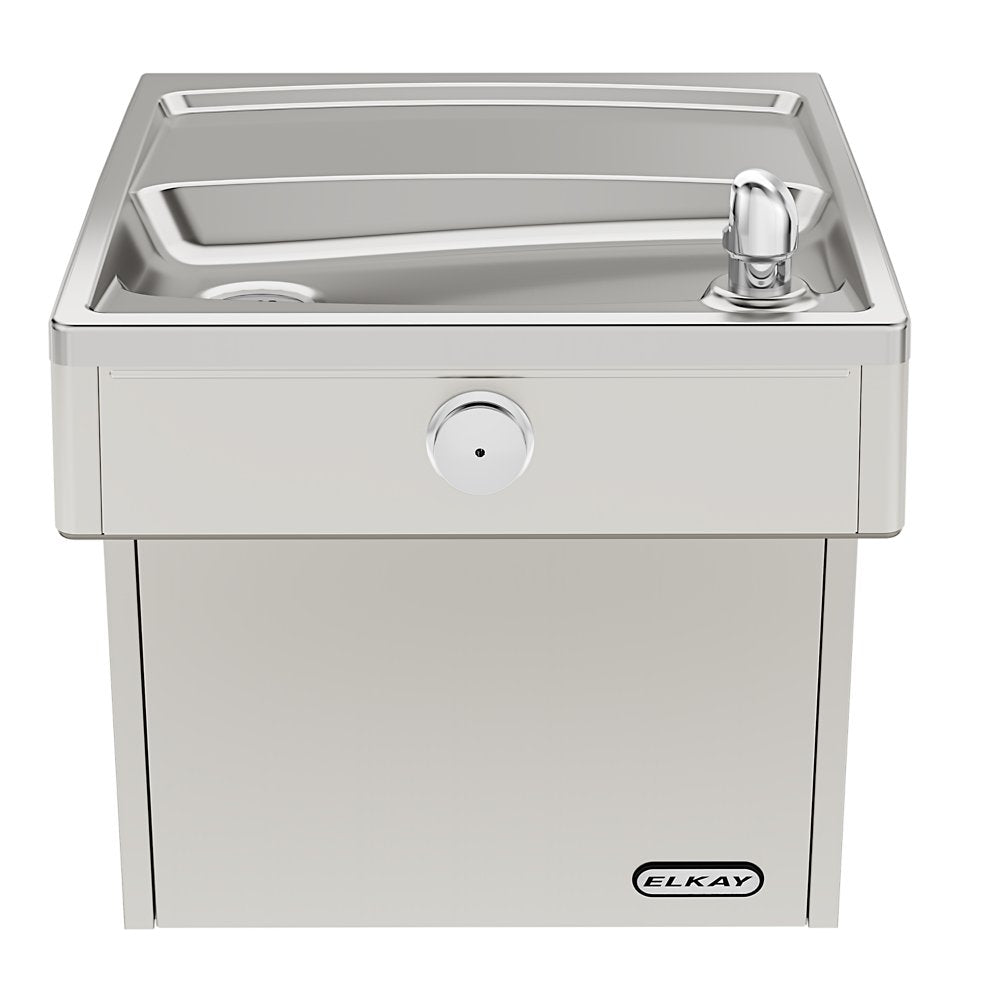

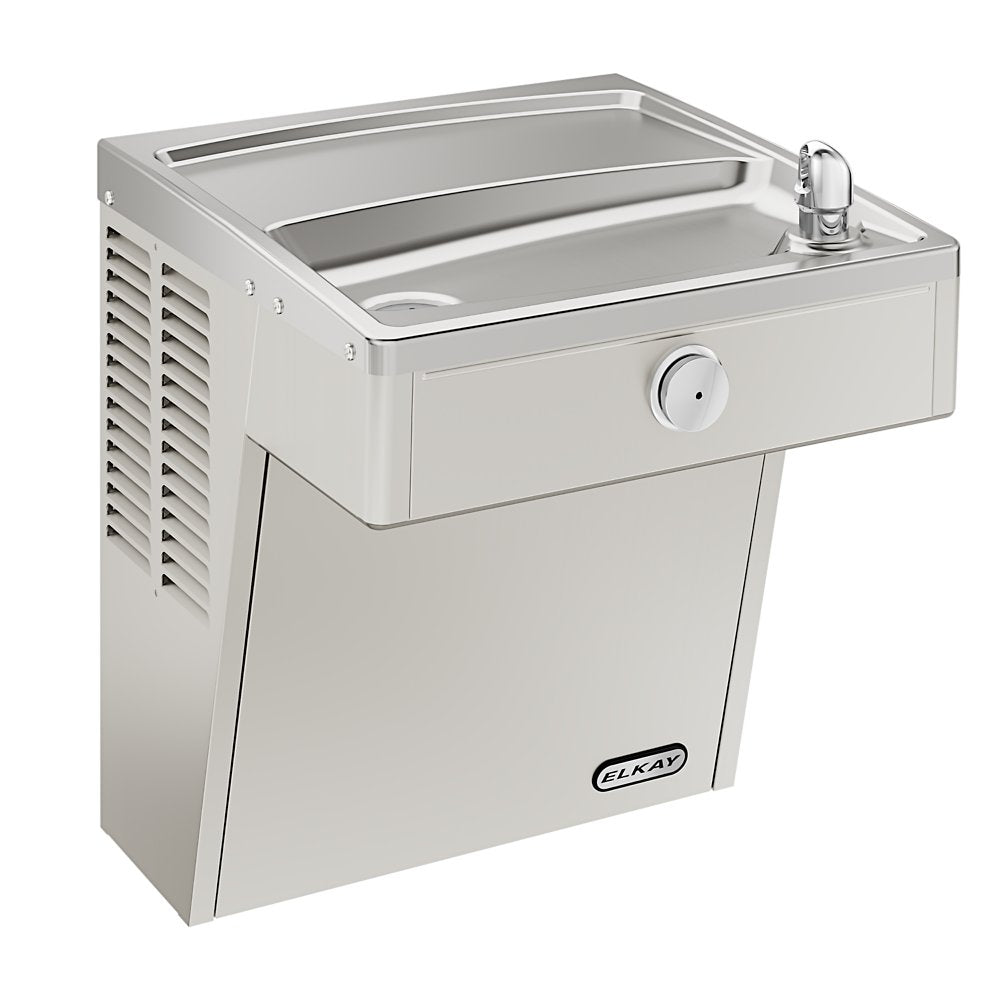

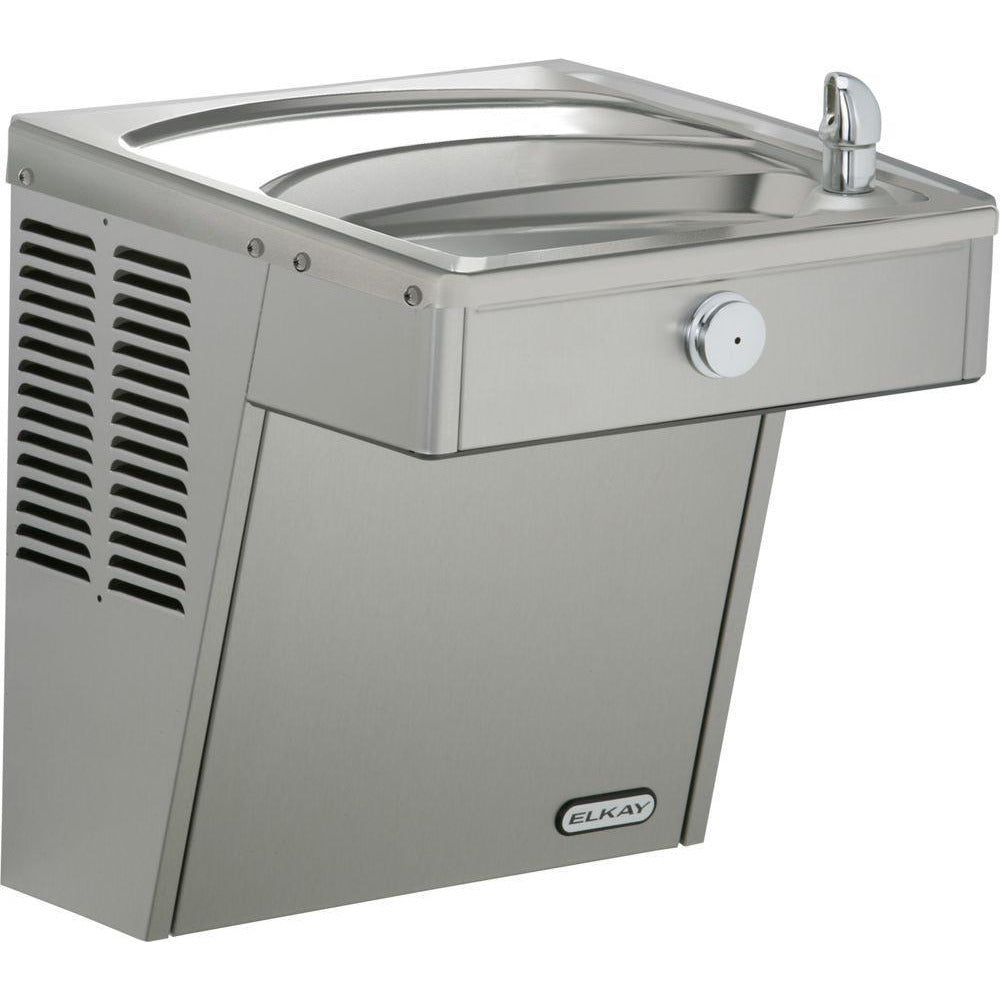

Elkay VRC8S is a wall-mounted vandal-resistant ADA cooler, designed for indoor and outdoor installation. This stainless steel unit delivers chilled water through a mechanical front bubbler button, making it ideal for schools, parks, offices, and public facilities that require durability, accessibility, and reliable performance.
Key Specifications:
- Design: Wall-mounted ADA cooler, single-station.
- Finish: Stainless steel.
- Filtration: Non-filtered model. For filtered performance, see the LVRC8S. Retrofit available with the EWF172 WaterSentry® VII Filter Kit.
- Refrigeration: 8.0 GPH of 50°F drinking water (based on 80°F inlet and 90°F ambient).
- Activation: Mechanical front bubbler pushbutton.
Features & Benefits:
- Reliable Cooling: Provides 8.0 GPH of chilled water at 50°F, even under heavy use.
- Vandal Resistance: Heavy-duty bubbler and reinforced stainless steel construction withstand tampering and abuse.
- Mechanical Activation: Ensures water delivery even during power interruptions.
- ADA Compliant: Barrier-free design meets ADA & ICC A117.1 accessibility standards.
- Outdoor Ready: Suitable for outdoor use when properly winterized or protected from extreme climates.
What's Included:
- VRC8S vandal-resistant ADA cooler unit
- Vandal-resistant bubbler
- Wall mounting plate and hardware
- Installation instructions
FAQ
Q: What warranty does the VRC8S include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: Does this model include filtration?
A: No. The VRC8S is a non-filtered model. For filtered performance, see the LVRC8S. Filtration can also be added later using the EWF172 WaterSentry® VII Filter Kit.
Q: What makes this unit vandal resistant?
A: The VRC8S features a heavy-duty vandal-resistant bubbler, reinforced stainless steel panels, and tamper-resistant fastenings, making it ideal for high-traffic public environments.
Q: Is this unit ADA compliant?
A: Yes. The VRC8S meets ADA & ICC A117.1 accessibility standards when installed at the proper height. For enhanced compliance, Elkay offers the 98324C Cane Apron accessory.
Detailed Features & Benefits
Advanced Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS-insulated copper tubing ensure reliable 8.0 GPH chilled water delivery at 50°F.
Vandal-Resistant Design: Reinforced stainless steel panels, tamper-resistant fastenings, and a heavy-duty bubbler withstand abuse in public spaces.
Mechanical Reliability: Mechanical pushbutton activation guarantees water delivery even during electrical service interruptions.
ADA Accessibility: Barrier-free design meets ADA & ICC A117.1 standards. Compatible with the 98324C Cane Apron for enhanced compliance.
Outdoor Durability: Suitable for outdoor installations when properly winterized or protected from extreme climates.
Easy Maintenance & Retrofit Filtration Option: Stainless steel surfaces clean easily with mild soap and water. Filtration can be added later using the EWF172 WaterSentry® VII Filter Kit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
