Elkay LZSG8WSLK | Wall-mount Bottle Filling Station | Filtered, High-efficiency chiller, EZ-style fountain, Granite Gray
Elkay LZSG8WSLK | Wall-mount Bottle Filling Station | Filtered, High-efficiency chiller, EZ-style fountain, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSG8WSLK | Wall-mount Bottle Filling Station | Filtered, Hig...

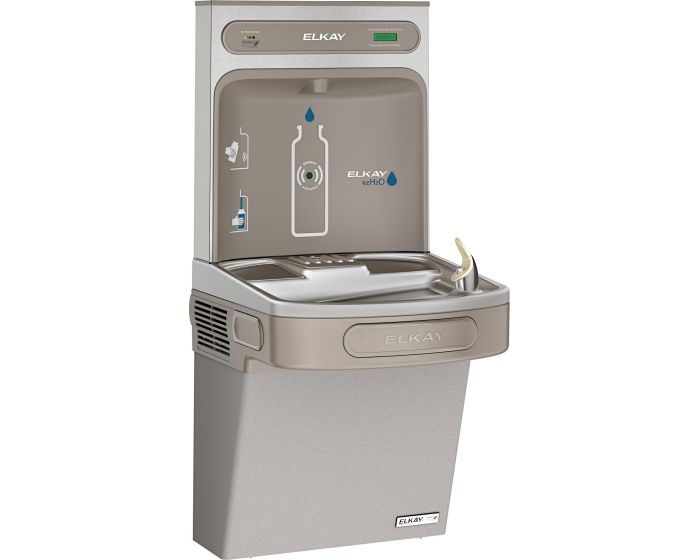

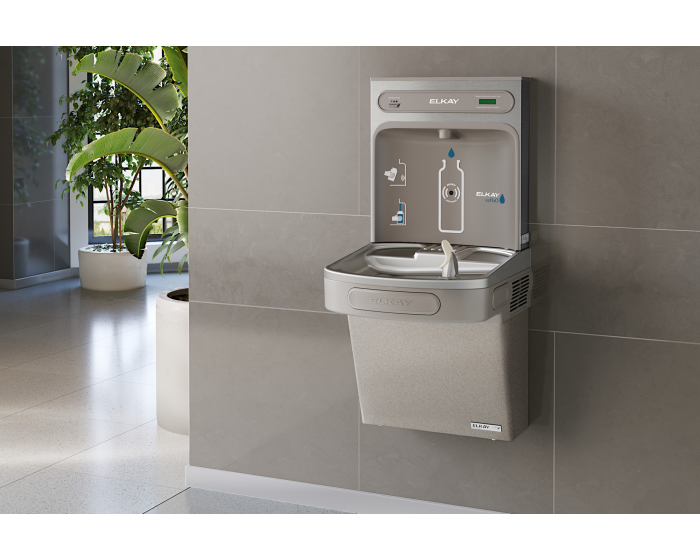

The Elkay LZSG8WSLK is a high-efficiency ezH2O® Bottle Filling Station with Single ADA Cooler, designed for indoor wall-mounted installation. This filtered, refrigerated unit delivers chilled drinking water with hands-free activation and advanced filtration, making it ideal for schools, offices, and public facilities seeking sustainable hydration solutions.
Key Specifications:
- Cooling Capacity: 8.0 gallons per hour at 50°F (based on 80°F inlet and 90°F ambient)
- Power: 115V / 60Hz
- Rated Watts: 360W
- Full Load Amps: 6A

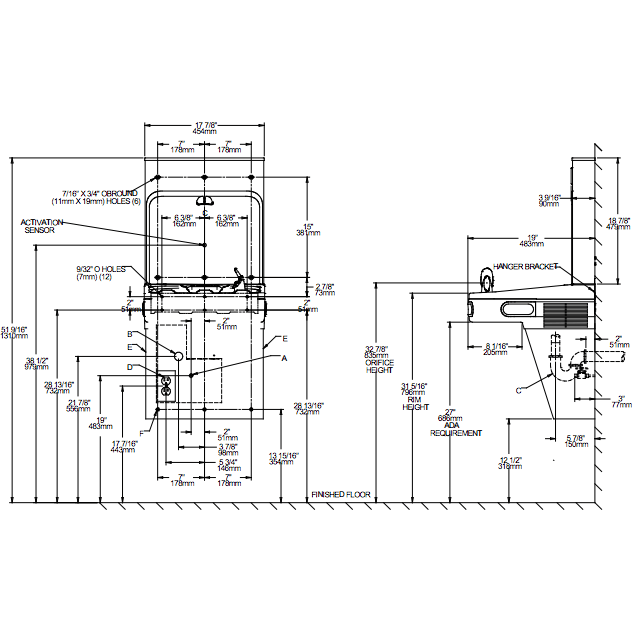

- Dimensions: 18-3/8" W × 19" D × 39-1/16" H
- Shipping Weight: Approx. 85 lbs
Features & Benefits:

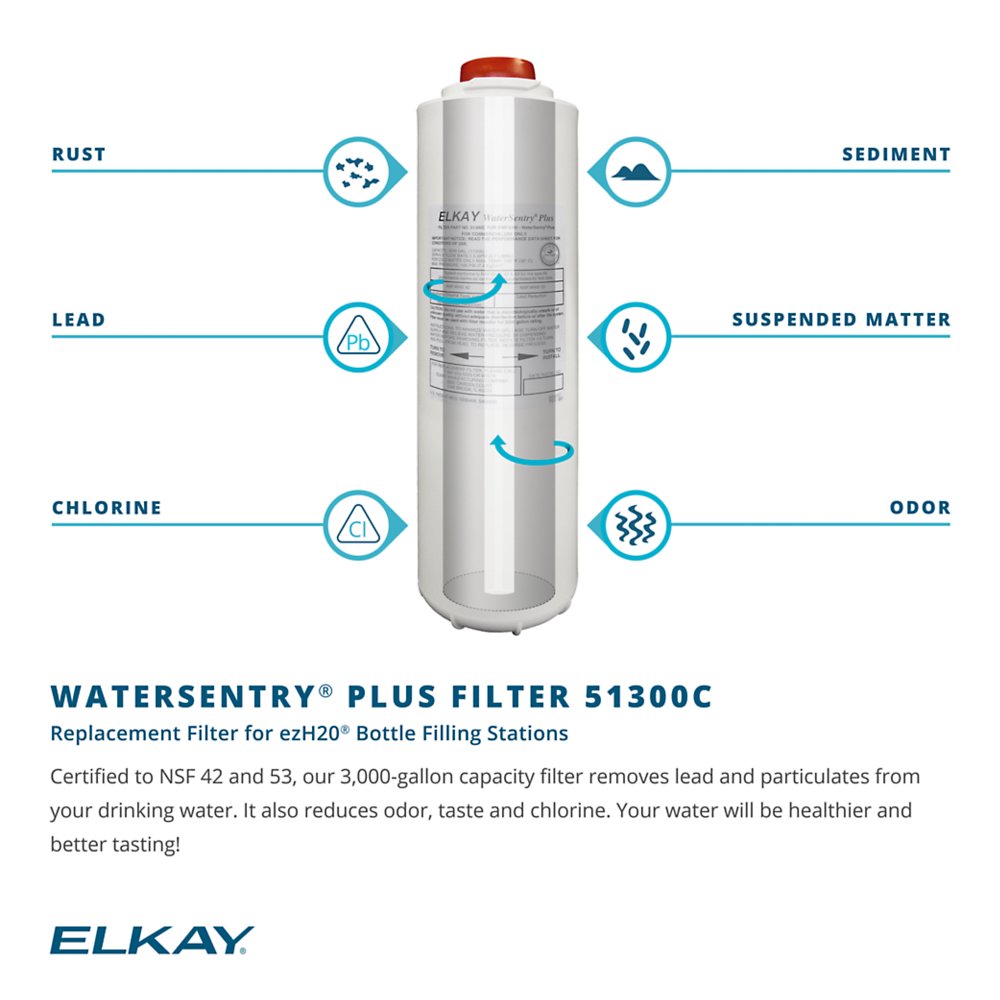

- Filtered Hydration: Includes WaterSentry® Plus filter certified to NSF/ANSI 42, 53, 61, 372, and 401 for lead, microplastics, cysts, chlorine taste and odor
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Hands-Free Bottle Filler: Sensor-activated for hygienic operation
- Flexi-Guard® StreamSaver™ Bubbler: Antimicrobial safety bubbler with reduced water consumption
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste
- Laminar Flow: Provides clean fill with minimal splash
- Real Drain System: Eliminates standing water in basin
- ADA Compliant: Meets ADA & ICC A117.1 standards when installed properly
What's Included:
- Elkay LZSG8WSLK Bottle Filling Station and ADA Cooler
- WaterSentry® Plus Filter
- Hanger Bracket
- Installation and Operation Manual
- Warranty Documentation
FAQ
Q: What type of filter does the LZSG8WSLK use?
A: It comes standard with a WaterSentry® Plus filter rated for 3,000 gallons or 12 months. Certified to reduce lead, microplastics, chlorine taste and odor, cysts, and Class 1 particulates.
Q: How do I know when to change the filter?
A: The unit features a visual LED filter monitor. When the light turns red, it's time to replace the filter.
Q: Is this unit ADA compliant?
A: Yes, when installed according to ADA and ICC A117.1 guidelines. Height adjustments may be required for children's ADA compliance.
Q: Can this unit be installed outdoors?
A: No. The LZSG8WSLK is designed for indoor use only and should not be exposed to outdoor elements.
Detailed Features & Benefits
High-Efficiency Refrigeration: The LZSG8WSLK delivers up to 8 gallons per hour of chilled water at 50°F. Its hermetically sealed compressor and insulated cooling tank ensure reliable performance and energy savings.
Smart and Sustainable Operation: Hands-free sensor activation minimizes contact, while the Green Ticker™ tracks bottles saved, promoting sustainability and user engagement. The StreamSaver™ bubbler reduces water waste without compromising flow quality.
Efficient Maintenance: The LED filter monitor and quick-connect fittings simplify upkeep. The unit ships with a standard filter and includes all necessary mounting hardware for easy installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
