Elkay LVRCTL8WSPRO-FSR5 | Pro Filtration Bi-Level Bottle Filler &am...
Notice: This product will be coming soon

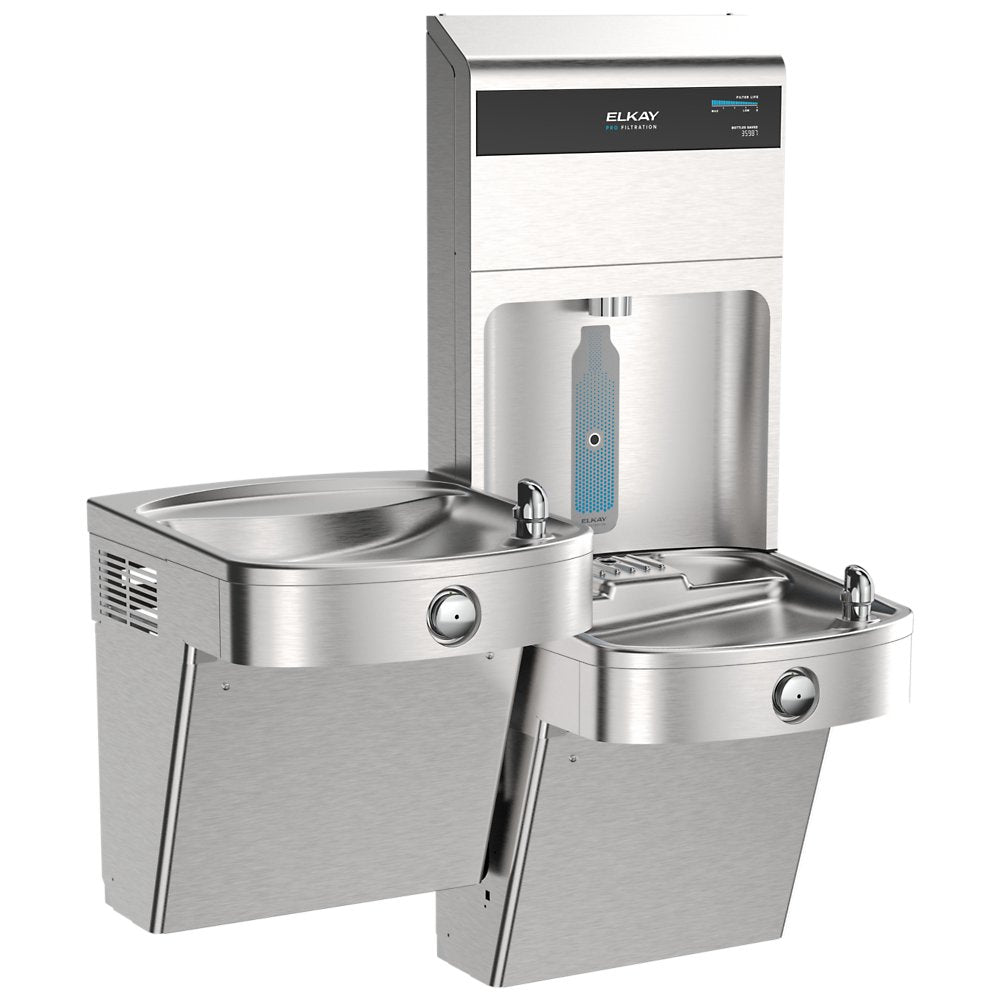

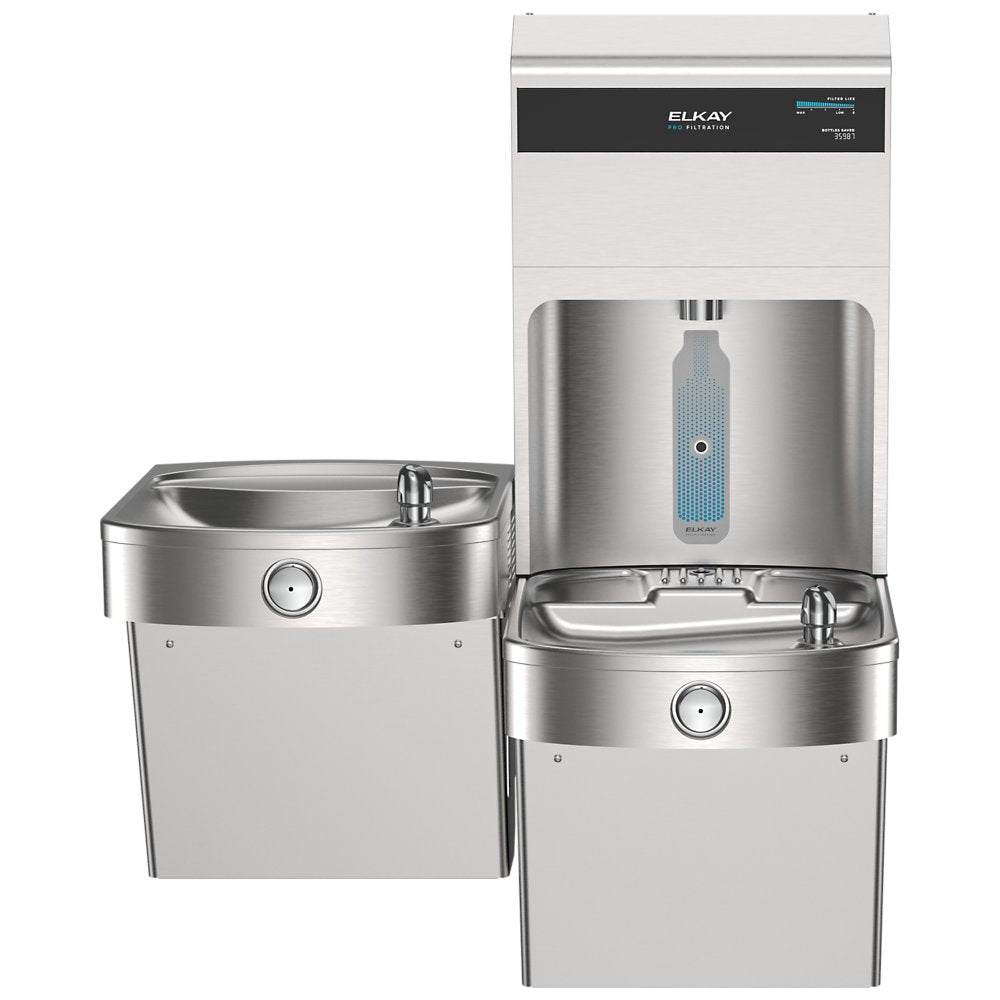

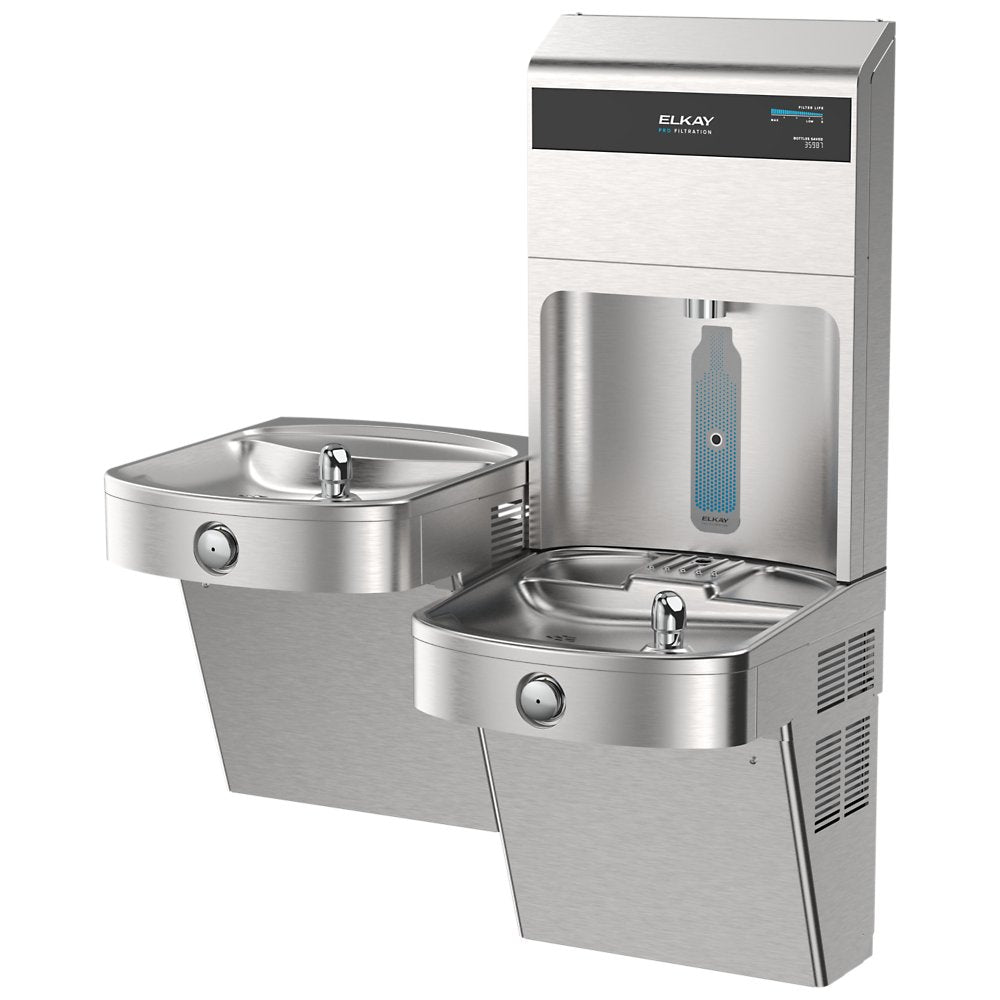

The Elkay LVRCTL8WSPRO-FSR5 is a vandal-resistant, cloud-connected bi-level bottle filling station and water cooler with two-stage filtration and 8.0 GPH chilling capacity.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Chlorine Taste & Odor, Cysts
- Filter Capacity: 10,000 Gal. Ultra-Capacity Lead Filter with Stage 1 Sediment Prefilter
- Refrigeration: 8.0 GPH chilling capacity (50°F output based on 80°F inlet, 90°F ambient)
- Power: 115V/60Hz, 5 Full Load Amps
Other Related Variants:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction
-
LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection
Features & Benefits:
- Cloud-Connected Monitoring: Track filter status, monitor performance, and flush the unit remotely from anywhere using the plumbSMART Gateway, saving time and maintenance resources.

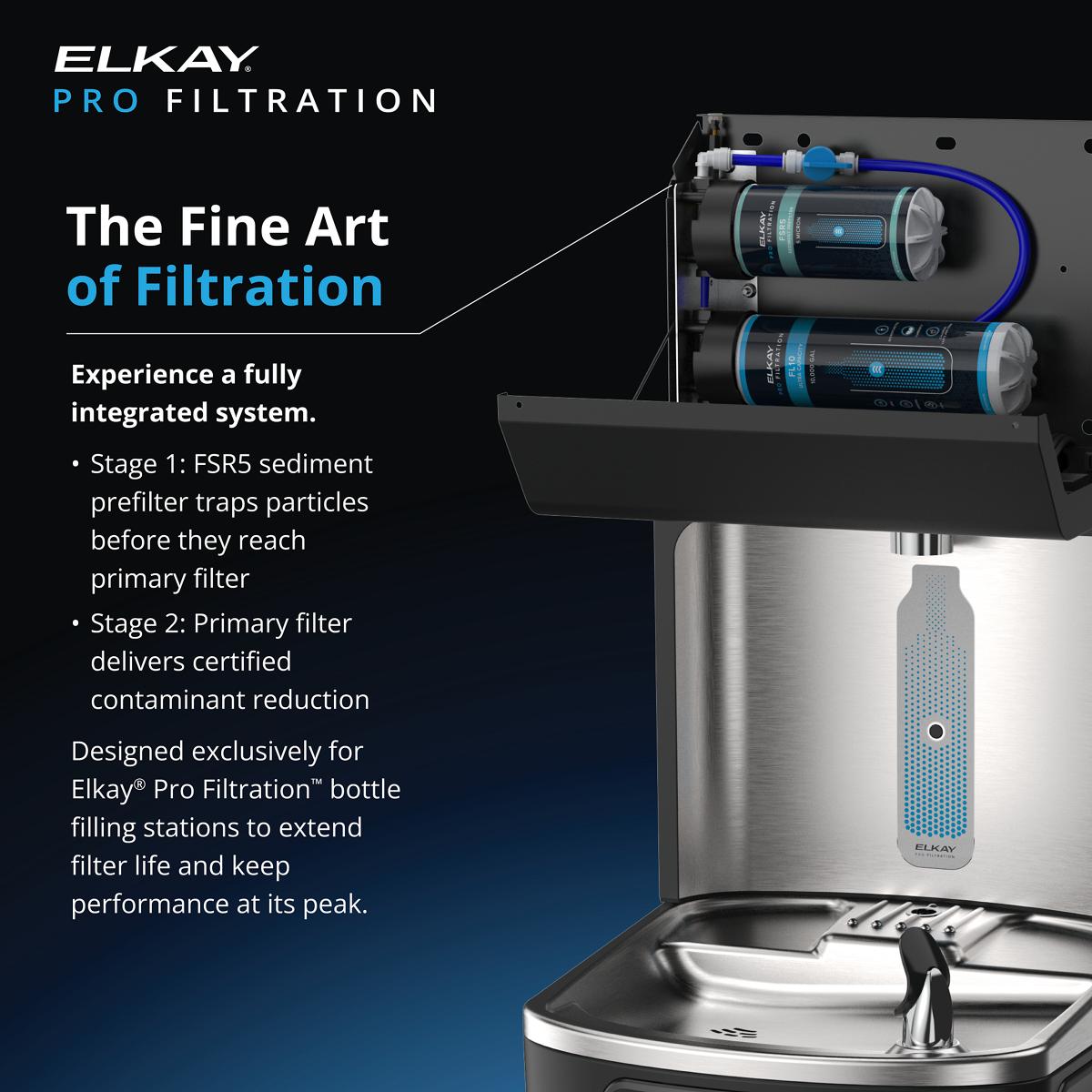

- Two-Stage Filtration System: The included 10,000-gallon ultra-capacity lead filter works with a sediment prefilter to extend filter life by capturing dirt and particulates before they reach the primary filter.

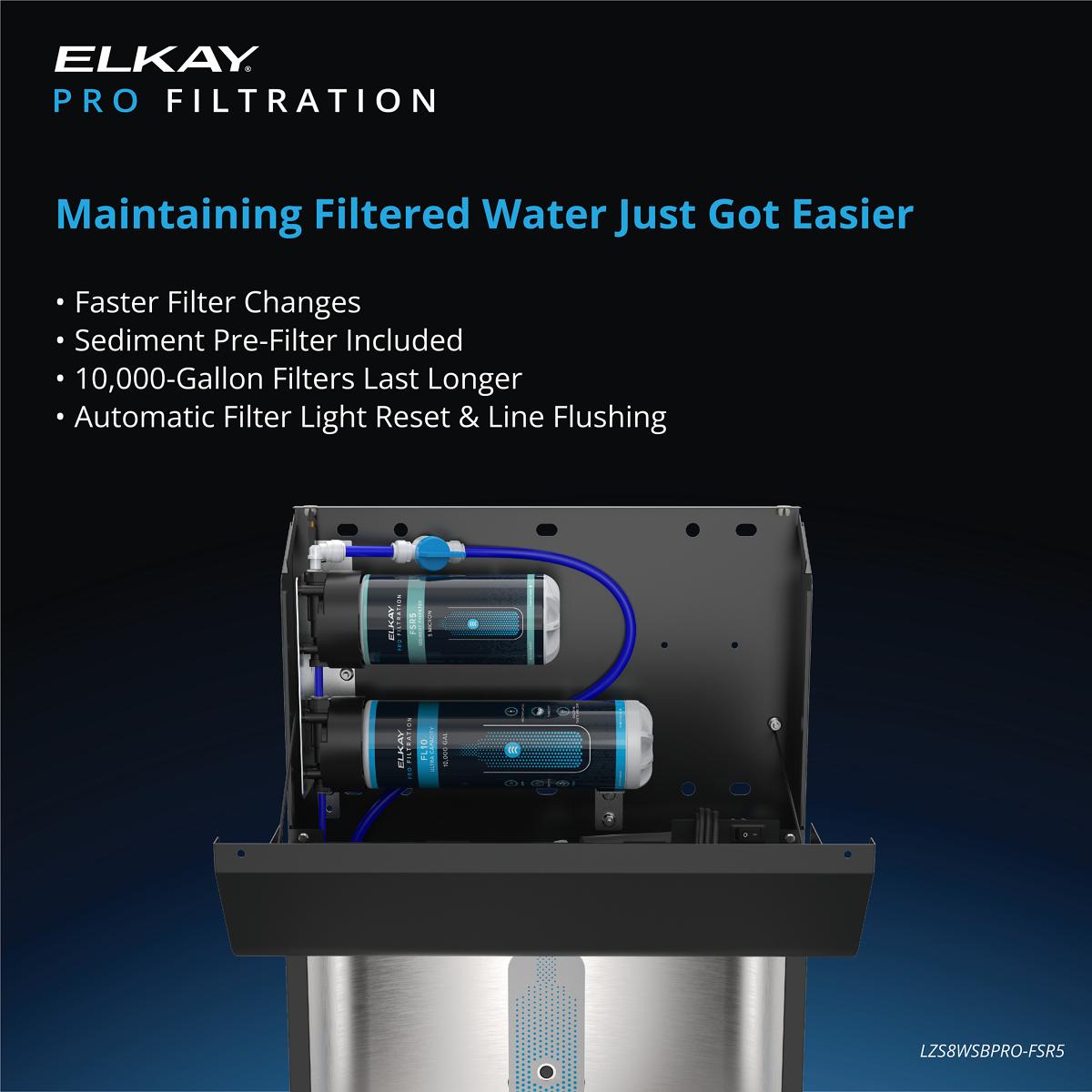

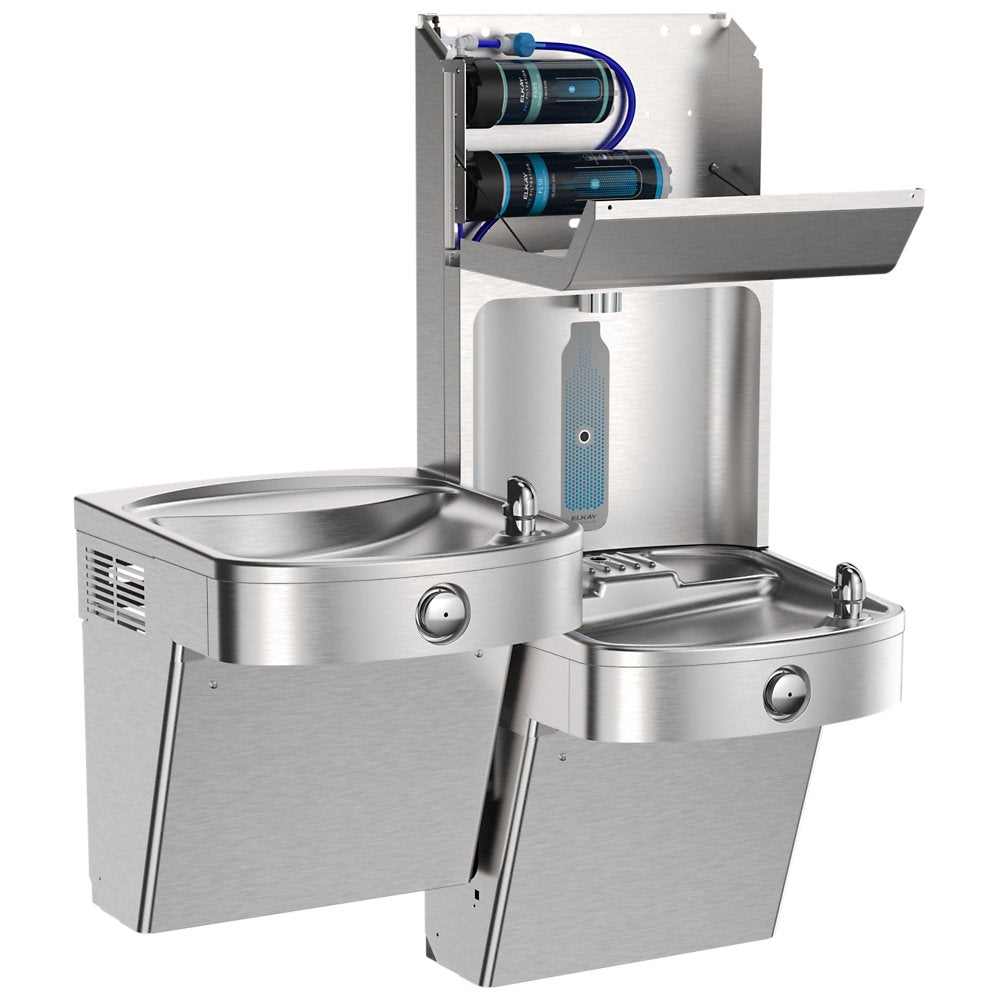

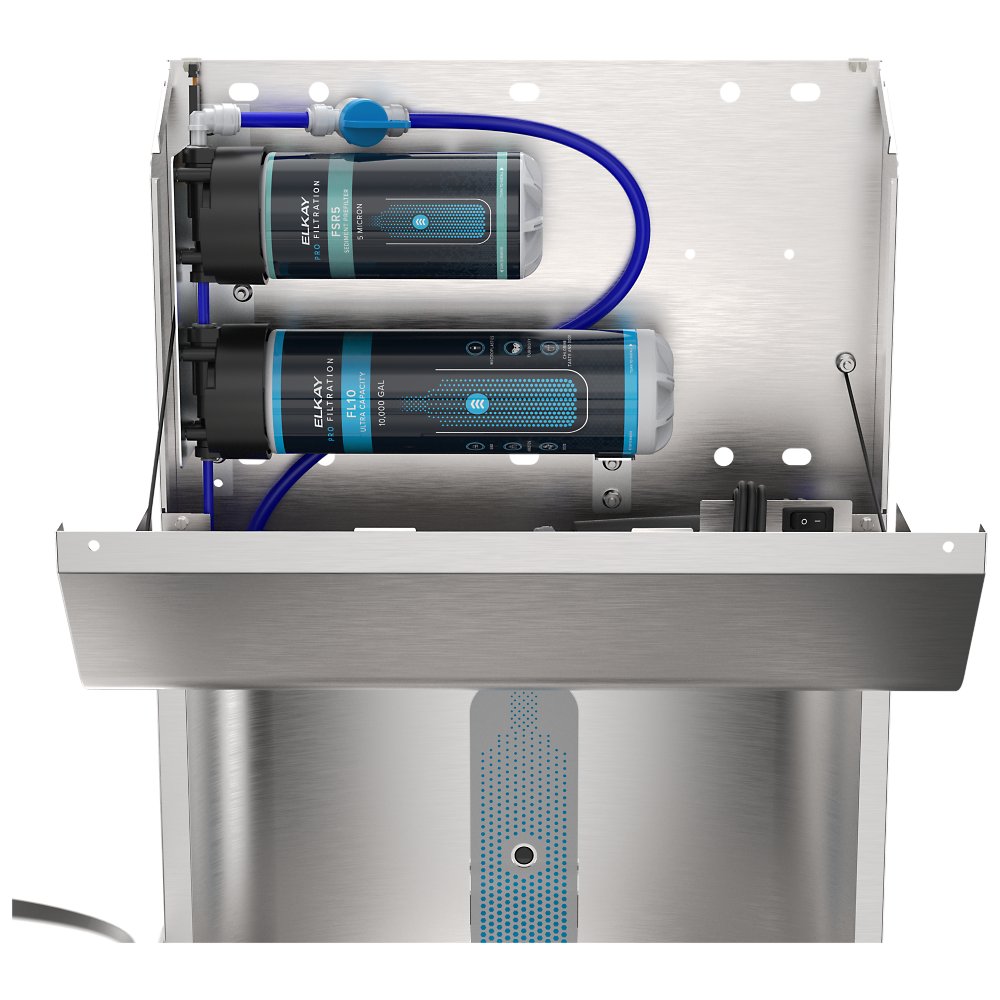

- Simplified Maintenance: Top-mount quick filter change design allows both filters to be replaced easily and efficiently from the top of the unit, with automatic filter recognition and flushing upon installation.
- Vandal-Resistant Design: Stainless steel alcove, tempered glass display cover, and mechanical front bubbler button backup ensure durability in high-traffic environments while maintaining a sleek, modern aesthetic.
FAQ
Q: Does this unit require a separate gateway for cloud connectivity?
A: Yes, the LVRCTL8WSPRO-FSR5 requires a plumbSMART Gateway (sold separately, model ZGW-LORA-W1-LTE) and account setup to enable cloud-connected features for remote monitoring and maintenance.
Q: How often do the filters need to be replaced?

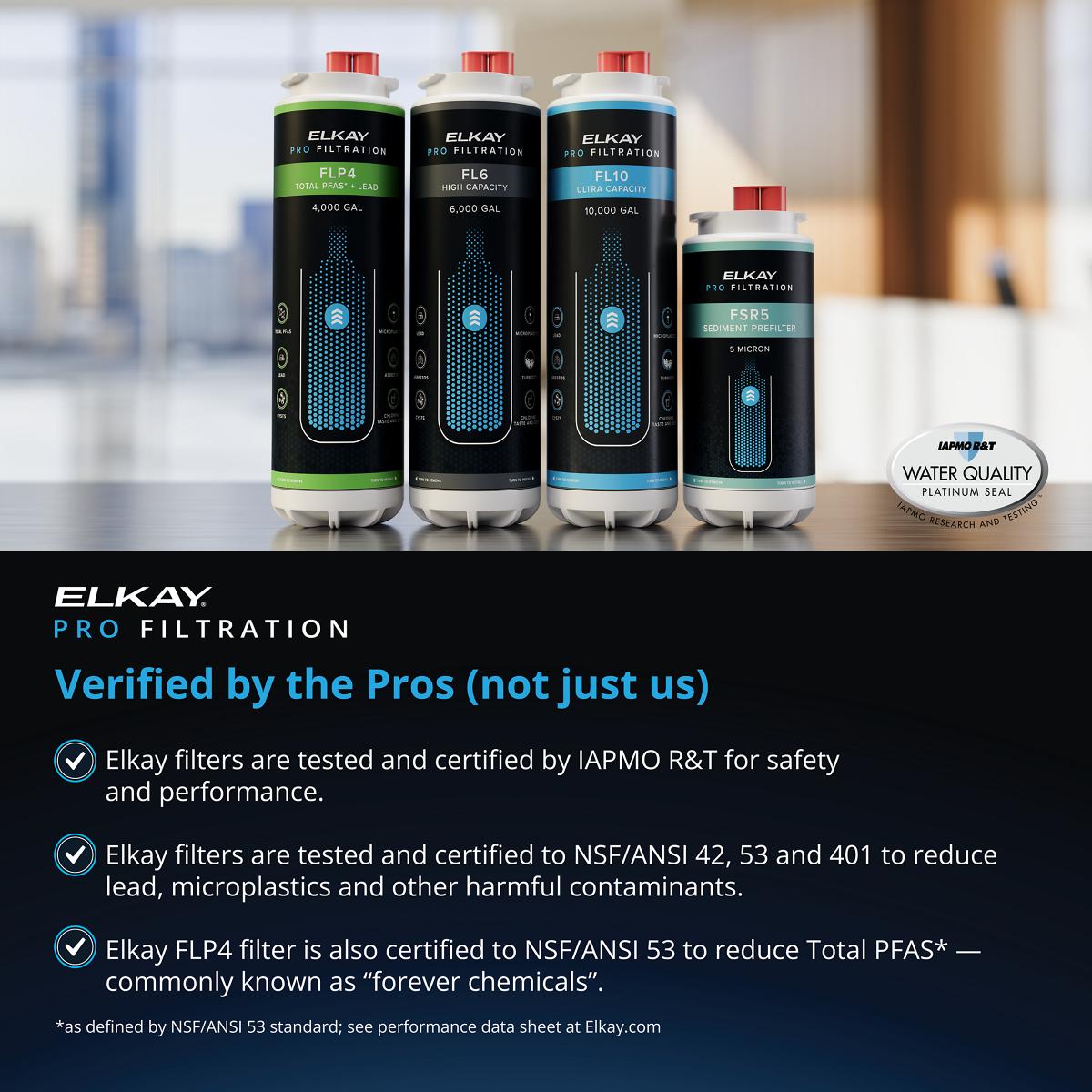

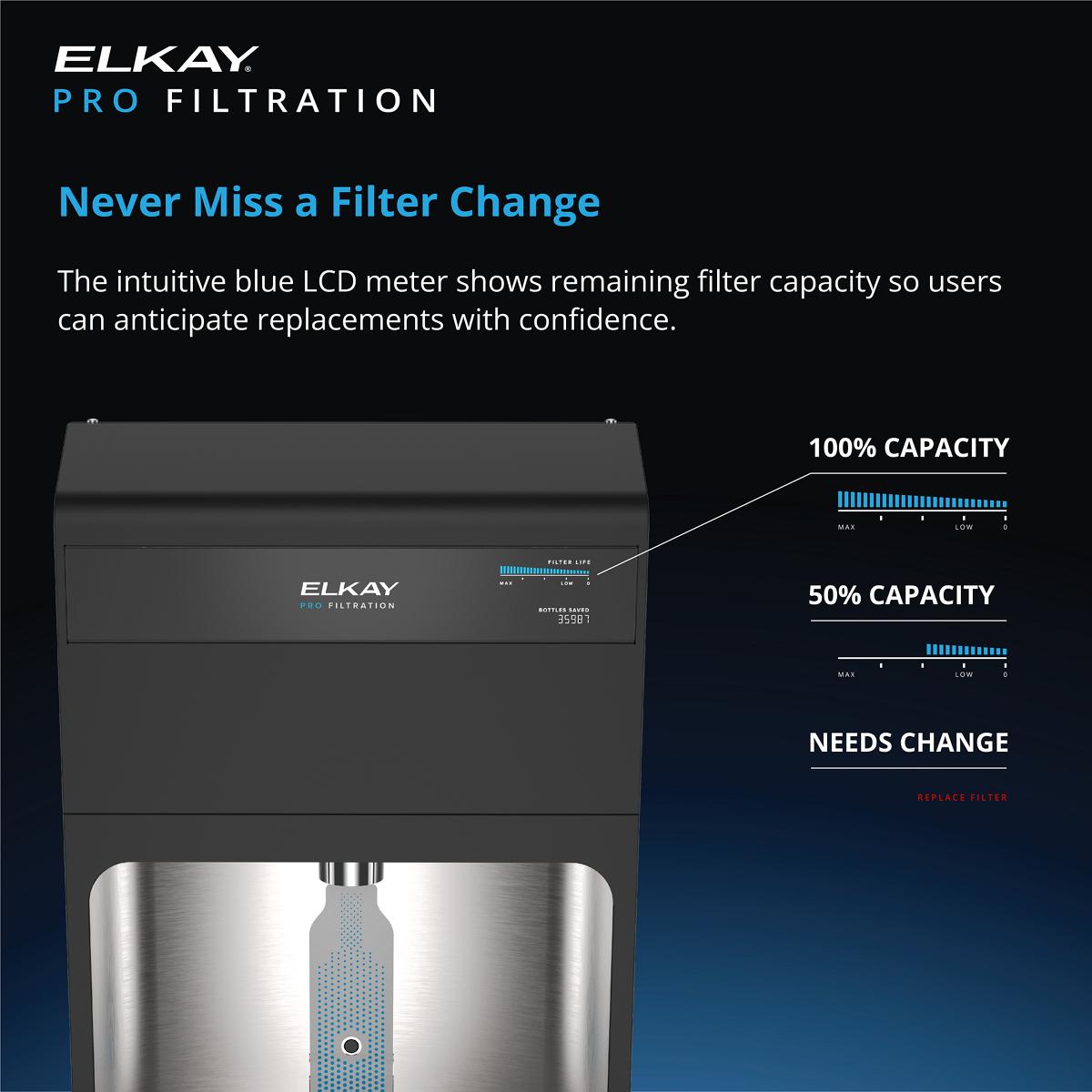

A: The ultra-capacity FL10 filter lasts up to 10,000 gallons, while the sediment prefilter (FSR5) extends the main filter's life by capturing larger particles first. The intuitive blue LCD filter life gauge displays remaining capacity so you'll never miss a filter change.
Q: What makes this unit vandal-resistant?
A: The Elkay LVRCTL8WSPRO-FSR5 features a stainless steel alcove construction, tempered glass display cover, and includes a mechanical front bubbler button as backup to the electronic sensor, ensuring reliable operation even in high-use or vulnerable locations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
