Elkay EZWSM8K | In-wall Bottle Filler | Filterless, Refrigerated, Hands-free (comes with Mounting Frame)
Elkay EZWSM8K | In-wall Bottle Filler | Filterless, Refrigerated, Hands-free (comes with Mounting Frame) is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZWSM8K | In-wall Bottle Filler | Filterless, Refrigerated, H...

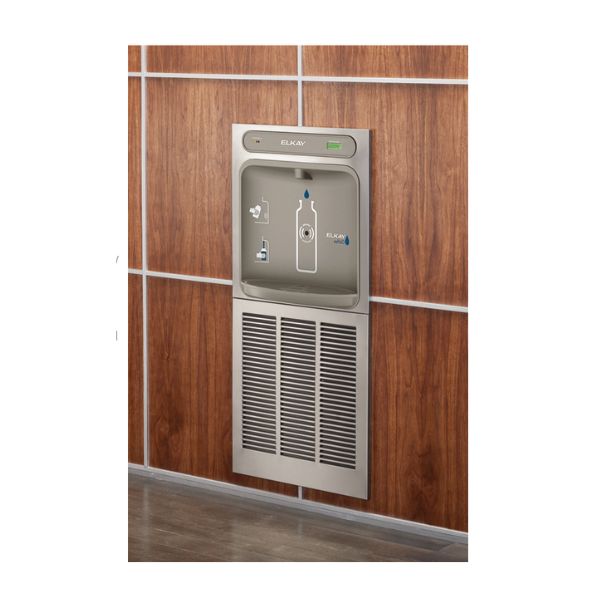

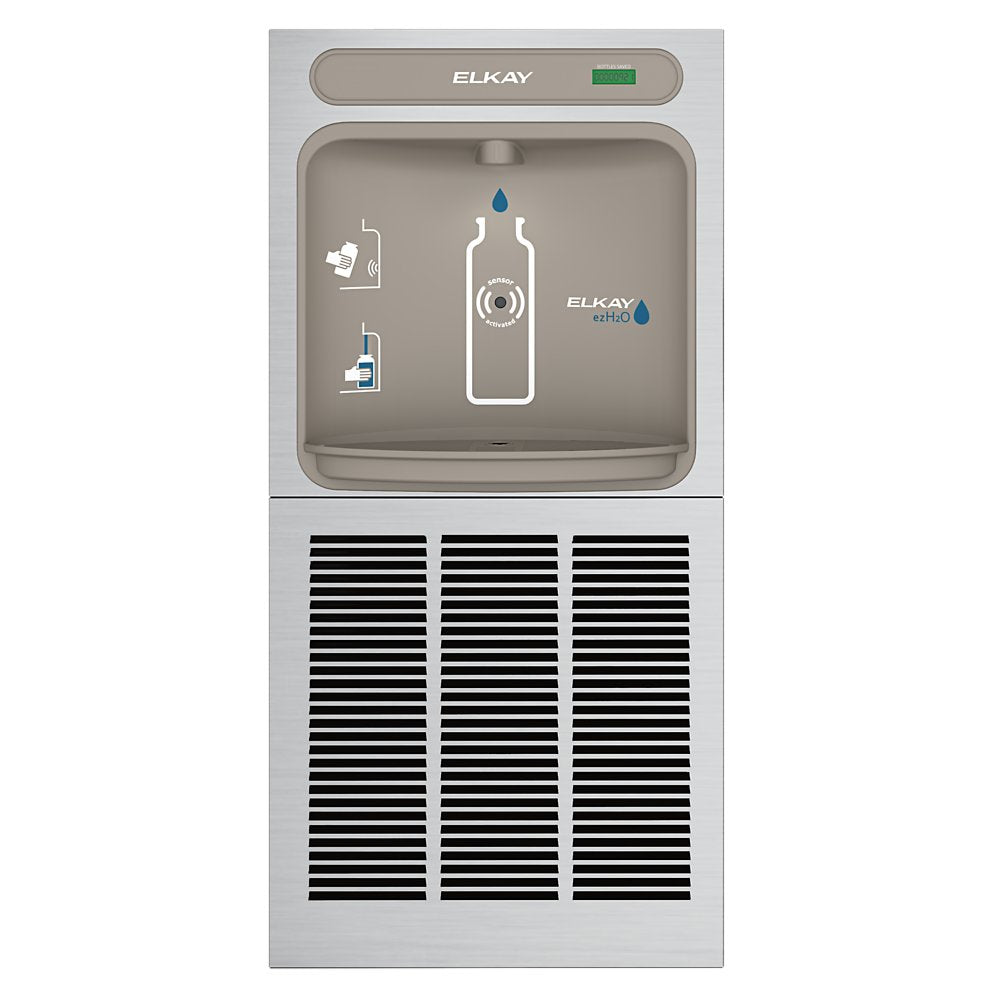

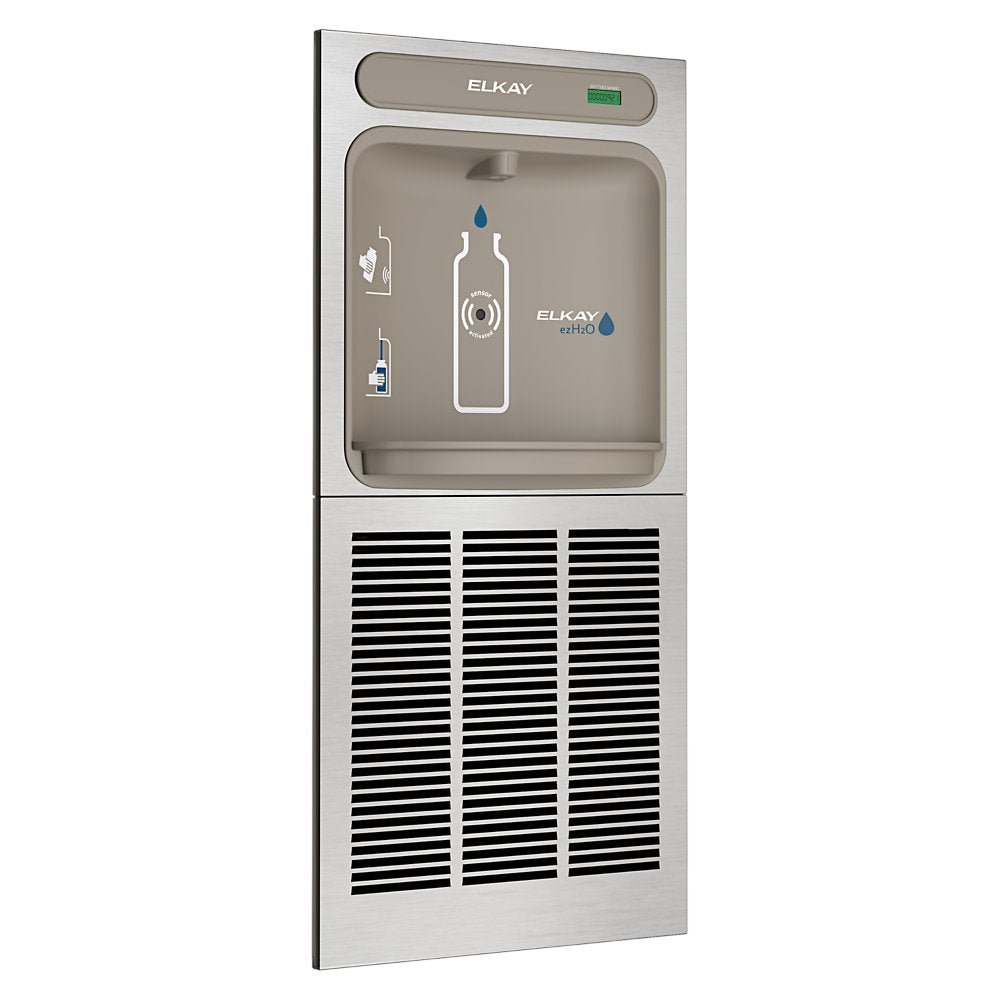

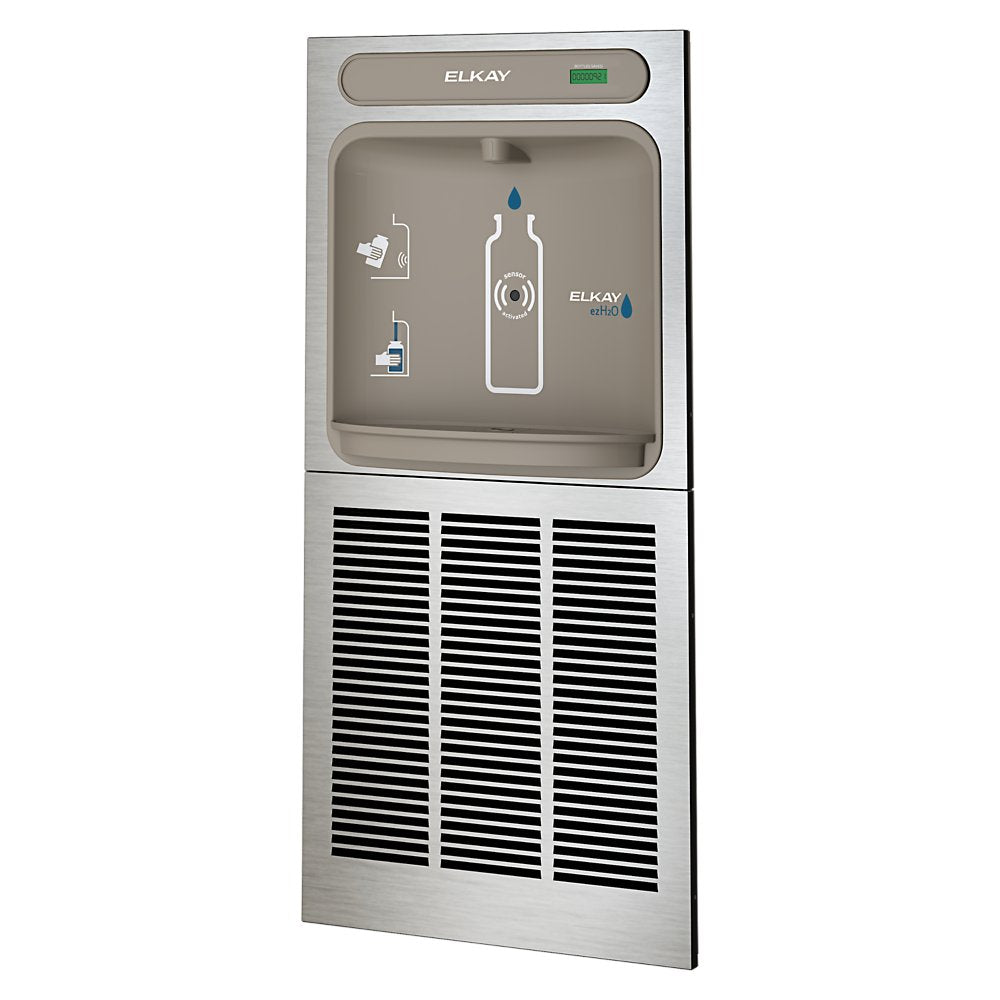

Elkay EZWSM8K is an ezH2O® In-Wall Bottle Filling Station with mounting frame. This stainless steel unit delivers 8.0 GPH of chilled water, combining hands-free convenience, compact in-wall installation, and sustainable hydration for schools, offices, and public facilities.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water.
- Design: In-wall bottle filler with mounting frame and chiller package, wall-mounted indoor installation.
- Installation Requirement: Requires a minimum of 12" of wall depth for installation.
- Finish: Stainless Steel.
- Filtration: This model is non-filtered. For facilities requiring filtration, choose the LZWSM8K filtered version.
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, EPS-insulated copper tubing. Uses R-134a refrigerant.
- Stations Served: 1.
Features & Benefits:

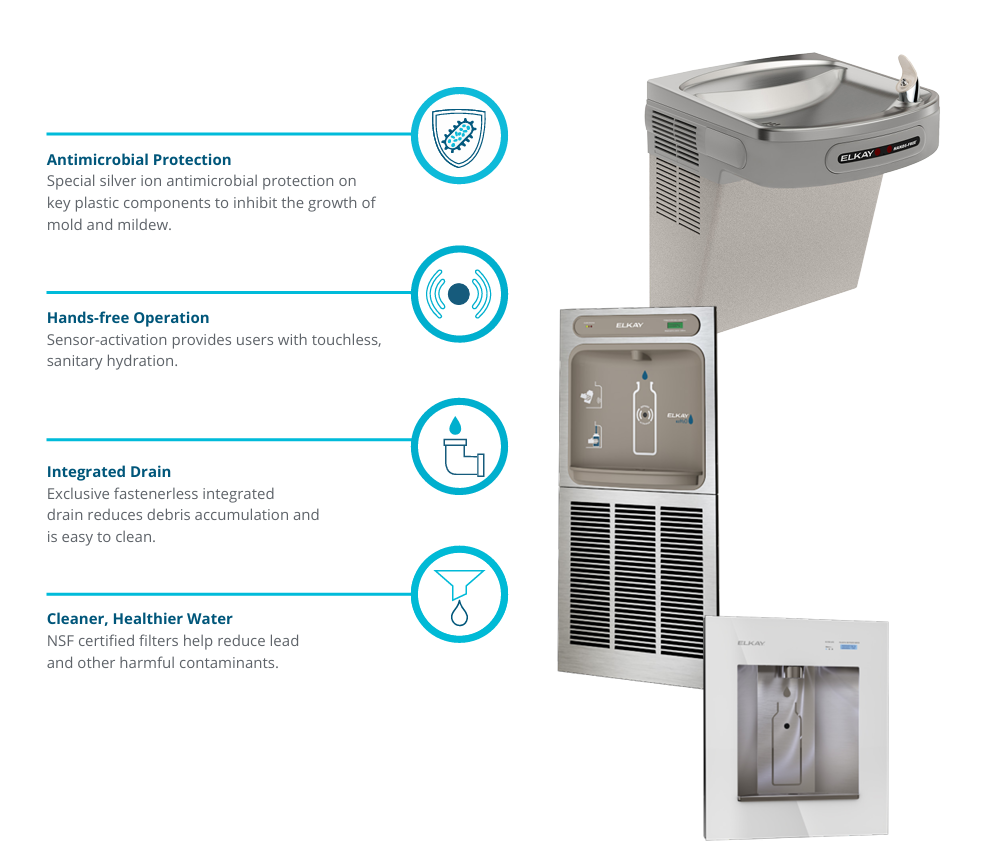

- Hands-Free Operation: Electronic sensor activation provides touchless bottle filling.
- Compact In-Wall Design: Mounting frame allows recessed installation for a streamlined appearance.
- Sustainability: Green Ticker™ displays bottles saved from waste, encouraging reusable bottle use.
- Laminar Flow & Real Drain: Provides clean, splash-free bottle filling while eliminating standing water.
- Enhanced Hygiene: Key plastic components manufactured with silver ion antimicrobial agents resist stains and odors.
FAQ
Q: Does the EZWSM8K include filtration?
A: This model is non-filtered. For filtration, select the LZWSM8K filtered version.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
Q: Can this unit be installed outdoors?
A: No. The EZWSM8K is rated for indoor use only.
Q: Is the EZWSM8K part of a larger collection?
A: Yes. It belongs to the ezH2O® Original Collection, which includes multiple models and finishes designed for sustainable hydration solutions.
Detailed Features & Benefits
Cooling System: The EZWSM8K uses a hermetically-sealed reciprocating compressor with lifetime lubrication, fan-cooled condenser, and EPS-insulated copper tubing. It delivers consistent 8.0 GPH chilled water at 50°F, with a factory-preset thermostat requiring minimal adjustment.
In-Wall Installation: Designed with a mounting frame and chiller shelf, the EZWSM8K integrates seamlessly into wall cavities for a clean, modern appearance. Requires a minimum of 12" of wall depth for installation.
Sustainability & Hygiene: Green Ticker™ tracks bottles saved from waste, while laminar flow and real drain eliminate standing water. Key plastic components are manufactured with silver ion antimicrobial agents to resist stains and odors.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
