Elkay EZS8L | Single-Level, Wall-mounted Drinking Fountain | Filter...

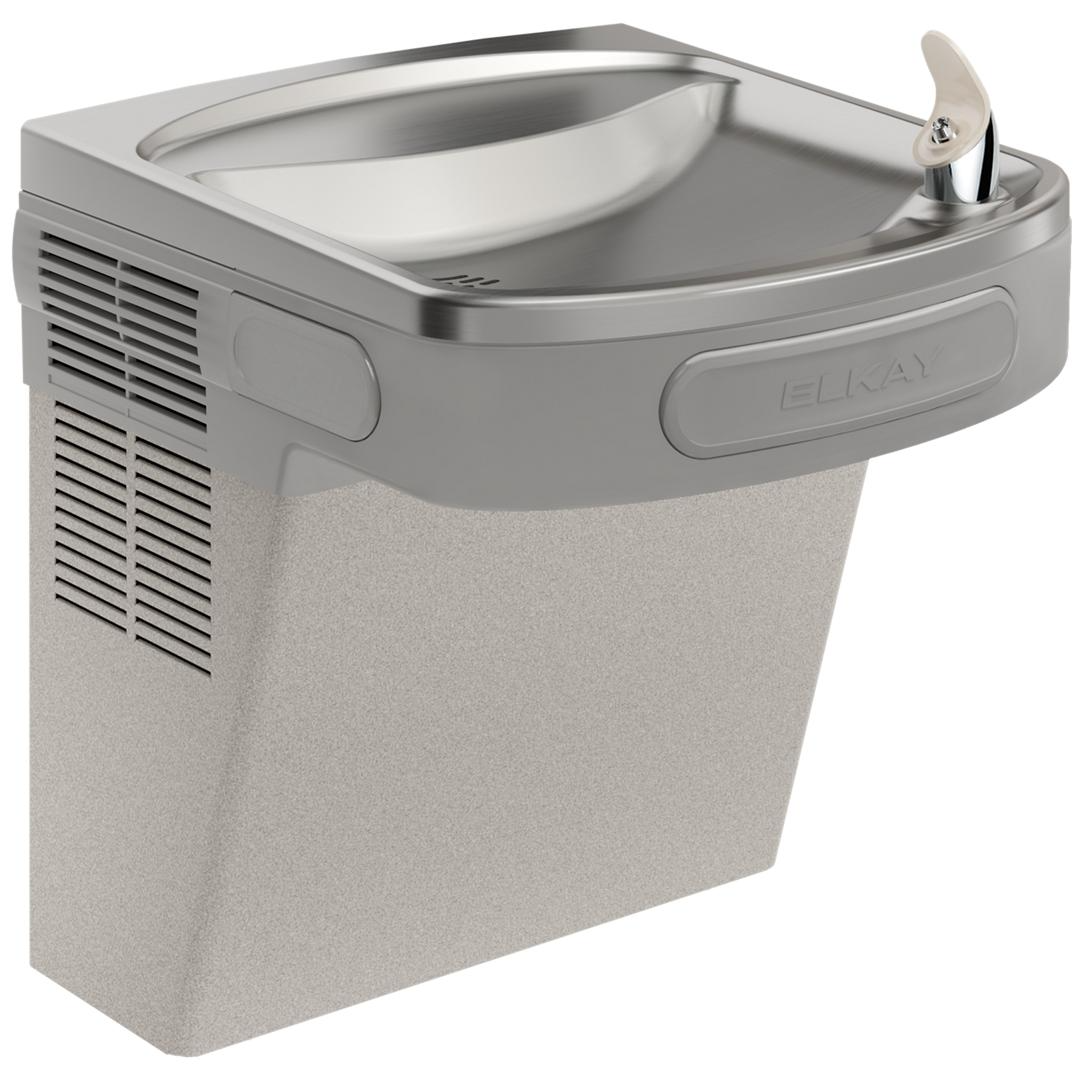

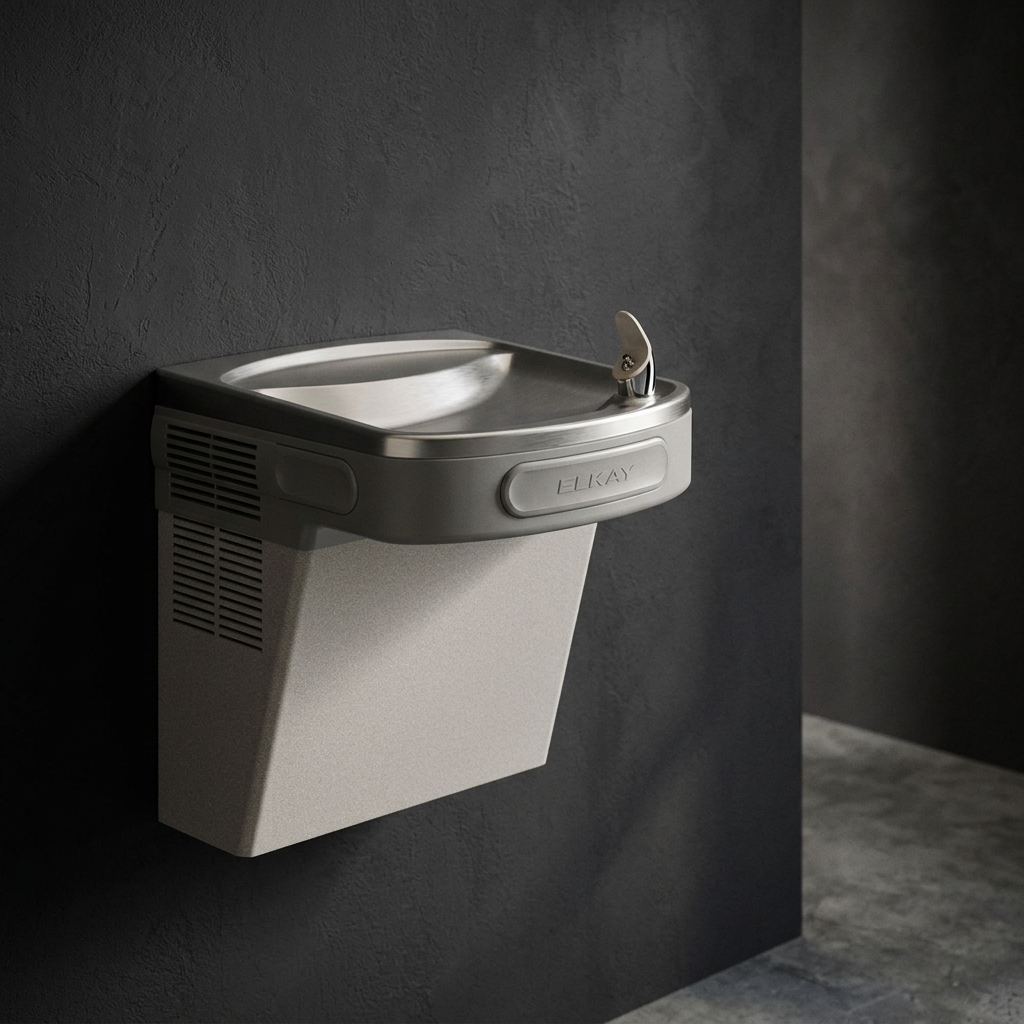

The Elkay EZS8L is a wall-mounted, ADA-compliant refrigerated drinking fountain designed for indoor installations. Finished in Light Gray Granite, it provides chilled drinking water in a compact single-station configuration.
Key Specifications:
| Design | Single-Level ADA Cooler with Electronic Front Pushbar Activation |
| Finish | Light Gray Granite |
| Filtration | Non-Filtered. Can be upgraded with the EWF172 WaterSentry® VII Filter Kit. For a factory-filtered model, see the LZS8L. |
| Refrigeration | 8.0 GPH Chilled Water at 50°F (ASHRAE 18 Tested) |
| Stations Served | 1 (Single Drinking Fountain) |

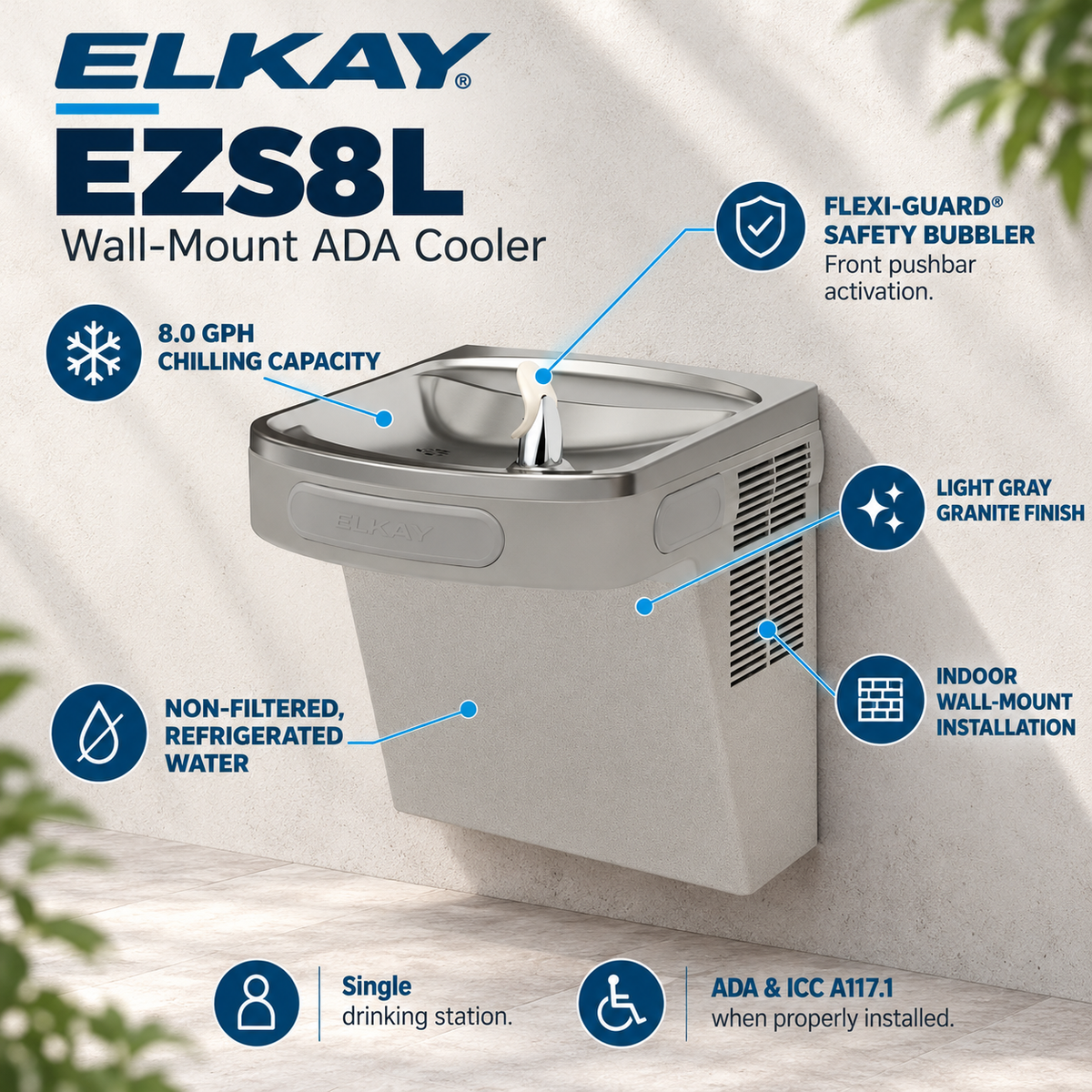

Features & Benefits:
- ADA Compliant Design: Meets ADA and ICC A117.1 accessibility requirements when properly installed.
- Reliable Chilling Performance: Delivers 8.0 GPH of chilled drinking water for schools, offices, and public facilities.
- Durable Refrigeration System: Uses a hermetically sealed compressor and fan-cooled condenser for dependable operation.
- Electronic Pushbar Activation: Front-mounted electronic pushbar provides convenient water dispensing.
- Flexi-Guard® Safety Bubbler: Helps reduce splash and provides dependable daily performance.
What's Included:
- Elkay EZS8L Refrigerated Water Cooler
- Flexi-Guard® Safety Bubbler
- Installation Documentation
FAQ
Q: What Is the Difference Between the EZS8L and LZS8L?
A: The EZS8L is a non-filtered refrigerated drinking fountain, while the LZS8L includes factory-installed filtration. Both models provide the same 8.0 GPH cooling capacity and ADA-compliant single-station design.
Q: Is the EZS8L Suitable for Heavy-Use Locations?
A: The EZS8L provides 8.0 GPH of chilled water and is designed for single-station applications. Facilities with higher traffic may benefit from larger-capacity hydration solutions.
Q: Can the EZS8L Be Fitted with Filtration?
A: Yes. The EZS8L can be upgraded using the EWF172 WaterSentry® VII Filter Kit. For a factory-filtered model, select the LZS8L.
Q: What Water Pressure Is Required?
A: The maximum recommended water supply pressure is 105 PSI. Installation should follow all manufacturer rough-in requirements.

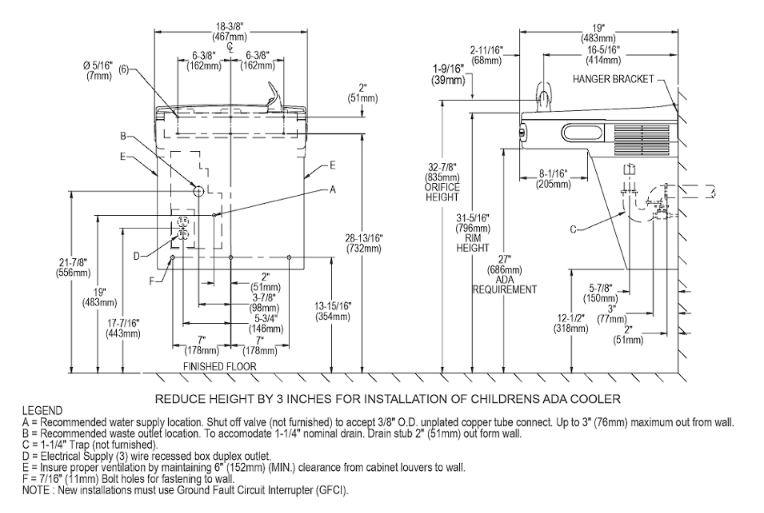

Q: What Are the Mounting and Rough-In Requirements?
A: The unit requires wall-mount installation with water, drain, and electrical connections installed according to Elkay's rough-in specifications. New installations should use a GFCI-protected electrical circuit.
Q: What Accessories Are Recommended for Installation?
A: Recommended accessories include the MLP100 In-Wall Carrier for wall support, the LKAPREZL Cane Apron for ADA compliance, and the EWF172 Filter Kit for water filtration.
Q: What Warranty Is Included with the EZS8L?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
Q: Does the EZS8L Include a Filter?
A: No. The EZS8L ships as a non-filtered drinking fountain. Filtration can be added later using the EWF172 retrofit kit.
Q: Can the Flexi-Guard® Safety Bubbler Be Replaced if Damaged?
A: Yes. The EZS8L uses Elkay's 98501C StreamSaver® Flexi-Guard® Safety Bubbler, which is available separately as a replacement part.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EZS8L is a single‑level wall‑mounted drinking fountain designed to provide chilled drinking water in schools, offices, healthcare facilities, and other commercial environments. Its compact design, ADA‑compliant accessibility, and reliable cooling performance make it an ideal solution for indoor hydration needs.
Key Installation Requirements:
- Wall‑mounted installation with appropriate carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for fountain basin
- Provide adequate clearance for servicing and ventilation
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize the water line before servicing the unit
- Provide adequate ventilation clearance around refrigeration components
- Ensure the wall structure can support the operating weight of the fountain
- Inspect all plumbing and electrical connections for leaks or damage before startup
- Adjust the water stream height as needed after installation
Basic Installation Overview:
- Install the wall carrier and mounting hardware according to specification requirements
- Connect the cold water supply line and flush plumbing thoroughly
- Connect the drain line to the building drainage system
- Mount the fountain securely onto the carrier assembly
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all water connections for leaks
- Test cooling operation and water flow performance
- Adjust stream height if necessary and complete final inspection
For complete specifications and installation guidelines, download the official EZS8L Spec Sheet and the Installation Manual.
