The Everpure EV920281 QC7I Single 4FC-S Filtration System is a commercial filtration system for ice machines and coffee brewers. It suits cafés, restaurants, and other foodservice businesses that want cleaner, better-tasting water going into their equipment. It filters fine particles, reduces chlorine taste and odor, and has an integrated scale inhibitor that helps protect equipment from scale buildup and corrosion.
This guide covers first-time installation of the complete system, from mounting through the startup flush. Plan on about 15–30 minutes. For cartridge changes after installation, see our Everpure EV969231 Filter Replacement Guide.
Safety & Preparation
Choose the Mounting Location
The unit must be easy to reach and mounted vertically on a surface that supports its 8 lb operating weight. Keep it away from freezing temperatures, and do not place it behind equipment or where carts or mops could hit it. Leave at least 2.5 inches of clearance below the cartridge, and choose a spot near a drain for flushing.

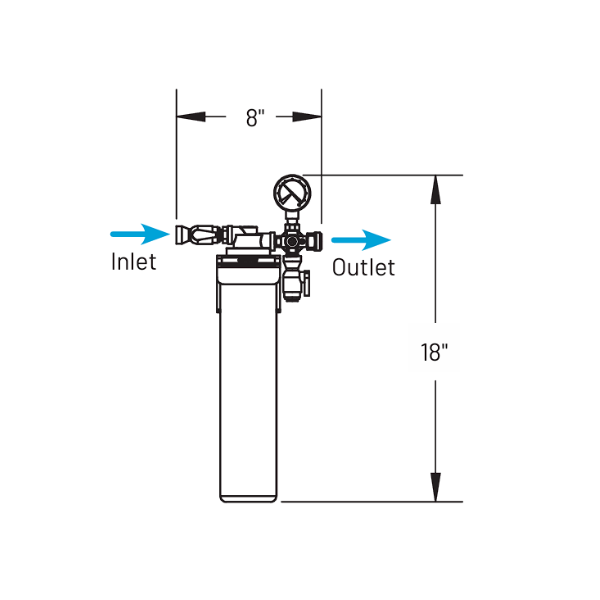

Everpure EV920281 System dimensions and required cartridge clearance.
🔍 Before you start: confirm the system suits your application. The manufacturer's manual states it is for foodservice use only (not residential) and for cold water only. The supply must be 10–125 psi (non-shock) and 35–100°F. A pressure reducing valve is recommended above 85 psi, and if water hammer is evident, a water hammer arrestor should be installed ahead of the system.
Have Everything Ready
🧰 Materials
Included with the system:
You will also need:
🚰 Flush tubing
⚠️ Safety Precautions
⚠️ Note: Tools, materials, and operating limits are per the manufacturer's FC Series manual. Always comply with local plumbing codes.
Step-by-Step Installation
⚠️ Note: These steps are based on the manufacturer's documentation, grouped into six steps for readability. Always comply with local plumbing codes. Consult a licensed plumber if you're unsure.
Common Installation Mistakes
These are the installation mistakes to avoid. Each one points back to the section that covers the requirement:
Use PTFE tape on the inlet, not liquid pipe compound, and back up fittings with a wrench without over-tightening them. Details are in Step-by-Step Installation.
Do not solder plumbing connections attached to the assembly.
Placing the unit behind equipment, leaving less than 2.5 inches below the cartridge, mounting it where it can be struck, or choosing a spot exposed to freezing. See Safety & Preparation.
Misaligning the lug with the head label, or not completing the 1/4 turn. See Step-by-Step Installation.
Route the flush line to a drain and complete the 5-minute flush before the equipment is turned on. See Step-by-Step Installation.
Using supply line smaller than 3/8 inch, running supply pressure above 85 psi with no pressure reducing valve, or ignoring water hammer. See Safety & Preparation.
⚠️ Note: These items are based on the manufacturer's installation requirements and recommendations.
What to Expect After Installation
After the flush in Step-by-Step Installation, recheck the inlet connection, the head, and the flush valve for leaks. The pressure gauge is the main readiness check. With no water flowing it shows static available pressure, and with the equipment running it shows service pressure. Compare what you see against the two columns below:
✅ Normal After Installation
🔎 Worth a Second Look
If anything lands in the right-hand column, see Troubleshooting & FAQ. Keep the startup baseline for later, since you will use it again in When to Replace Your Filter Cartridge.
Official Product Resources
The manufacturer documents for this system are the FC Series Installation, Operation & Maintenance Manual and the EV9202-81 Spec Sheet.
When to Replace Your Filter Cartridge
Replace the cartridge every six months on a regular schedule. Replace it sooner if any of the conditions below apply.
The regular replacement schedule.
Replace sooner if the rated capacity is reached.
Replace sooner if water pressure or flow to the equipment becomes inadequate.
Always replace the cartridge at least once per year.
📊 Gauge signal: a service pressure that falls well below available pressure and nears the red zone on the gauge signals a clogging cartridge. Compare the gauge to the baseline you recorded in What to Expect After Installation.
The replacement cartridge for this system is the Everpure EV969231 4FC-S. It is available as a 1-pack, as the EV969237 6-pack to keep the next replacements on hand when the schedule comes due, or as an auto-delivery subscription every 6 months.
For the cartridge change procedure, see our Everpure EV969231 Filter Replacement Guide.
How to Maximize the Lifespan of Your Filter
A few habits help keep the system within its operating limits and on its replacement schedule:
- Check the pressure gauge periodically — compare it to the startup baseline described in What to Expect After Installation.
- Stay within the operating limits — the supply pressure and temperature ranges are covered in Safety & Preparation.
- Keep the unit accessible — so cartridge changes are not delayed.
- Use only the specified Everpure cartridge — the manual states that other cartridges void warranties and certifications.
- Log install and replacement dates — this keeps you on the schedule in When to Replace Your Filter Cartridge.
- Keep unsafe-quality water out of the system — unless it is disinfected.
Troubleshooting & FAQ
A connection is leaking — what should I check?
Recheck the PTFE tape and the tightness of the fittings, and confirm the flush valve is closed. Back up fittings with a wrench when tightening, and do not over-tighten them.
Water flow or pressure is low.
Check that all valves are fully open and compare the pressure gauge to the baseline you recorded at startup. If service pressure falls well below available pressure and nears the red zone on the gauge, the cartridge is clogging and should be replaced. Replace it sooner than the six-month schedule if water pressure or flow to the equipment becomes inadequate.
The cartridge won't lock into the head.
Realign the cartridge lug with the head label, push the cartridge up firmly, and turn it a full 1/4 turn to the right until rotation stops.
How long should I flush the system after installation?
Flush for 5 minutes with the flush line secured at the drain and the inlet valve slowly opened. This purges air and flushes the media. Then close the flush valve and check for leaks.
What is the EV920281 designed for?
Ice machines and coffee brewers in foodservice. The manual states it is for foodservice use only, so it is not intended for residential use.
What water supply conditions does it need?
Cold water only, at 10-125 psi (non-shock) and 35-100°F. A pressure reducing valve is recommended above 85 psi.
Does the system need electrical power?
No. No electrical connection is required.
Which replacement cartridge does the system use?
The Everpure 4FC-S cartridge, part number EV969231 (manufacturer part number EV9692-31). One cartridge is included with the system, and it is replaced every six months on a regular schedule.
What does the "S" in 4FC-S mean?
The "S" stands for an integrated scale inhibitor.
What is the system certified for?
NSF/ANSI 42 (bacteriostatic effects, chlorine taste and odor, Particulate Class I) and NSF/ANSI 53 (cyst, turbidity).
Product & Replacement Options
Replacement cartridges for this system, and the larger twin version:
The single replacement cartridge for this system.
View Product →The same cartridge in bulk.
View Product →The larger twin version of this system, rated at 30,000 gallons and 5 gpm.
View Product →Auto-Delivery for Your Replacement Cartridge
Subscribe to the EV969231 cartridge and have one delivered automatically every 6 months.
Conclusion
Installing the Everpure EV920281 QC7I Single 4FC-S Filtration System comes down to a few steps: mount the unit, connect the feed and outlet lines, install the cartridge, and complete the 5-minute flush before the connected equipment is turned on. Check for leaks at each stage, and record the gauge readings at startup for later comparison.
From here, stay on the six-month replacement schedule, or let an auto-delivery subscription handle it. Keep an EV969231 cartridge on hand, log each change, and use our Everpure EV969231 Filter Replacement Guide for the procedure.
