Wilkins 3-500XLHLR | Water Pressure Reducing Valve with Integral By...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

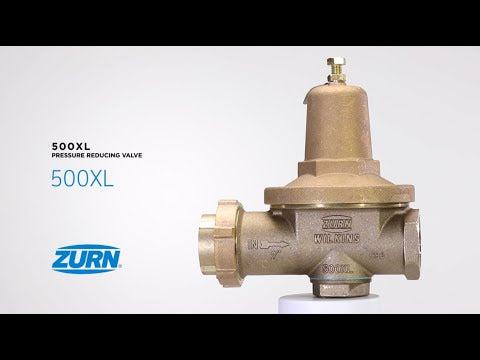

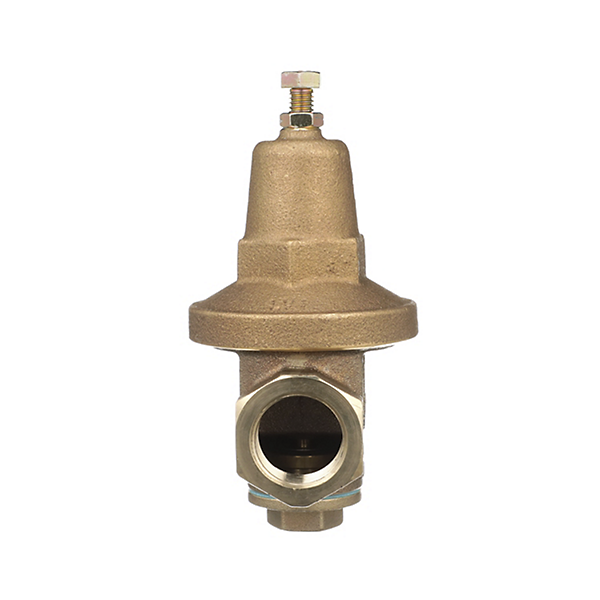

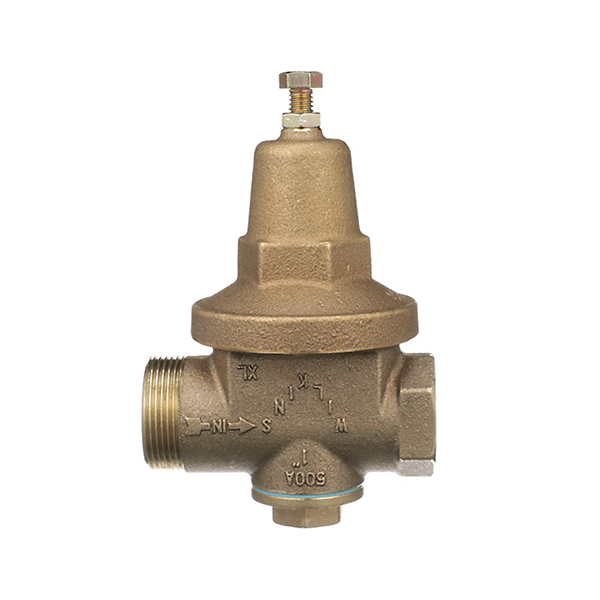

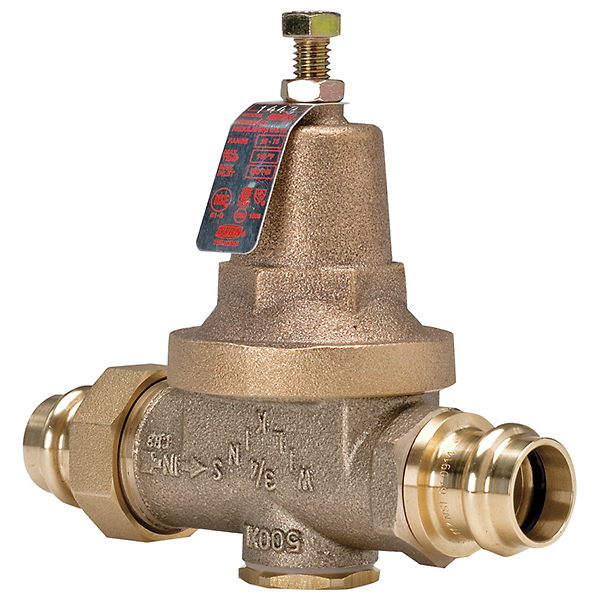

The Wilkins 3-500XLHLR is a water pressure reducing valve with integral by-pass check valve designed for high flow capacity applications in industrial and commercial water systems, featuring a balanced piston design for smooth, responsive performance.
Key Specifications:
- Size: 3 Inches
- Maximum Working Water Pressure: 300 psi
- Maximum Working Water Temperature: 140°F
- Notable Certifications: NSF/ANSI/CAN 61 & 372
- Pressure Range: 10 psi to 125 psi
Other Related Variants:
- 112-500XLHLR: 1 1/2 Inches model size
- 114-500XLHLR: 1 1/4 Inches model size
- 1-500XLHLR: 1 Inch model size
- 2-500XLHLR: 2 Inches model size
- 34-500XLHLR: 3/4 Inches model size
Materials:
- Main valve body: Low Lead Cast Bronze ASTM B 584
- Access covers: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
- Fasteners: Stainless Steel, 300 series
- Stem & plunger: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
- Elastomers: Buna Nitrile (FDA approved) / EPDM (FDA approved)
- Cap gaskets: Natural vulcanized fibre / Acetal (Delrin™ 500)
- Springs: Oil tempered wire, ASTM A 229
- Seat: Stainless Steel, 300 series
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. The assembly shall be installed with sufficient side clearance for testing and maintenance. The Model 500XL may be installed in any position. If installed in a pit, vault, or inside application, specify the "SC" sealed cage option. Multiple installations are recommend for wide demand variations or where the desired pressure reduction is more than 3 to 1 (i.e.: 150 psi inlet reduced to 50 psi outlet).
Standards Compliance:
ASSE Listed 1003 (1/2" thru 2 1/2"); cUPC Listed (1/2" thru 2"); CSA Certified B356 (1/2" thru 2"); City of Los Angeles Approved (1/2" thru 2"); NSF/ANSI/CAN 61 and 372
Features & Benefits:
- High Flow Capacity: Ideal for industrial water lines and commercial water systems requiring high volume pressure reduction.
- Thermal Expansion Protection: Direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion.
- Balanced Piston Design: Ensures smooth and responsive performance to changes in system flow demand while protecting from inlet pressure changes.
- Versatile Installation: Can be installed in any position, with sealed cage option available for pit, vault, or inside applications.
FAQ
Q: What is the factory preset pressure for the Zurn 3-500XLHLR model?
A: The Zurn 3-500XLHLR is factory set at 50 psi and features a wide spring range of 10 psi to 125 psi for field adjustment.
Q: Can this valve be installed vertically or in a pit application?
A: Yes, the Model 500XL may be installed in any position. For pit, vault, or inside applications, the "SC" sealed cage option should be specified.
Q: What is the recommended pressure reduction ratio for this valve?
A: The Wilkins 3-500XLHLR is recommended for pressure reductions not exceeding a 3:1 ratio. For greater reductions, multiple installations are recommended.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
