Excel 40502 | ADA Compliant Recess Kit, Brushed Stainless Steel
The Excel Dryer 40502 ADA Compliant Recess Kit allows XLERATOR® hand dryers to meet ADA protrusion requirements. Built from stainless steel, it provides a secure recessed installation with a brushed satin finish.
Key Specifications:
- Design: ADA compliant recess kit for XLERATOR® hand dryers
- Finish: Brushed stainless steel (#4 satin)
- Construction: 22 GA type 304 stainless steel wall box with 16 GA stainless steel mounting plate
- Compliance: Meets ADA protrusion requirement of 4 inches (102 mm)
- Stations Served: Single XLERATOR® hand dryer installation
Features & Benefits:
- Provides recessed installation to meet ADA protrusion requirements
- Durable stainless steel construction with welded mounting plate
- Sleek brushed finish complements modern restroom design
- Ensures secure and stable mounting for XLERATOR® hand dryers
What's Included:
- Excel Dryer 40502 Recess Kit
FAQ
Q: What is the purpose of the 40502 recess kit?
A: It allows XLERATOR® hand dryers to meet ADA protrusion requirements by recessing the unit into the wall.
Q: What are the dimensions of the recess kit?

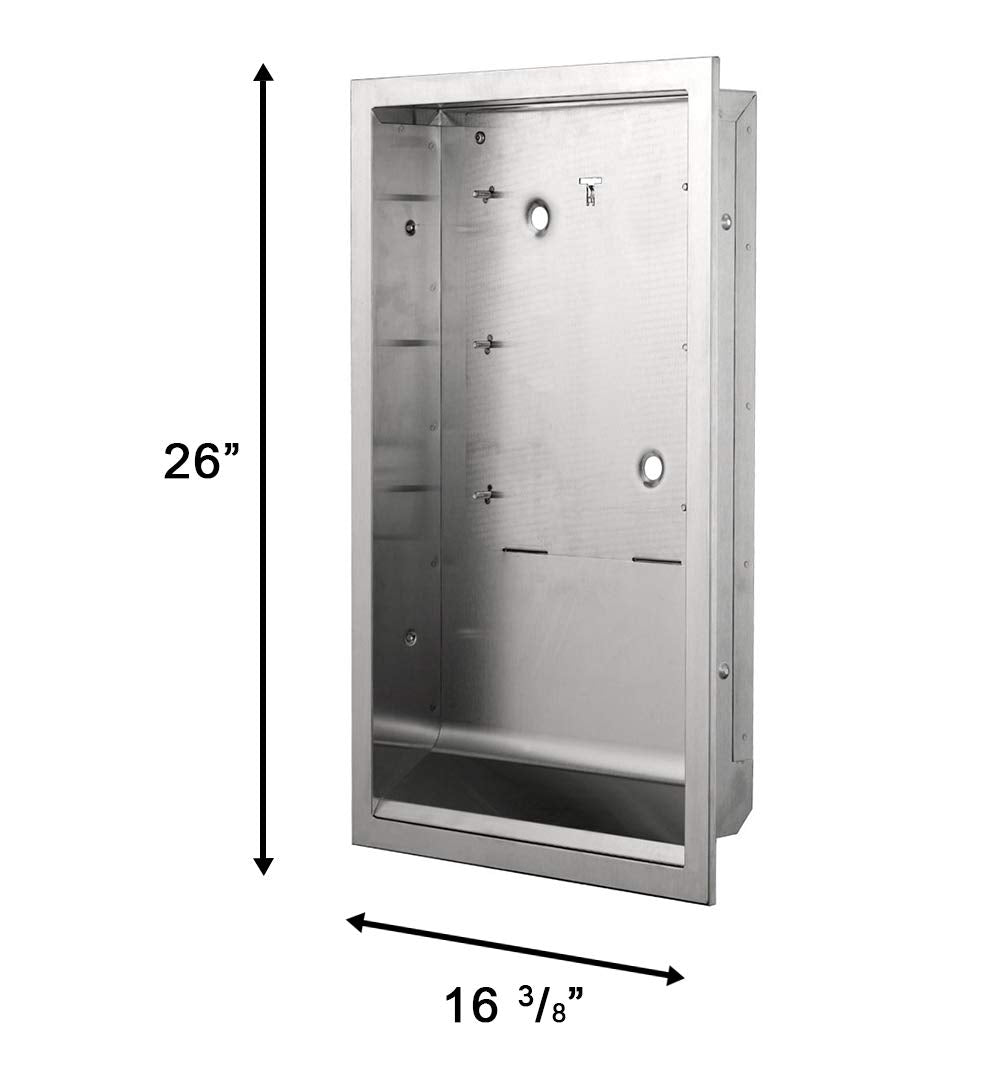

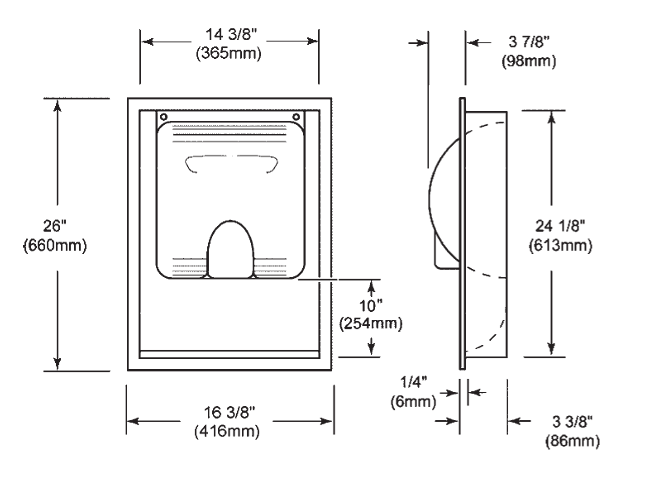

A: Overall dimensions are 16‑3/8" wide × 26" high × 3‑3/8" deep. Rough wall opening is 14‑1/2" wide × 24‑3/8" high × 4" deep.
Q: What material is the kit made from?
A: It is fabricated from type 304 stainless steel with a brushed satin finish.
Q: Is this kit compatible with XLERATOR® and XLERATOR®Eco hand dryers?
A: Yes. This kit is compatible with all XLERATOR® and XLERATOR®Eco models. For example, the XLERATOR XL‑SB Automatic Hand Dryer (Stainless Steel) and the XLERATOR XL‑SB‑ECO Automatic Hand Dryer (Stainless Steel) are compatible examples, but the recess kit works with all XLERATOR® and XLERATOR®Eco units.
Q: What is the suggested mounting height?
A: Suggested mounting heights vary: Men’s 45", Ladies’ 43", Teenagers’ 41", Children 35", Accessible 37".
NOTICE: Consult local ADA codes before installation. Ensure proper mounting height and rough wall opening dimensions are followed.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

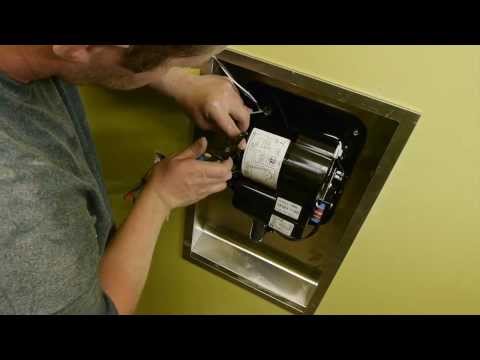

- Cut wall opening to 14‑1/2" wide × 24‑3/8" high × 4" deep per rough‑in dimensions.
- Position recess kit into wall cavity and secure to studs using appropriate fasteners.
- Mount XLERATOR® hand dryer onto the stainless steel plate; ensure bottom of dryer aligns 10" above bottom of rough opening.
- Verify overall protrusion does not exceed 4" to meet ADA requirements.
- For detailed steps, consult the installation manual provided in the package or contact a licensed installer.
- Inspect stainless steel surfaces periodically; clean with mild, non‑abrasive cleaner.
- Check mounting hardware to ensure dryer and recess kit remain securely fastened.
- Confirm dryer operation after routine cleaning or servicing.
- For service or repairs, consult the manual or a licensed technician.
