Elkay LZSTL8WSBPRO-FLP4 | Pro Filtration Bottle Filling Station w/ PFAS Filter | 4,000 Gal, Bi-Level
Elkay LZSTL8WSBPRO-FLP4 | Pro Filtration Bottle Filling Station w/ PFAS Filter | 4,000 Gal, Bi-Level is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

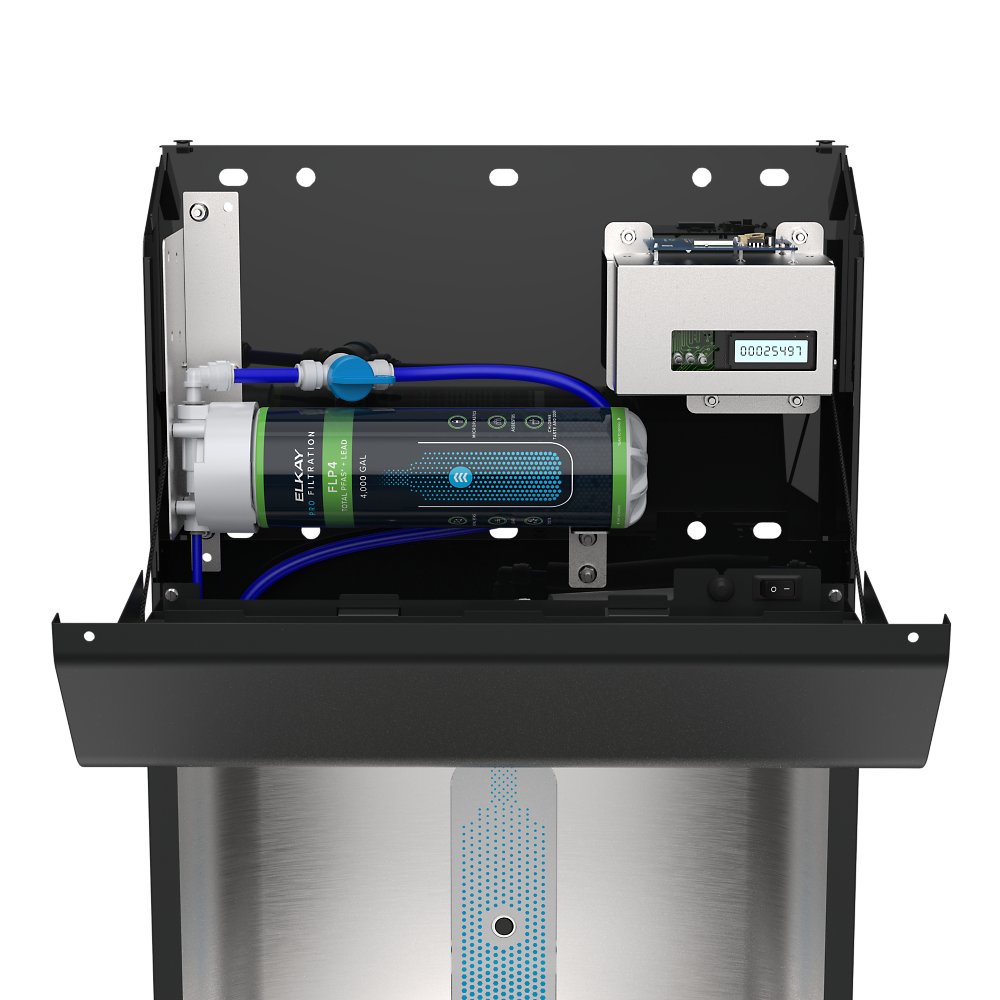

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
Elkay LZSTL8WSBPRO-FLP4 | Pro Filtration Bottle Filling Station w/ ...
Be first to buy the new Elkay Pro Filtration with Pre-Order. Product Launches July 1st.

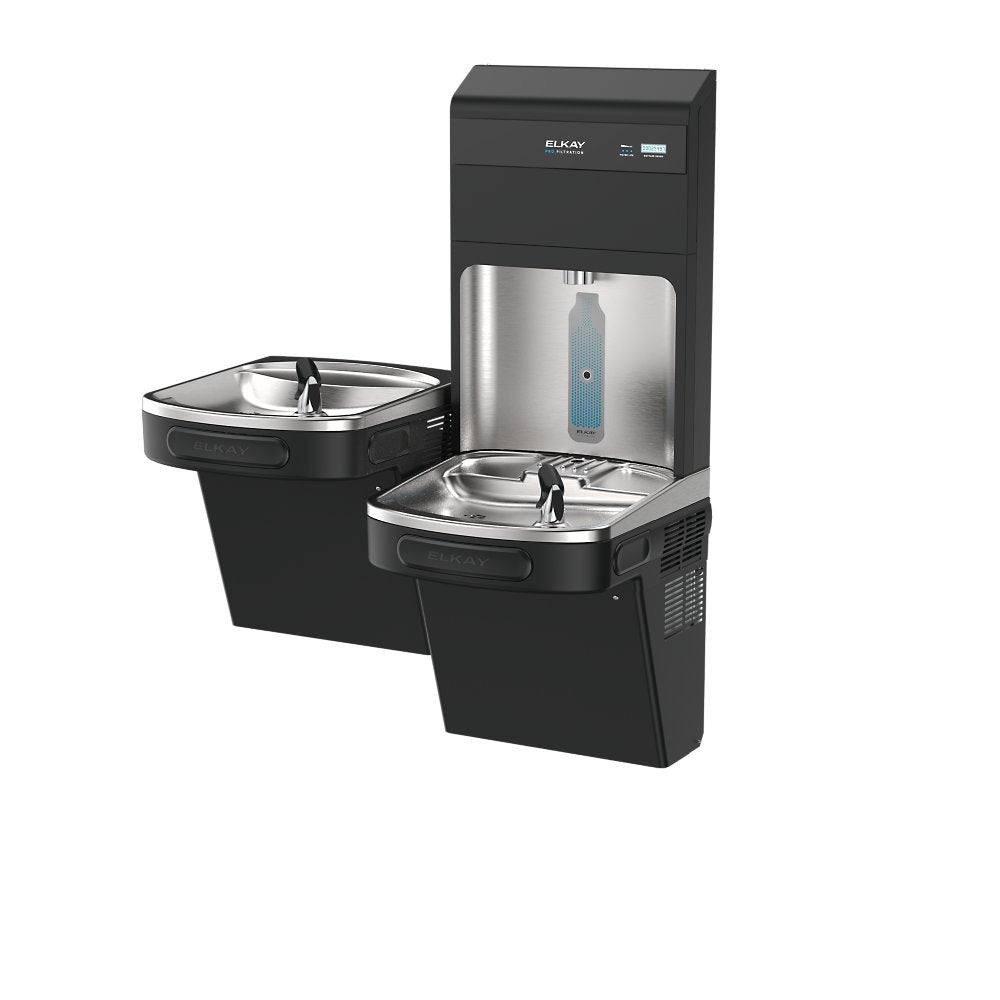

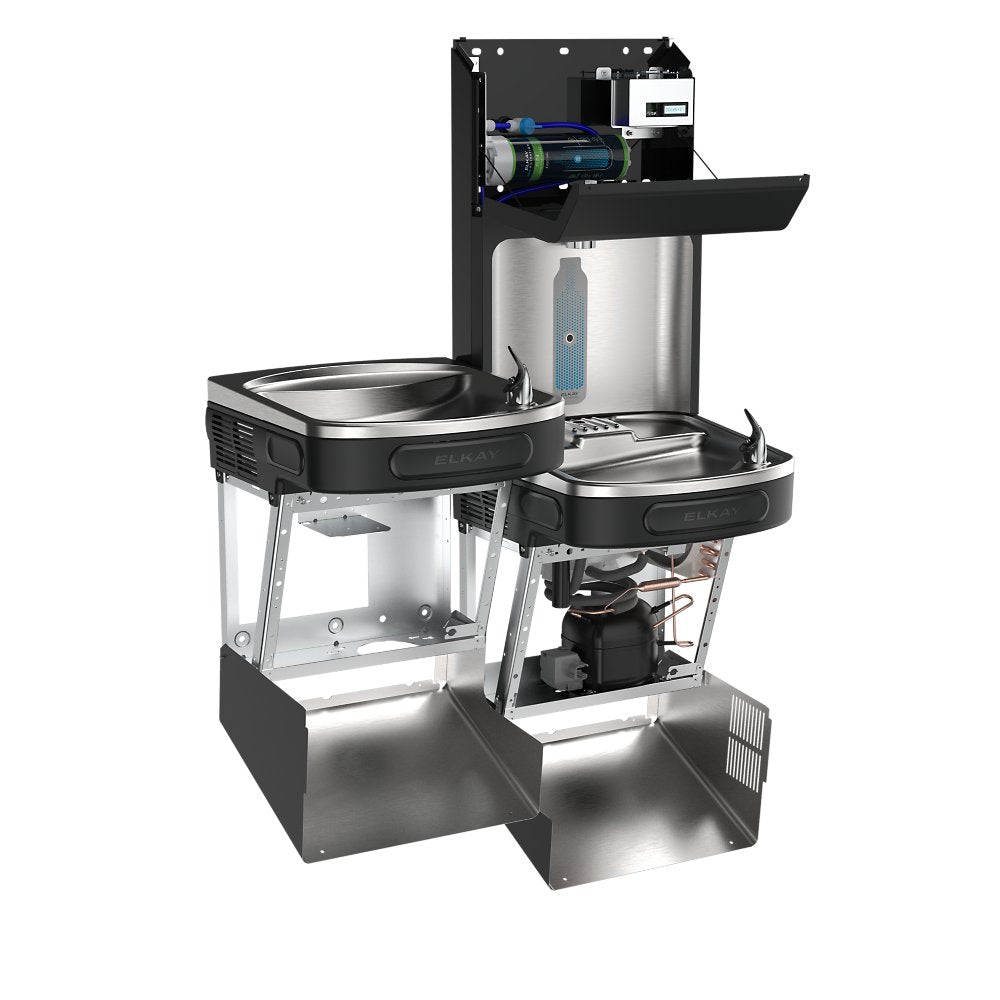

The Elkay LZSTL8WSBPRO-FLP4 Series combines a bi-level refrigerated water cooler with an advanced bottle filling station featuring Pro Filtration technology. This premium system delivers cleaner, safer drinking water by reducing Total PFAS, lead, microplastics, and other contaminants while offering touchless operation and energy-efficient performance.
Key Specifications:
- Filter Capacity: 4,000-gallon capacity
- Filter Performance: Certified to reduce Total PFAS, lead, microplastics, & more
- Refrigeration: 8.0 GPH with energy-efficient hermetically sealed system.

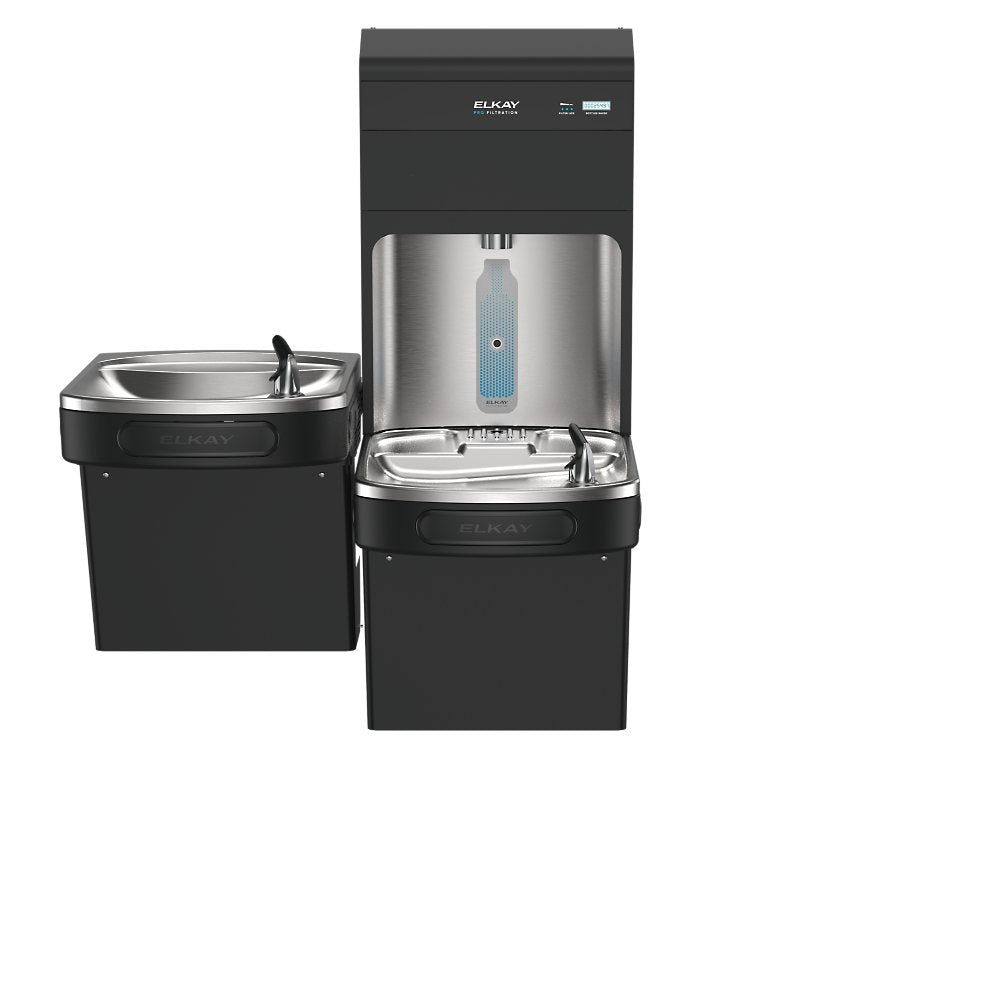

- Dimensions: 36-3/4"L x 19"W x 46-7/8"H wall-mounted design with stainless steel construction.
Features & Benefits:

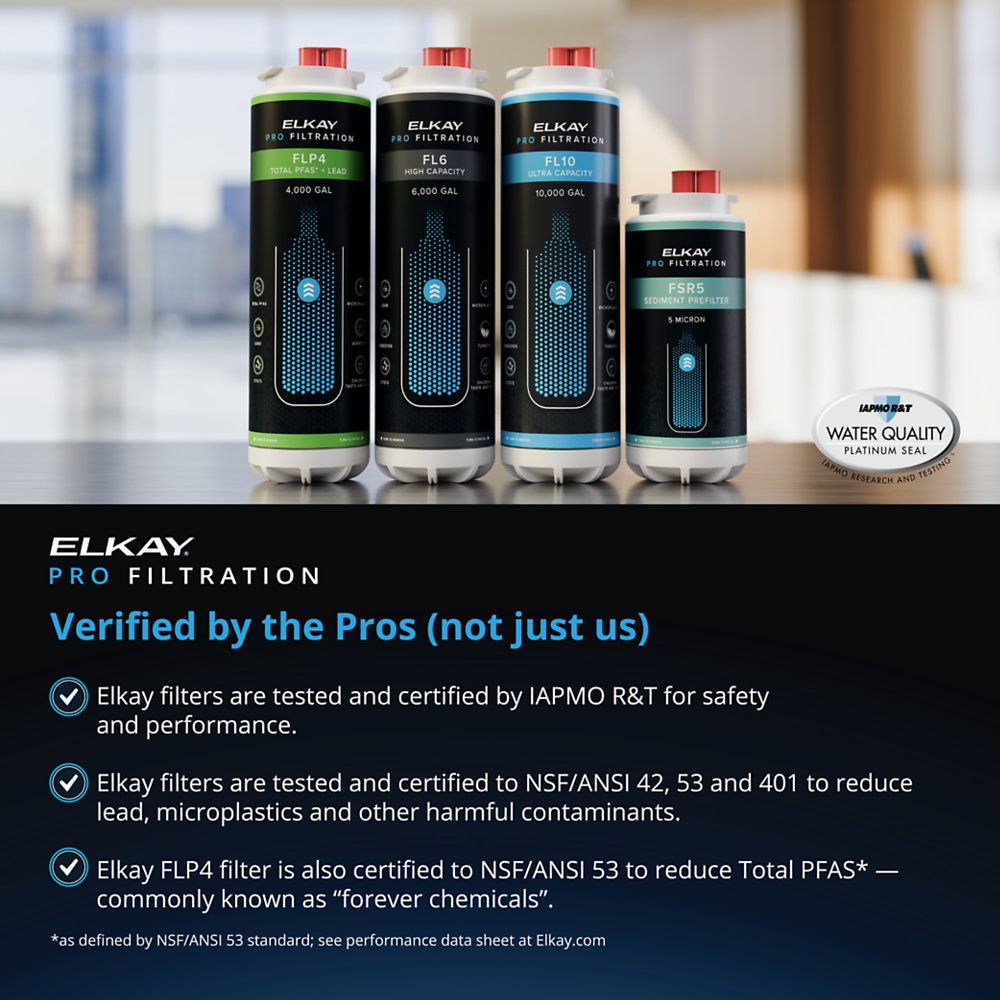

- Advanced Filtration: Elkay Pro Filtration system is tested and certified to NSF/ANSI 42, 53, and 401 standards for reduction of Total PFAS, lead, microplastics, and more.

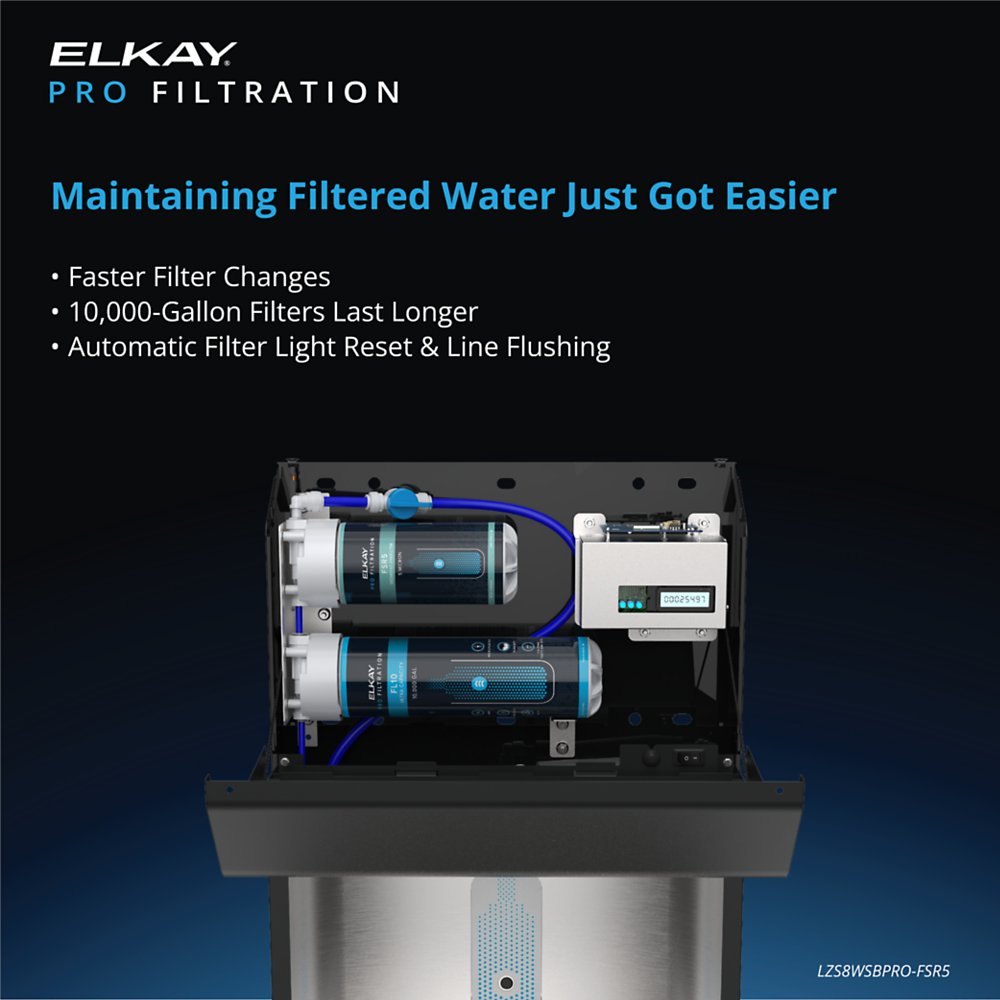

- Simplified Maintenance: Top-accessible filters with automatic recognition technology that resets filter status lights and flushes the system upon installation.
- Hygienic Operation: Sensor-activated touchless bottle filling and real drain system eliminates standing water for a cleaner experience.
- Sustainability Tracking: Built-in Green Ticker™ displays the number of 20-ounce plastic water bottles saved from waste.
FAQ
Q: How do I know when it's time to replace the filter in the Elkay LZSTL8WSBPRO-FLP4?
A: The unit features intuitive blue LED filter status lights that display filter capacity, helping you anticipate when replacements are needed and providing peace of mind to users.
Q: How difficult is it to replace the filter in this model?
A: Filter replacement is extremely simple with the top-mount quick filter change design. The filters are accessible from the top of the bottle filling station, allowing for easy changes in a matter of seconds.
Q: What contaminants does the Pro Filtration system reduce?
A: The Elkay LZSTL8WSBPRO-FLP4's Pro Filtration system is certified to reduce Total PFAS, lead, microplastics, copper, asbestos, and more, providing safer drinking water.
Detailed Features & Benefits
Smart Connected Technology: The Elkay LZSTL8WSBPRO-FLP4 is connected-ready, allowing facility managers to save time and resources by monitoring filter status and water usage remotely. This technology helps anticipate maintenance needs, enables remote flushing of units, and provides valuable usage data from anywhere.

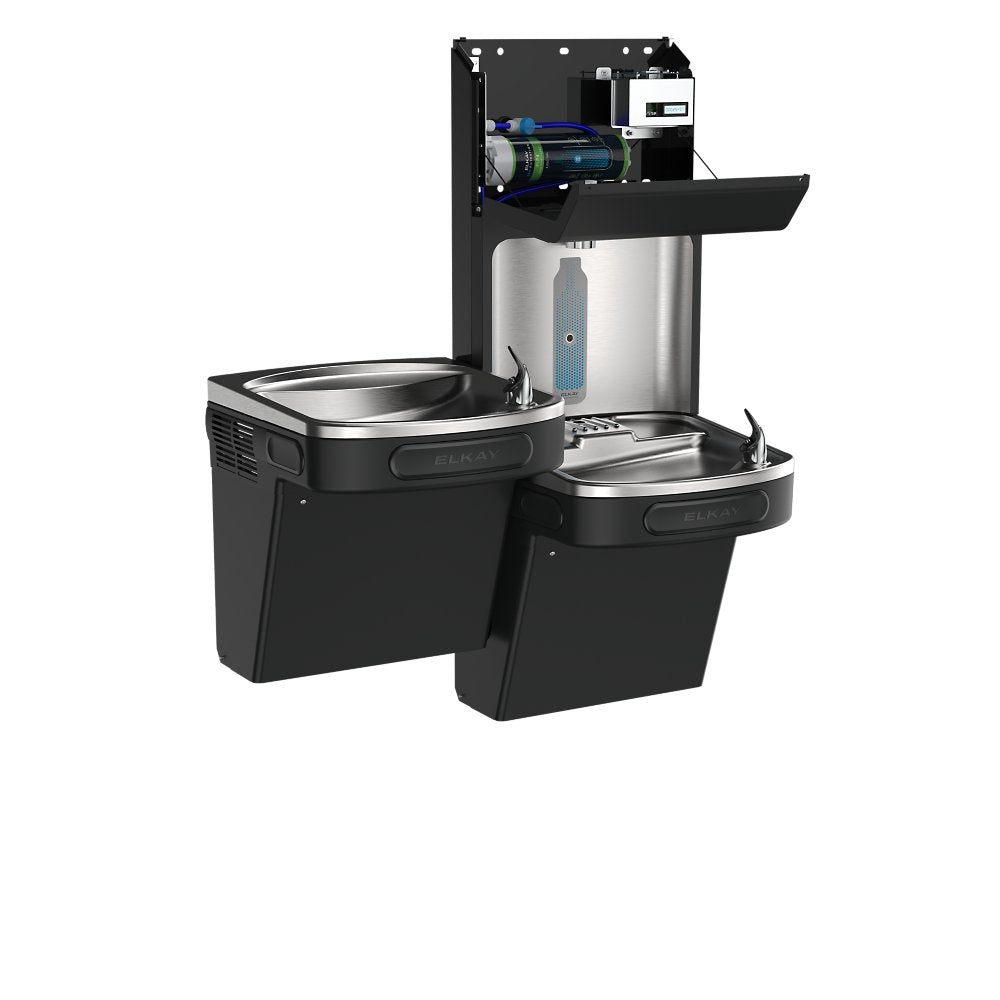

Innovative Filtration System: The Pro Filtration system pairs exclusively with Elkay Pro Filtration filters for superior contaminant reduction. The top of the unit houses both an optional stage 1 sediment prefilter and a long-lasting contaminant filter, reducing maintenance frequency while ensuring consistently clean water.
User-Friendly Design: With its sleek, architectural design, the Elkay LZSTL8WSBPRO-FLP4 takes up minimal space while offering innovative functionality. Features like the alcove light, touchless operation, and visual filter monitor create an intuitive and pleasant user experience in any environment.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
