Elkay LZS8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ultra Capacity Filter + UV Protection | 10,000 Gal, Single-Level
Elkay LZS8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ultra Capacity Filter + UV Protection | 10,000 Gal, Single-Level is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

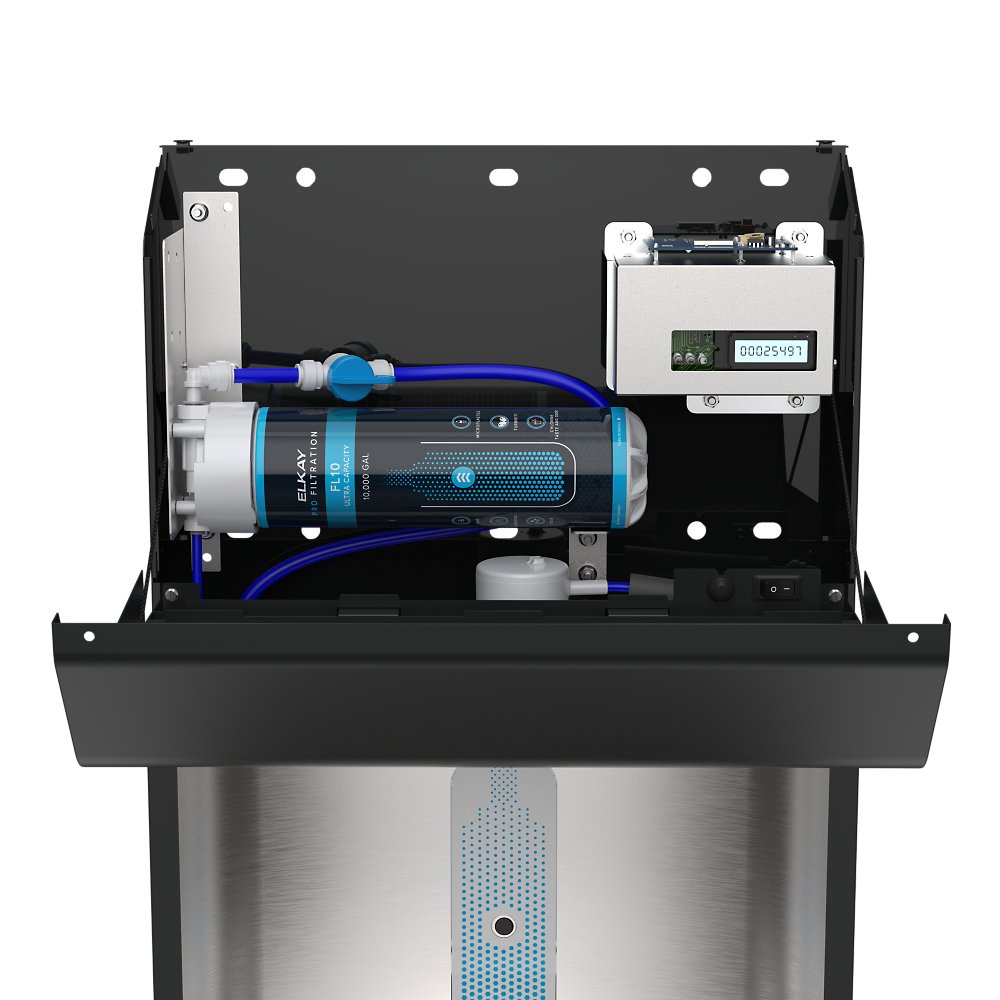

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
Elkay LZS8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ultr...
Be first to buy the new Elkay Pro Filtration with Pre-Order. Product Launches July 1st.

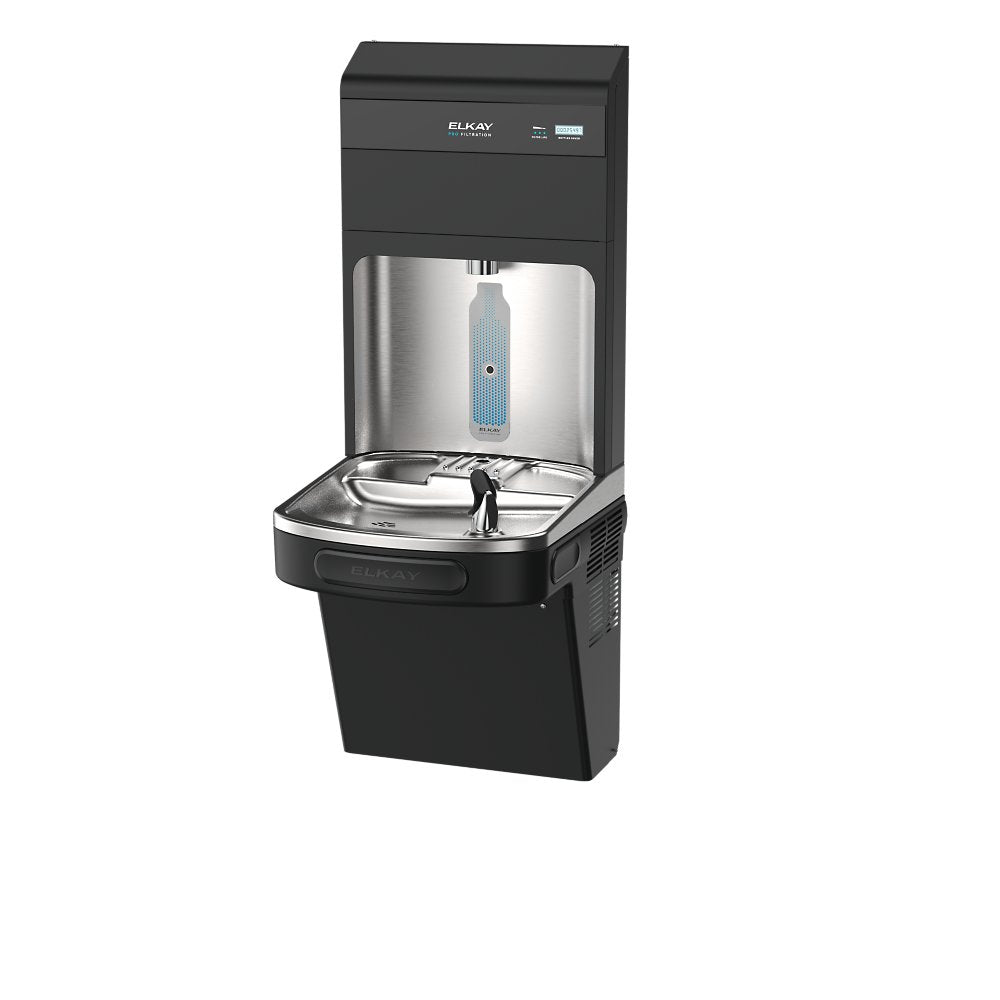

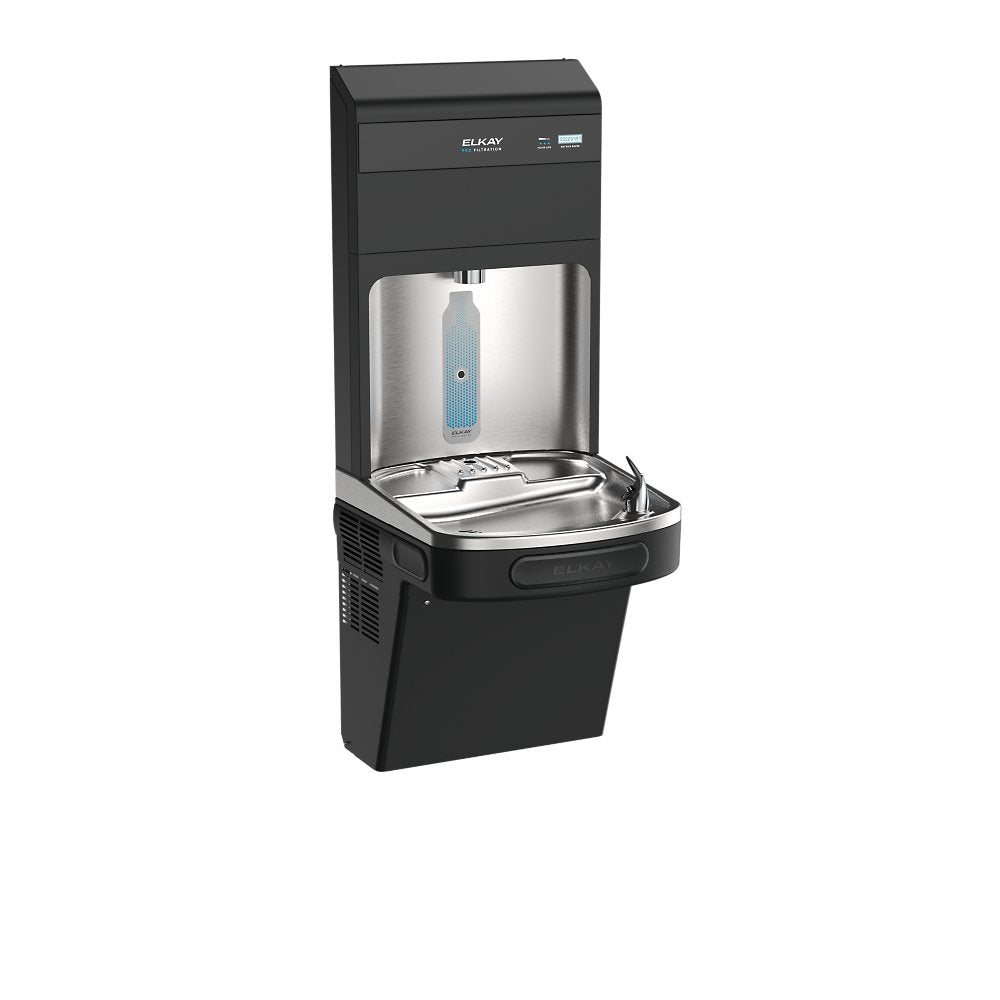

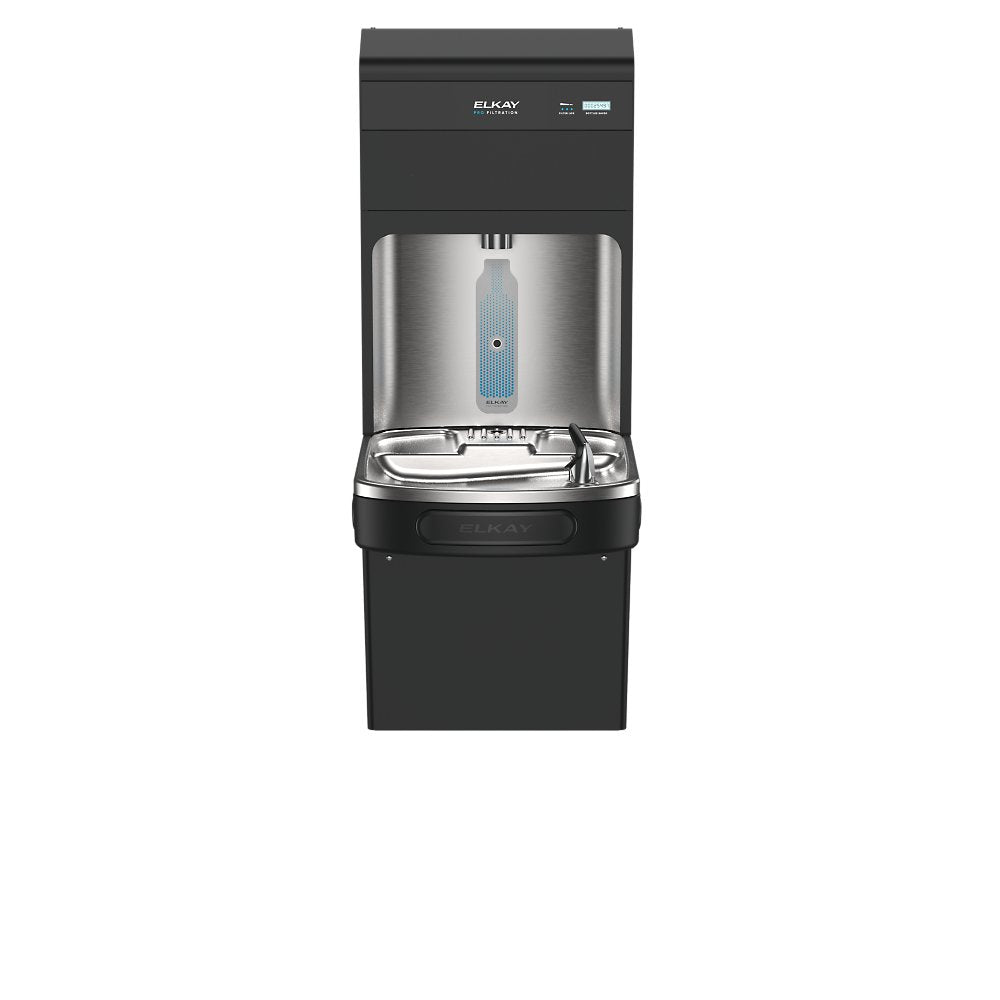

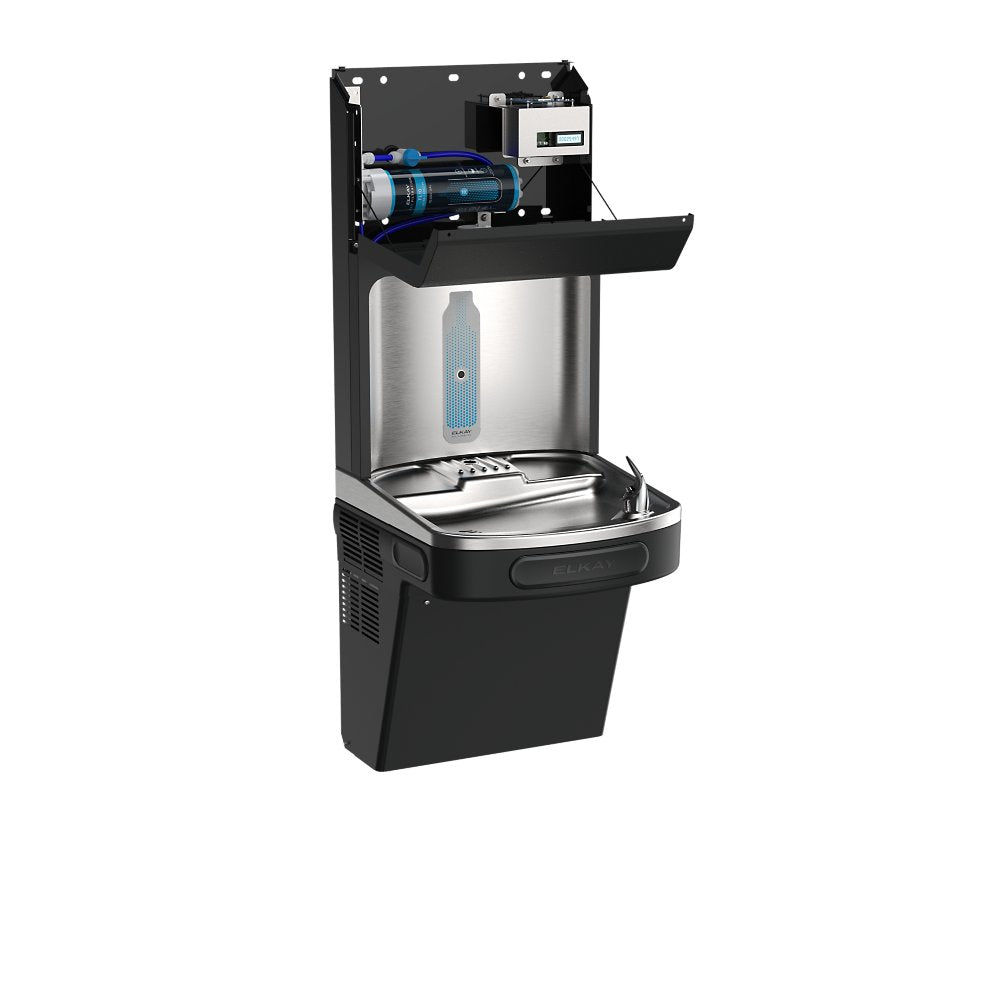

The Elkay LZS8WSBPRO-UV combines advanced filtration technology with UV protection to deliver cleaner, safer drinking water. This innovative bottle filling station features a sleek design with top-mount filter access, touchless operation, and built-in UVC-LED technology at the dispense point for enhanced water safety.
Key Specifications:
-
Filter Capacity: Ultra 10,000 Gallon capacity
- Filter Performance: Filters lead, microplastics, and more. Built-in UVC-LED at the dispense point provides an additional layer of protection against waterborne bacteria.
- Refrigeration System: 8.0 GPH chilling capacity.

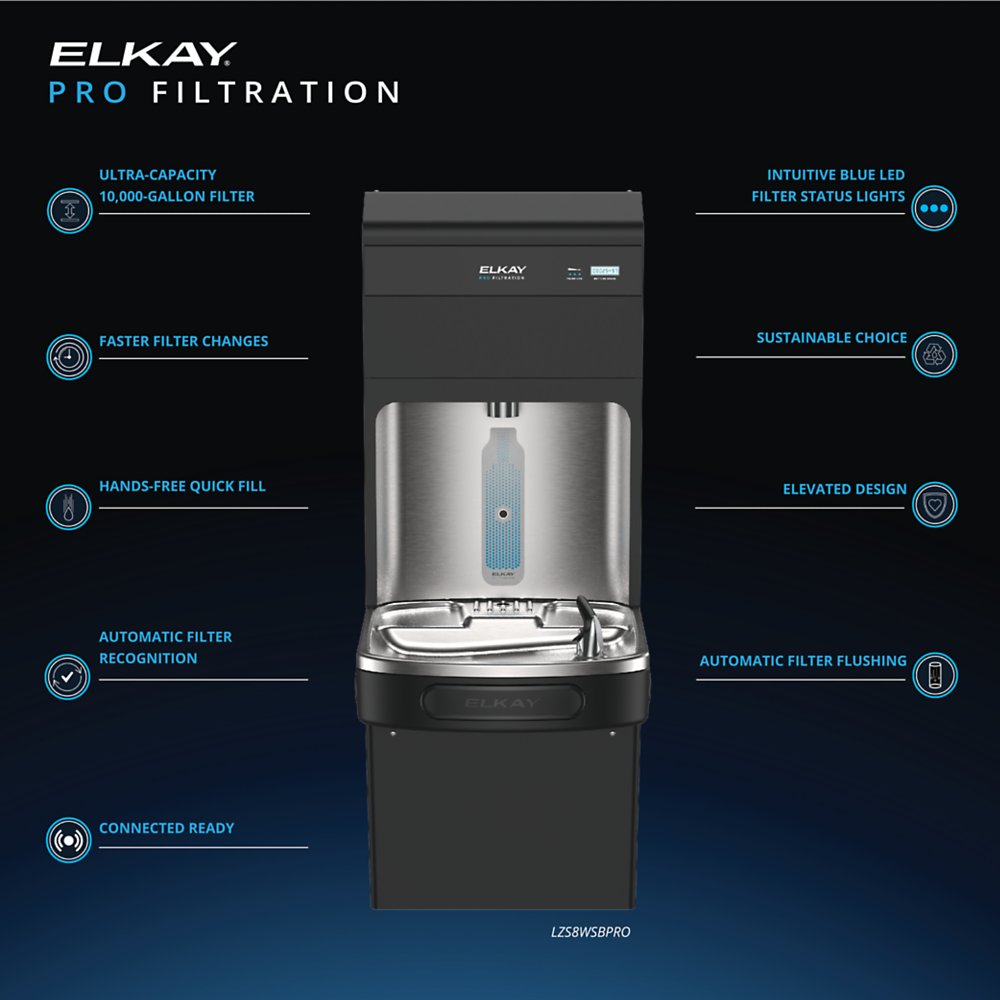

Features & Benefits:

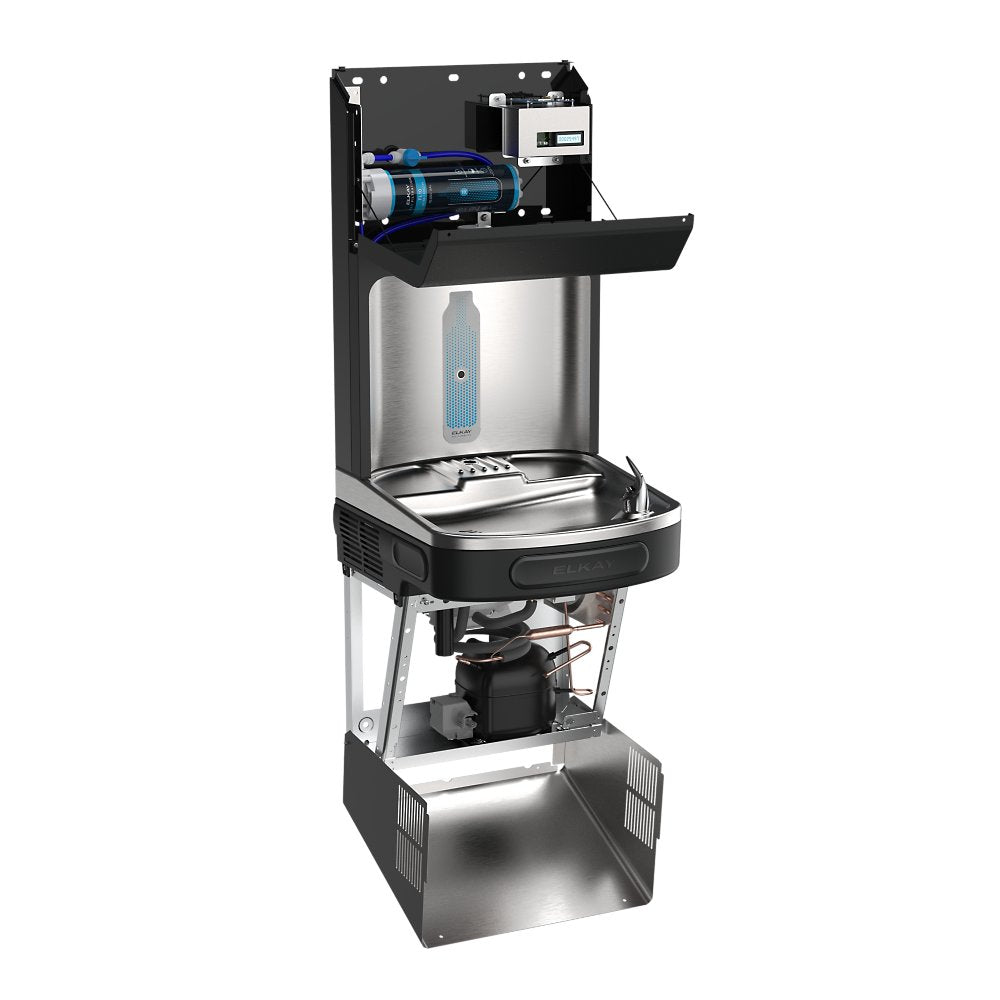

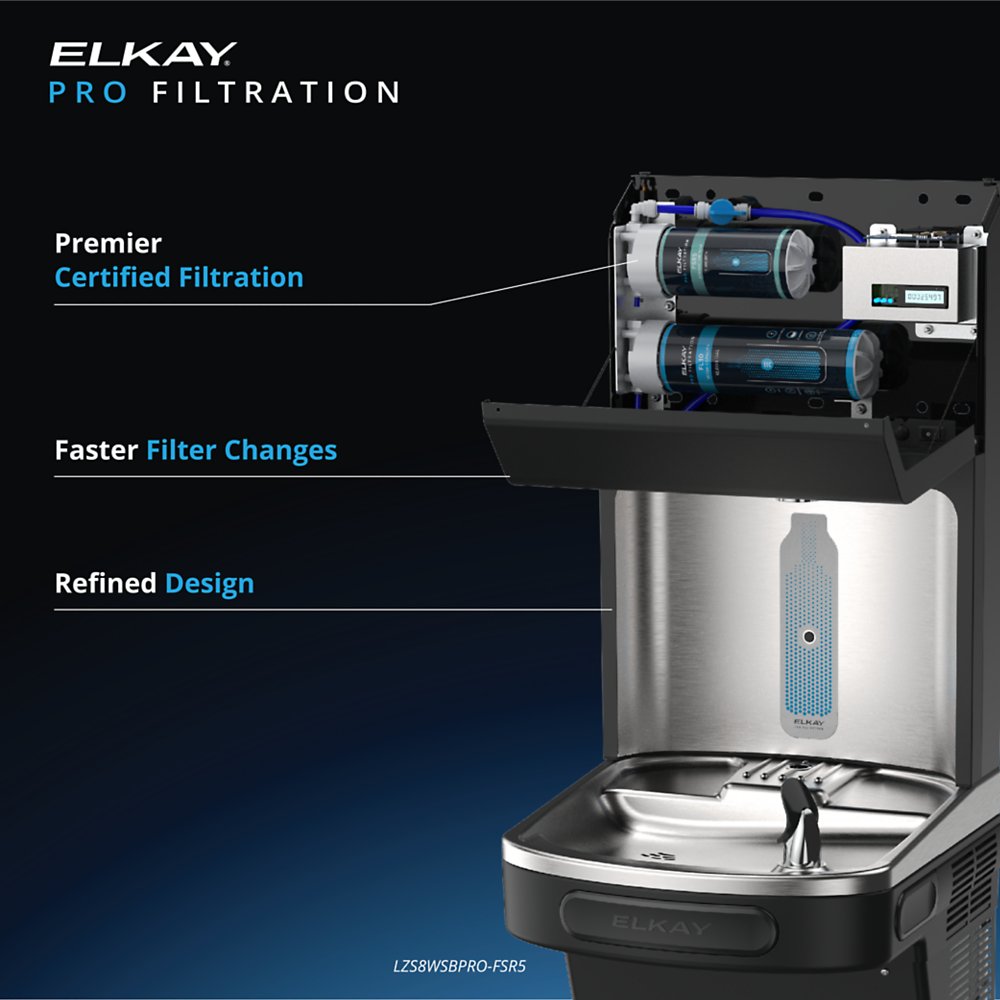

- Simplified Maintenance: Top-mount filter access allows for quick filter changes in less than 30 seconds, maximizing uptime and reducing maintenance costs.

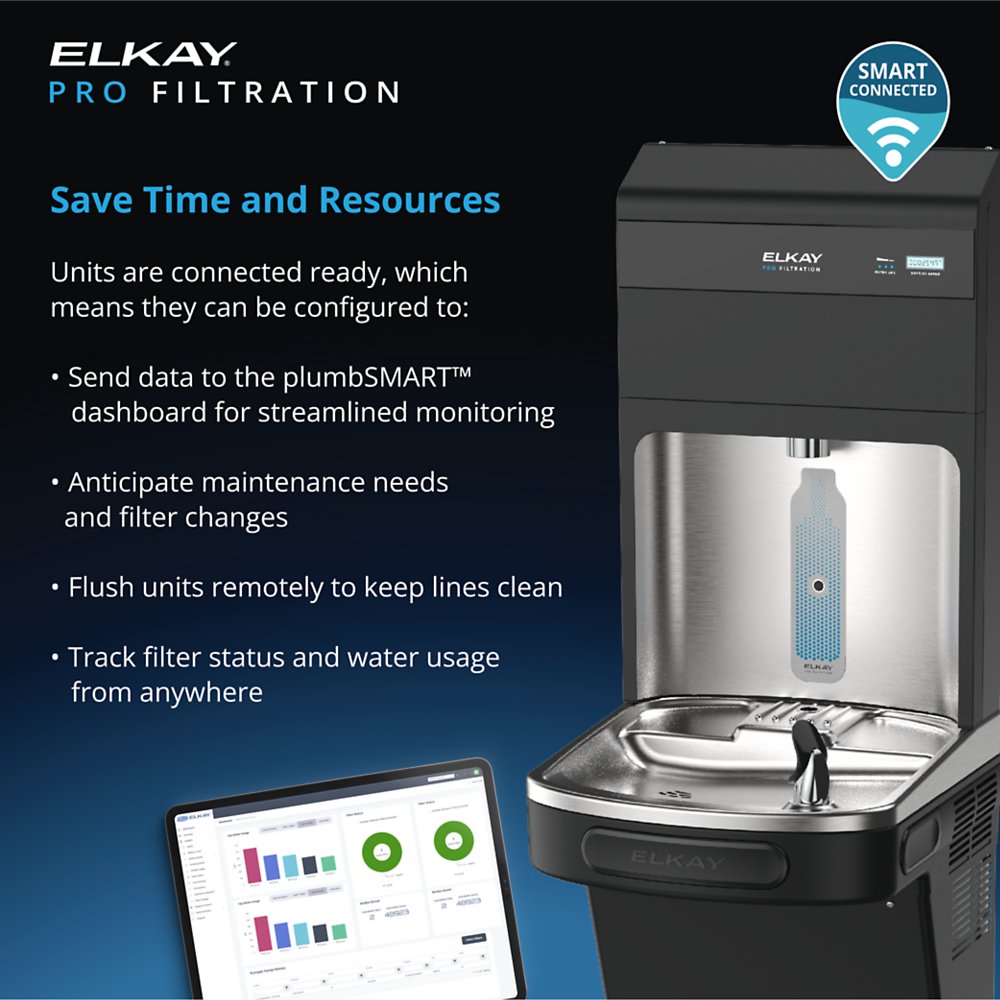

- Smart Technology: Connected-ready capabilities allow remote monitoring of filter status and water usage, helping anticipate maintenance needs.
- Hygienic Design: Touchless operation, real drain system, and UV protection work together to provide a more sanitary drinking experience.
- Environmental Impact: Green Ticker™ displays the number of 20-ounce plastic bottles saved from waste, promoting sustainability.
FAQ
Q: How often do the filters need to be replaced in the LZS8WSBPRO-UV Series?

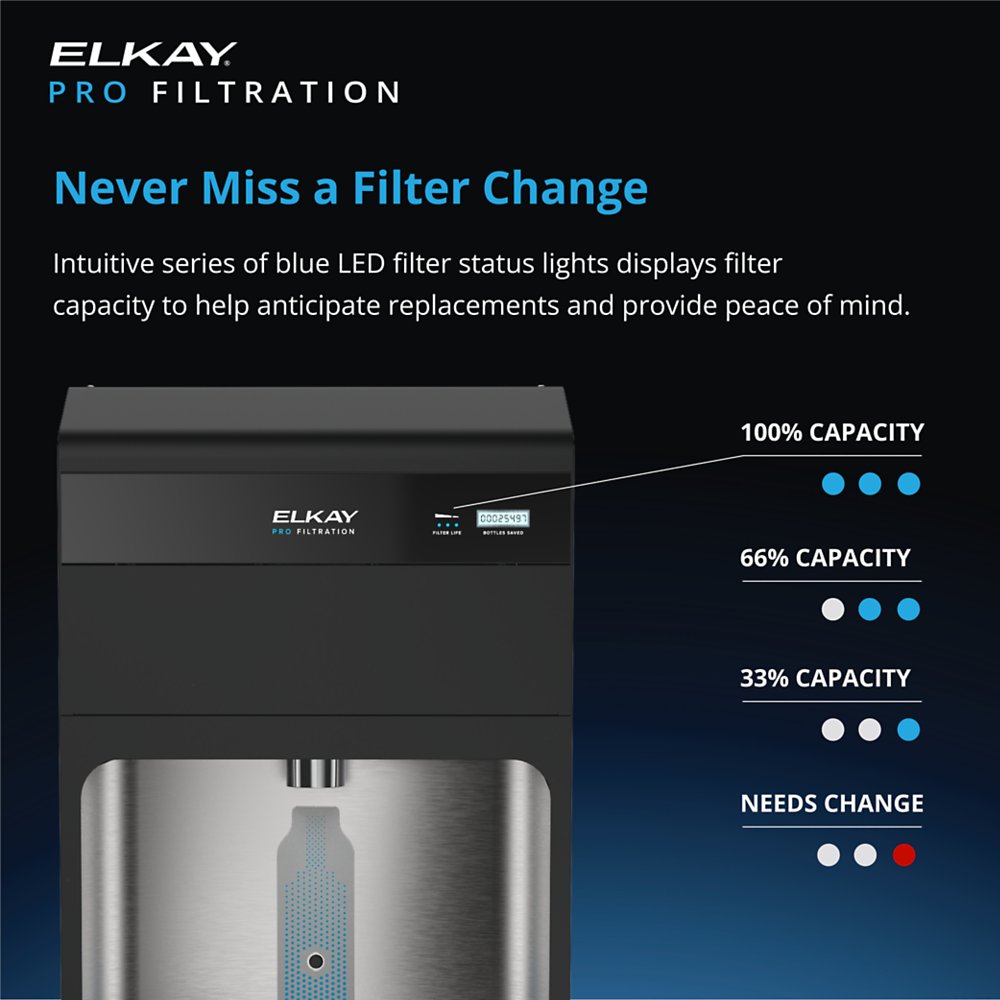

A: The Elkay LZS8WSBPRO-UV comes with an ultra-capacity 10,000-gallon filter, which is the highest on the market. The unit features intuitive LED filter status lights that display remaining capacity to help anticipate when replacements are needed. Change the filter when the status light appears, or before 1 year - whichever comes first.
Q: Does the UV protection require any maintenance?
A: The LZS8WSBPRO-UV Series features a built-in UVC-LED at the dispense point that requires minimal maintenance. The system is designed for long-term operation, but periodic inspection during regular maintenance is recommended.
Q: Is the LZS8WSBPRO-UV difficult to install?
A: The unit is designed for wall-mount installation and ships in one box with all necessary components, including the bottle filler, water cooler, ultra-capacity filter, and UV module. Professional installation is recommended to ensure proper connection to water and electrical systems.
Q: Is the LZS8WSBPRO-UV rated for outdoor use?
A: No. This model is designed for indoor use only.
Detailed Features & Benefits
Advanced Filtration System: The LZS8WSBPRO-UV Series utilizes Elkay's Pro Filtration technology with an ultra-capacity 10,000-gallon filter that effectively reduces contaminants including lead, microplastics, and other harmful substances. The system is certified to NSF/ANSI standards 42, 53, and 401, ensuring high-quality drinking water for high-traffic environments.
Innovative UV Protection: The built-in UVC-LED technology at the dispense point provides an additional layer of protection against waterborne bacteria. This feature works in conjunction with the advanced filtration system to deliver cleaner, safer water with every use of the LZS8WSBPRO-UV.

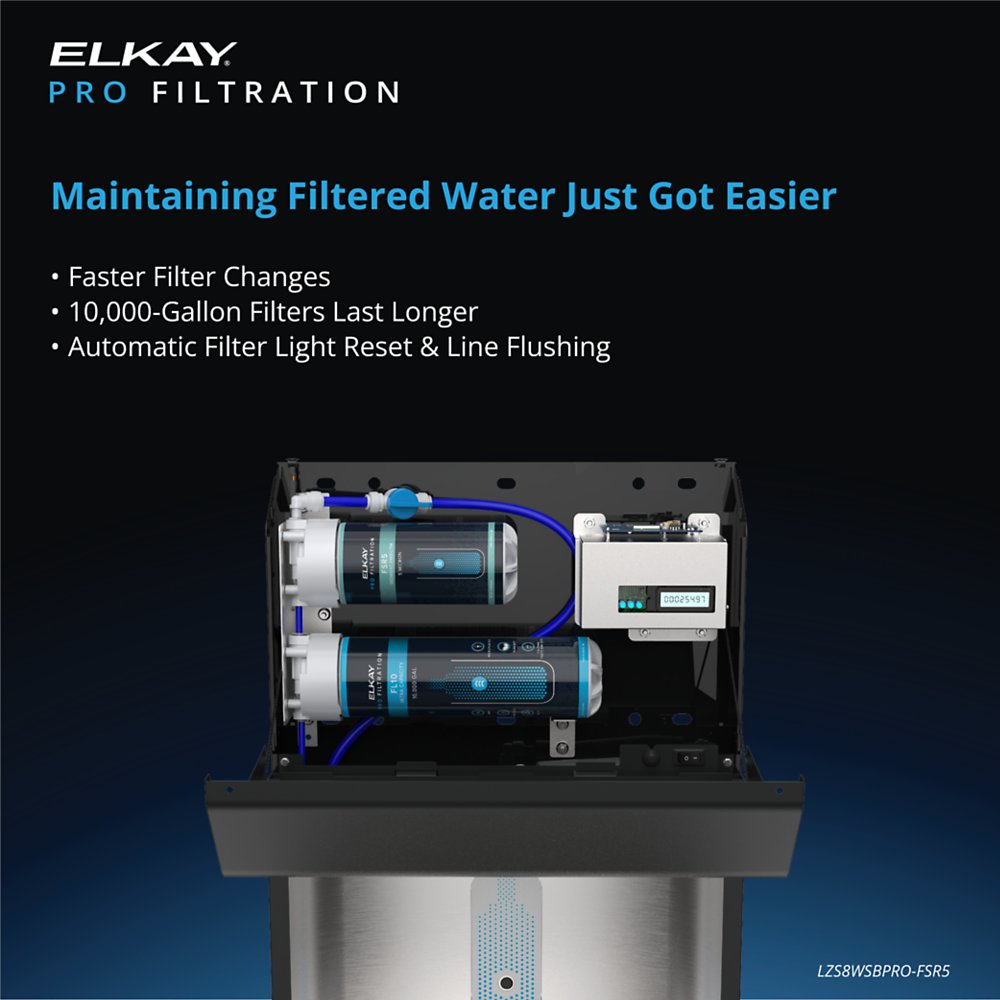

Smart Maintenance Features: The LZS8WSBPRO-UV includes automatic filter recognition that resets filter status lights when a new filter is installed, as well as automatic filter flushing to clean debris and air from the waterway. These intelligent features, combined with top-mount filter access, significantly reduce maintenance time and ensure consistent water quality.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
