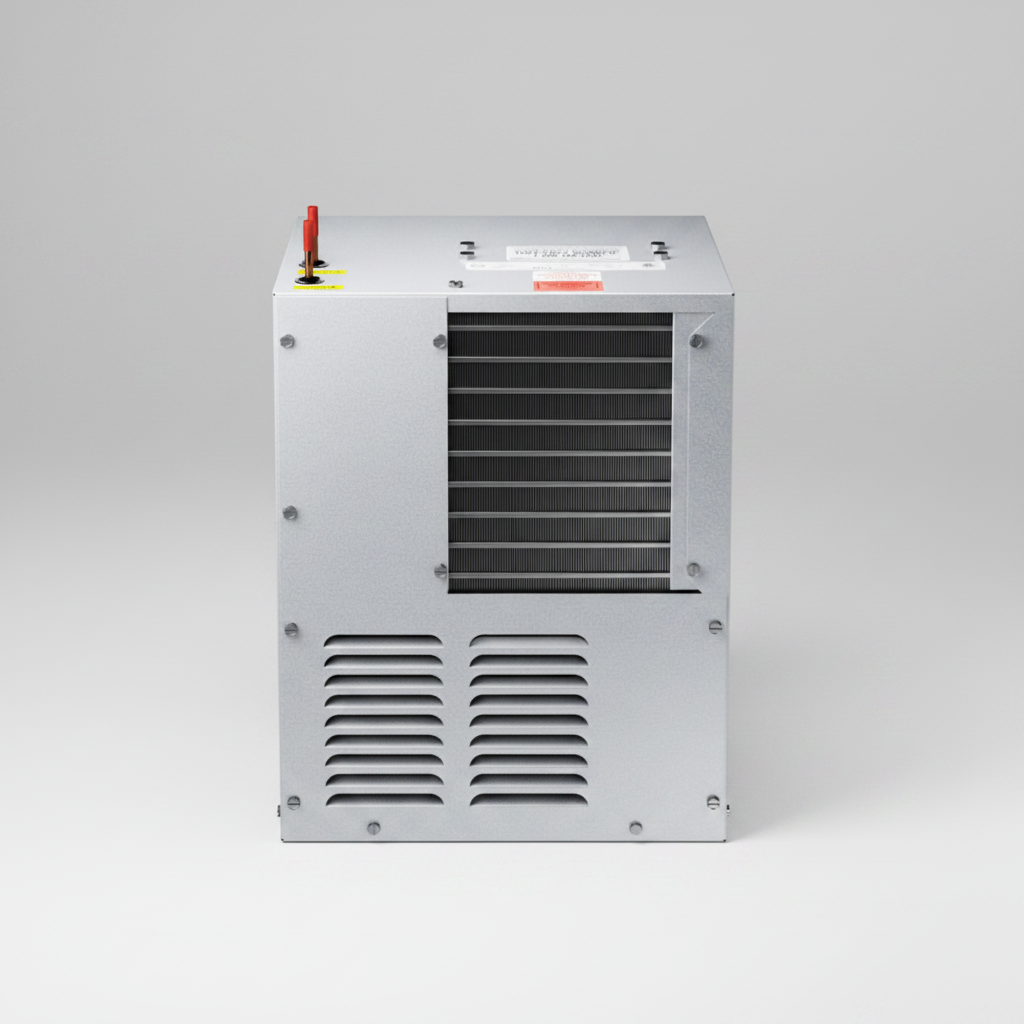

Elkay ECH8 | Remote 8 GPH Refrigerated Water Chiller

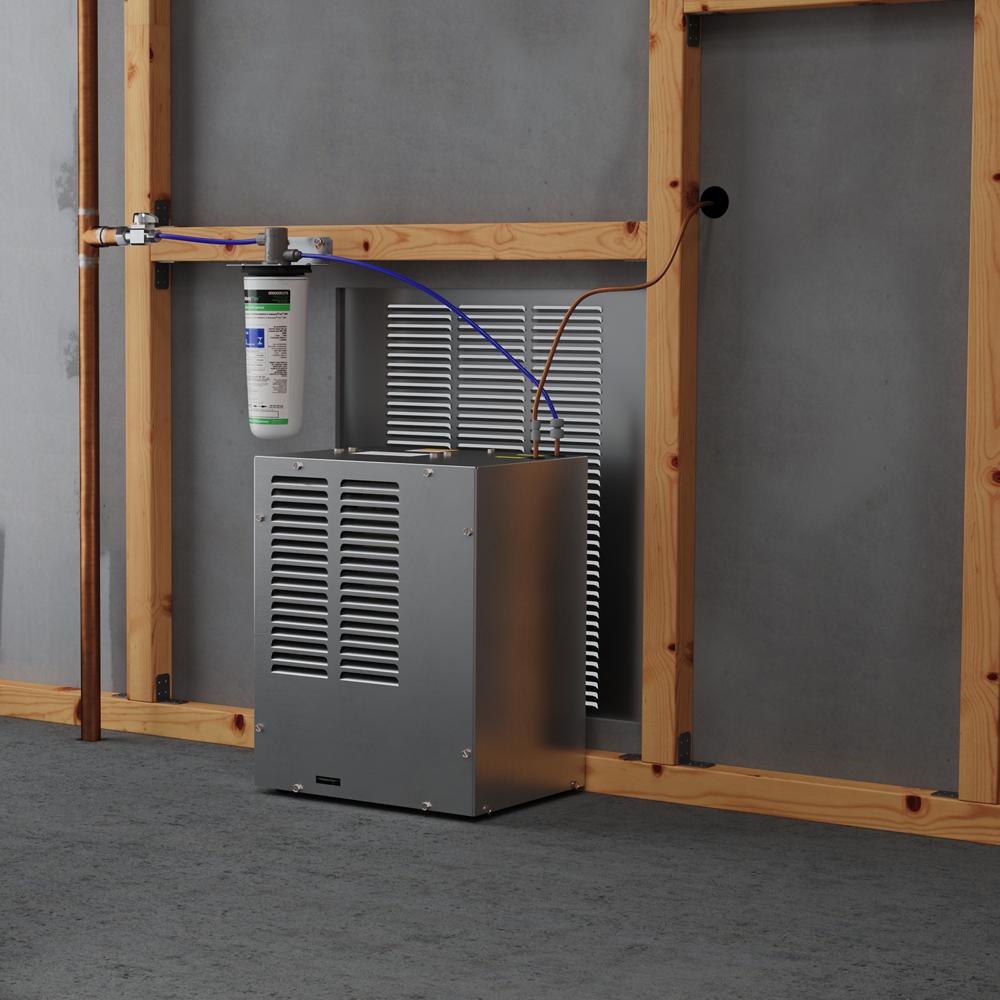

The Elkay ECH8 is a remote, non-filtered refrigerated water chiller designed to deliver 8 gallons per hour of chilled drinking water. Compact and efficient, it installs under fountains or in service areas to support multiple outlets.
Key Specifications:
- Design: Remote electric refrigerated water chiller unit, indoor installation.
- Finish: Galvanized Steel cabinet for durability.
- Compatibility: Provides cool water for most drinking fountains & bottle fillers.
- Capacity: 8.0 gallons per hour of 50°F drinking water, based on 80°F inlet water and 90°F ambient temperature. Designed to serve up to 2 remote outlets within 15 feet.
Features & Benefits:
- Compact, highly efficient refrigeration system for high-demand applications
- Hermetically-sealed compressor with lifetime lubrication
- Fan-cooled condenser with copper tube and aluminum fins
- Continuous copper tubing fully insulated with UL-approved foam
- Adjustable thermostat, factory preset for optimal performance
- Rust-resistant galvanized steel cabinet construction
What's Included:
- Elkay ECH8 Remote Refrigerated Chiller Unit
- Factory-installed refrigeration system with compressor, condenser, and cold control
- Galvanized steel cabinet housing
- Installation and use manual
- Standard warranty coverage
FAQ
Q: What does the ECH8 provide?
A: The ECH8 delivers 8 gallons per hour of chilled drinking water at 50°F, based on ASHRAE 18 test conditions.
Q: Which Elkay units typically use the ECH8?
A: The Elkay ECH8 remote chiller is designed to provide refrigeration especially for existing non-refrigerated, architectural, or vandal-resistant drinking fountains and bottle filling stations by installing in a nearby ventilated service area or wall cavity.
Q: How many stations can the ECH8 serve?
A: The ECH8 can serve up to two outlets within 15 feet, such as a cooler and bottle filler combination.
Q: Can the ECH8 be installed outdoors?
A: No. The ECH8 is designed for indoor commercial use only.
Q: What is required for installation?
A: Proper ventilation, a shut-off valve, and compliance with local plumbing and electrical codes are required for safe installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

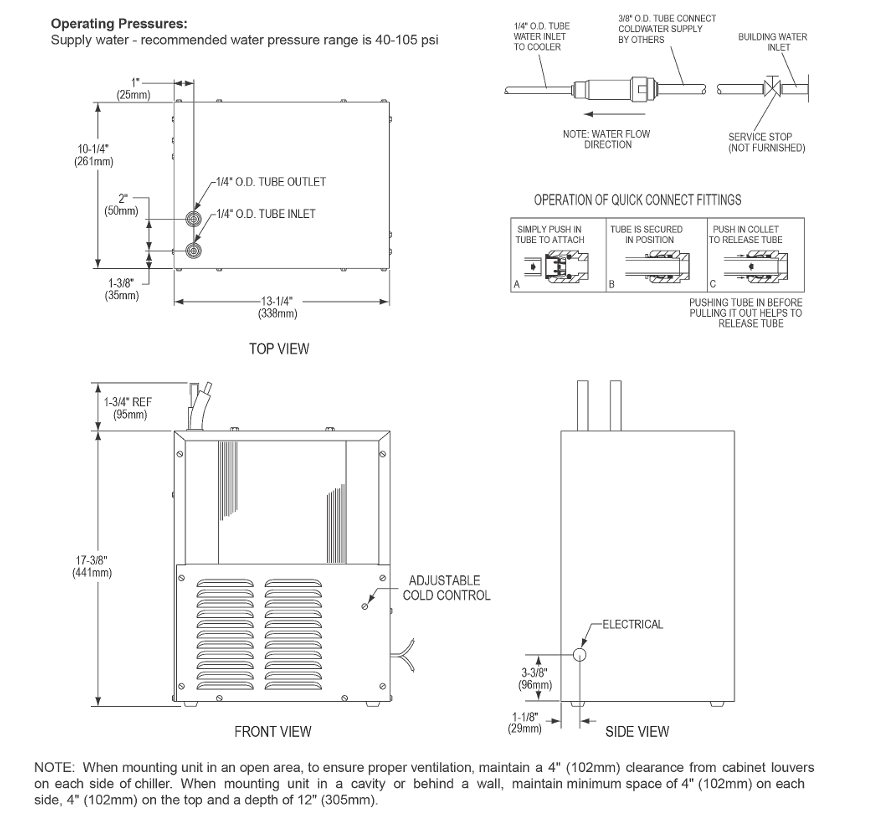

- Place the chiller in a well‑ventilated indoor location; maintain at least 4" clearance on all sides.
- Shut off water supply and disconnect electrical power before starting installation.
- Connect water inlet and outlet lines using unplated copper tubing; flush lines before connection.
- Install a shut‑off valve and in‑line strainer between the supply and chiller.
- Connect electrical wiring to match voltage and phase shown on the serial plate; ensure proper grounding.
- Turn on water supply, purge air from lines, and check for leaks.
- Restore electrical power and verify proper operation.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect the chiller twice per year for proper operation and performance.
- Clean cabinet louvers and condenser fins regularly to maintain ventilation.
- Check water flow; clean or replace in‑line strainer or filter if restricted.
- Verify condenser fan spins freely; replace if needed.
- Adjust water temperature if required (factory set to ~50°F).
- Motors are lifetime lubricated; no additional lubrication required.
- For service or repairs, consult the manual or a licensed technician.
