Elkay LK4400BF | Freestanding Bottle Filler | Filterless, Non-refrigerated
Elkay LK4400BF | Freestanding Bottle Filler | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.

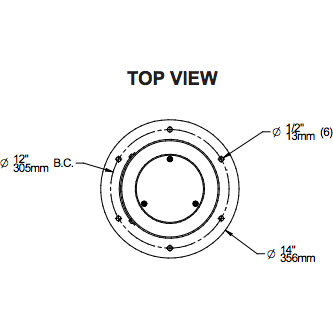

- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4400BF | Freestanding Bottle Filler | Filterless, Non-refri...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

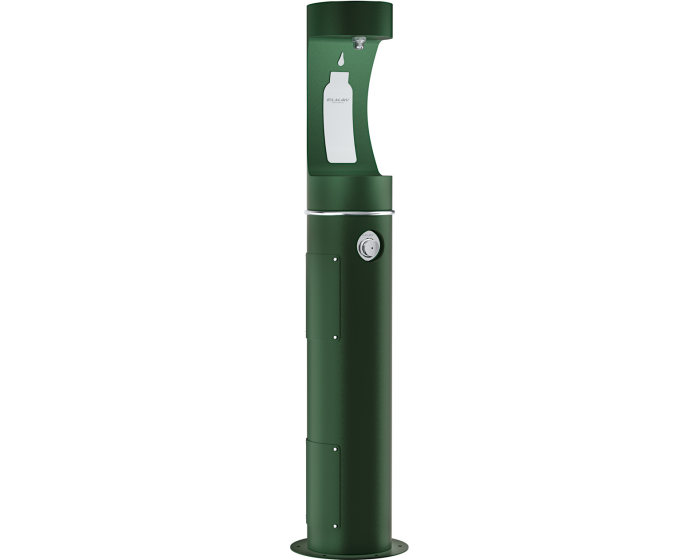

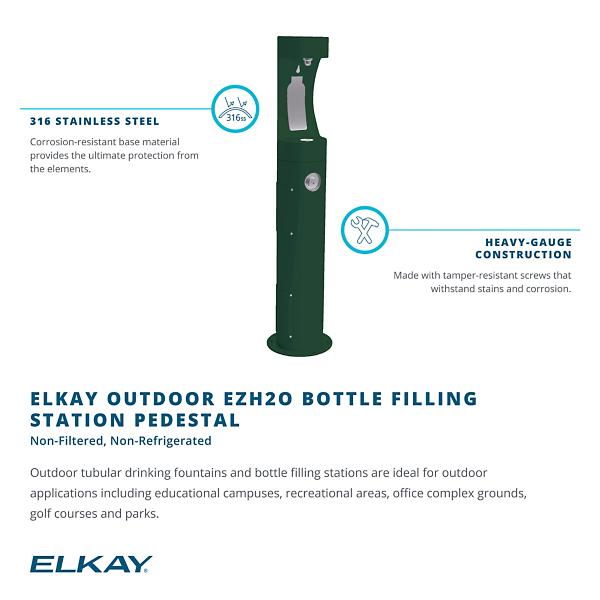

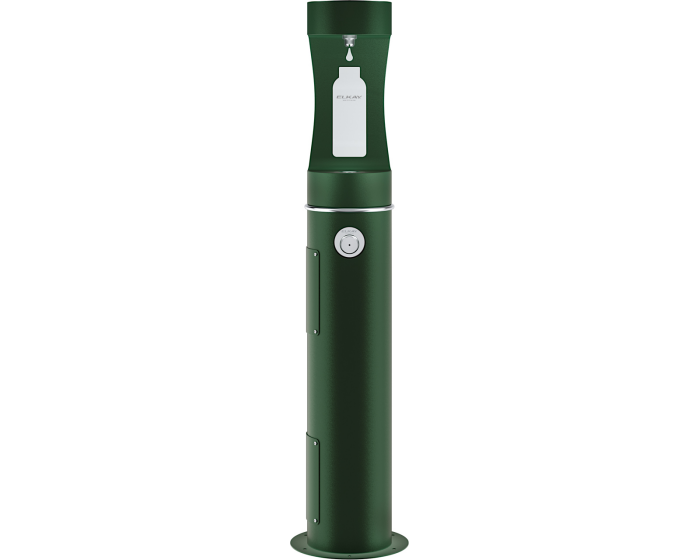

The Elkay LK4400BF is a robust Outdoor ezH2O® Bottle Filling Station Pedestal designed to provide convenient, clean hydration in outdoor spaces. This non-filtered, non-refrigerated unit combines durability with user-friendly features, making it an ideal solution for parks, campuses, and other public areas where reliable access to drinking water is essential.
Key Specifications:
- Construction: Heavy-duty vandal resistant, 300 Series Stainless Steel for long-lasting performance

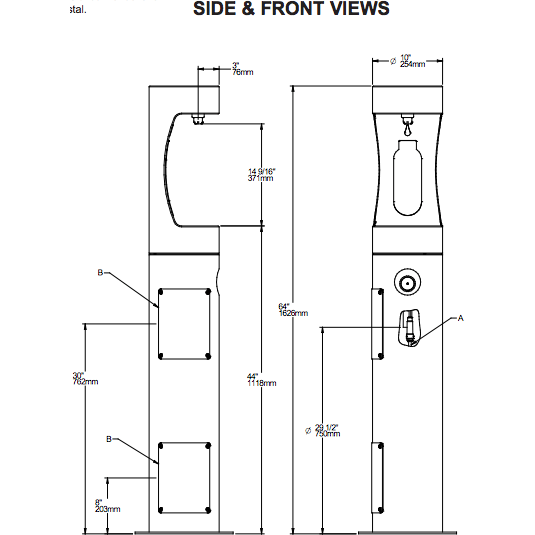

- Dimensions: 14" x 14" x 64", perfect for various outdoor installations
- Activation: Mechanical button for reliable operation without electrical requirements
- Water Flow: Laminar flow technology for clean, splash-free filling
- Capacity: Serves 1 station, ideal for moderate traffic areas
Features & Benefits:
- All-Weather Performance: Designed to withstand outdoor conditions, ensuring year-round hydration access
- Eco-Friendly Impact: Encourages the use of reusable water bottles, reducing plastic waste
- Accessibility: ADA & ICC A117.1 compliant, ensuring inclusive hydration for all users
- Low Maintenance: Durable construction and simple mechanical operation reduce upkeep needs

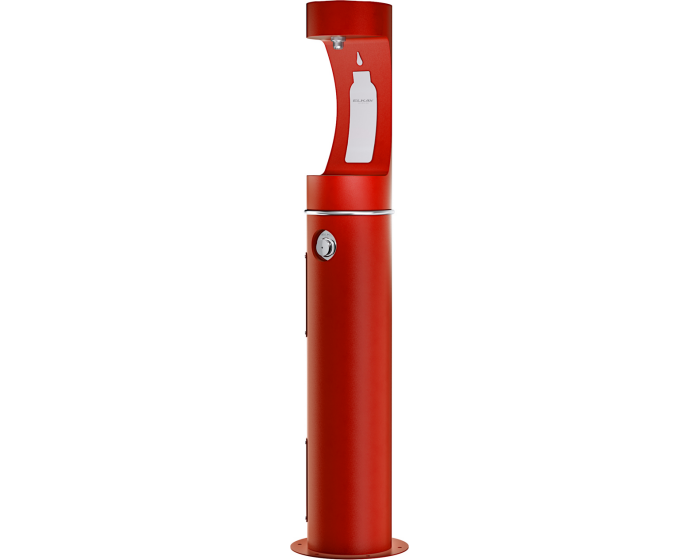

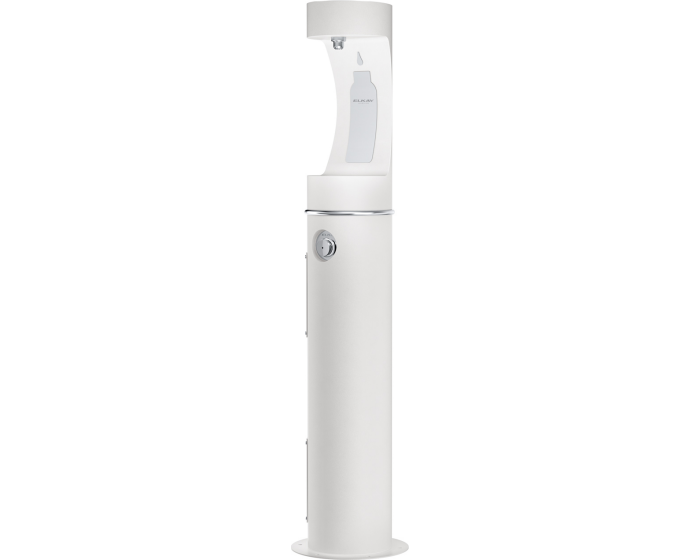

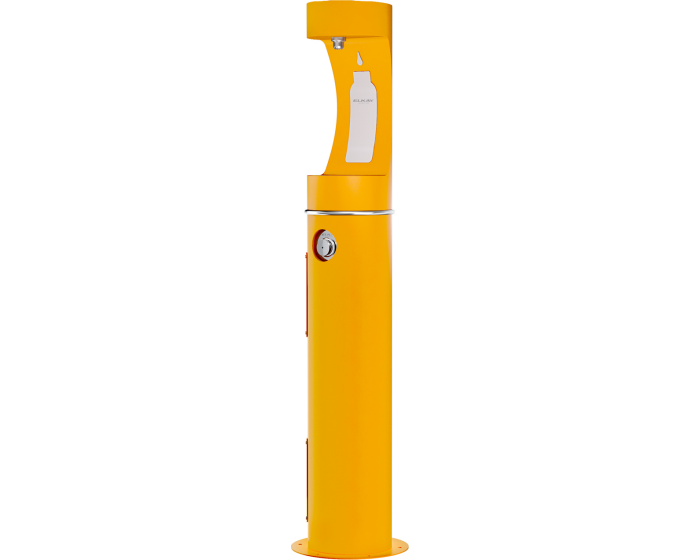

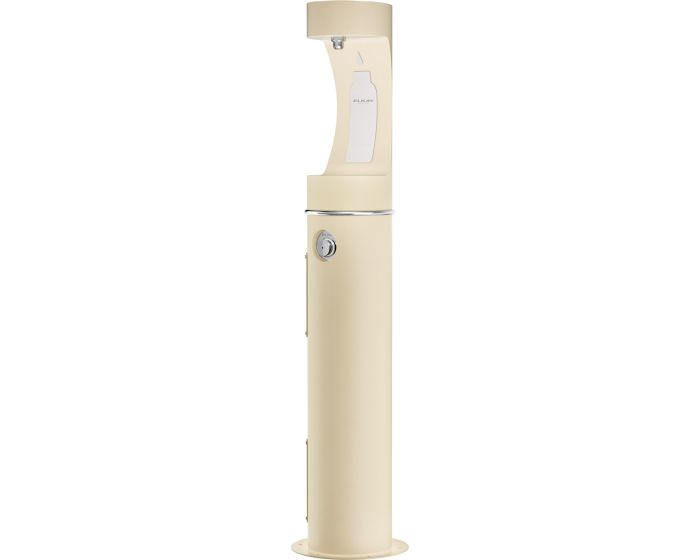

- Customizable Appearance: Available in multiple colors to match various outdoor aesthetics
What's Included:
- Outdoor Bottle Filler Pedestal
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 10-15 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler, Freeze Resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits
Vandal-Resistant Design: Let's face it, outdoor equipment can sometimes attract unwanted attention. That's why we've decked out the LK4400BF with heavy-duty, vandal-resistant features. The 300 Series Stainless Steel construction isn't just about looking sleek – it's like a suit of armor for your bottle filler. This tough-as-nails design means it can stand up to the elements and resist any mischief, ensuring your investment keeps serving thirsty folks for years to come. Plus, it's a breeze to clean, so it'll keep looking great with minimal effort. It's like having a superhero on your team – always ready to serve and tough enough to handle whatever comes its way!
Eco-Friendly Hydration Solution: The LK4400BF isn't just a water dispenser; it's a planet-saving superhero in disguise! By encouraging the use of reusable water bottles, this nifty station helps put a dent in the mountain of plastic waste we generate. Imagine every refill as a high-five to Mother Earth! Plus, it's GreenSpec® listed, which is like a gold star for being environmentally friendly. By installing this bottle filler, you're not just providing refreshment – you're making a statement about sustainability and joining the fight against single-use plastics. It's a simple way to make a big impact, one refill at a time. Who knew staying hydrated could be so eco-awesome?
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
