Halsey Taylor

HTHB-HRFSEBP-I

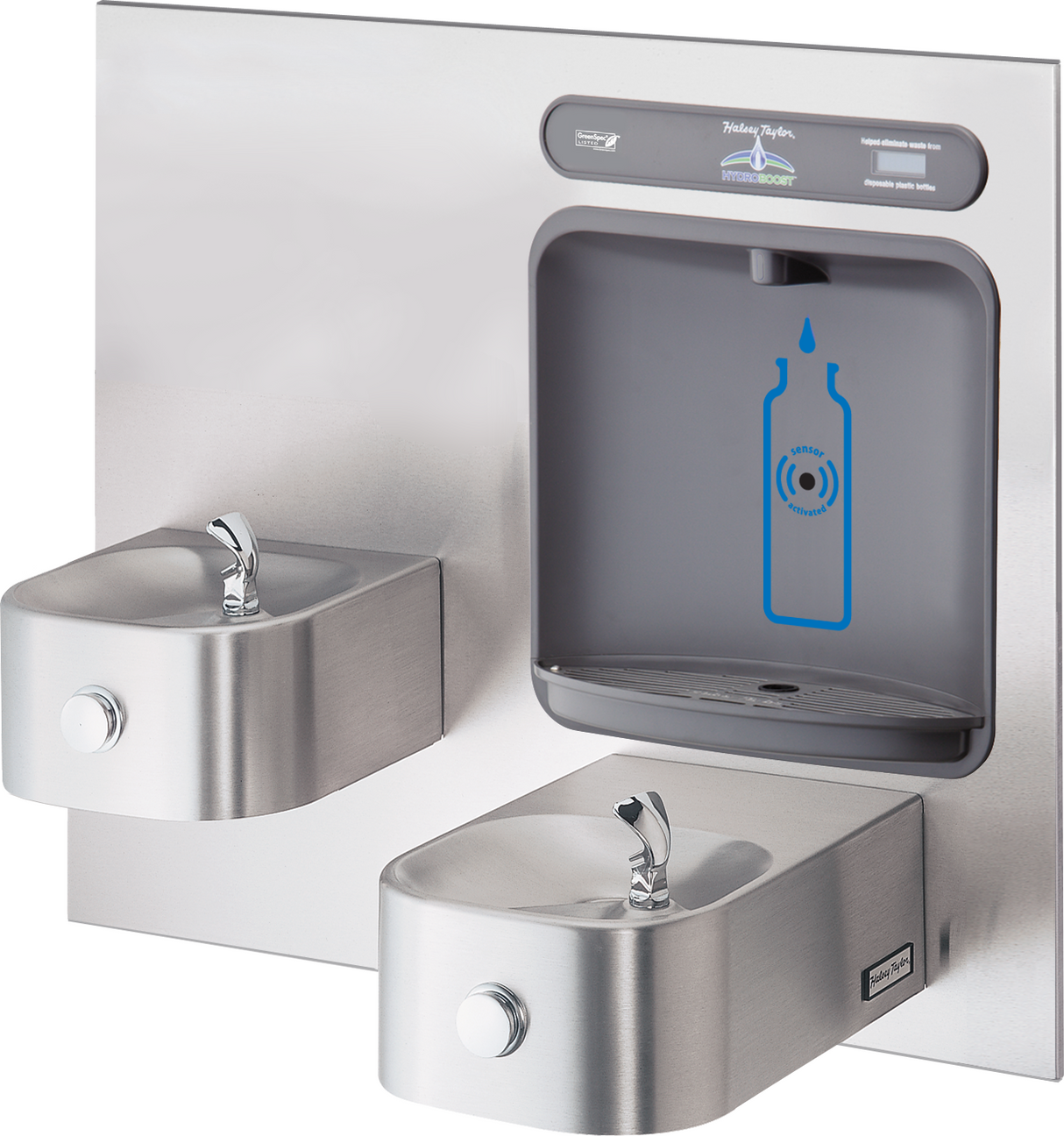

Halsey Taylor HTHB-HRFSEBP-I | In-wall Bi-level Bottle Filling Station | Filterless, Non-Refrigerated, Contour fountains

MSRP: $5,767.00

Elkay water chillers provide 50 degree drinking water and meet Federal and State low-lead requirements
Looking to purchase several units, please contact us for a custom discounted bulk order quote!
  • Requires a minimum of 8" of wall depth for installation.

    The Halsey Taylor HTHB-HRFSEBP-I is an in-wall, filtered bottle filling station that includes a bottle filler and two 'soft-sides' drinking fountains. This model has a Stainless Steel color finish.

    One of the most popular models, the HTHB-HRFSEBP-I Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

    • ADA compliant design
    • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
    • Quick fill rate of1.5 Gallons Per Minute
    • Green Ticker™ tracks number of plastic bottles saved from waste.

    Halsey Taylor HTHB-HRFSEBP-I Resources:

    FILTERED?

    No

    COOLER CABINET FINISH

    Stainless Steel

    POWER

    115V/60Hz

    BUBBLER OPTION

    FlexiGuard Safety

    MOUNTING DETAILS

    Wall Mount (In-Wall)

    CHILLING DETAILS

    Not refrigerated

    INSTALLATION LOCATION

    INDOOR

    NUMBER OF STATIONS

    Two Stations (One bottle filler and two drinking fountains)

    DIMENSIONS

    L: 38-1/2"

    W: 19-3/8"

    H: 34-5/8"

    SHIPPING WEIGHT

    118 lbs

    PRODUCT COMPLIANCE

    • ADA Compliant
    • UL 399
    • NSF 61
    • NSF 372 (lead free)
    • GreenSpec
    • CAN/CSA 22.2 120
    • Buy American Act
    • ASME A112.19.3/CSA B45.4

    Halsey Taylor HTHB-HRFSEBP-I Includes

    • Bottle Filler and fountains
    • Mounting frame

    Warranty

    Electrical Parts & Water System

    Halsey Taylor HTHB-HRFSEBP-I warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

    Installation Notes

    • Halsey Taylor HTHB-HRFSEBP-I requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
    • Requires access to electrical connection.
    • Product also includes physical copy of installation instructions in package.
    • View detailed Halsey Taylor HTHB-HRFSEBP-I MANUAL.

    Maintenance

    Cleaning

    It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

    FAQ

    Q: How do I access the filter status and bottle counter button?

    A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.

    *ASSEMBLED IN THE UNITED STATES.
