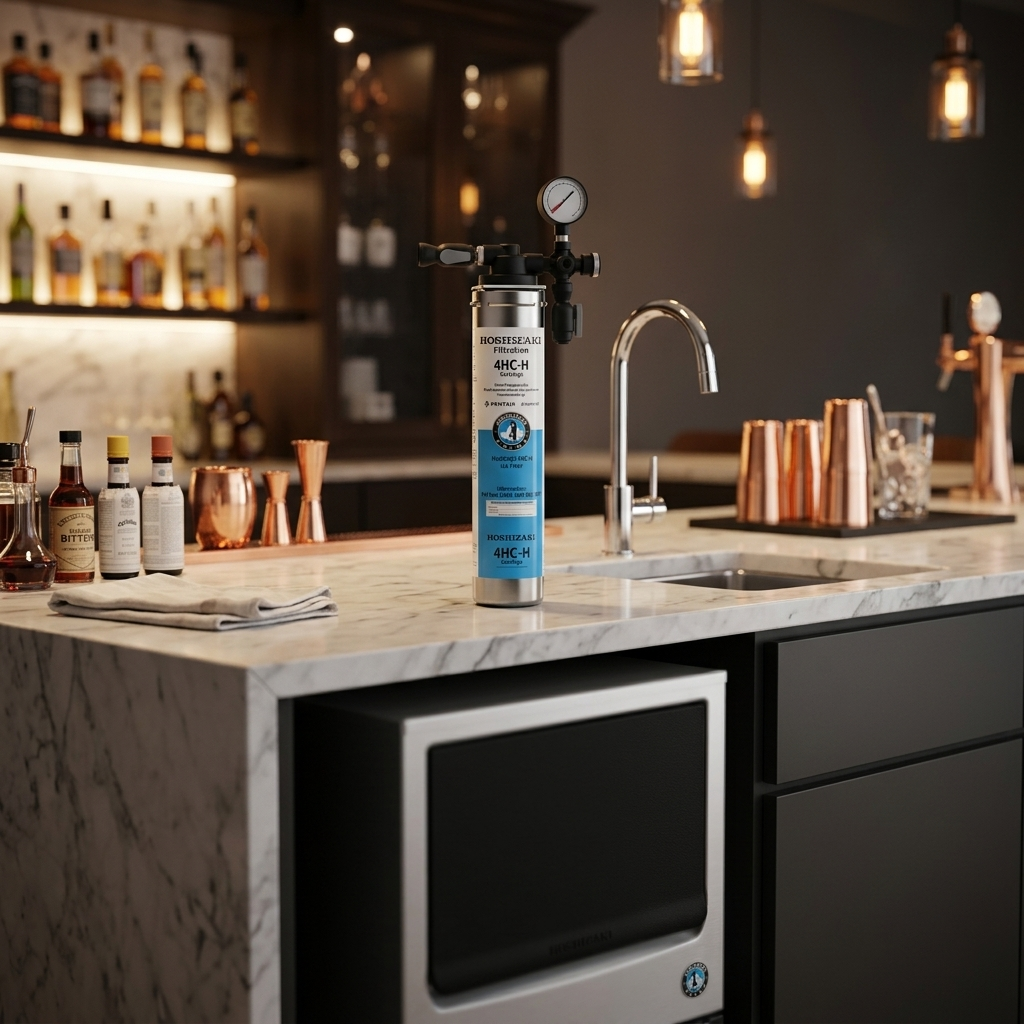

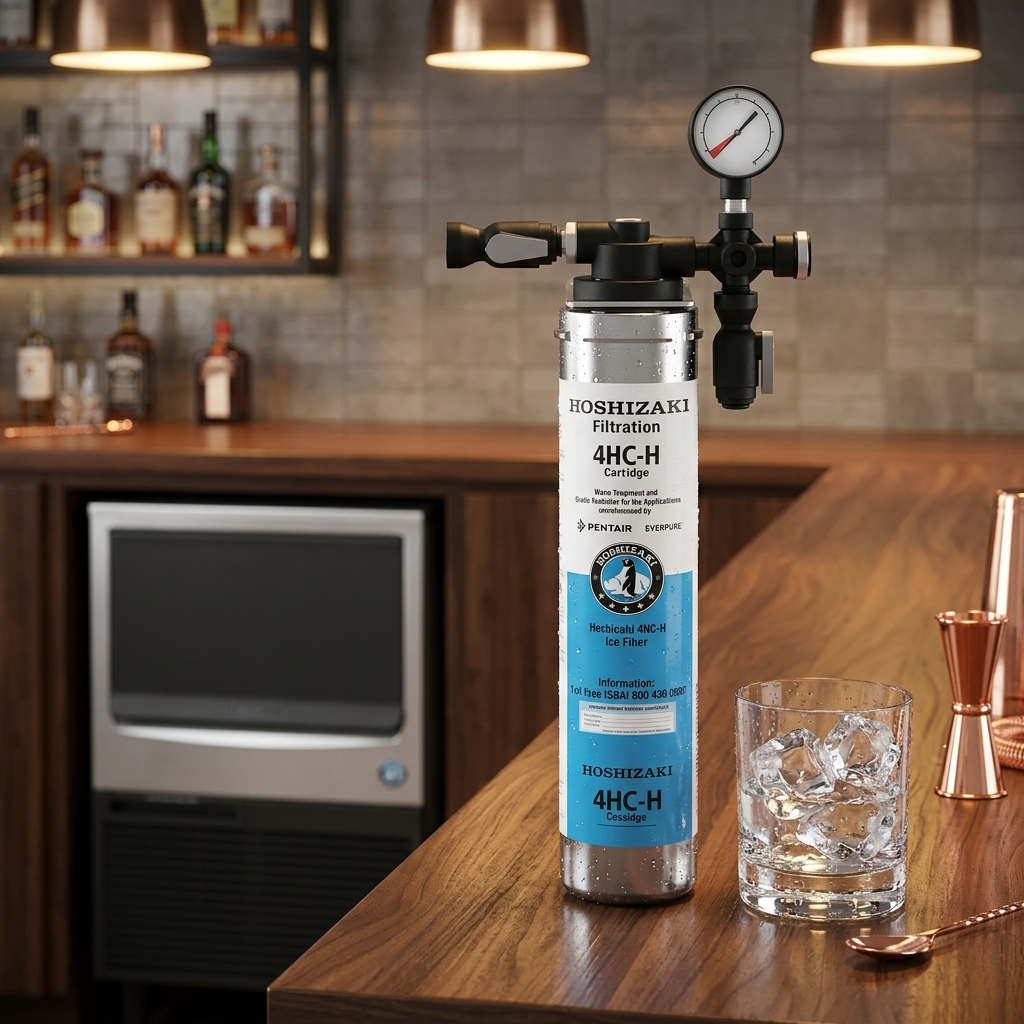

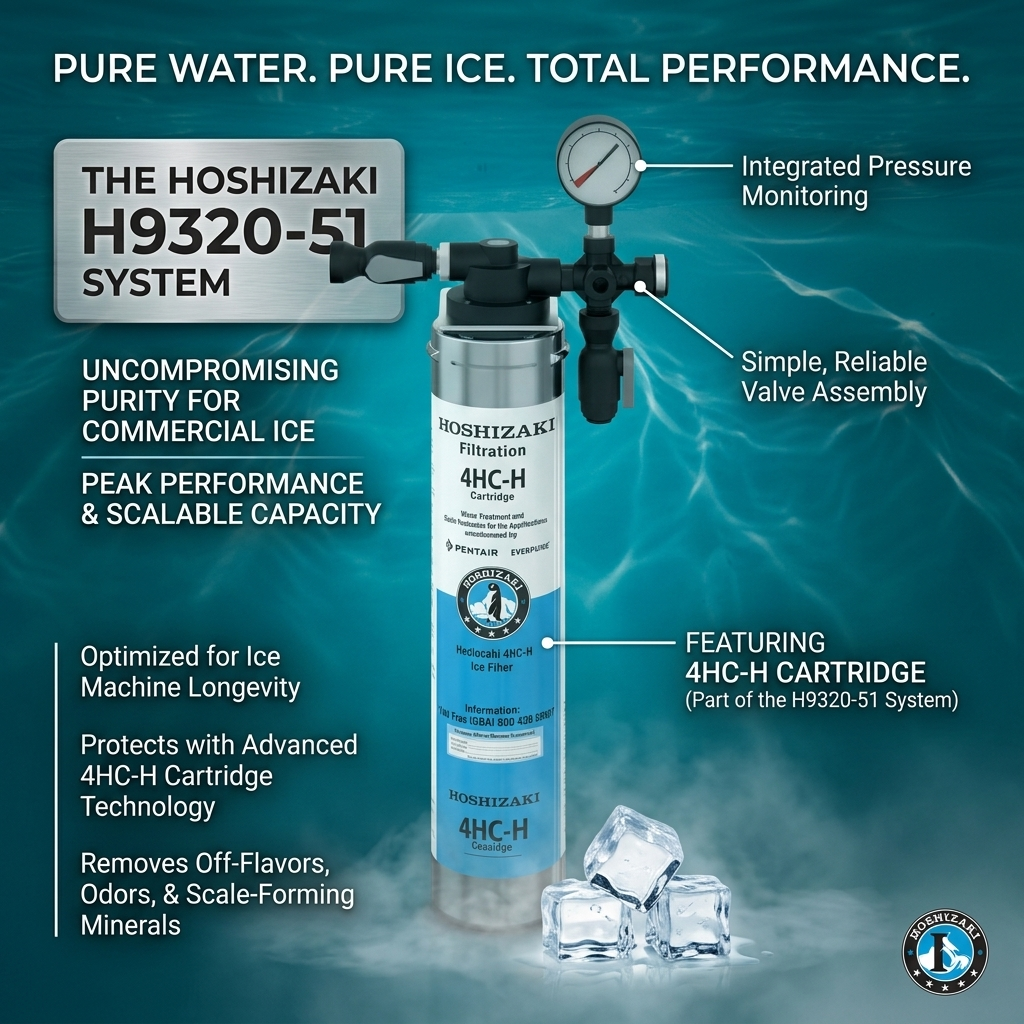

Hoshizaki H9320-51 | Single 4HC-H Water Filter System with Manifold...
The Hoshizaki H9320‑51 is a single‑configuration water filter system designed to optimize ice machine performance and deliver crystal‑clear ice. Using the 4HC‑H cartridge, it reduces chlorine, taste, odor, and particulates while minimizing scale buildup and maintenance needs.
Key Specifications:
- Contaminants Filtered: Chlorine taste/odor (~97% reduction), particulates ≥1 micron, filterable cysts, sediment, and scale
- Filter Capacity: 21,000 gallons
- Compatibility: Recommended for undercounter KMs and smaller cubers (AM‑50, KM‑81, KM‑116, KM‑161, KM‑231, KM‑301), select IM cubers, flakers, and DCM/DB dispensers
- Certifications: NSF/ANSI Standard 42, Class 1 for taste, odor, chlorine, and particulate reduction
- Number of Filters: Single configuration (1 × 4HC‑H cartridge)
Features & Benefits:
- NSF Certified: Ensures high‑quality filtration for taste, odor, and particulate reduction
- Scale Reduction: Helps prevent lime scale buildup, extending ice machine life
- Crystal Clear Ice: Filters particles down to 1 micron nominal for clean, high‑quality ice
- Reliable Performance: Maintains full ice maker capacity with consistent water quality
- Extended Equipment Life: Reduces maintenance needs and protects internal components
What's Included:
- H9320‑51 Filter System with 4HC‑H Cartridge
- Mounting hardware and manifold assembly
- Installation instructions
FAQ
Q: What Ice Machines Are Compatible with the H9320‑51?
A: The H9320‑51 is recommended for undercounter KMs and smaller cubers such as AM‑50, KM‑81, KM‑116, KM‑161, KM‑231, and KM‑301. It also supports select IM cubers, flakers, and DCM/DB dispensers.
Q: Can This Filter Be Used in Areas with High Dirt Content in the Water?
A: Yes. For enhanced protection, pair with the Hoshizaki E‑10 Prefilter System, which traps larger particles and extends the life of the 4HC‑H cartridge.
Q: How Often Should the Filter Be Replaced?
A: Replace the cartridge when flow rate slows or before reaching the 21,000‑gallon capacity. Annual replacement is recommended for optimal performance. The correct replacement cartridge is the Hoshizaki H9655‑11 4HC‑H Replacement Cartridge.
Q: Is the H9320‑51 Certified for Cyst Reduction?
A: Yes. It is certified to reduce filterable cysts such as Cryptosporidium and Giardia by mechanical means.
Q: What Is the Warranty Coverage for the H9320‑51?
A: The H9320‑51 system includes a one‑year warranty on the entire system and one‑year coverage on replaceable elements for defects in materials and workmanship.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Turn off the water supply before starting.
- For single systems (H9320‑51), connect inlet and outlet using 3/8" FNPT fittings.
- For double (H9320‑52) and triple (H9320‑53) systems, connect using 3/4" MNPT and FNPT fittings.
- Insert the 4HC‑H replacement cartridge into the manifold and twist clockwise until secure.
- Turn the water supply back on and flush at least 5 gallons to remove carbon fines and air bubbles.
- Check all connections for leaks before regular use.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Replace the 4HC‑H cartridge every 12 months or when rated gallon capacity is reached (21,000 gal single, 42,000 gal double, 63,000 gal triple).
- Inspect fittings and tubing regularly for leaks.
- Use Everpure E‑10 or E‑20 prefilters in areas with high sediment to extend cartridge life.
- Clean exterior surfaces with a soft cloth and mild cleaner.
- Only use genuine Hoshizaki replacement cartridges for certified performance.
- For service or repairs, consult the manual or a Hoshizaki Certified Service Representative.
