Elkay LZSTL8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ultra Capacity Filter + UV Protection | 10,000 Gal, Bi-Level
Elkay LZSTL8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ultra Capacity Filter + UV Protection | 10,000 Gal, Bi-Level is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
Elkay LZSTL8WSBPRO-UV | Pro Filtration Bottle Filling Station w/ Ul...
Be first to buy the new Elkay Pro Filtration with Pre-Order. Product Launches July 1st.

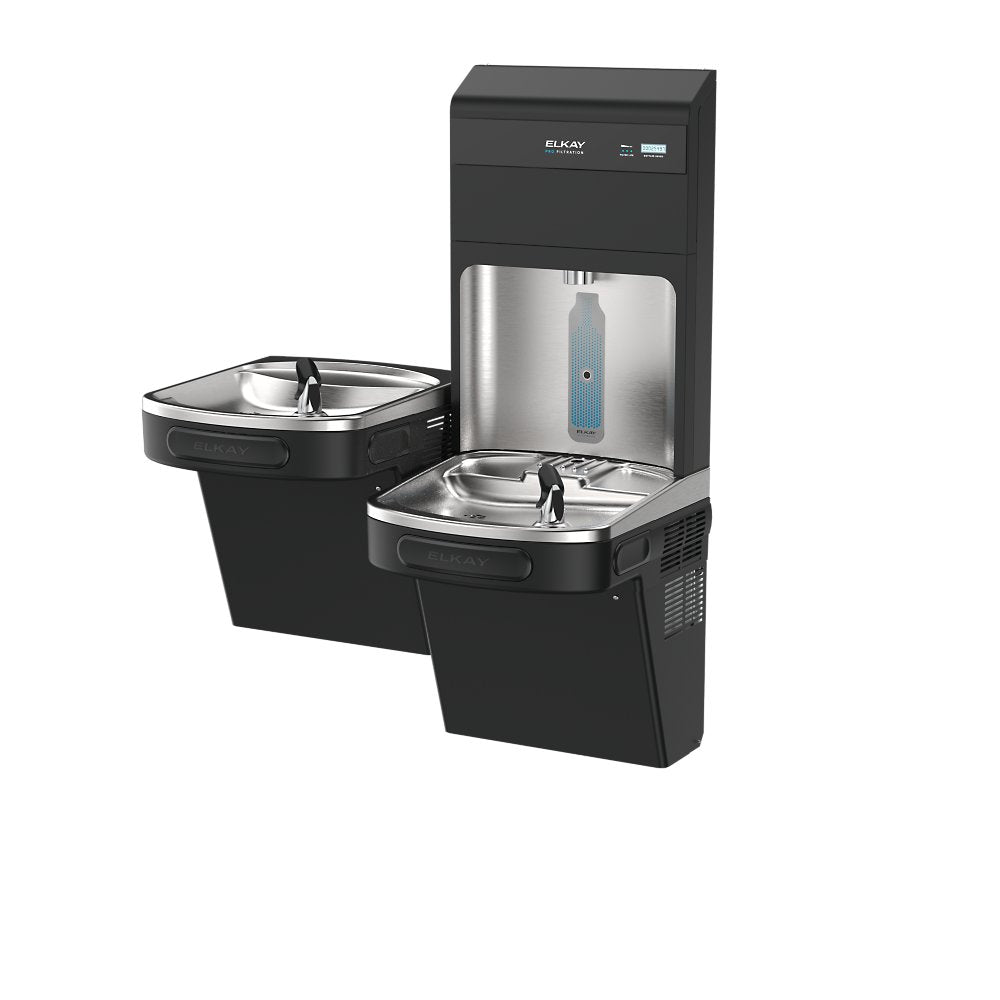

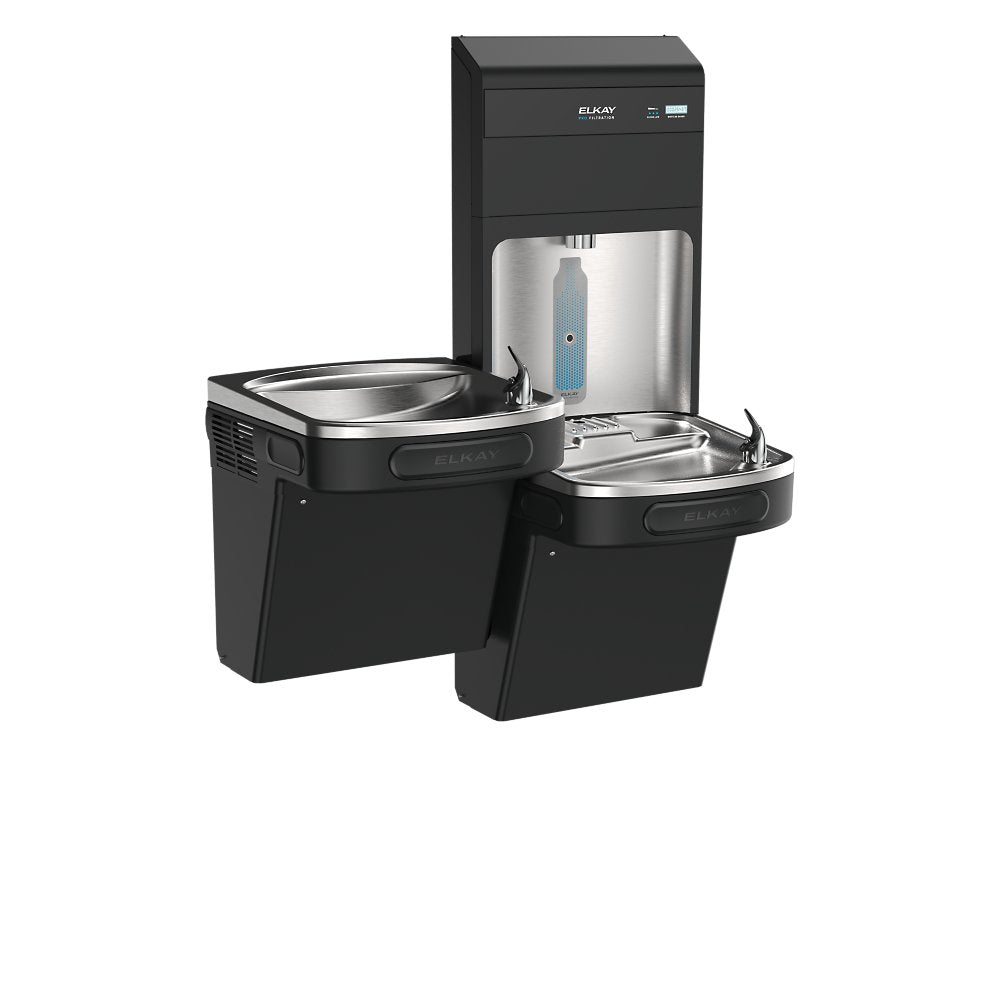

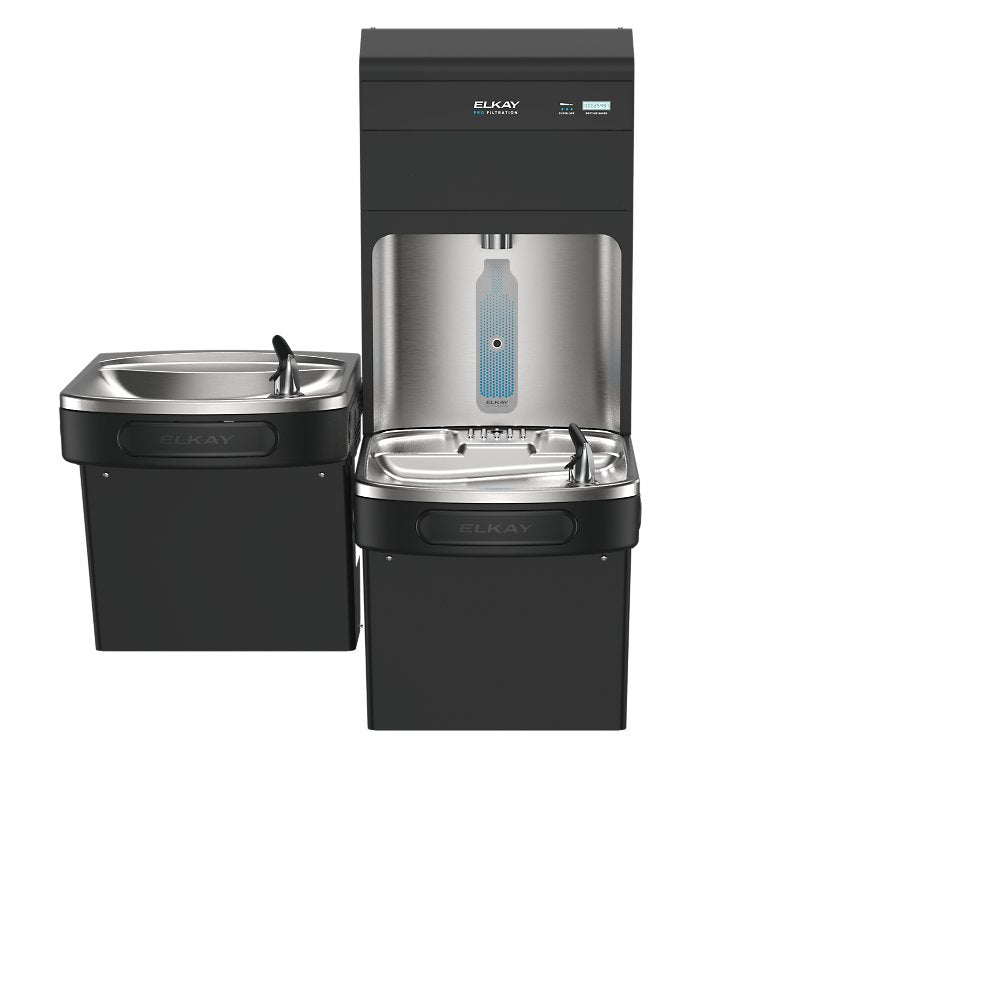

The Elkay LZSTL8WSBPRO-UV Series combines a bi-level bottle filling station with advanced Pro Filtration technology and UV protection. This high-performance system features top-mount quick filter access, touchless operation, and ultra-capacity filtration that reduces contaminants like PFAS, lead, and microplastics for safer drinking water.
Key Specifications:
- Filter Capacity: 10,000-gallon ultra-capacity filter
- Filter Performance: filters lead, microplastics, chlorine, and beyond, with build-in UVC-LED at the dispense point for extra defense against waterborne bacteria.
- Refrigeration: 8.0 GPH refrigeration system
- Flow Rate: 1.1 GPM bottle fill rate with laminar flow

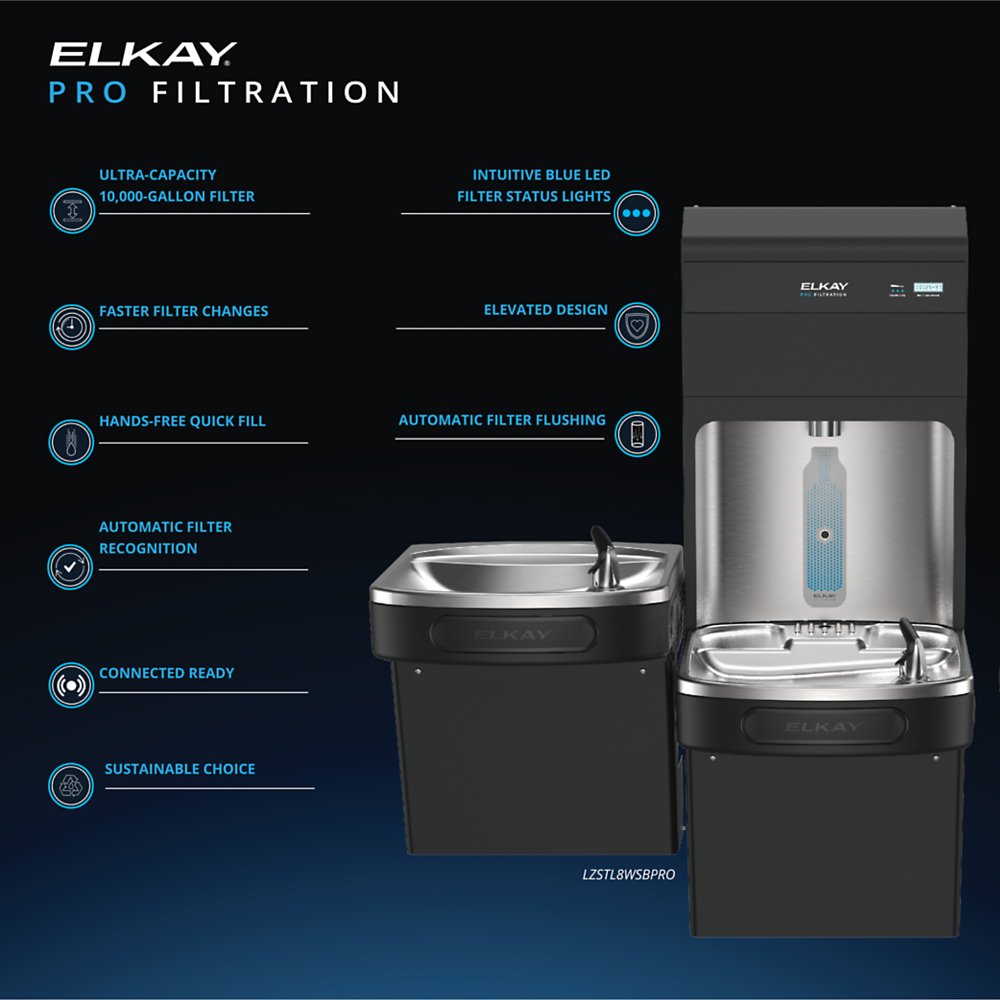

Features & Benefits:

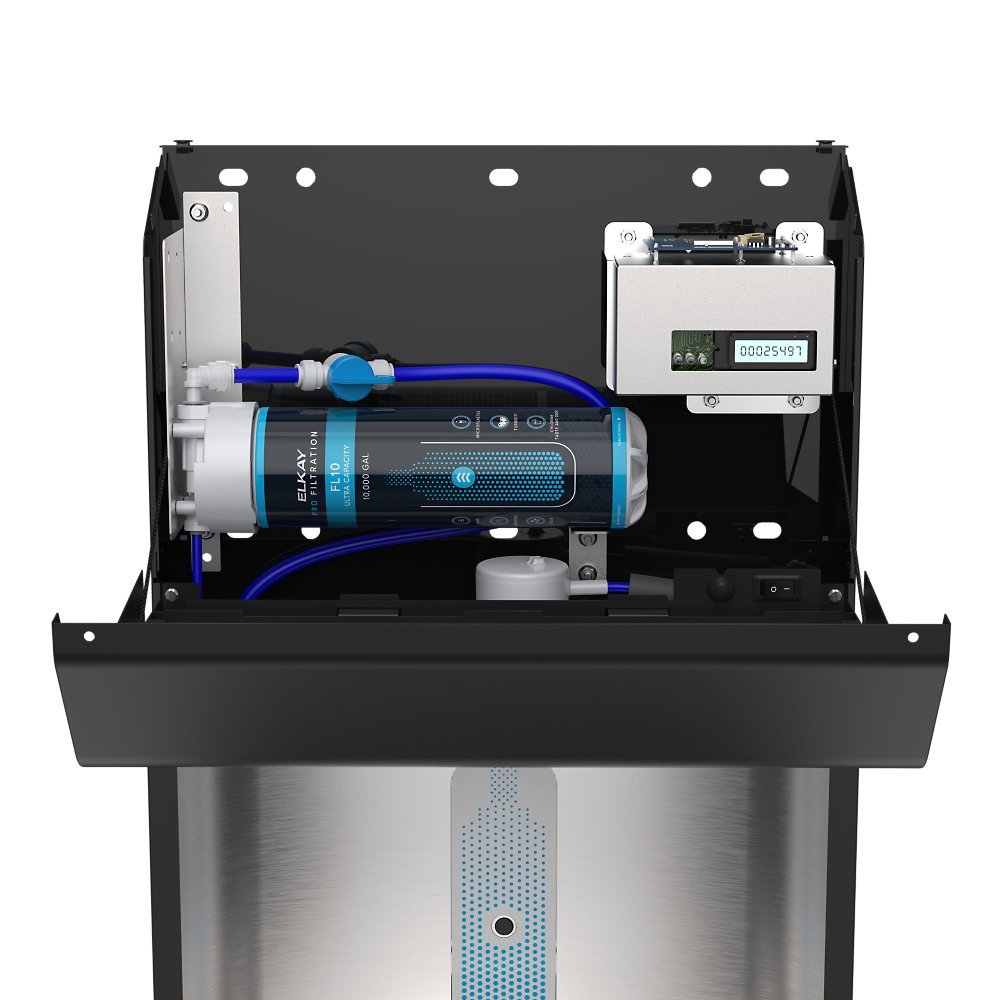

- Easy Maintenance: Top-mount filter design allows for quick filter changes in seconds, significantly reducing maintenance time.
- Enhanced Safety: The Elkay LZSTL8WSBPRO-UV Series features UV protection and advanced filtration to reduce contaminants for cleaner, safer drinking water.

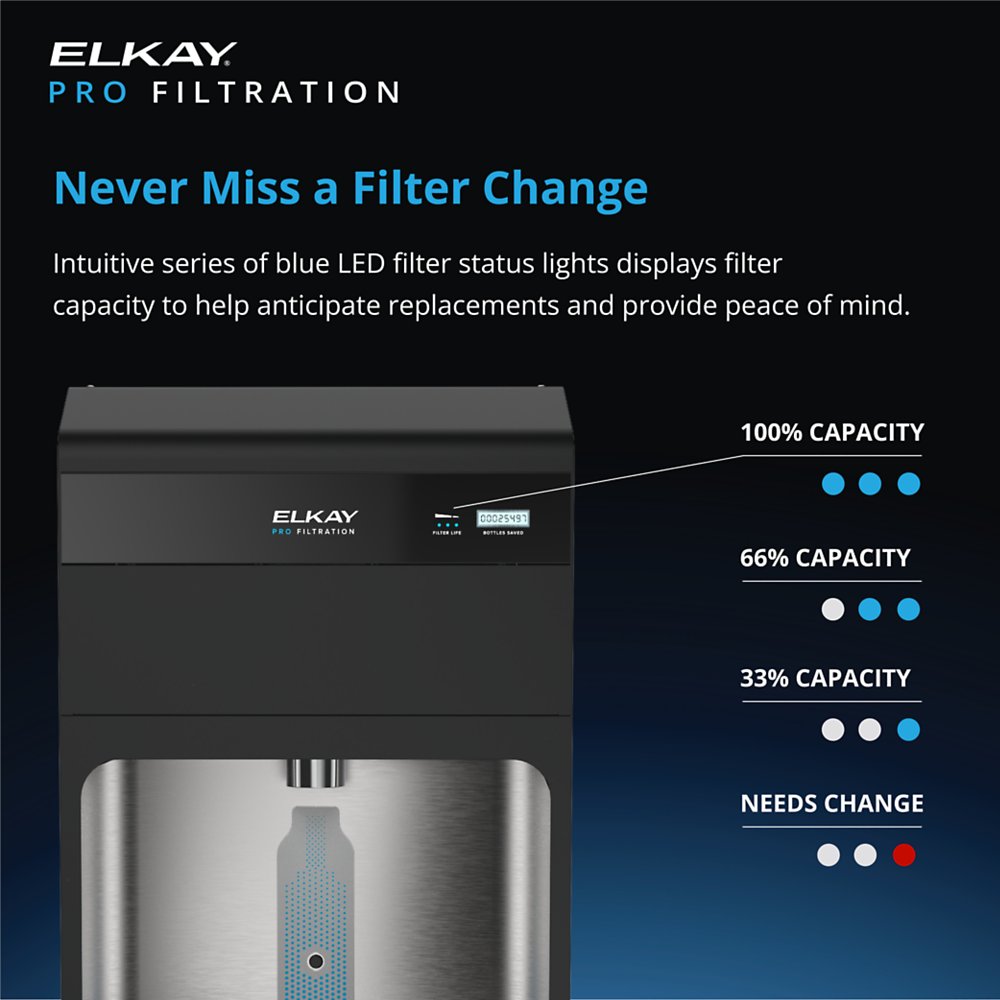

- Smart Technology: Automatic filter recognition resets filter status lights, while the visual filter monitor displays remaining capacity with intuitive LED indicators.
- Sustainability Tracking: Green Ticker™ displays the number of 20-ounce plastic bottles saved from waste, promoting environmental awareness.
FAQ
Q: How often do the filters need to be replaced in the Elkay LZSTL8WSBPRO-UV Series?
A: The included ultra-capacity filter lasts up to 10,000 gallons, making it ideal for high-traffic areas. The intuitive LED filter status lights help anticipate when replacements are needed.
Q: Does the Elkay LZSTL8WSBPRO-UV Series require special installation?
A: The unit is designed for wall-mount installation in indoor locations. Standard plumbing and electrical connections (115V/60Hz) are required. Refer to the installation manual for detailed specifications.
Q: What contaminants does the Pro Filtration system reduce?
A: The Pro Filtration system is certified to reduce total PFAS, lead, microplastics, copper, asbestos, and more, meeting NSF/ANSI 42, 53, and 401 standards for comprehensive water purification.
Detailed Features & Benefits

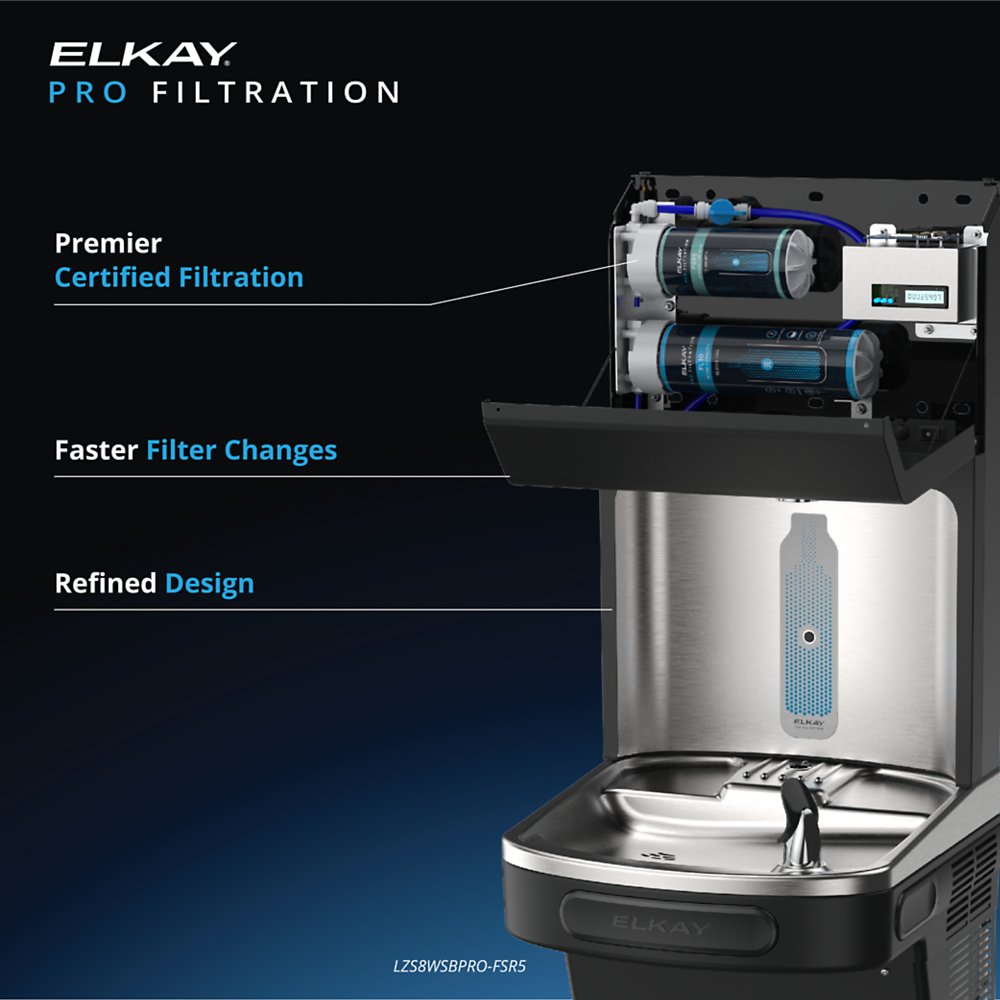

Advanced Filtration Technology: The Elkay LZSTL8WSBPRO-UV Series features an exclusive Pro Filtration system that delivers high-capacity filtration up to 10,000 gallons. The system includes optional stage 1 sediment prefilter and a long-lasting contaminant filter, certified to reduce PFAS, lead, microplastics, and other harmful substances. This comprehensive approach ensures users have access to cleaner, safer drinking water.

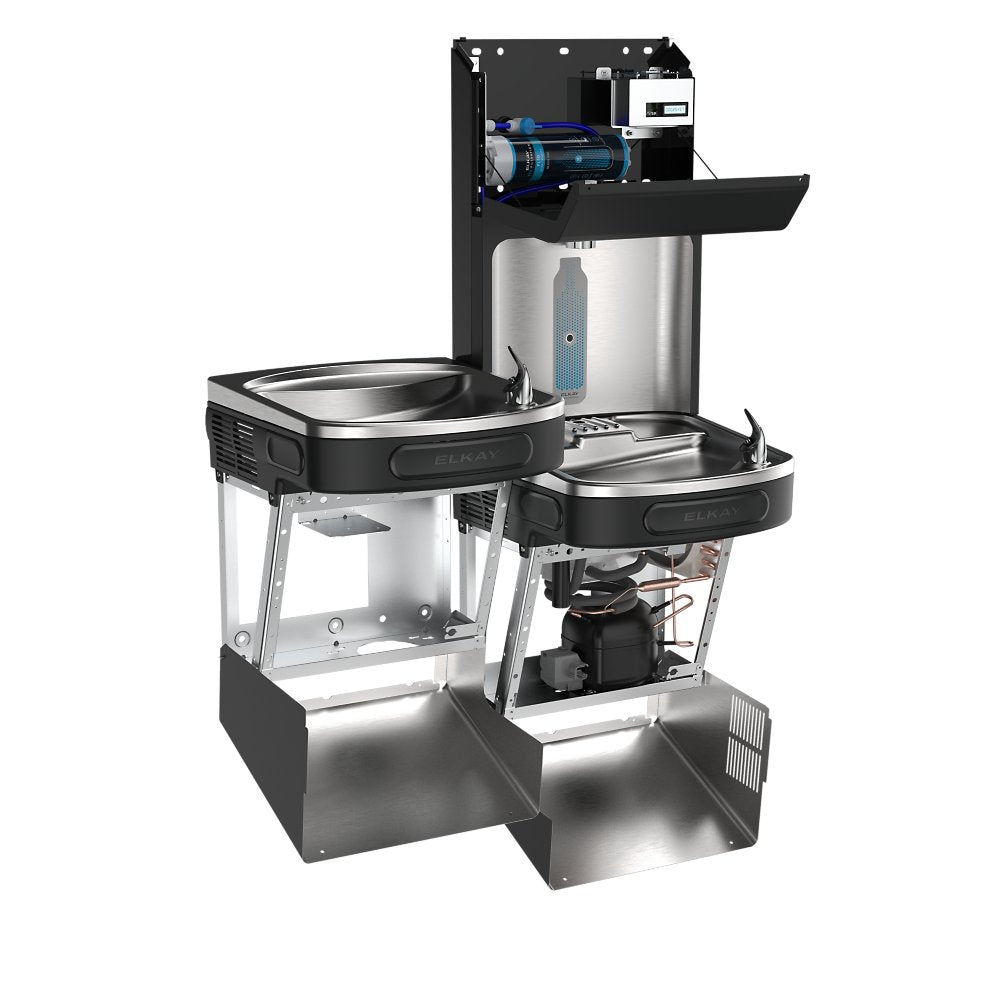

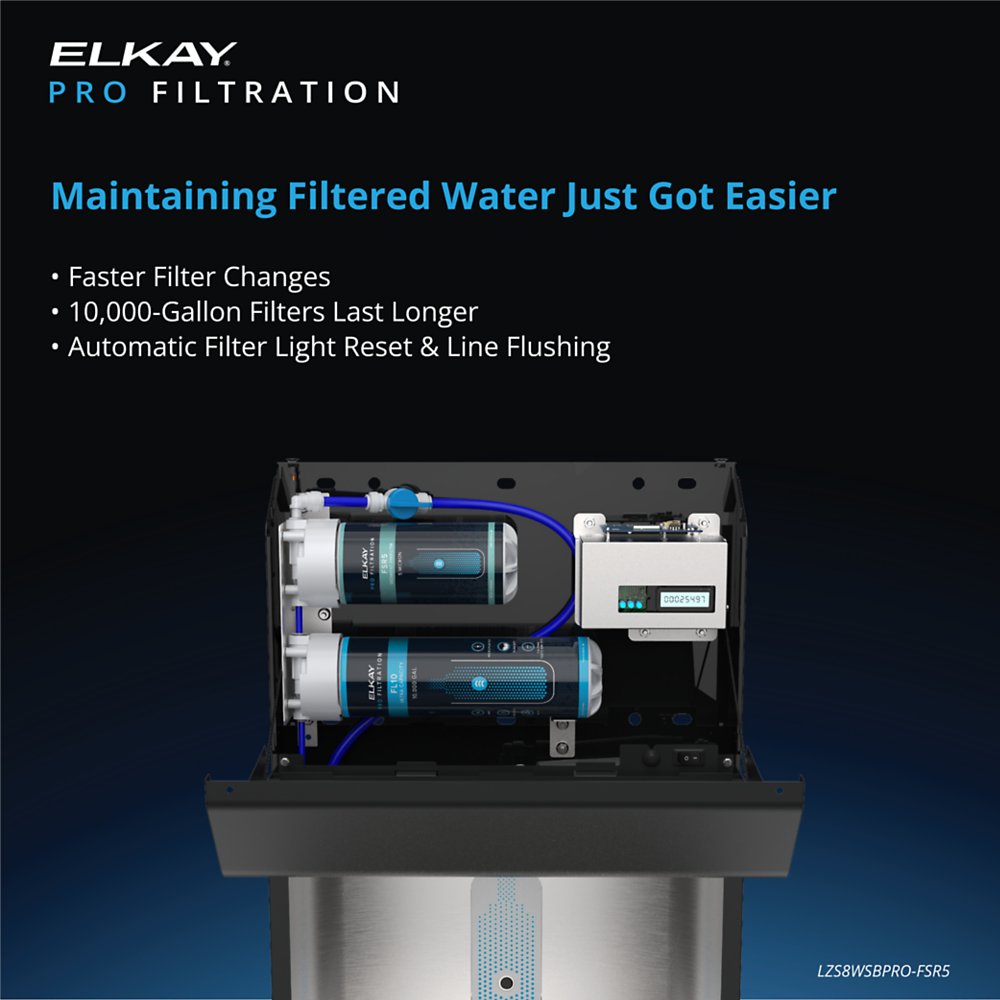

Innovative Maintenance Design: Maintenance is simplified with the top-mount filter design that allows for quick and easy filter changes. The system automatically recognizes newly installed filters and resets filter status lights, while also performing automatic filter flushing to clean debris and air from the waterway. This intelligent design significantly reduces maintenance time and ensures optimal performance.
Enhanced Hygiene and User Experience: The touchless bottle filling station with UV protection provides a more hygienic drinking experience. The sensor-activated filler delivers 20 ounces of water effortlessly, while the laminar flow feature minimizes splash and provides a clear stream of water. The built-in UVC-LED at the dispense point adds an extra layer of protection, while the real drain system eliminates standing water for a cleaner basin.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
