Zurn Z6950-XL-S-MV-E | Aqua-FIT Serio Series Sensor Faucet | Mixing Valve, 1.5 gpm

The Z6950-XL-S-MV-E is a cutting-edge, self-sustaining sensor faucet from Zurn's HYDRO-X Power series, designed for high-traffic commercial restrooms. This innovative product combines sustainable hydropower technology, touchless operation, and temperature mixing capabilities, delivering unparalleled performance, hygiene, and energy efficiency while significantly reducing maintenance needs and operational costs.

Key Specifications:

• Power Source: Self-sustaining HYDRO-X Power with battery backup for 10+ years operation
• Flow Rate: 1.5 GPM vandal-resistant aerator for effective handwashing
• Sensor Technology: Infrared convergence-type proximity sensor
• Features: Integrated mixing valve (MV) for temperature control

Features & Benefits:

• Sustainable Energy: Hydropower technology eliminates the need for electrical connections or frequent battery changes, reducing maintenance and environmental impact
• Hygienic Operation: Touchless activation minimizes the spread of germs in public restrooms, promoting better health standards
• Water Conservation: 1.5 GPM flow rate and adjustable timeout feature contribute to significant water savings without compromising performance
• User Comfort: Mixing valve ensures consistent water temperature, enhancing user experience and safety
• Durability: Lead-free brass construction and vandal-resistant features ensure longevity in high-traffic environments

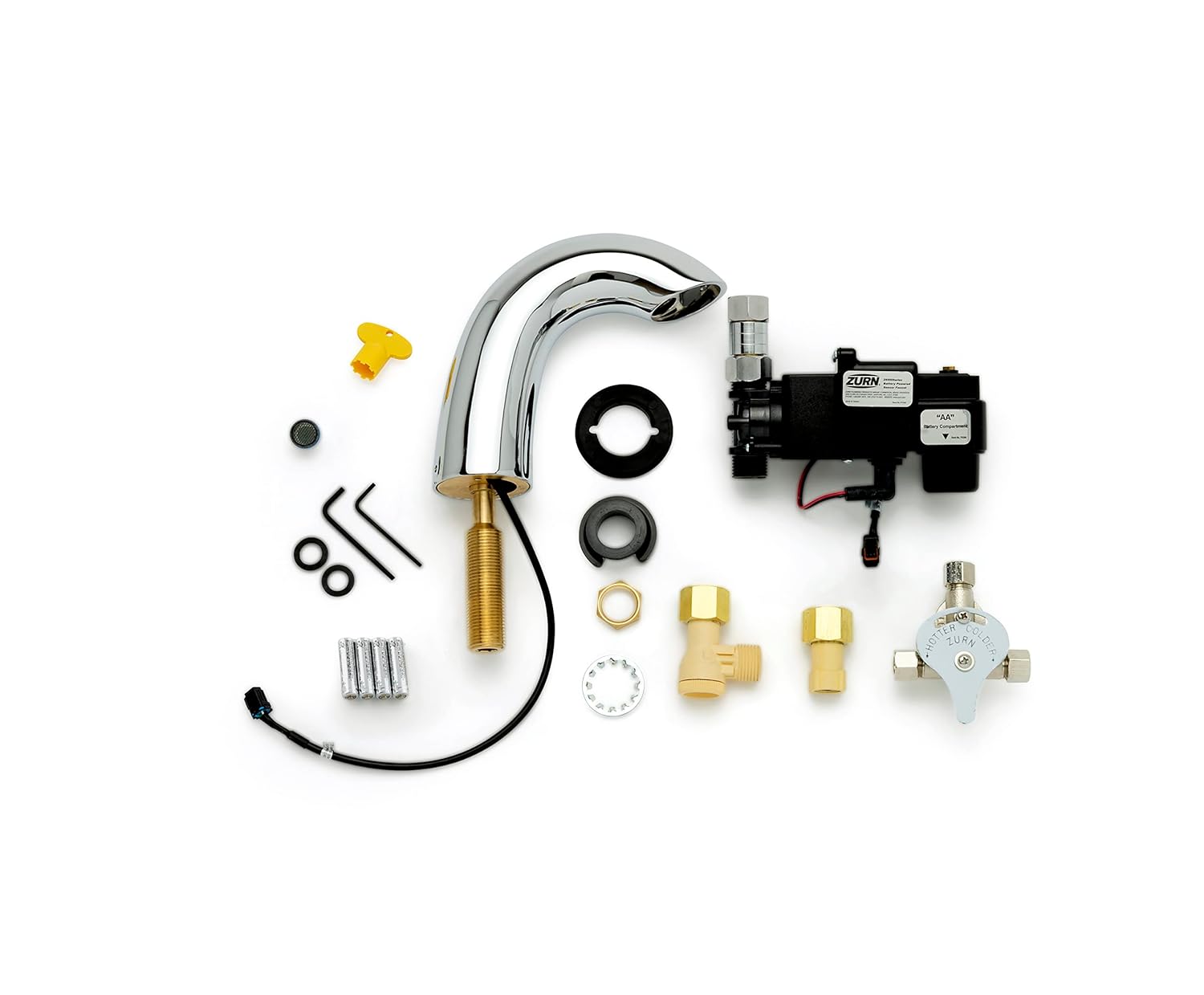

What's Included:

• 1 x Z6950-XL-S-MV-E Sensor Faucet with HYDRO-X Power
• 1 x Hydrogenerator Assembly
• 1 x Electronics Box with Solenoid Valve
• 1 x Battery Backup (4 "AA" Batteries)
• 1 x In-line Filter
• 1 x Mounting Hardware Kit
• 1 x Integrated Mixing Valve
• 1 x 1.5 GPM Vandal-Resistant Aerator with Key

Options Available:

• Z6950-XL-S-CP4-E: 4" cover plate version with 1.5 GPM aerator without mixing valve for pre-tempered water applications.
• Z6950-XL-S-CWB-E: Hardwire compatible version with connector wire for permanent power installation and 1.5 GPM aerator.
• Z6950-XL-S-CWB-W1-E: Hardwire compatible version with advanced monitoring capabilities and 1.5 GPM aerator.
• Z6950-XL-S-J: Standard model with 1.5 GPM laminar flow outlet for smoother water stream.
• Z6950-XL-S-L: Standard model with 1.0 GPM aerator for additional water conservation.
• Z6950-XL-S-TMV-1-E: Features thermostatic mixing valve for precise temperature regulation with 1.5 GPM aerator.

FAQ

Q: How does the HYDRO-X Power system work, and is it reliable?

A: The HYDRO-X Power system uses a small turbine generator that harnesses energy from the water flow each time the faucet is used. This energy is stored in a capacitor, providing a sustainable power source for the faucet's operation. The system is highly reliable, designed to work for 10+ years without needing replacement. Additionally, the faucet includes a battery backup to ensure uninterrupted operation even in low-usage periods.

Q: Can this faucet be installed in existing sinks?

A: Absolutely! The Z6950-XL-S-MV-E is designed for versatile installation. It can be fitted to most standard sink configurations, making it suitable for both new installations and retrofit projects. The faucet requires a single-hole mount, and the mixing valve can be easily integrated into existing plumbing systems. However, we always recommend consulting the installation manual or a professional plumber to ensure compatibility with your specific setup.

Q: How does the integrated mixing valve enhance user experience?

A: The integrated mixing valve in the Z6950-XL-S-MV-E allows for precise temperature control by blending hot and cold water supplies to achieve a comfortable and consistent temperature for users. This feature not only enhances comfort but also improves safety by preventing scalding. The mixing valve can be adjusted during installation to set an appropriate temperature range for the specific application, ensuring a pleasant handwashing experience for all users. This is particularly beneficial in commercial settings where water temperature control is crucial for both user satisfaction and regulatory compliance.

Detailed Features & Benefits

Innovative HYDRO-X Power Technology: The Z6950-XL-S-MV-E's self-sustaining hydropower system harnesses energy from water flow, eliminating the need for electrical installations or frequent battery replacements. Designed to operate for over a decade without maintenance, this sustainable approach significantly reduces operational costs while ensuring uninterrupted service in high-traffic environments, making it ideal for facilities aiming to combine eco-friendliness with reliability.

Advanced Sensor Technology with Temperature Control: The faucet combines precise infrared sensor activation with integrated temperature mixing capabilities, enhancing both hygiene and user comfort. The 1.5 GPM aerator strikes an optimal balance between effective handwashing and water conservation, while the adjustable timeout feature prevents unnecessary running. The mixing valve ensures consistent water temperature regardless of supply fluctuations, providing a safe and comfortable experience while optimizing hot water usage for energy efficiency.

Durable Commercial-Grade Construction: Crafted with lead-free brass and polished chrome finish, the Z6950-XL-S-MV-E withstands the demands of high-traffic environments. Its vandal-resistant features protect against tampering, ensuring longevity and consistent performance. The sleek, modern design complements various restroom aesthetics while delivering professional-grade functionality, making it an ideal choice for facilities ranging from healthcare and education to hospitality and transportation hubs.

NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
