Zurn Z6950-XL-S-CWB-E | HYDRO-X Hardwired Sensor Faucet | 1.5 GPM

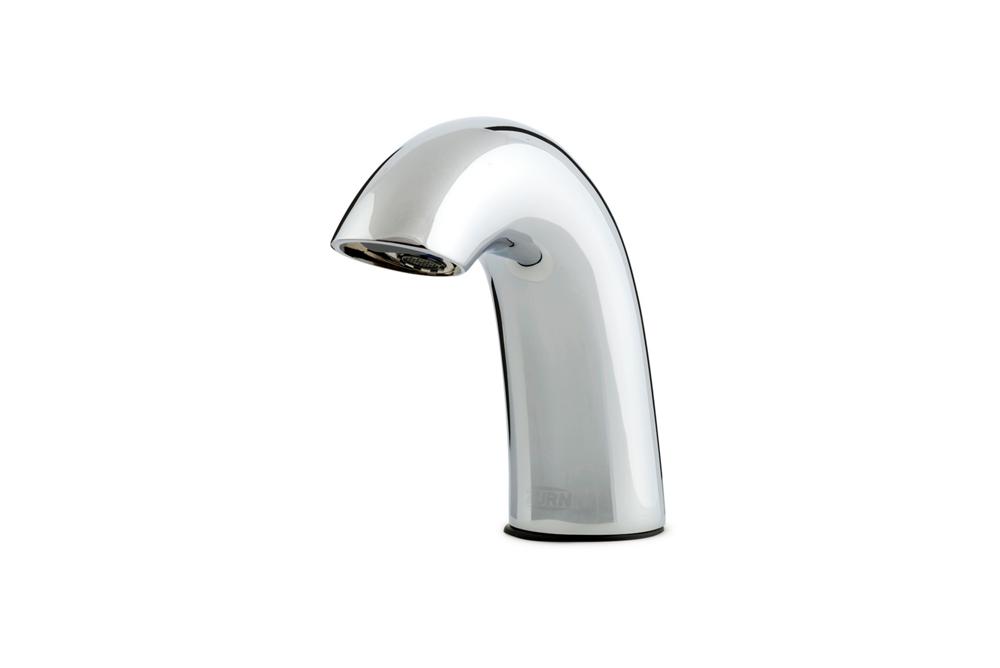

The Zurn Z6950-XL-S-CWB-E is a hands-free, hardwired sensor lavatory faucet with self-sustaining hydropower and 1.5 GPM flow rate for high-use commercial spaces.
Key Specifications:
- Flow Rate: 1.5 GPM [5.7 LPM]
- Vandal Resistant: Yes
- Outlet Type: Aerator
- Finish: Polished chrome-plated cast brass
- Activation: Infrared Proximity Sensor
Related Option
| SKU | Flow Rate | Vandal Resis. | Water Sense | Outlet Type |
|---|---|---|---|---|
| Z6950-XL-S-CWB-E | 1.5 GPM [5.7 LPM] | ✔️ | ✔️ | Aerator |
| Z6950-XL-S-CWB-F | 0.5 GPM [1.9 LPM] | ✔️ | — | Spray |
| Z6950-XL-S-CWB-J | 1.5 GPM [5.7 LPM] | ✔️ | ✔️ | Laminar |
| Z6950-XL-S-CWB-K | 1.0 GPM [3.8 LPM] | ✔️ | ✔️ | Laminar |
| Z6950-XL-S-CWB-L | 1.0 GPM [3.8 LPM] | ✔️ | ✔️ | Aerator |
| Z6950-XL-S-CWB-M | 0.35 GPM [1.3 LPM] | ✔️ | — | Spray |
| Z6950-XL-S-CWB-N | 0.5 GPM [1.9 LPM] | ✔️ | — | Laminar |
Features & Benefits:
- Self-Sustaining Hydropower: The Z6950-XL-S-CWB-E features a built-in hydrogenerator with battery backup, ensuring up to 10+ years of reliable, low-maintenance operation without frequent battery replacement.
- Hands-Free Hygiene: The infrared convergence-type proximity sensor enables completely touchless activation, reducing cross-contamination and improving hygiene in high-traffic commercial restrooms.
- Water Conservation: WaterSense certified at 1.5 GPM, the Z6950-XL-S-CWB-E helps reduce water consumption significantly compared to standard faucets, lowering utility costs over time.
- Lead-Free & ADA Compliant: Built with ≤0.25% lead content in wetted surfaces per the Safe Drinking Water Act and designed to meet ADA accessibility standards for inclusive commercial use.
Compliance and Certifications:
- Complies with ASME A112.18.1 / CSA B125.1
- ADA Compliant
- Lead Free Compliant (Safe Drinking Water Act, ≤0.25% lead)
- WaterSense Labeled (with appropriate flow rate aerator option)
FAQ
Q: Can the Z6950-XL-S-CWB-E be used in a retrofit installation, or is it only for new construction?
A: The Z6950-XL-S-CWB-E is designed for both retrofit and new construction applications. It uses a standard 1/2" ball riser inlet connection compatible with most existing plumbing setups. The recommended deck through-hole diameter is 1-1/8" to 1-1/4".
Q: What power converter is required for hardwired installation?
A: For hardwired installations, the Zurn P6000-HW6 hardwired power converter must be used (sold separately). A single P6000-HW6 unit can power up to 8 sensor faucets. The -CWB connector wire (7 ft) included with this model connects the faucet to the converter.
Q: Is the flow rate or sensor timeout adjustable on this faucet?
A: Yes. The Z6950-XL-S-CWB-E includes an adjustable 30-second timeout feature, adjustable line purge mode, and adjustable metering mode, providing flexibility for facility managers to optimize water usage and system maintenance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
