Zurn  |  SKU: Z6922-XL

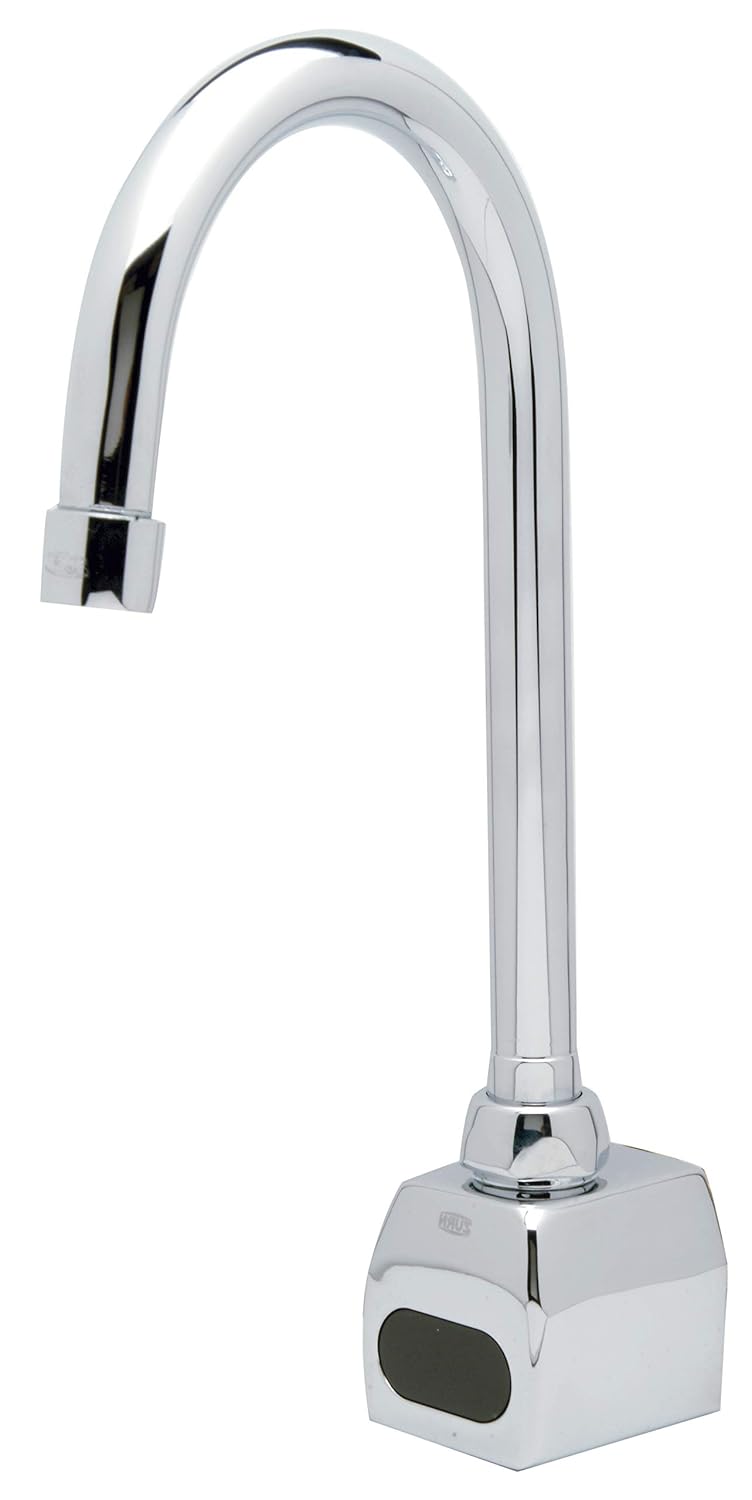

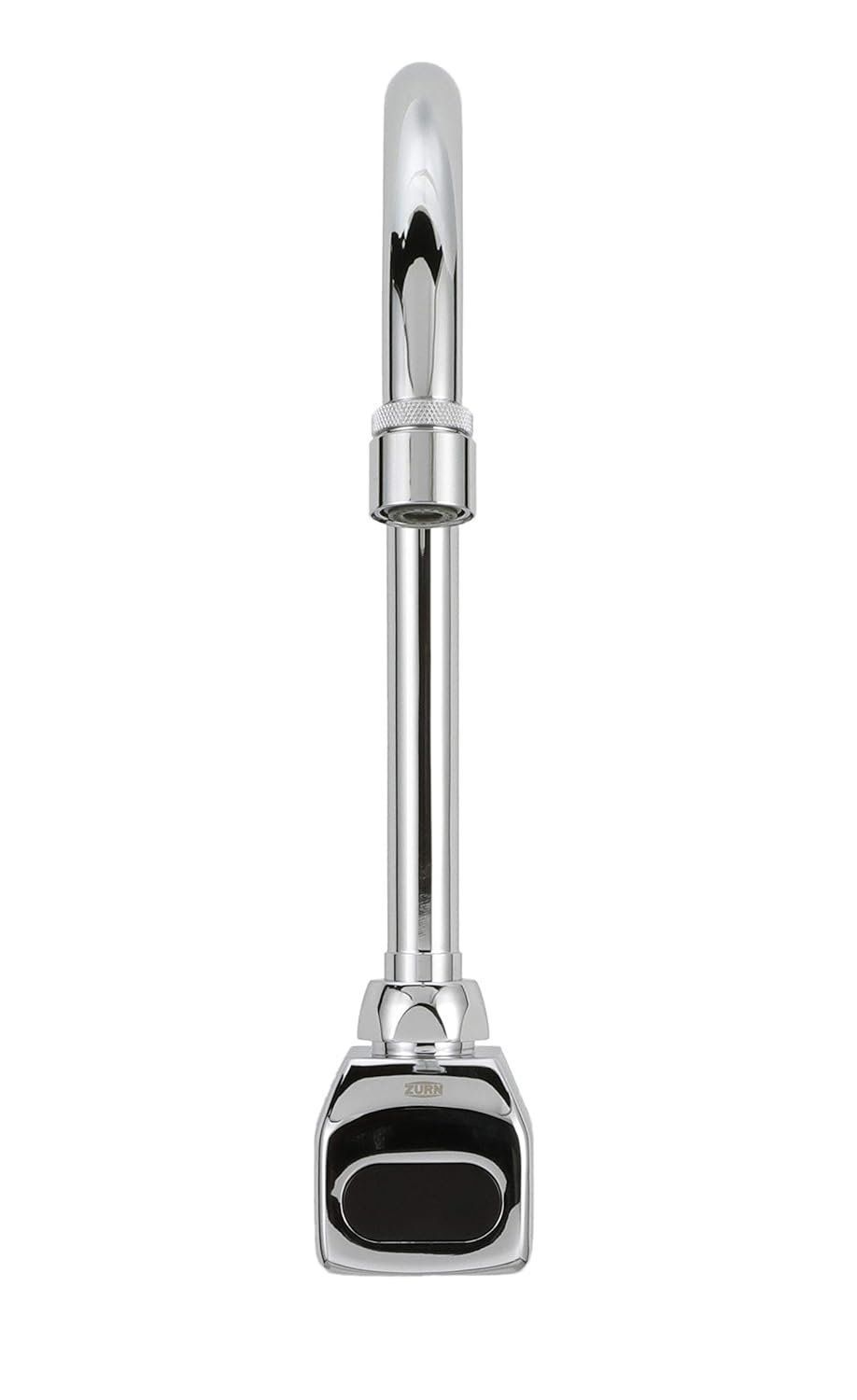

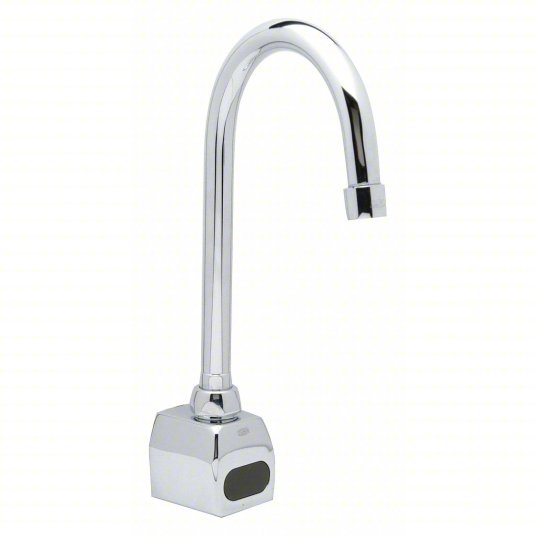

Zurn Z6922-XL | AquaSense® Wall Mount Gooseneck Sensor Faucet

$ 680.99
Shipping calculated at checkout.

Product Care Information

INSTALLATION

  • Install all plumbing in compliance with relevant codes and regulations.
  • Flush all water lines before installation.
  • Avoid placing sensor units across from each other or close to highly reflective surfaces.


MAINTENANCE

  • Do not use abrasive or chemical cleaners on faucets to preserve their luster.
  • Clean with mild soap and water and wipe dry with a clean cloth.
  • Protect the sensor faucet from water and cleaning fluids while cleaning the bathroom tile and floor.

The Zurn Z6922-XL AquaSense® Back-Mounted, Battery-Powered Faucet delivers superior hands-free operation with commercial-grade durability for high-traffic restrooms. Its ADA-compliant design features advanced sensor technology and water-saving efficiency, making it an ideal solution for modern commercial facilities.


Key Specifications:

  • Power Supply: Battery-powered with 4 "AA" batteries.
  • Flow Rate: 0.5 GPM (1.9 Lpm) vandal-resistant spray aerator.
  • Construction: Chrome-plated, cast brass body with Lead-Free certification.
  • Sensor: Infrared convergence-type proximity sensor.
  • Activation: 30-second automatic shut-off with user presence detection.


Features & Benefits:

  • Touchless Operation: Advanced infrared sensor promotes better hygiene and prevents cross-contamination in facilities.
  • Water Conservation: The 0.5 GPM aerator reduces water consumption by up to 77% compared to standard 2.2 GPM faucets.
  • Automatic Shut-off: 30-second time-out feature prevents water waste if the sensor is accidentally triggered.
  • Easy Installation: Back-mounted system with included hardware simplifies installation on wall surfaces.
  • Built-in Protection: In-line filter keeps debris away from internal components, extending faucet lifespan.


Options Available:

Z6922-XL-MV: Equipped with mixing valve option, providing perfect temperature control for comfortable handwashing.

Z6922-XL-HYD: Innovative hydro-powered model harnesses flowing water to power the electronics, eliminating battery replacement.


What's Included:

  • 1 x Z6922-XL AquaSense® Faucet with Spout Assembly
  • 1 x Electronics Box with Sensor
  • 1 x Mounting Hardware Kit
  • 4 x AA Batteries
  • 1 x In-line Filter
  • 1 x 0.5 GPM Aerator with Key


FAQ


Q: How long do the batteries typically last?

A: The power system allows the 4 AA batteries to typically last up to 3 years under normal use conditions. Battery life varies depending on usage frequency, water temperature, and environmental factors. For facilities with high usage, the hydro-powered option (-HYD) offers maintenance-free operation.

Q: Can this faucet be installed in place of a traditional manual faucet?

A: Yes! The Z6922-XL works for both new installations and retrofits. The back-mounted design requires a standard 1-1/8" to 1-1/4" diameter mounting hole and connects to standard 1/2" water supply lines. All necessary mounting hardware is included for straightforward installation suitable for most plumbing configurations.


Detailed Features & Benefits


Advanced Sensor Technology: The Z6922-XL features a sophisticated infrared convergence-type proximity sensor delivering reliable detection every time. This advanced technology precisely identifies hands in the washing zone while minimizing false activations from reflective surfaces or ambient light. The fixed sensing range eliminates manual adjustments during installation, ensuring consistent operation throughout the product's lifespan.

Engineered for Commercial Environments: Chrome-plated, cast brass construction withstands the demands of high-traffic restrooms. The back-mounted design protects critical components by positioning them behind the wall, away from potential damage or tampering. The vandal-resistant aerator prevents removal without the specialized key tool, maintaining consistent water flow and extending service life.

Sustainable by Design: The standard 0.5 GPM aerator saves water without compromising the handwashing experience. The automatic 30-second timeout feature prevents wasteful running if the sensor is accidentally triggered or obstructed. Durable construction ensures long service life, minimizing environmental impact while helping facilities achieve sustainability goals and LEED certification points.


NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions.
