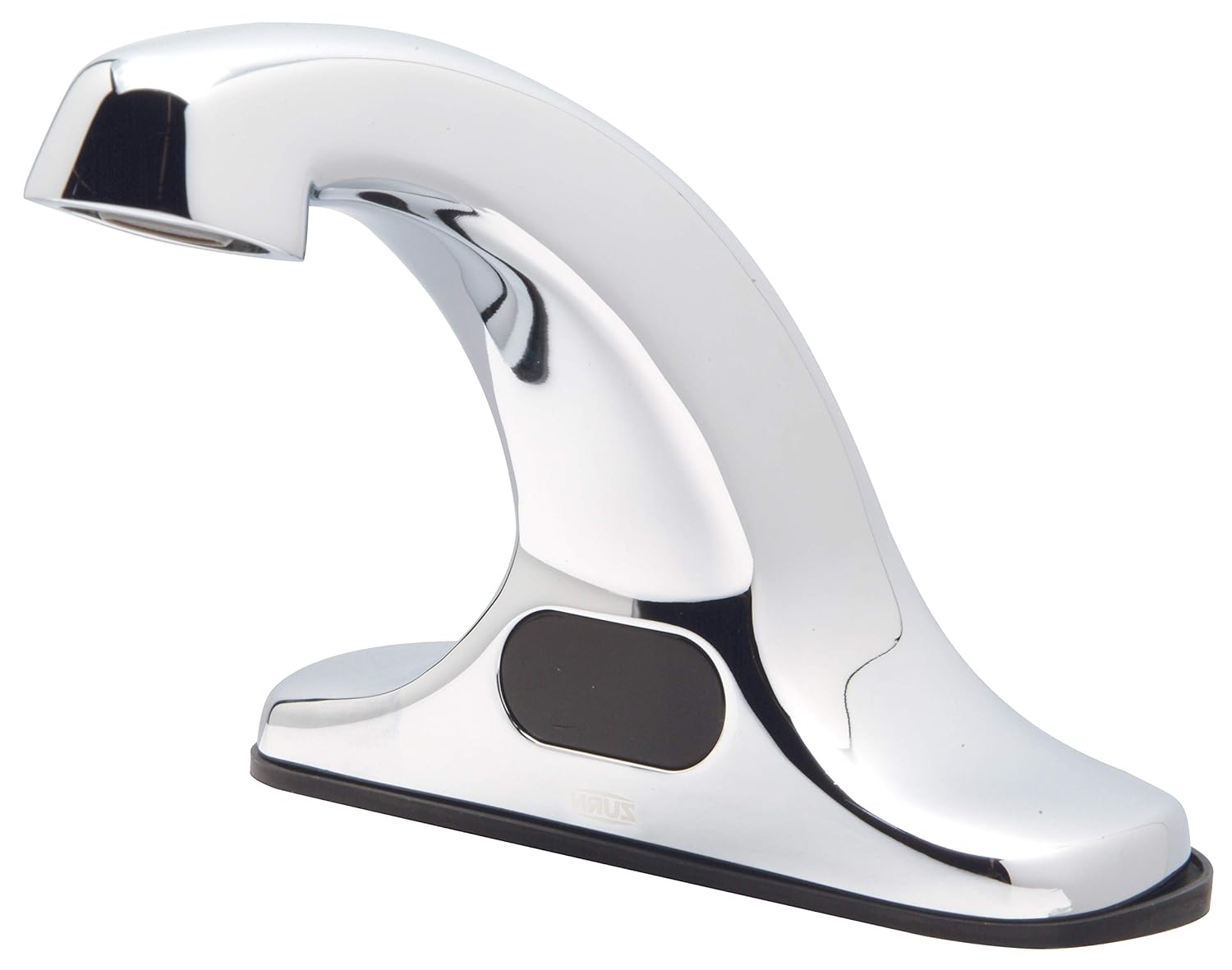

Zurn Z6915-XL-CWB | AquaSense Series Sensor Faucet | Hardwire-Compatible, 0.5 gpm

The Zurn Z6915-XL-CWB is a hardwire-compatible sensor faucet designed for commercial restrooms, combining touchless operation with efficient water usage. This ADA-compliant fixture features a connector wire for integration with building electrical systems, making it ideal for facilities seeking reliable performance without battery maintenance.

Key Specifications:

• Power: Hardwire-compatible with connector wire.
• Flow Rate: Water-saving 0.5 GPM aerator.
• Material: Chrome-plated cast brass body.
• Sensor: Infrared proximity technology.
• Connection: 1/2" ball riser inlet.

Features & Benefits:

• Reliable Power: Hardwire capability ensures consistent operation without battery replacements.
• Hygienic Operation: Touchless activation minimizes germ spread in public restrooms.
• Water Efficiency: 0.5 GPM flow rate and 30-second timeout feature provide significant water savings.
• System Integration: Connector wire allows for easy connection to building management systems.
• Commercial Durability: Cast brass construction withstands high-traffic environments.

Options Available:

• Z6915-XL: Touchless sensor faucet with a polished chrome finish, ideal for hygienic commercial use.
• Z6915-XL-HYD: Sensor faucet with hydrogenerator for battery-free operation in high-traffic restrooms.
• Z6915-XL-W2: Sensor faucet with 0.5 gpm laminar flow and 4" cover plate for water-saving performance.
• Z6915-XL-TMV-1: Sensor faucet with thermostatic mixing valve for consistent temperature control.
• Z6915-XL-SSH: Sensor faucet with shank-mounted sensor and 0.5 gpm spray outlet for compact installations.
• Z6915-XL-MV: Sensor faucet with mechanical mixing valve for adjustable temperature settings.
• Z6915-XL-ACA: Sensor faucet with plug-in AC power adapter for continuous, low-maintenance operation.

What's Included:

• 1 x Z6915-XL-CWB Sensor Faucet
• 1 x Connector Wire for Hardwire Installation
• 1 x 0.5 GPM Aerator (pre-installed)
• 1 x Mounting Hardware Kit
• 1 x 1/2" Ball Riser
• 1 x In-line Filter Screen
• 1 x Installation Instructions

FAQ

Q: Is this faucet compatible with existing electrical systems?

A: Yes, the Z6915-XL-CWB is designed to integrate with standard 6 VDC power supplies in commercial buildings. The included connector wire allows for easy connection to existing electrical systems and building management platforms. For proper installation, we recommend consulting with a licensed electrician to ensure compatibility with your specific setup.

Q: Can multiple faucets be powered by a single power source?

A: Absolutely. When used with Zurn's P6000-HW6 hardwired power converter and P6000-MJ mini junction box, up to 8 sensor faucets can be powered from a single source. This provides a streamlined solution for multi-faucet installations, reducing complexity and allowing for centralized power management.

Q: How much water can this faucet save compared to traditional models?

A: The Z6915-XL-CWB's 0.5 GPM flow rate reduces water usage by up to 77% compared to standard 2.2 GPM faucets. Combined with its sensor-activated operation and 30-second timeout feature, a single fixture can save thousands of gallons annually, significantly reducing both environmental impact and water costs.

Detailed Features & Benefits

Hardwire Technology: The Z6915-XL-CWB's connector wire system provides a significant advantage over battery-powered options. This hardwire compatibility delivers constant, reliable power that eliminates the ongoing maintenance of battery replacements. For facility managers, this means reduced service costs and uninterrupted operation, particularly crucial in high-traffic environments. The system can be integrated with building management platforms, enabling centralized control and monitoring of multiple fixtures throughout the facility.

Precision Sensor System: At the heart of this faucet is an advanced infrared convergence-type proximity sensor that detects user presence with exceptional accuracy. The technology activates water flow only when hands are present and automatically shuts off when they're removed or after 30 seconds of continuous use. This precision not only enhances the user experience but also prevents false activations that waste water. The sensor's reliability ensures consistent performance even in challenging lighting conditions typical of commercial restrooms.

Commercial-Grade Efficiency: The Z6915-XL-CWB combines durability with impressive resource conservation. Its chrome-plated brass construction withstands the rigors of public restroom environments while the 0.5 GPM aerator delivers significant water savings without compromising washing effectiveness. This efficiency supports sustainability initiatives and can contribute to LEED certification points. For building owners and operators, these water savings translate directly to reduced utility costs, providing a measurable return on investment while demonstrating environmental responsibility.

NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality.
