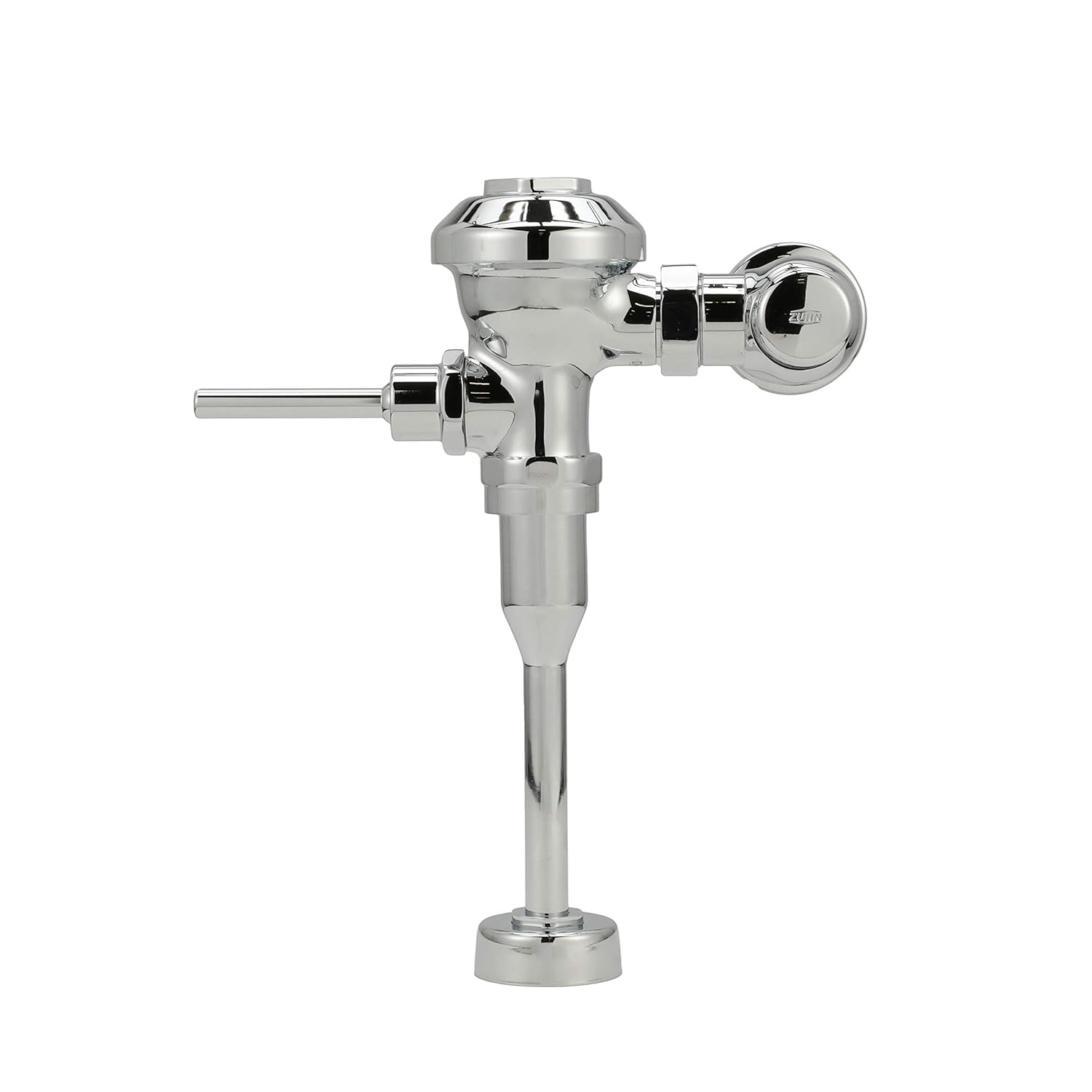

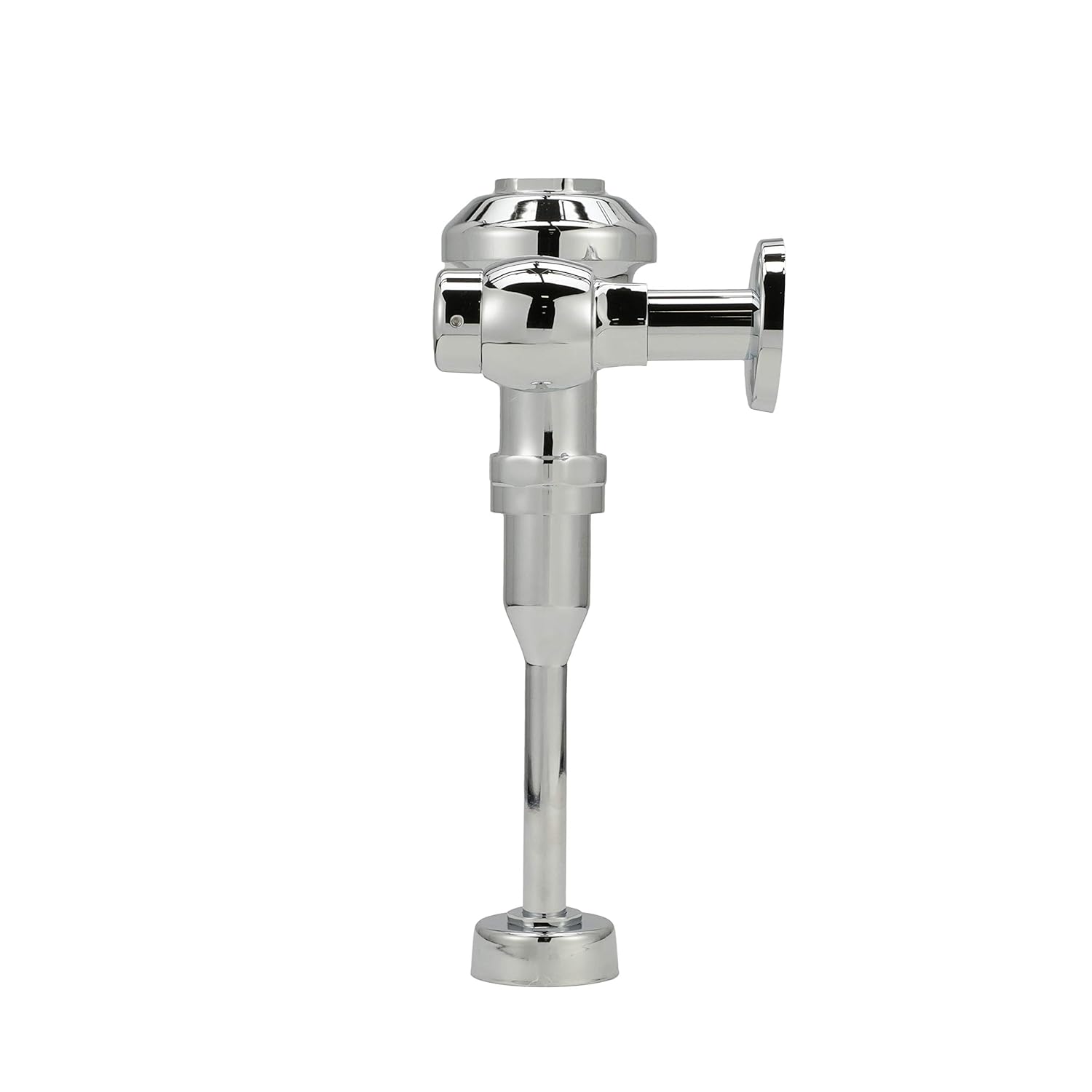

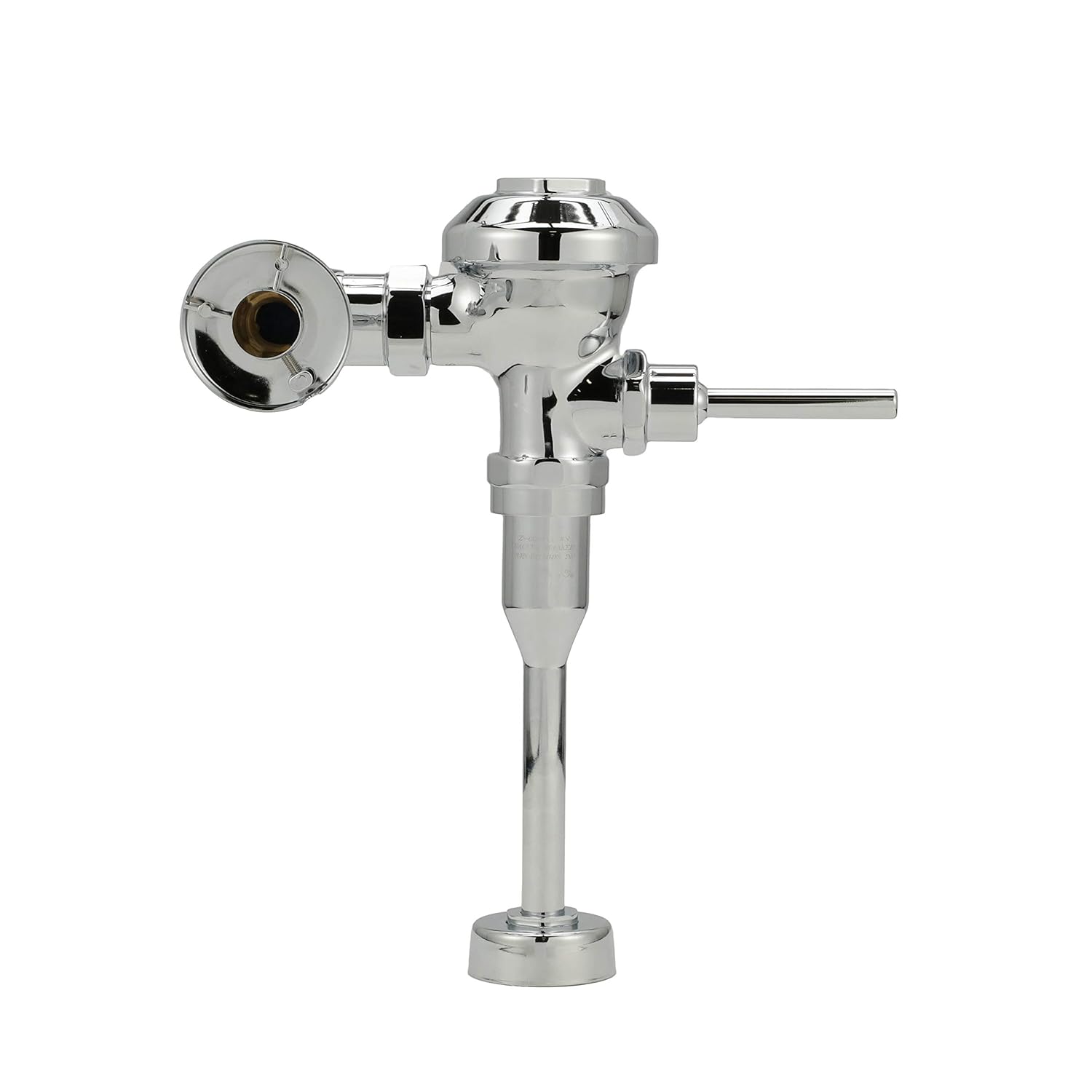

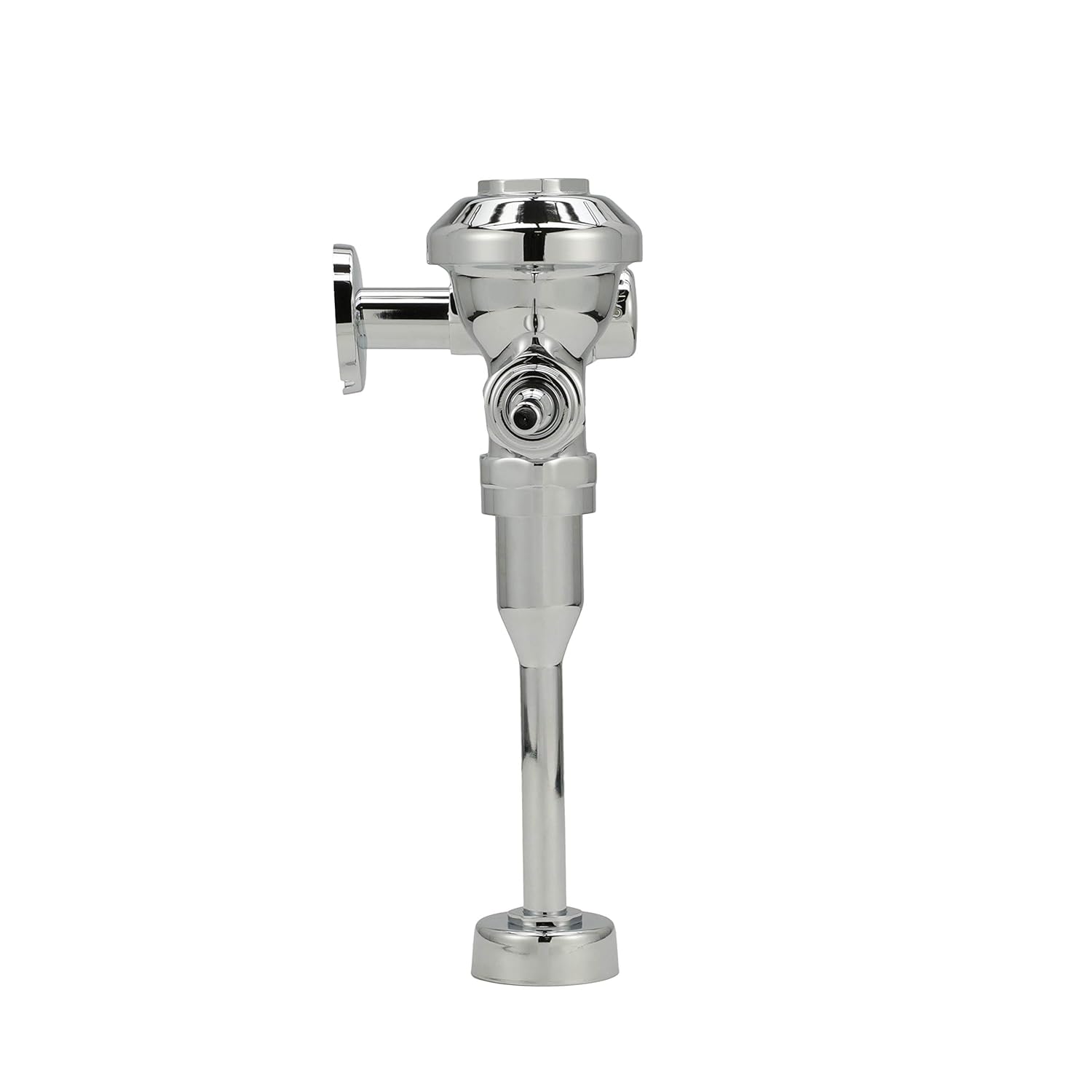

Zurn Z6003AV-ULF | AquaVantage AV Exposed Manual Diaphragm Flush Valve with 0.125 GPF, Chrome
Zurn Z6003AV-ULF | AquaVantage AV Exposed Manual Diaphragm Flush Valve with 0.125 GPF, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn Z6003AV-ULF | AquaVantage AV Exposed Manual Diaphragm Flush Va...
The Zurn Z6003AV-ULF AquaVantage® Ultra Low Flow Exposed Urinal Flush Valve delivers maximum water conservation with commercial-grade performance for high-traffic facilities. This premium flushometer combines exceptional efficiency with Zurn's proven AquaVantage® technology, making it an ideal solution for facilities seeking to minimize water usage while maintaining reliable operation.
Key Specifications:
- Flow Rate: Ultra Low Flow 0.125 gallons per flush.
- Construction: Chrome-plated brass with proprietary dezincification-resistant low lead alloy.
- Connection: 3/4" adjustable tailpiece with one-piece hex coupling nut.
- Protection: High back pressure vacuum breaker with internal siphon-guard.
- Size: Standard 11 1/2" height
Features & Benefits:
- Maximum Water Conservation: Ultra Low Flow 0.125 gpf design reduces water consumption by up to 87% compared to standard 1.0 gpf urinal valves.
- Premium Components: AquaVantage® TPE diaphragm with chloramine resistance ensures extended service life even in harsh water conditions.
- Vandal Resistance: Includes vandal-resistant stop cap and non-hold-open handle design to withstand abuse in high-traffic settings.
- Complete Installation Package: Includes sweat solder kit with cast wall flange and setscrew for simplified installation right out of the box.
- ADA Compliant: Meets all requirements for accessibility in commercial facilities.
What's Included:
- 1 x Z6003AV Flush Valve body with ULF (0.125 gpf) flow rate
- 1 x AquaVantage® TPE Diaphragm Assembly
- 1 x High Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal-Resistant Stop Cap
FAQ
Q: Is this flush valve compatible with all urinal fixtures?
A: The Z6003AV-ULF is designed to work with special urinal fixtures that are rated for ultra-low flow (0.125 gpf) operation. For optimal performance, ensure your urinal fixture is specifically designed for this reduced water volume. Most ultra-low flow urinals feature specialized bowl designs that maximize efficiency with minimal water.
Q: What are the water savings compared to standard urinal flush valves?
A: This Ultra Low Flow model uses just 0.125 gallons per flush, representing an 87.5% reduction compared to standard 1.0 gpf models and a 91.7% reduction from older 1.5 gpf fixtures. In high-traffic commercial settings, this can translate to thousands of gallons saved annually per fixture, significantly reducing water consumption and utility costs.
Q: What maintenance is required for this flush valve?
A: Regular maintenance includes annual inspection of the diaphragm assembly and cleaning the control stop filter screen if reduced flow is observed. The AquaVantage® TPE diaphragm with triple filtered by-pass significantly reduces maintenance needs by preventing clogs and resisting chemical deterioration, but preventative checks ensure optimal performance.
Detailed Features & Benefits
Advanced AquaVantage® Technology: The Z6003AV-ULF features Zurn's exclusive AquaVantage® TPE dual seal diaphragm with a clog-resistant by-pass that provides superior protection against performance issues common in commercial environments. This design prevents debris from affecting operation while resisting the damaging effects of chloramines and other chemicals in the water supply, significantly extending service life even with the ultra-low water volume.
Ultimate Water Conservation: At just 0.125 gallons per flush, this model represents the pinnacle of water-saving technology for urinal applications. The specialized valve delivers a precisely controlled, minimal water volume that effectively clears the fixture while dramatically reducing facility water consumption. This ultra-low flow rate helps buildings meet or exceed stringent water conservation requirements and sustainability certifications.
Commercial-Grade Construction: Built for demanding conditions of high-traffic restrooms, the Z6003AV-ULF features a chrome-plated brass body with a polished exterior finish that maintains its appearance through daily use. The proprietary dezincification-resistant low lead brass alloy provides enhanced durability and compliance with drinking water standards. The vandal-resistant design includes a stop cap and non-hold-open handle feature that prevents tampering and water waste, making it ideal for schools, stadiums, restaurants, and other public facilities.
NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality.
