Elkay EZSDS | Wall-mount EZ-style Drinking Fountain | Filterless, N...

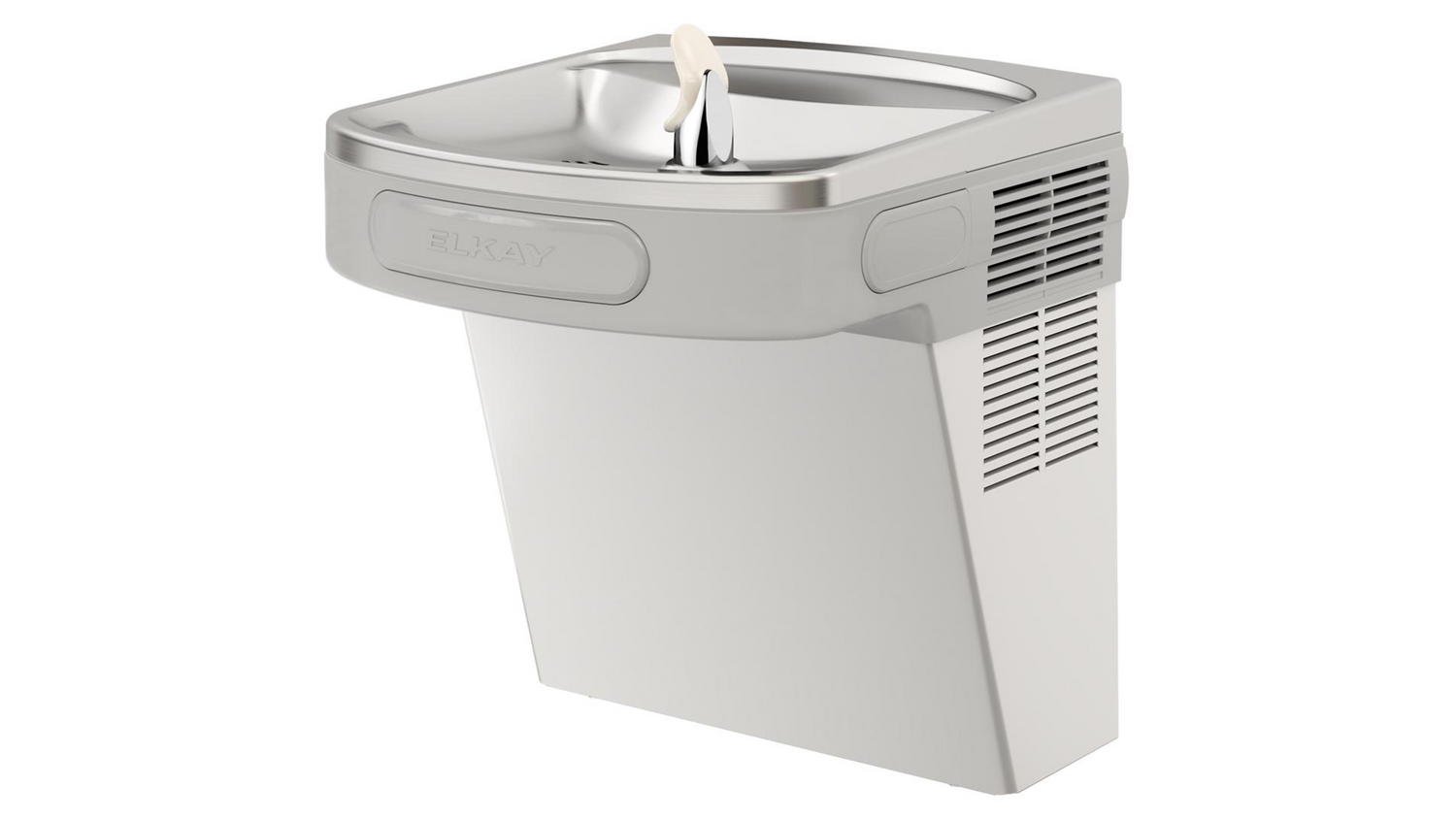

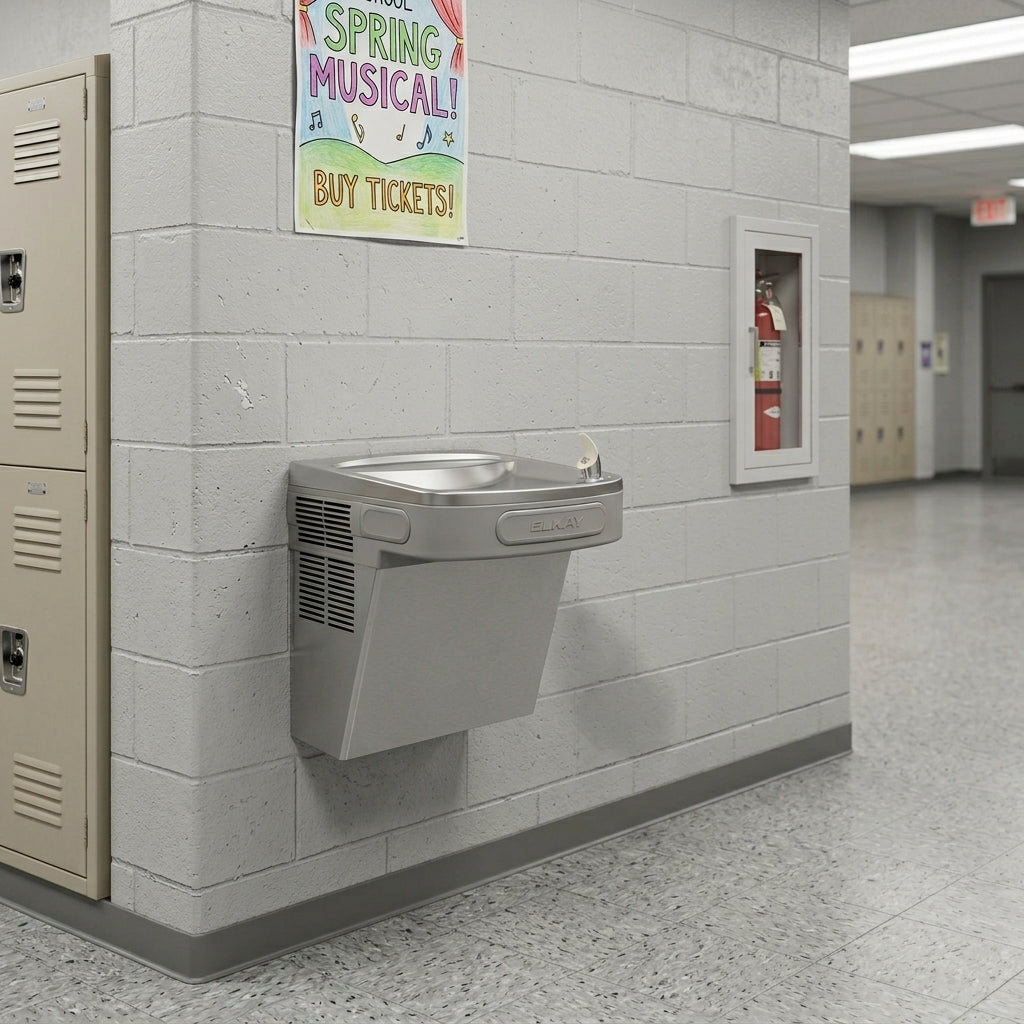

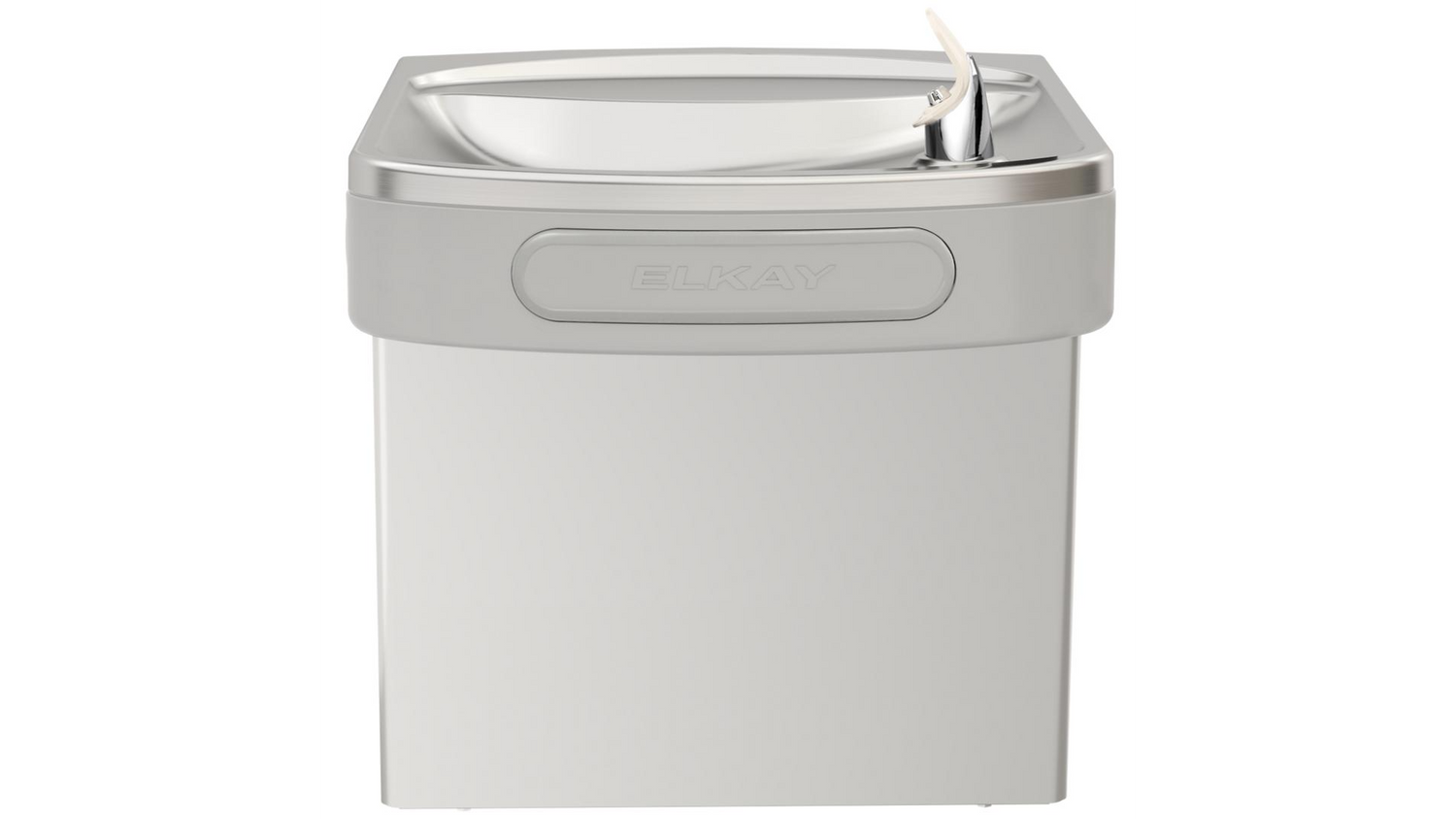

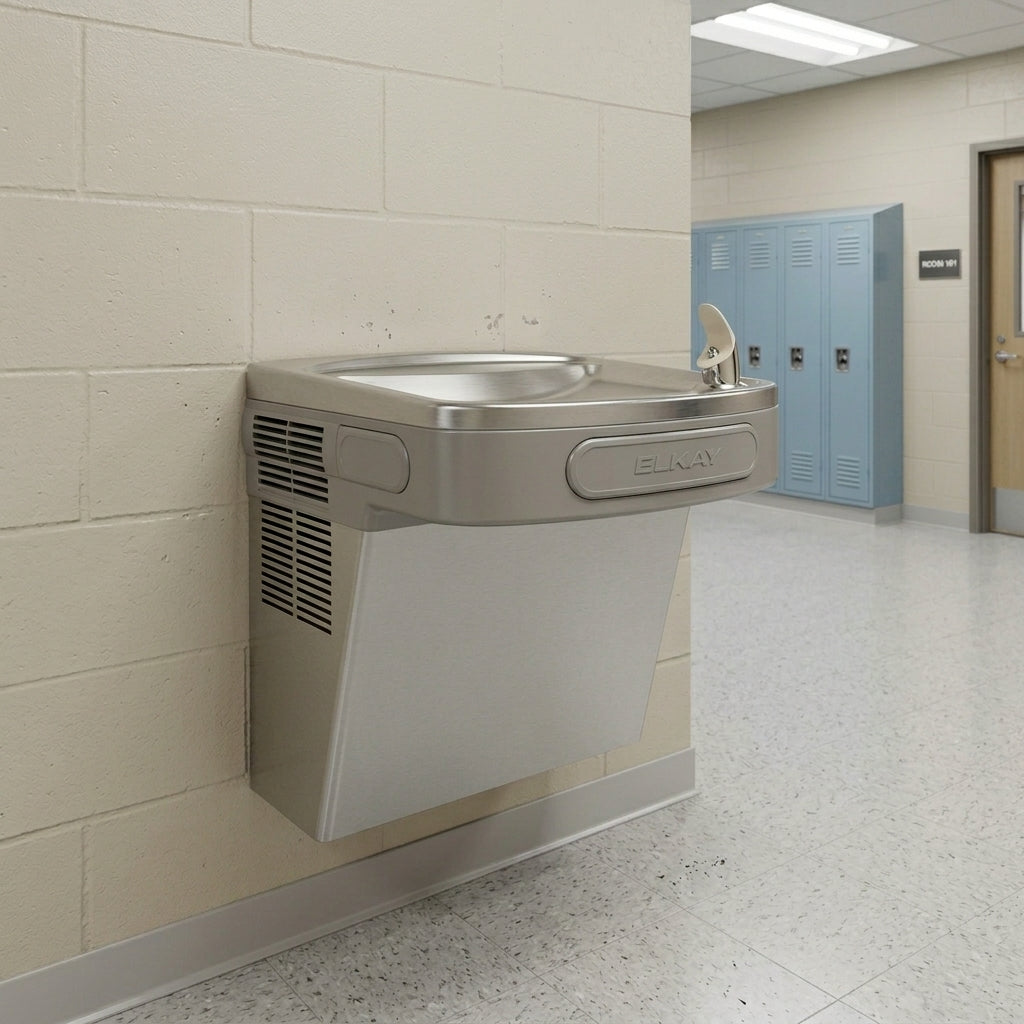

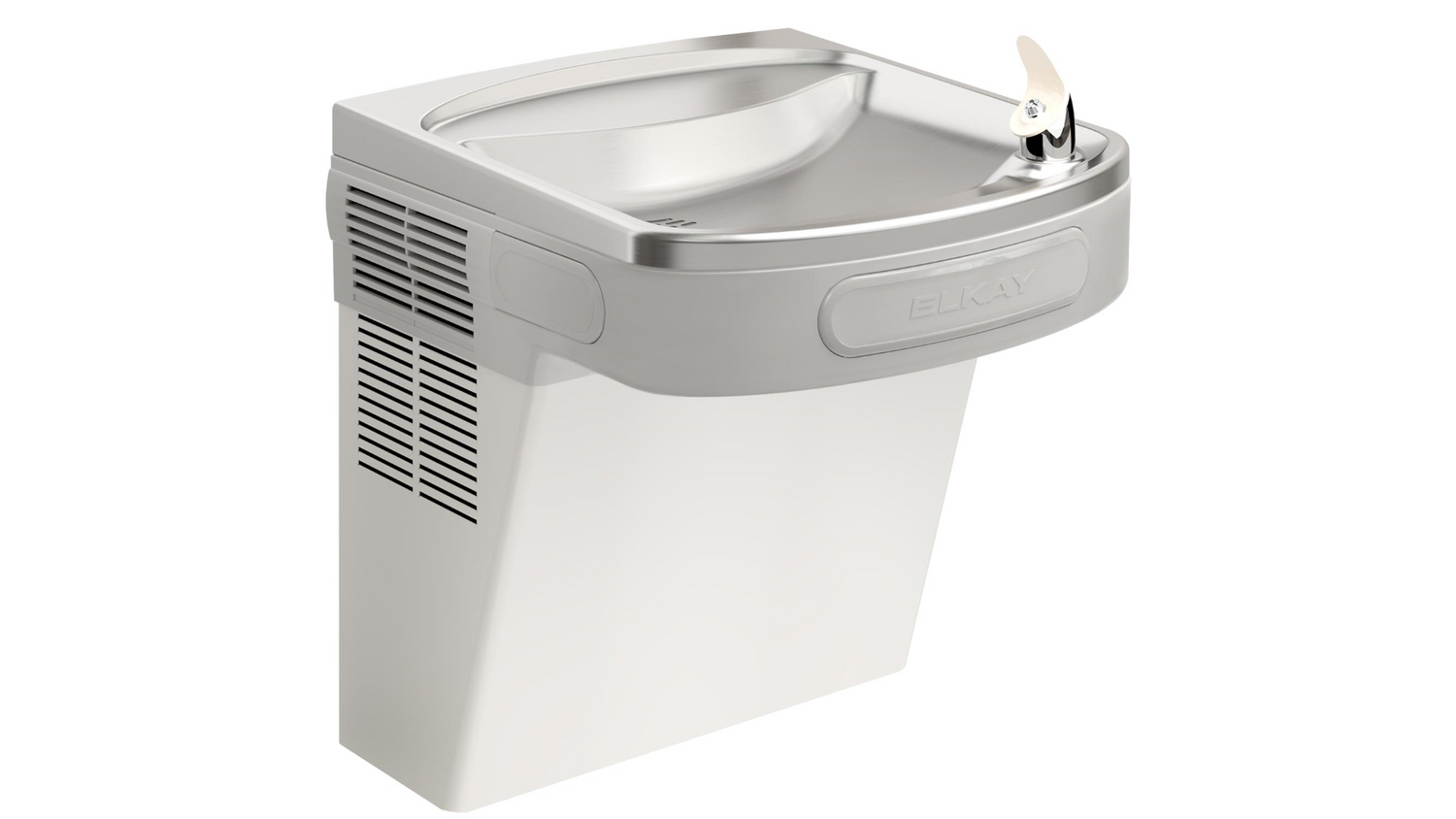

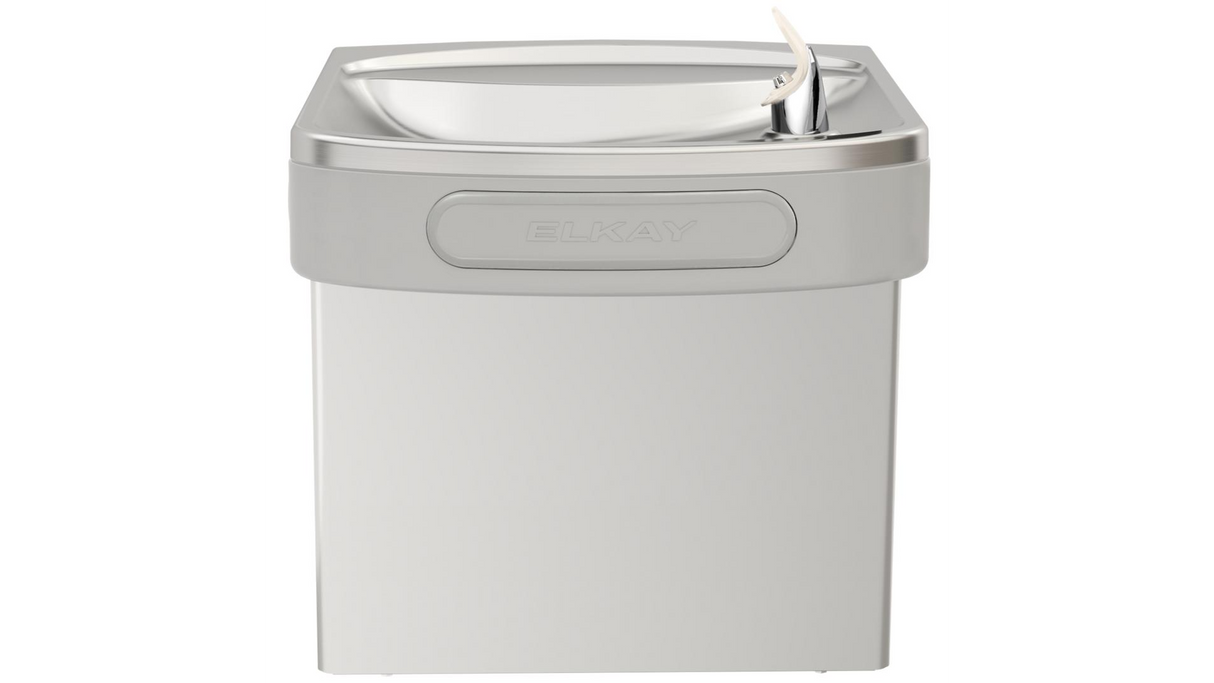

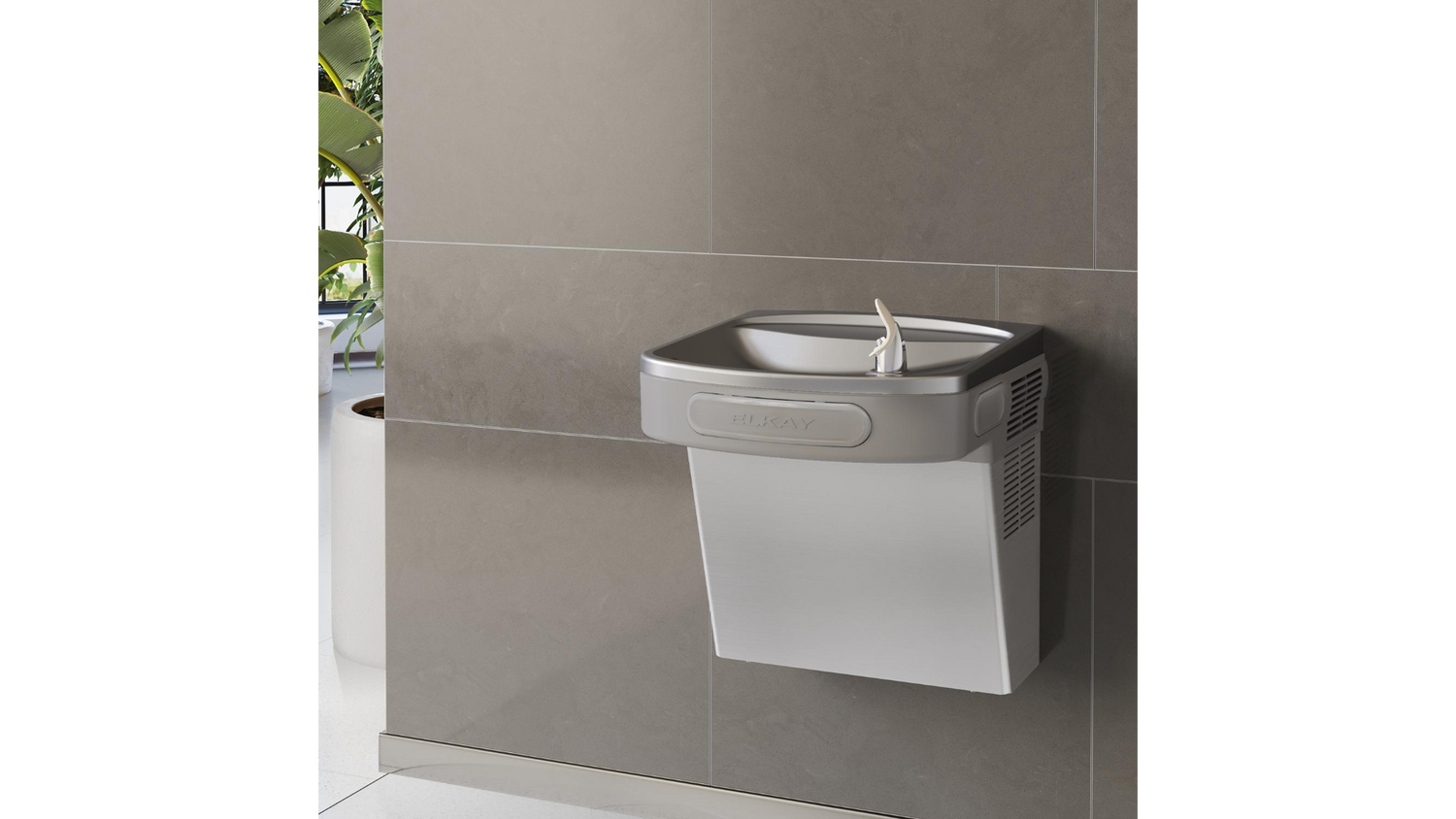

The Elkay EZSDS is a wall‑mounted ADA cooler in stainless steel. This non‑filtered, non‑refrigerated unit provides safe drinking water with Flexi‑Guard® Safety Bubbler and electronic front pushbar activation. Designed for indoor use, it combines accessibility, durability, and Elkay’s tradition of quality for schools, offices, and public facilities.
Key Specifications:
- Design: Wall‑mount ADA cooler, indoor installation
- Finish: Stainless Steel
- Filtration: Non‑filtered. For filtered option, choose the LZODL filtered version or pair with the EWF172 WaterSentry VII Filter Kit.
- Refrigeration: Non‑refrigerated. For refrigerated option, see the EZS8S refrigerated cooler.
- Stations Served: 1 (single drinking fountain)
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when properly installed
- Safety Bubbler: Flexi‑Guard® design provides added protection against injury

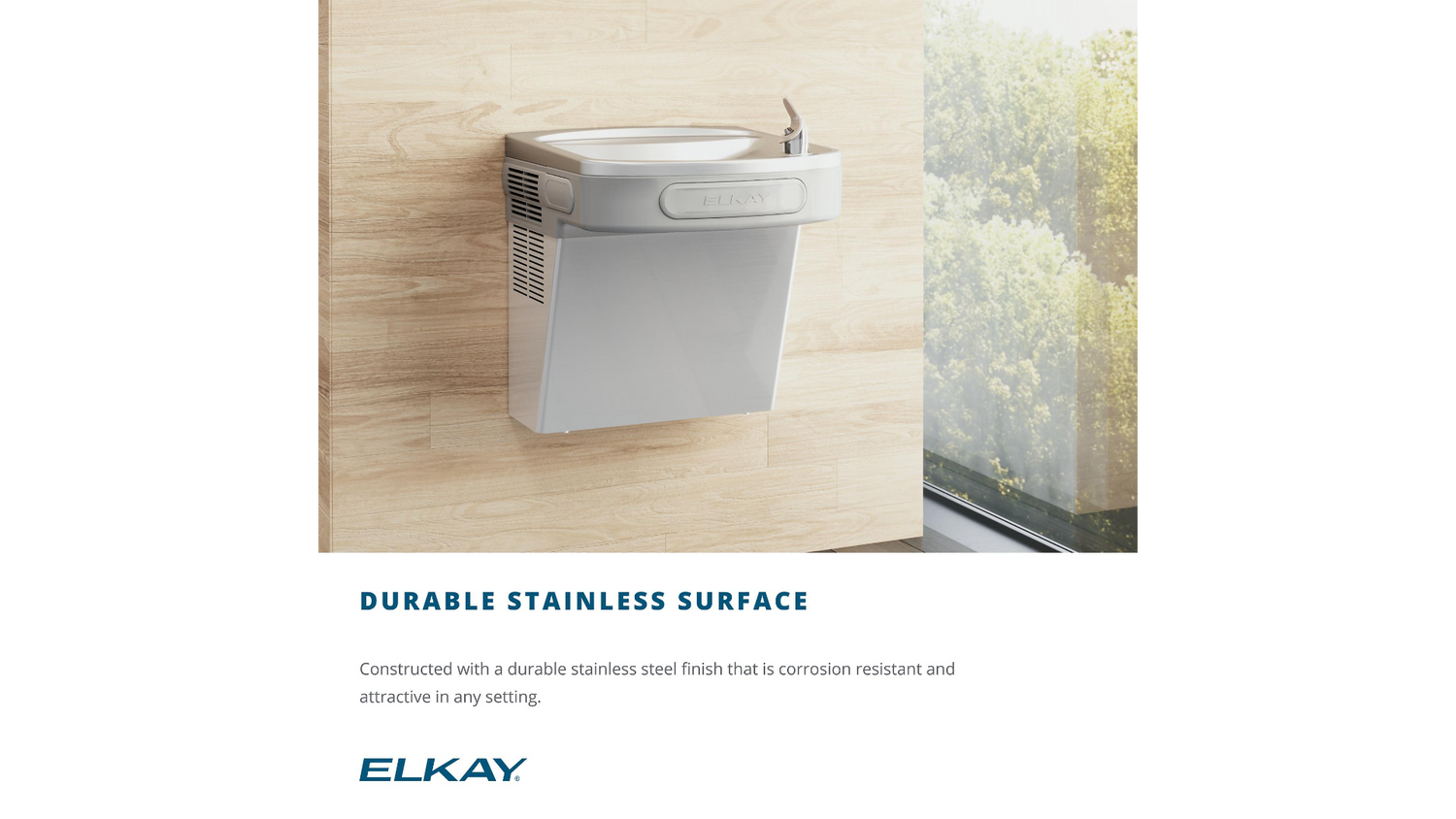

- Durable Stainless Steel: Long‑lasting finish resists wear in high‑traffic environments
- Electronic Pushbar Activation: Easy, reliable dispensing with minimal effort
- Compact Design: Ideal for indoor wall‑mount installations
What's Included:
- EZSDS Cooler Unit
- Installation instructions
- Warranty documentation
FAQ
Q: Does the EZSDS Include Refrigeration?
A: No. The EZSDS is a non‑refrigerated cooler. For refrigerated option, see the EZO8S refrigerated cooler.
Q: Can Filtration Be Added to This Model?
A: Yes. The EZSDS can be paired with the EWF172 WaterSentry VII Filter Kit or choose the LZODL filtered version.
Q: What Warranty Coverage Is Provided?
A: Elkay provides a 12‑month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: Is the EZSDS ADA Compliant?
A: Yes. When installed according to ADA and ICC A117.1 standards, the EZSDS meets accessibility requirements.
Q: What Accessories Are Recommended for Installation?
A: Recommended accessories include the MLP100 In‑Wall Carrier for secure mounting and the LKAPREZL Cane Apron for ADA compliance.
Q: Can the Bubbler Be Upgraded?
A: Yes. The bubbler can be upgraded to a vandal‑resistant option using the 97446C VR Bubbler Replacement Kit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Secure hanger brackets to the wall using all six 1/4" mounting holes; add a support carrier if wall strength is insufficient.
- Hang the cooler on the bracket, ensuring slots on the back engage properly.
- Remove the lower front panel by loosening four screws, then set aside.
- Connect the 3/8" O.D. copper water supply line with shut‑off valve; maximum supply pressure 105 psi.
- Install the 1‑1/4" O.D. drain trap; ensure slip nut and gasket are tightened securely. Check for leaks if drain tube is cut and reassembled.
- Maintain at least 6" clearance from cabinet louvers to wall for ventilation.
- Plug into a GFCI‑protected electrical outlet; unit requires power for water flow.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Clean exterior panels regularly with warm soapy water or mild household cleaner.
- Use extra caution on mirror‑finished stainless steel; clean only with mild soap and water or glass cleaner and a soft cloth.
- Avoid harsh chemicals, petroleum‑based, or abrasive cleaners; use of these will void warranty.
- Inspect bubbler, pushbars, solenoid valve, and regulator during service; replace worn parts with authentic kits.
- Disconnect power before servicing; electrical shock hazard.
- For service or repairs, consult the manual or a certified service representative.
