Wilkins 6-FSC | Ductile Iron Y-Type Strainer | 6 Inches Flanged

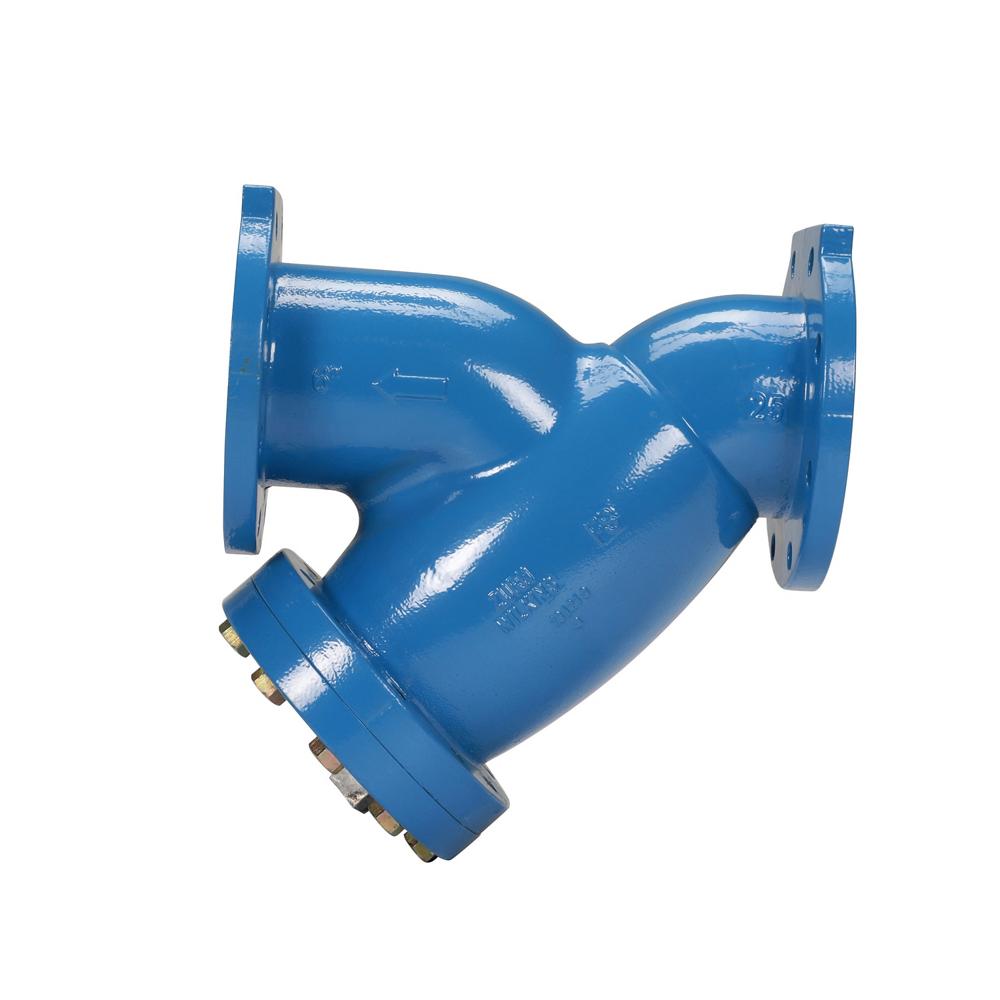

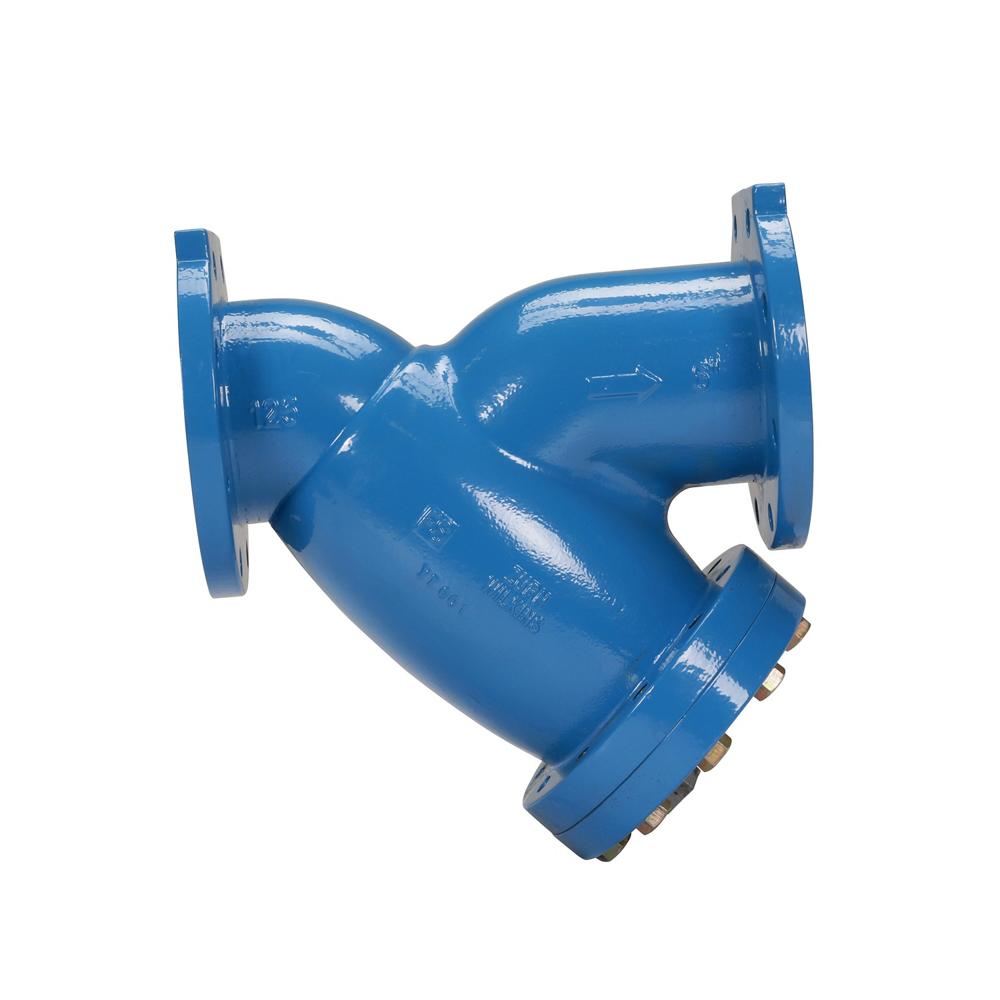

The Wilkins 6-FSC is a 6 Inches ductile iron Y-type strainer protecting downstream equipment from sediment and debris on water lines.
Key Specifications:
- Size: 6 Inches
- Pressure Rating: 200 psi WOG; 125 psi Steam
- Temperature Rating: 150°F WOG; 450°F Steam
- Notable Certifications: MIL-S-16293F Type 2; NSF/ANSI/CAN 372; NSF/ANSI/CAN 61
- End Connections: ASME B16.42 Class 150 Flanged
Other Related Variants:
- 212-FSC: 2 1/2 Inches version
- 3-FSC: 3 Inches version
- 4-FSC: 4 Inches version
- 8-FSC: 8 Inches version
- 10-FSC: 10 Inches version
- 12-FSC: 12 Inches version
Materials:
- Main Valve Body: Ductile Iron ASTM A536
- Access Cover: Ductile Iron ASTM A536
- Coating: Fusion Epoxy Finish (NSF/ANSI/CAN 61 compliant) inside and out
- Screen: Perforated 300 Series Stainless Steel
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted with sufficient clearance for maintenance in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. The installation shall be made so that no part of the unit can be submerged. Horizontal installation with the strainer cap facing downward is the preferred installation orientation; however the Zurn 6-FSC strainer will provide protection in any orientation. Both outdoor and indoor installations are supported.
Standards Compliance:
MIL-S-16293F Type 2; NSF/ANSI/CAN 372 (Lead Free); NSF/ANSI/CAN 61 (Fusion Epoxy Coating)
Features & Benefits:
- Robust Construction: Ductile iron ASTM A536 body and access cover provide long-lasting durability in demanding water line applications.
- Protective Epoxy Coating: NSF/ANSI/CAN 61 certified Fusion Epoxy Finish applied inside and out guards against corrosion and ensures water safety compliance.
- Easy In-Line Screen Cleaning: The integral stainless steel strainer screen is accessible for cleaning without removing the Zurn 6-FSC from the line, minimizing downtime.
- Versatile Installation: Functions in any orientation, with preferred horizontal mounting (cap facing down) for optimal sediment collection and drainage.
FAQ
Q: Can the Wilkins 6-FSC be installed vertically or in any orientation?
A: Yes. While horizontal installation with the strainer cap facing downward is preferred, the Wilkins 6-FSC will provide protection in any orientation.
Q: Does the screen need to be removed from the line for cleaning?
A: No. The integral strainer screen is accessible for cleaning without removing the device from the line, making maintenance quick and convenient.
Q: What is the maximum flow capacity of the 6-FSC at standard velocities?
A: The 6-FSC supports 450 GPM at 5 ft/sec, 675 GPM at 7.5 ft/sec, 900 GPM at 10 ft/sec, and 1,351 GPM at 15 ft/sec through Schedule 40 pipe.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
