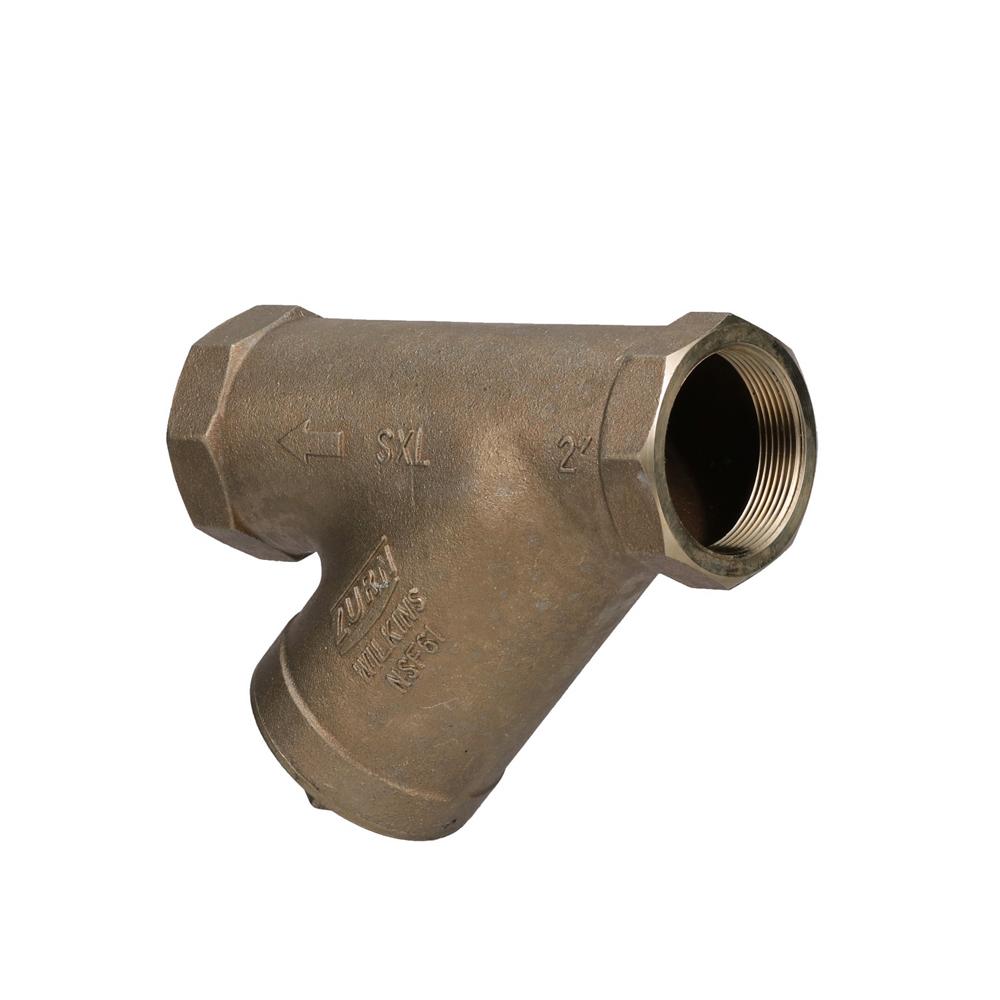

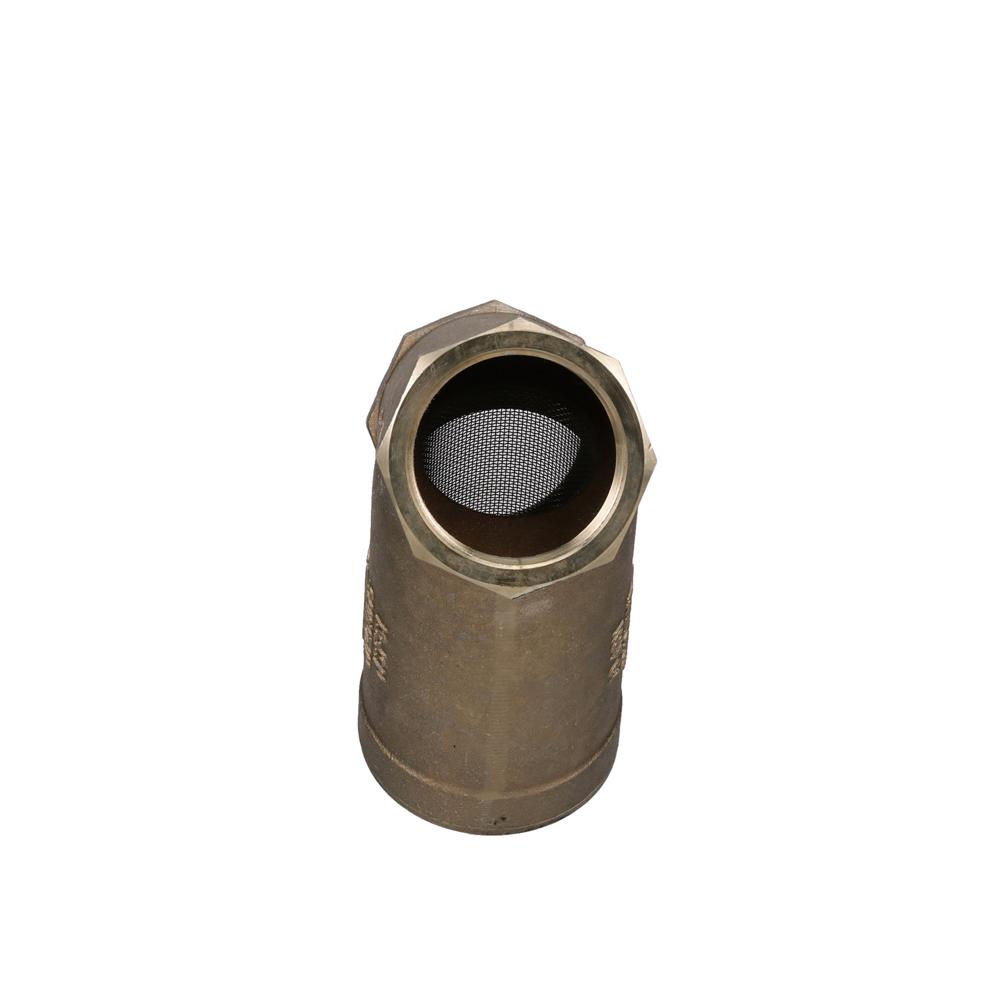

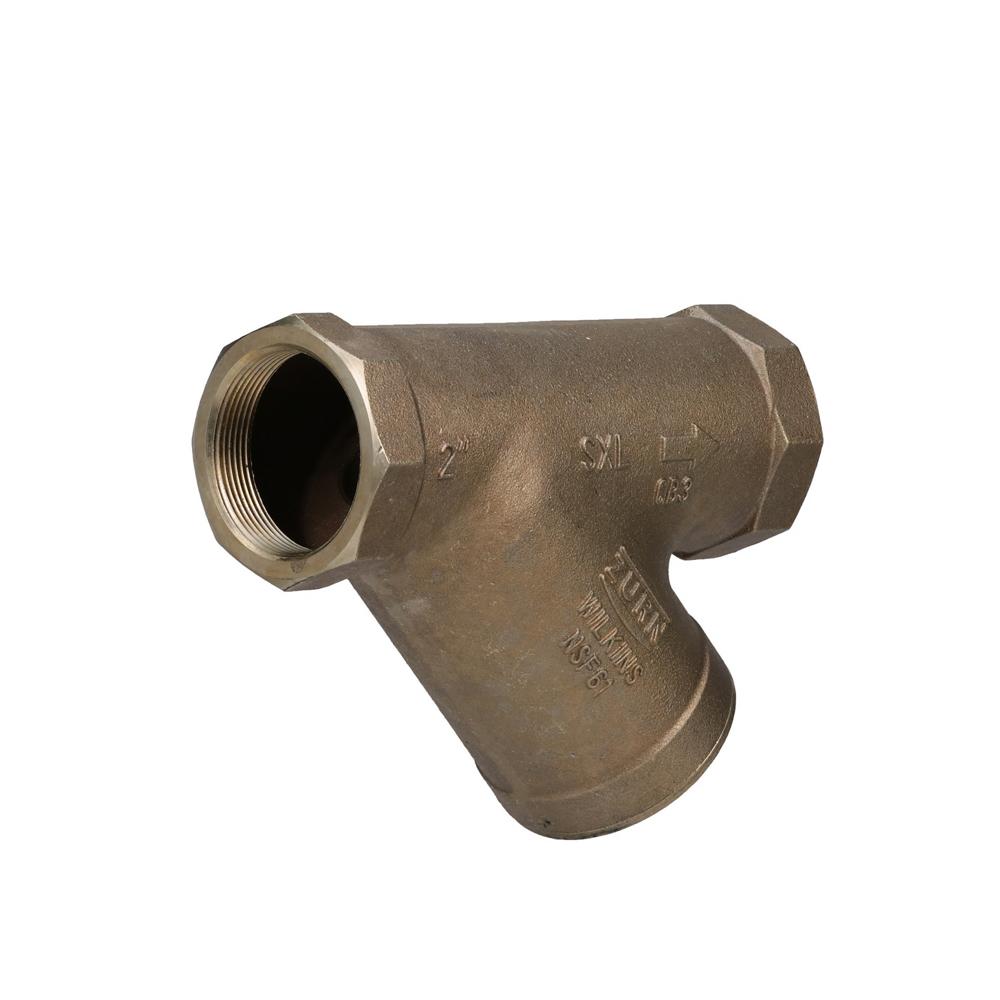

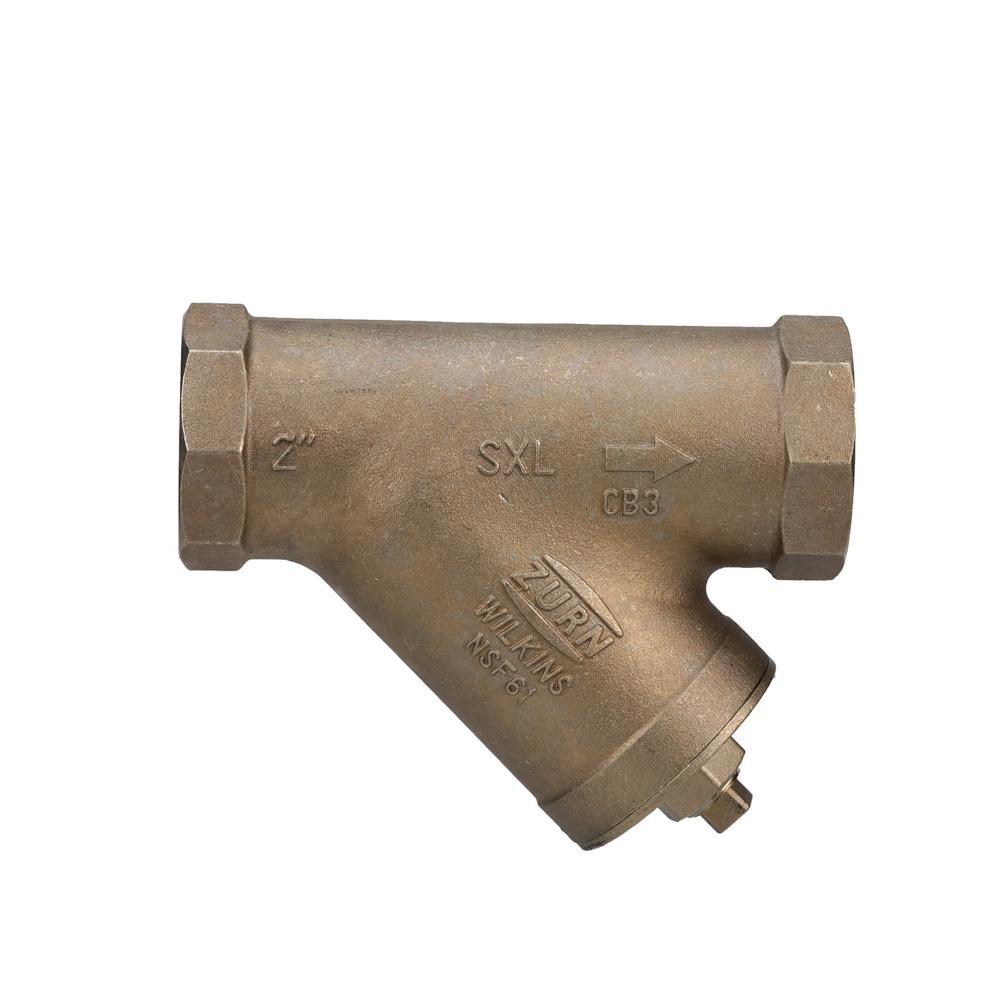

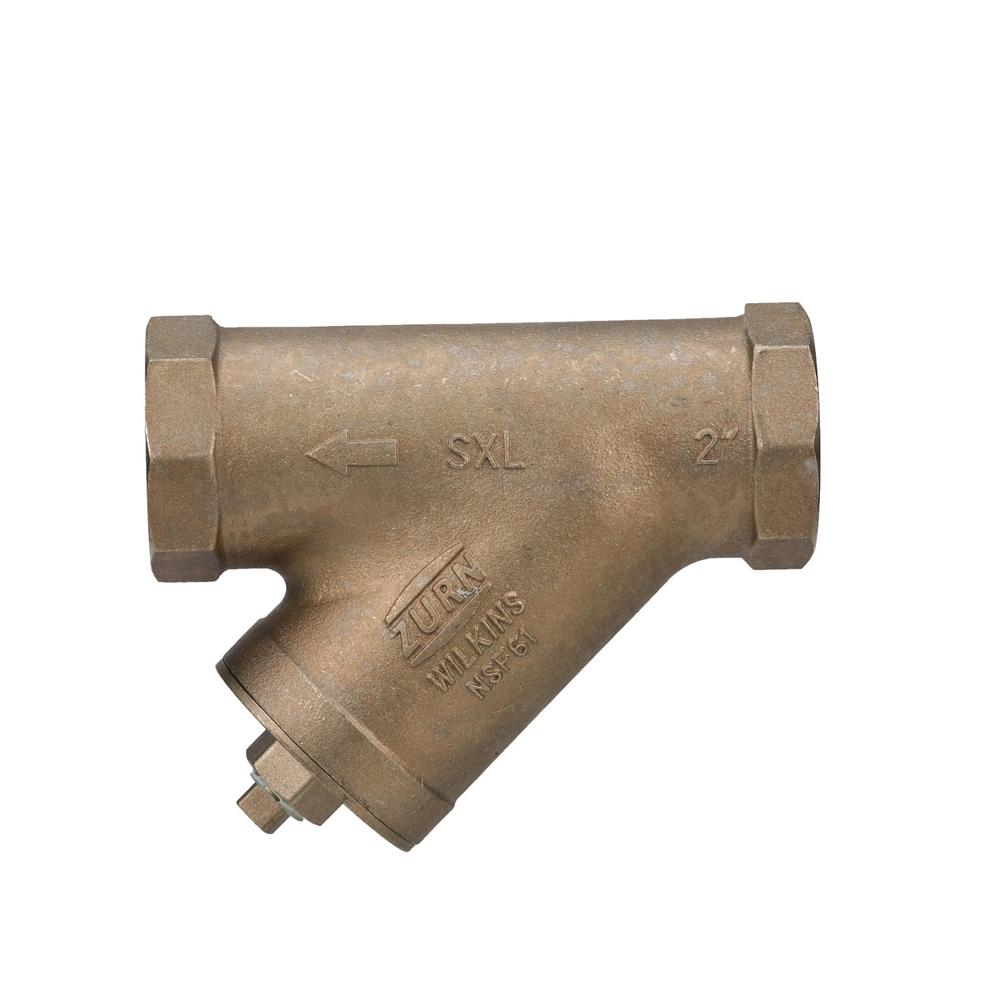

Wilkins 2-SXL | Cast Bronze Y-Type Strainer | 2 Inches
The Wilkins 2-SXL is a 2 Inches cast bronze Y-type strainer for potable water, protecting regulators and backflow preventers from sediment.
Key Specifications:
- Size: 2 Inches
- Pressure Rating: 300 psi WOG
- Temperature Rating: 180°F maximum
- Notable Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
- End Connections: Threaded FNPT ANSI B1.20.1
Other Related Variants:
- 12-SXL: 1/2 Inches version
- 34-SXL: 3/4 Inches version
- 1-SXL: 1 Inches version
- 114-SXL: 1 1/4 Inches version
- 112-SXL: 1 1/2 Inches version
- 212-SXL: 2 1/2 Inches version
- 3-SXL: 3 Inches version
Materials:
- Main Valve Body: Low Lead Cast Bronze ASTM B806
- Access Cover and Plug: Low Lead Cast Bronze ASTM B806
- Screen: 20 Mesh 300 Series Stainless Steel
- O-Ring: Buna Nitrile
- Closure Plug: Brass (supplied)
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. If installed below grade, adequate drainage must be provided to prevent the device from being submerged. Horizontal installation with the strainer cap facing downward is the preferred orientation; however, the Zurn 2-SXL strainer will provide protection in any orientation. Typical installations include outdoor service alongside pressure reducing valves and reduced pressure backflow preventers, installed between 12 and 30 inches above grade within a protective enclosure.
Standards Compliance:
NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 (Lead Free)
Features & Benefits:
- Equipment Protection: Filters sediment from potable water lines, safeguarding regulators, backflow preventers, and other delicate equipment from premature failure.
- Durable Construction: Low lead cast bronze body and cover (ASTM B806) with a 300 series stainless steel screen ensure long-lasting corrosion resistance and reliable performance.
- Easy Maintenance: The strainer screen is accessible for cleaning and maintenance without removing the Zurn 2-SXL from the pipeline, minimizing downtime.
- Flexible Installation: Functions in any orientation while horizontal with cap facing down is preferred, making the Wilkins 2-SXL adaptable to various installation scenarios.
FAQ
Q: What type of water service is the Wilkins 2-SXL suitable for?
A: The Wilkins 2-SXL is suitable for potable water service lines including residential and commercial domestic water systems and irrigation applications.
Q: Can the strainer screen be cleaned without removing the unit from the line?
A: Yes. The 20 mesh 300 series stainless steel screen is accessible for maintenance without removing the device from the pipeline, making servicing straightforward and convenient.
Q: What is the preferred installation orientation for the 2-SXL?
A: Horizontal installation with the strainer cap facing downward is the preferred orientation; however, the unit will provide effective sediment filtration in any orientation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
