Elkay LVRCTL8WSPRO Series | Pro Filtration Bi-Level Bottle Filler &...
Notice: This product will be coming soon

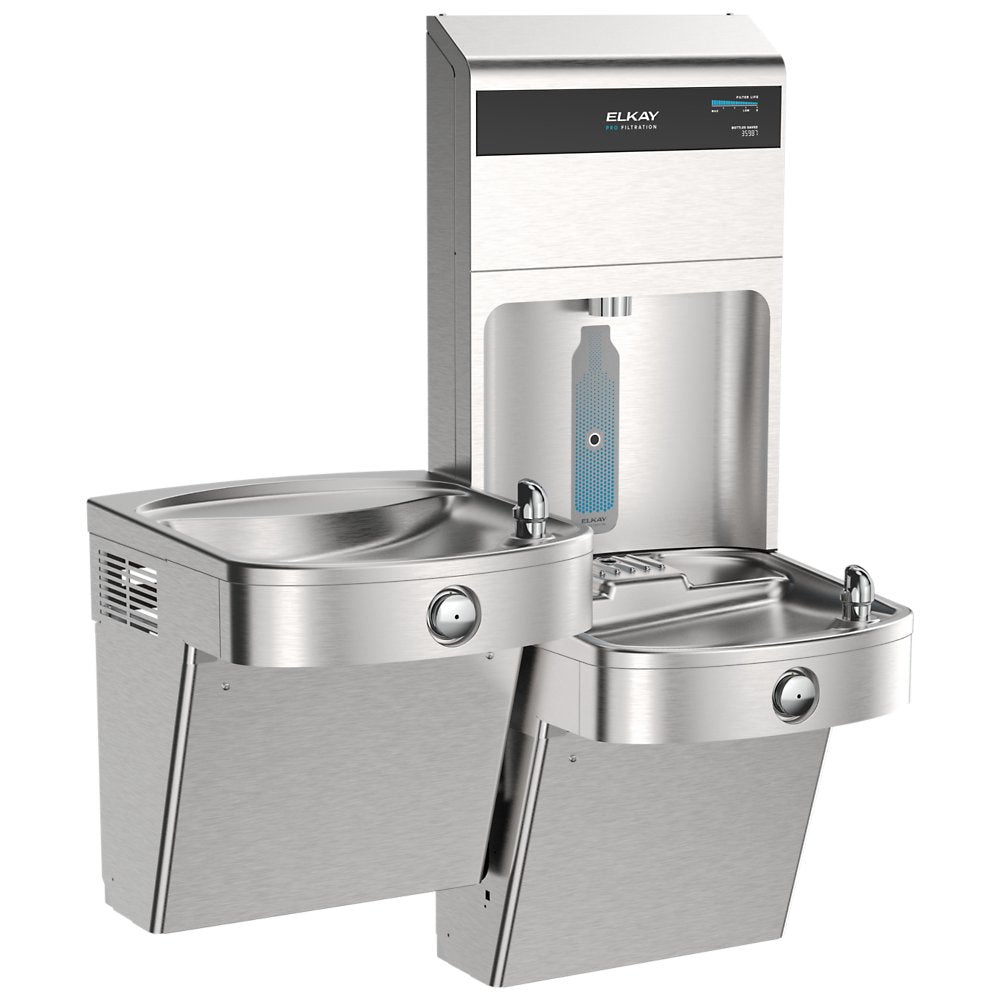

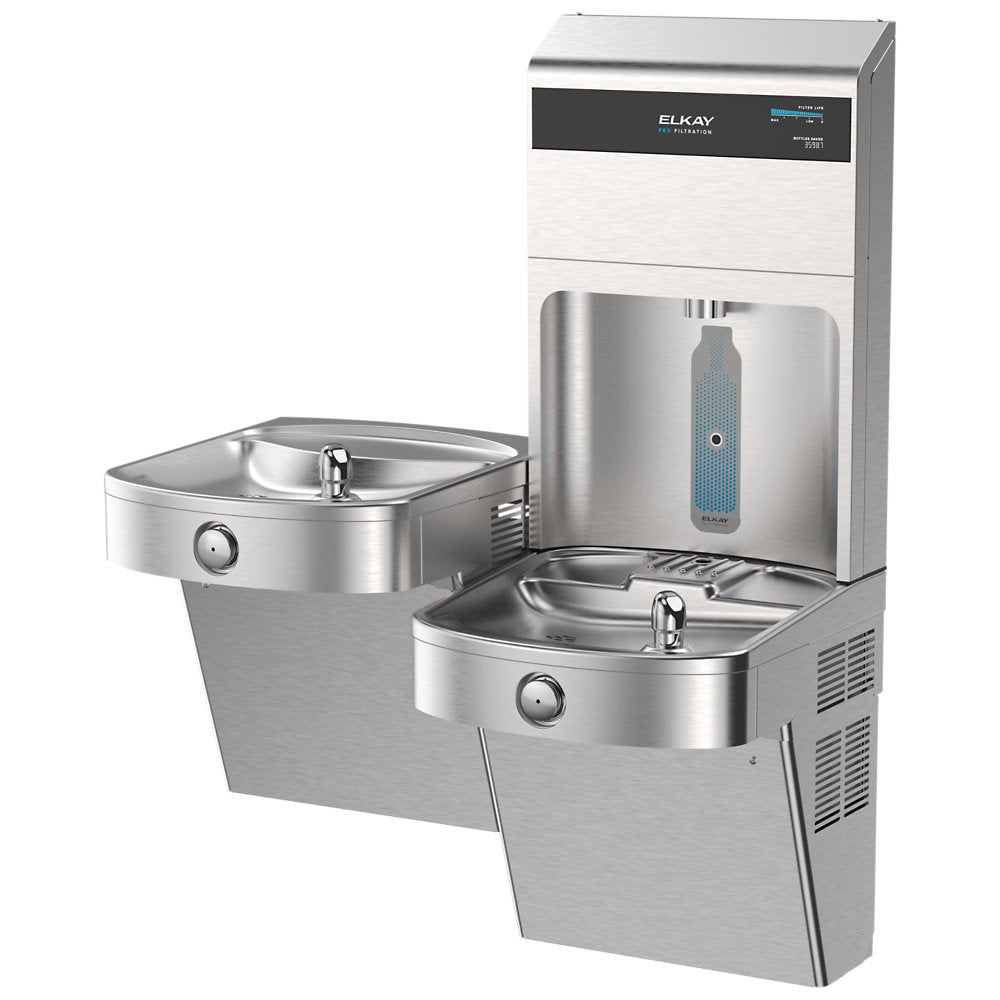

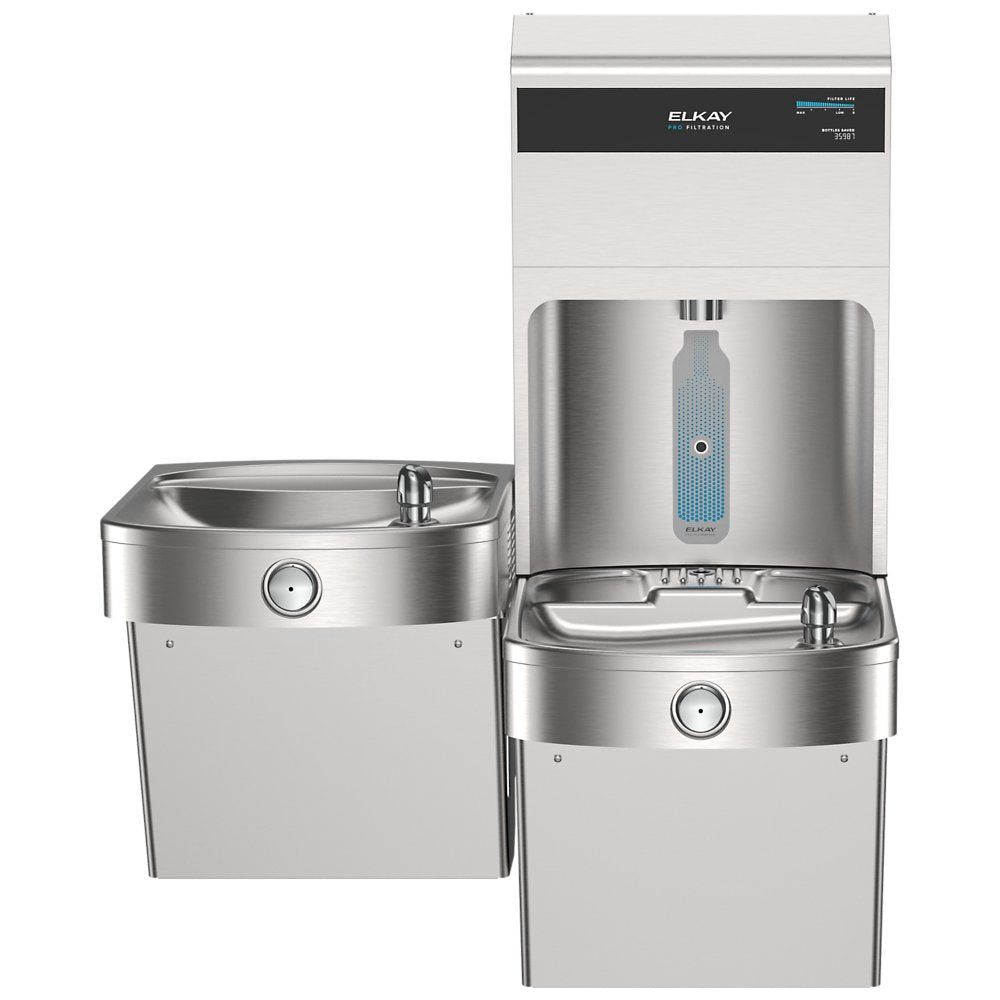

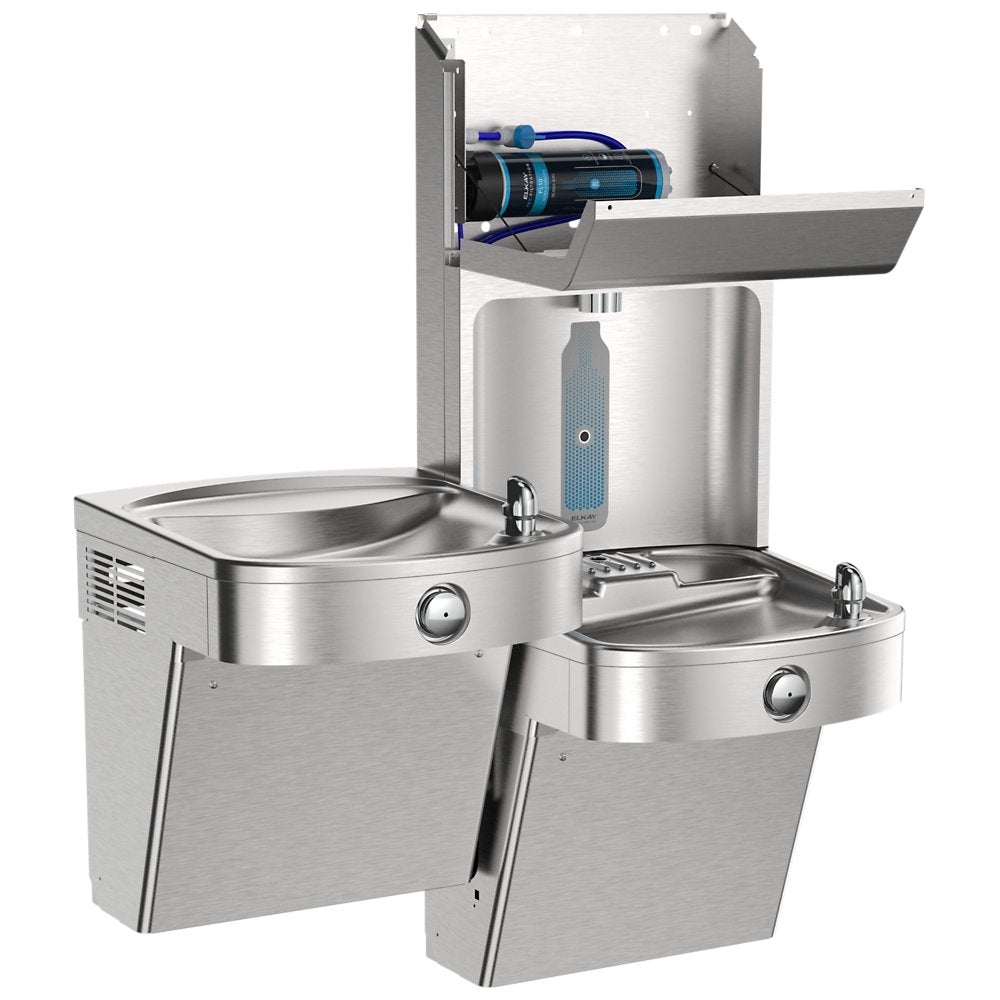

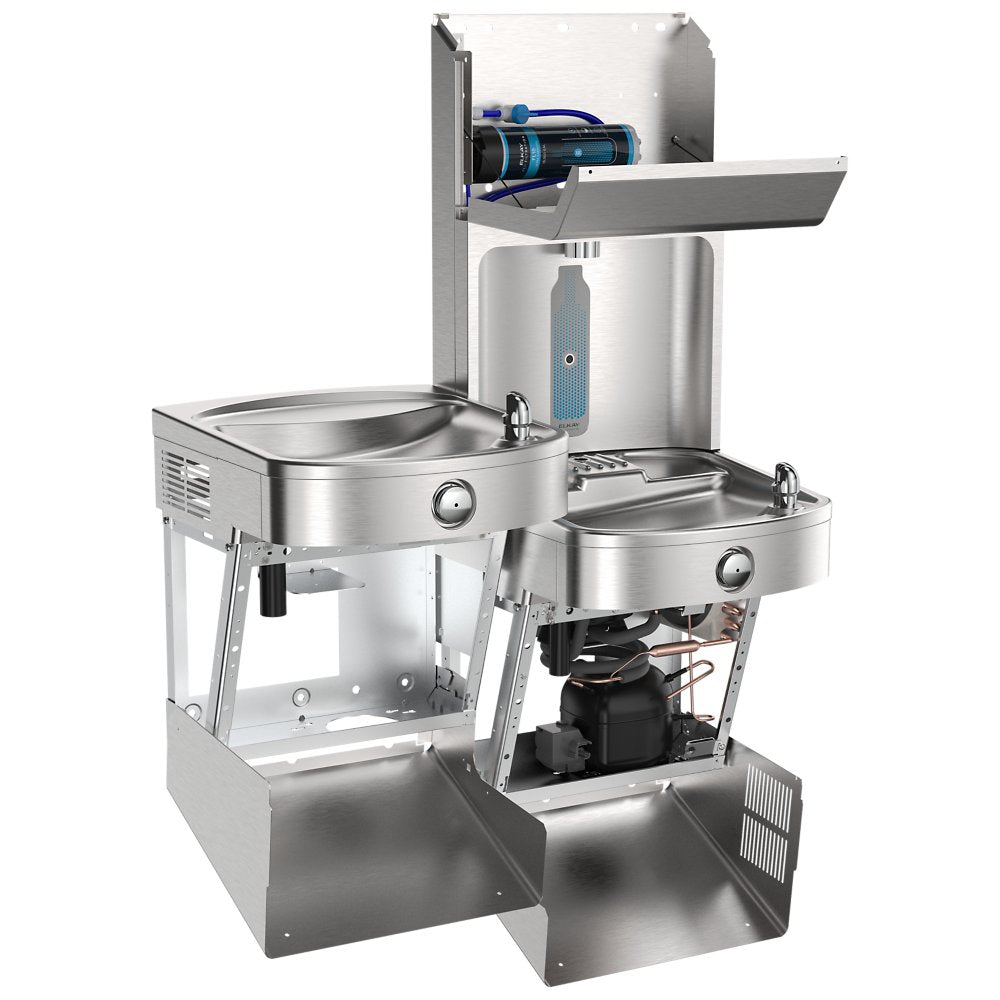

The Elkay LVRCTL8WSPRO Series combines vandal-resistant bottle filling with bi-level refrigerated drinking fountain access, advanced Pro Filtration, and cloud connectivity.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Depends on the filter options
-
Filter Capacity: Depends on the filter options
- Refrigeration: 8.0 GPH Chilling Capacity (50°F output)
- Power: 115V/60Hz, 5 Full Load Amps
Variant Options:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter

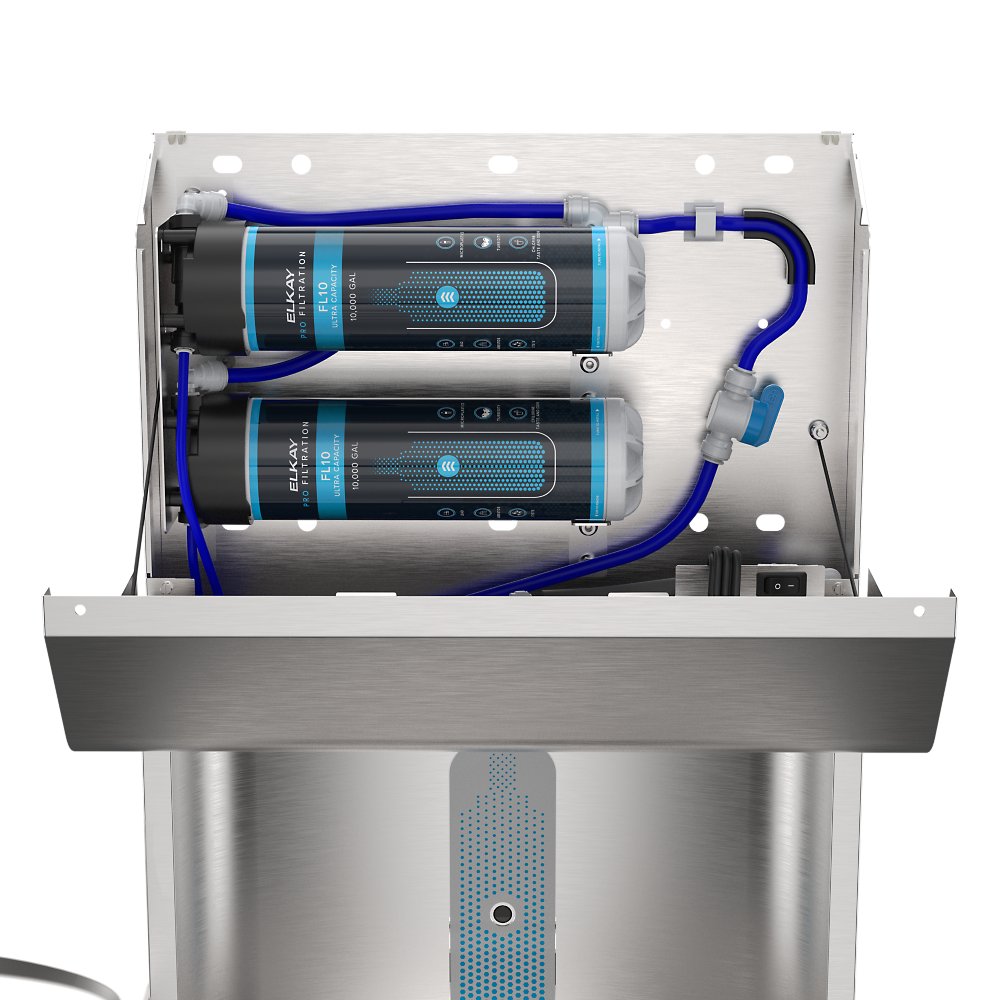

- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction

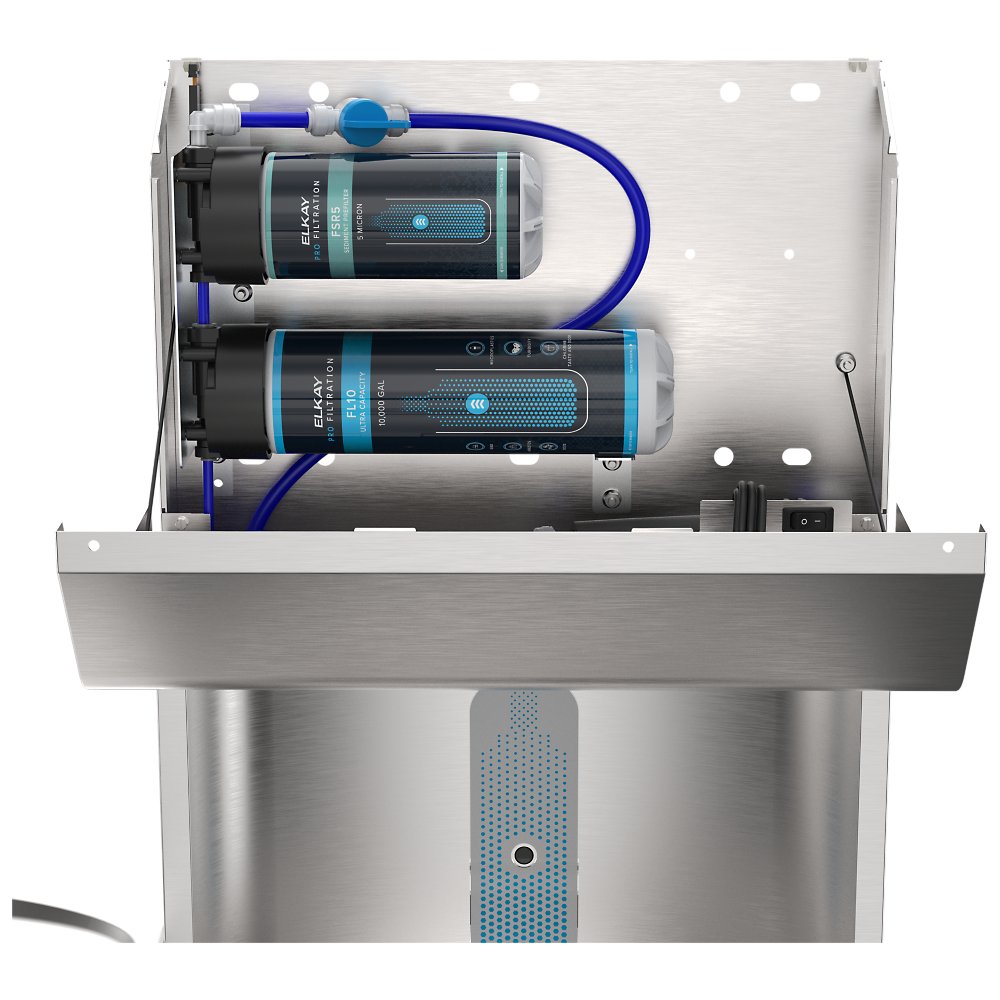

- LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter

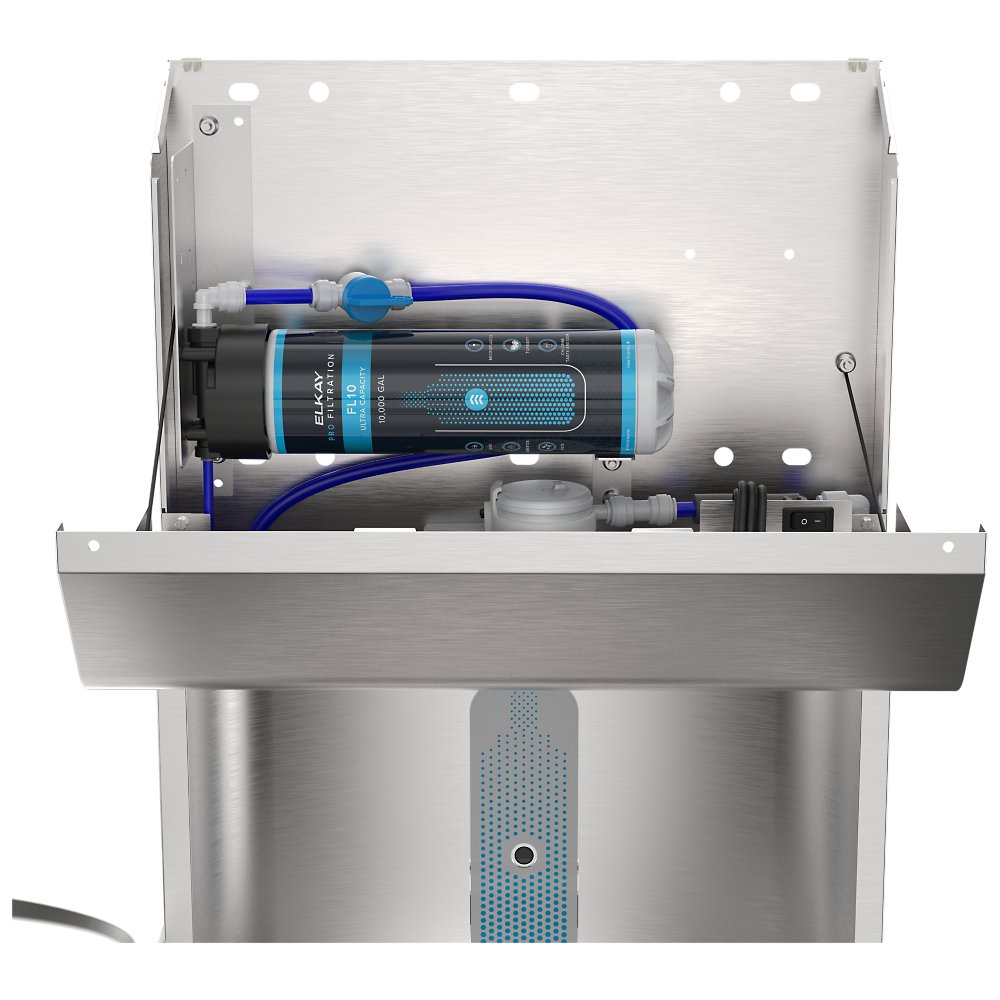

- LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection

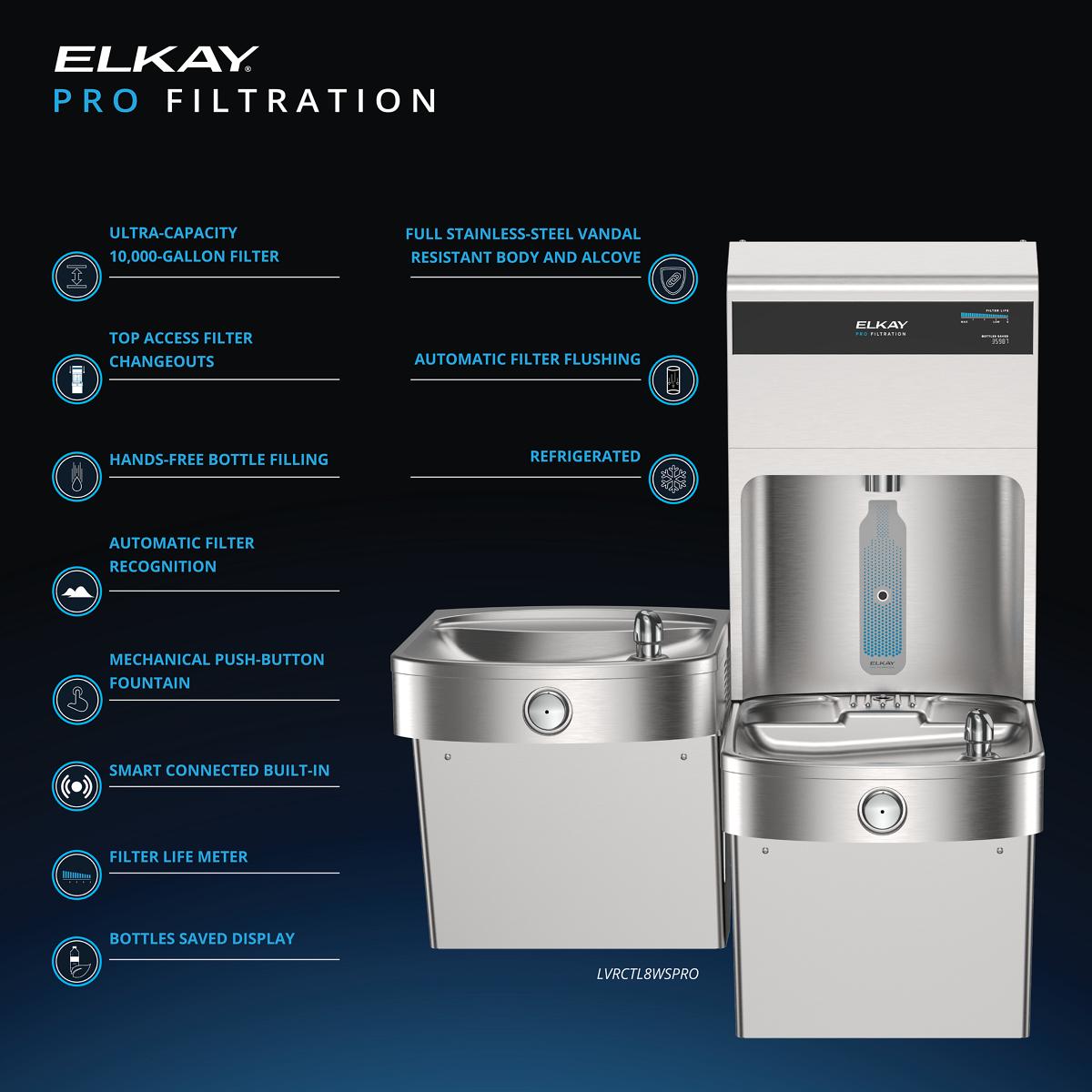

Features & Benefits:
- Cloud-Connected Monitoring: Track filter status, monitor performance, and remotely flush the system via plumbSMART Gateway, reducing maintenance visits and ensuring optimal operation.
- Automatic Filter Management: The LVRCTL8WSPRO Series features automatic filter recognition and flushing, which resets filter status and cleans the waterway upon new filter installation, saving valuable installation time.
- Enhanced Durability: Vandal-resistant construction with stainless steel alcove, tempered glass display cover, and mechanical push button backup ensures reliable performance in high-traffic public spaces.
- Environmental Impact: Green Ticker™ display tracks plastic bottles saved from landfills, promoting sustainability while providing quick 1.0 GPM touchless filling with laminar flow for minimal splash.
FAQ
Q: What type of gateway is required for cloud connectivity features?
A: The LVRCTL8WSPRO Series requires a plumbSMART Gateway and associated account (sold separately) to enable cloud-connected features such as remote filter monitoring, performance tracking, and system flushing capabilities.
Q: How does the automatic filter flushing feature work?
A: When a new Elkay Pro Filtration filter is installed, the system automatically detects it and initiates a flushing cycle to clean debris and air from the waterway, while simultaneously resetting the filter status gauge to full capacity.
Q: Can the bottle filler location be changed?
A: Yes, the bottle filler can be relocated to the left side of the unit using the optional VERSATILEBFKITPRO cable extension accessory kit, providing installation flexibility for different site requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

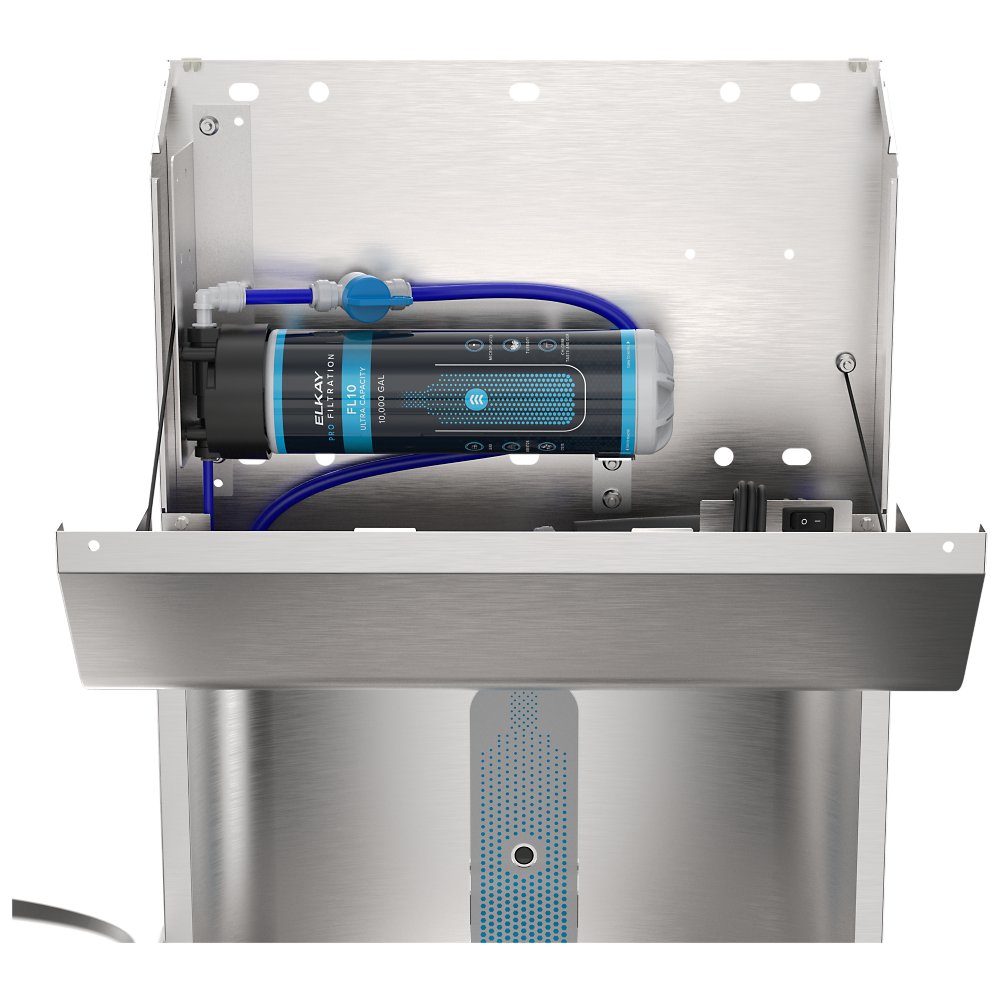

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
