Elkay LVRCTL8WSPRO-2FLP4 | Pro Filtration Bi-Level Bottle Filler &a...
Notice: This product will be coming soon

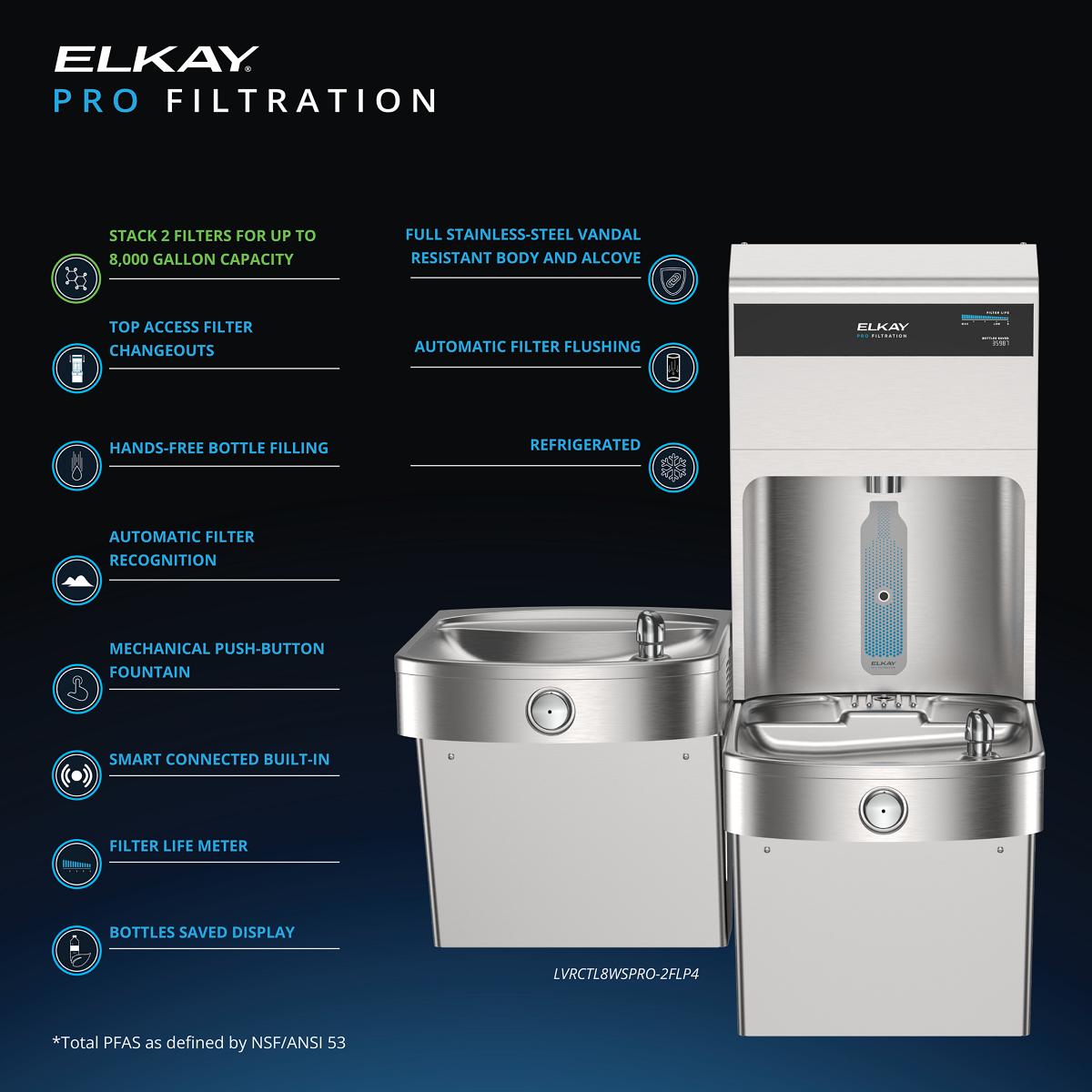

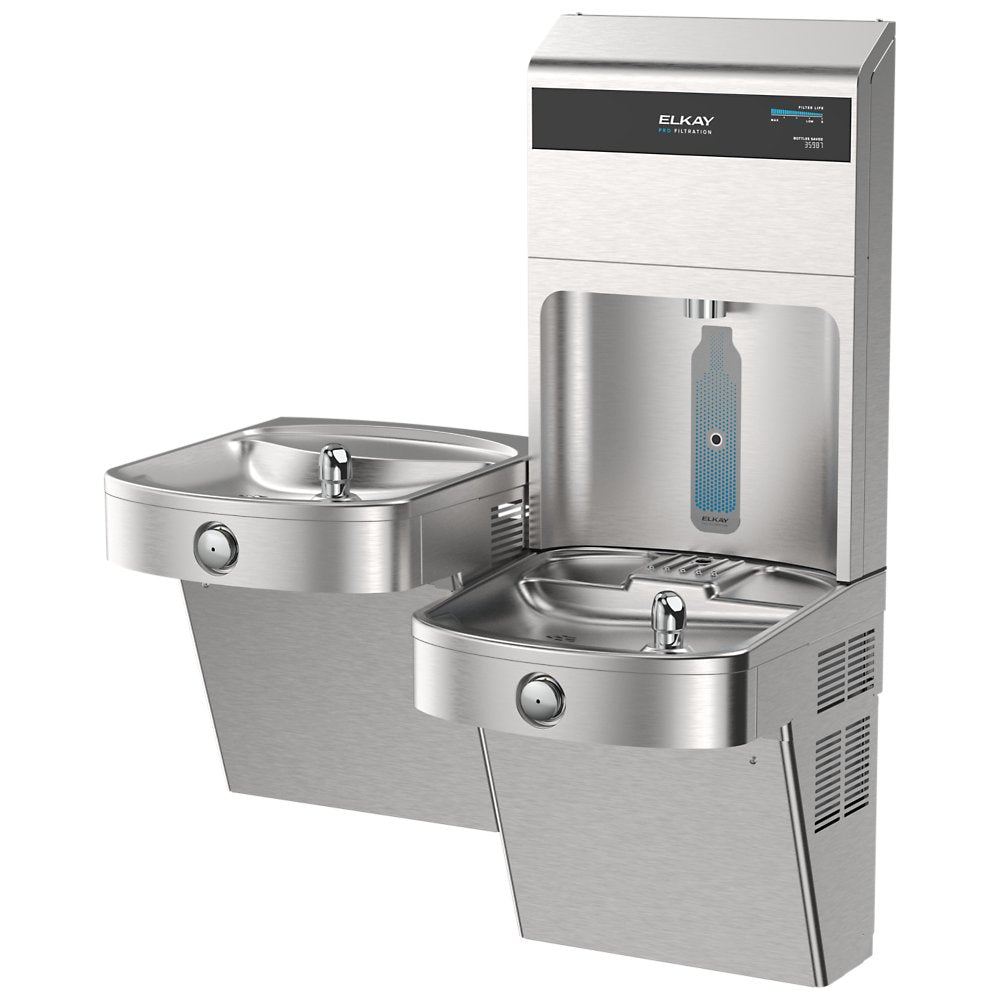

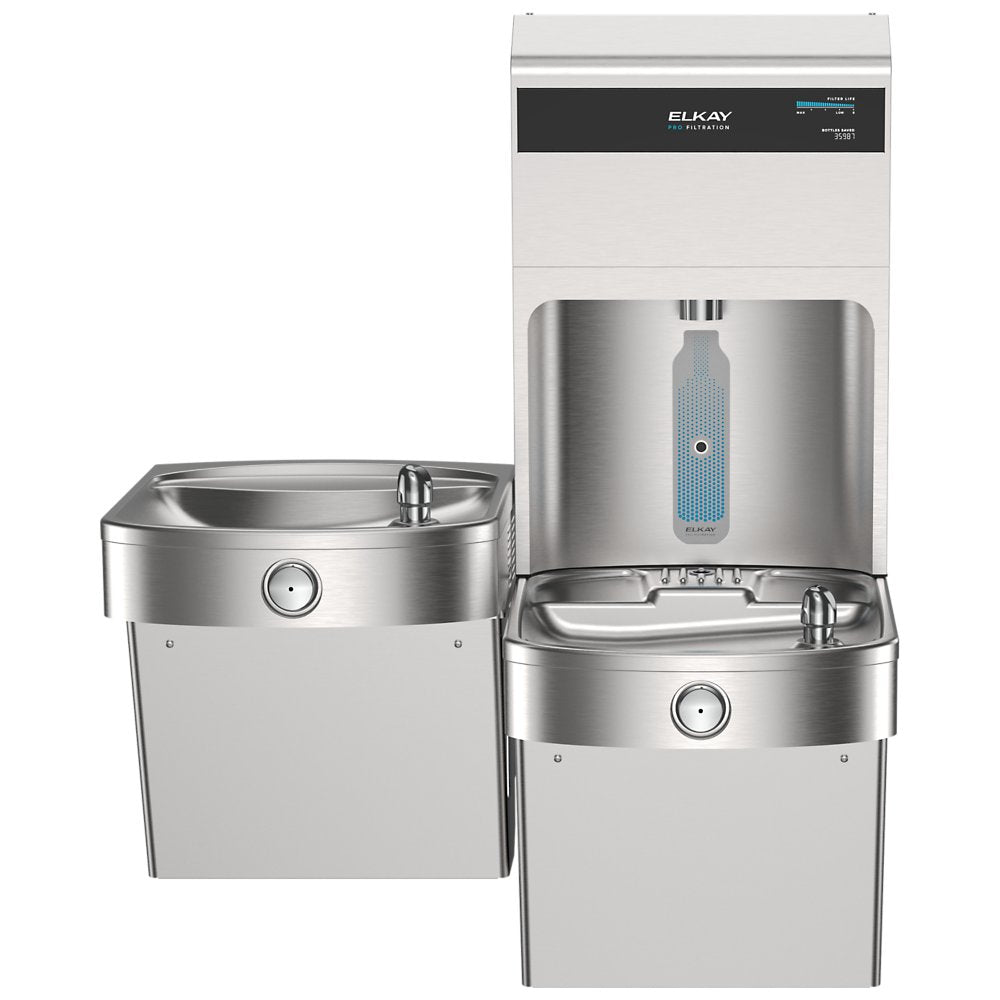

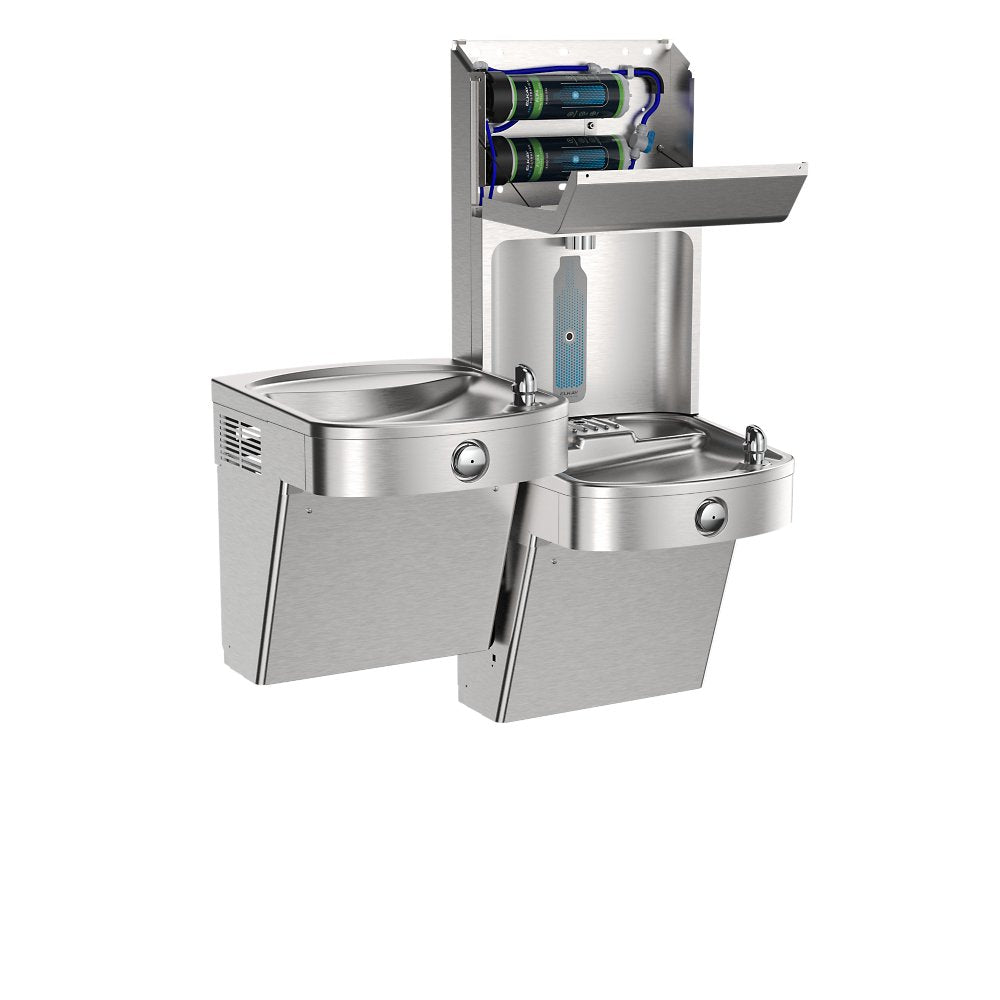

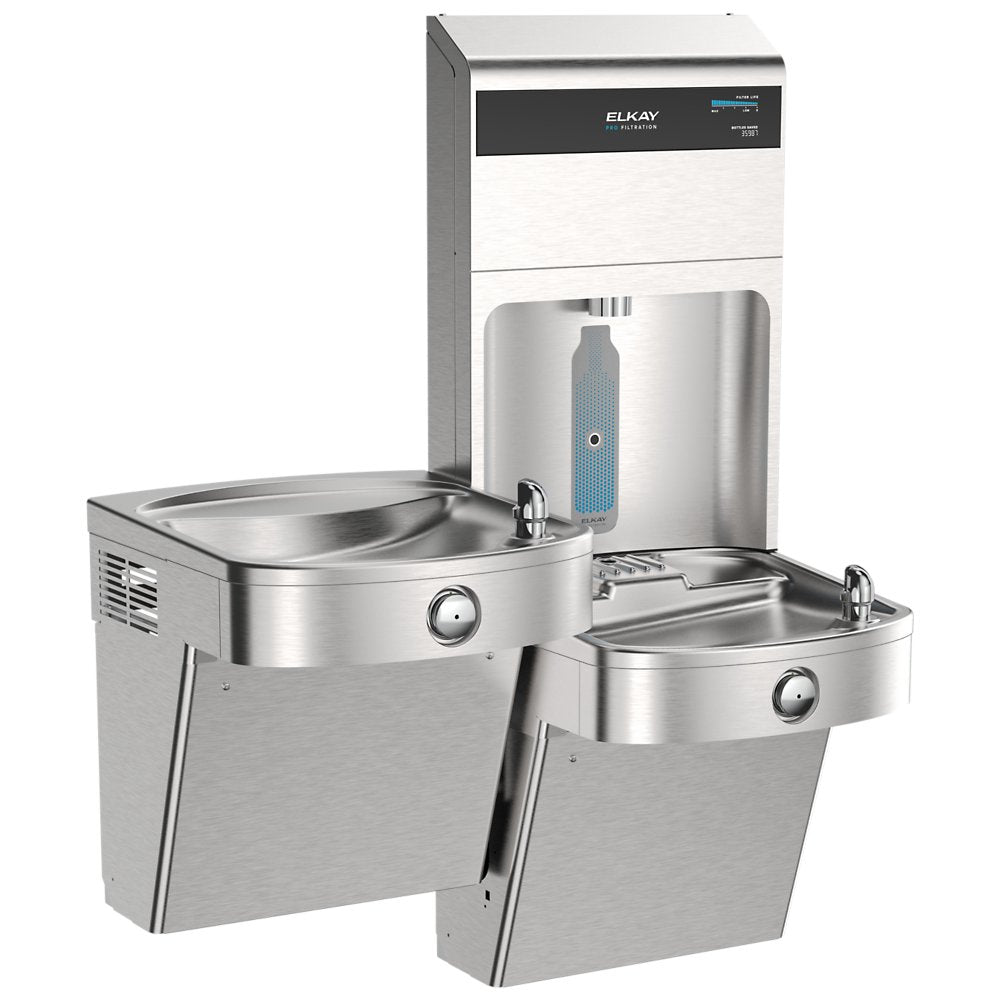

The Elkay LVRCTL8WSPRO-2FLP4 is a vandal-resistant, cloud-connected bi-level bottle filling station with dual Total PFAS + lead filters, 8.0 GPH chiller, and touchless operation.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine Taste & Odor
- Filter Capacity: Dual 4,000 Gal. filters (8,000 Gal. total capacity)
- Refrigeration: 8.0 GPH chilling capacity (50°F output)
- Power: 115V/60Hz, 5 Full Load Amps
Other Related Variants:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter
-
LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection
Features & Benefits:

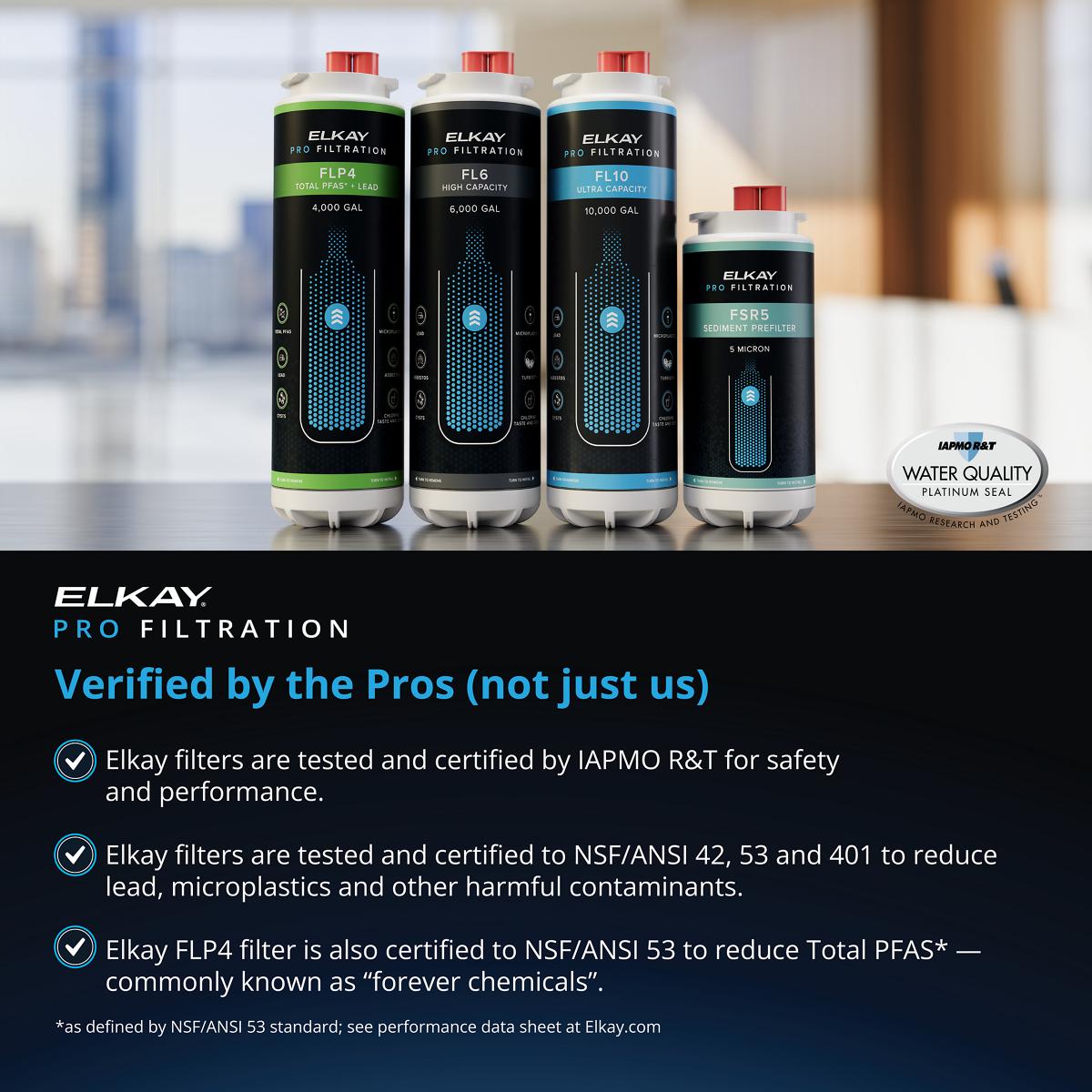

- Advanced Filtration Protection: Dual Total PFAS + Lead filters provide exceptional contaminant reduction with NSF/ANSI 42, 53, and 401 certification, delivering up to 8,000 gallons of cleaner, safer drinking water.

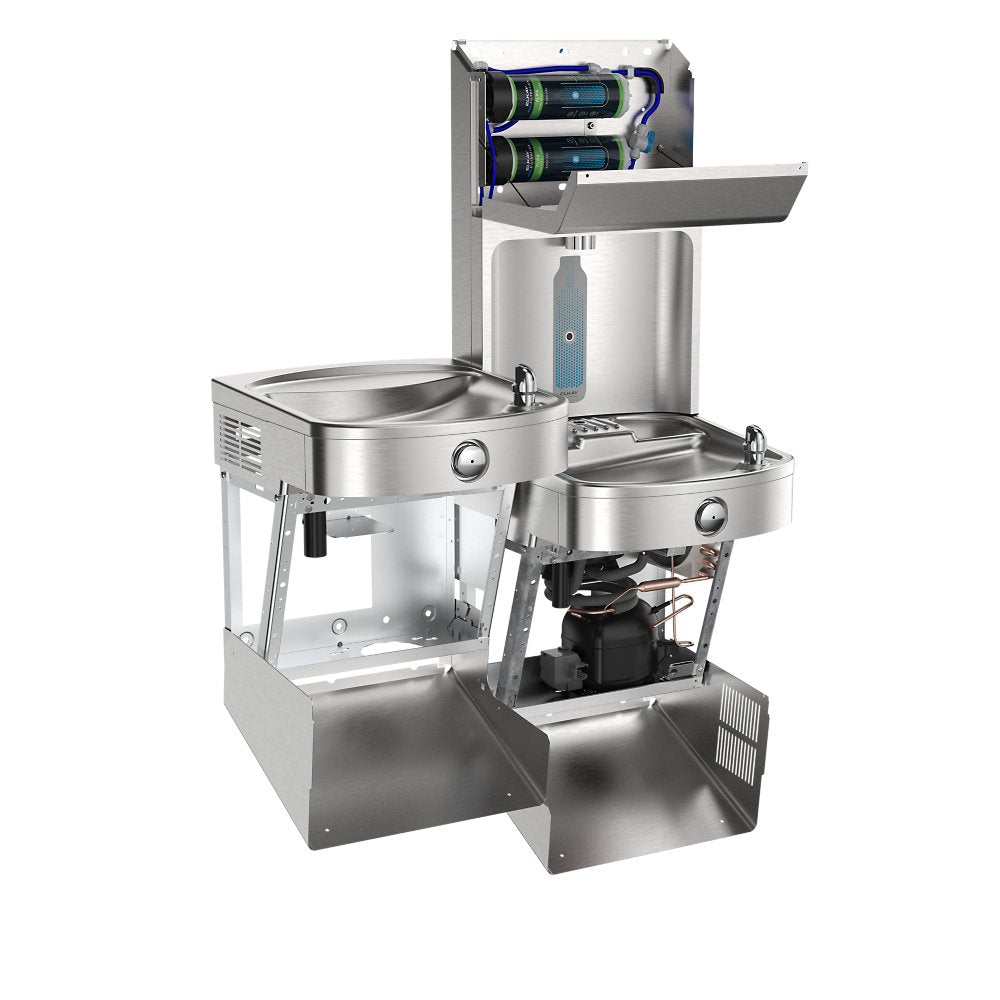

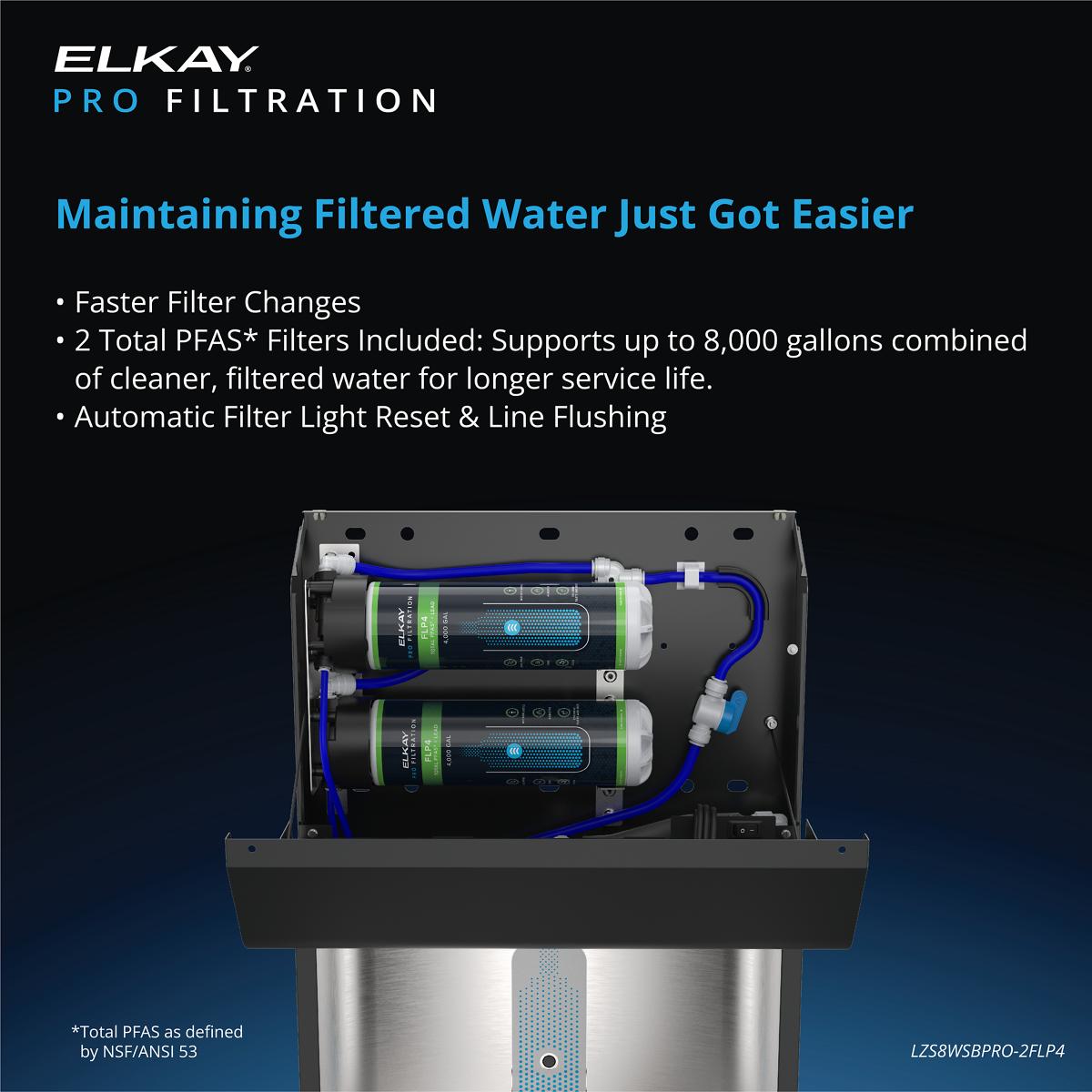

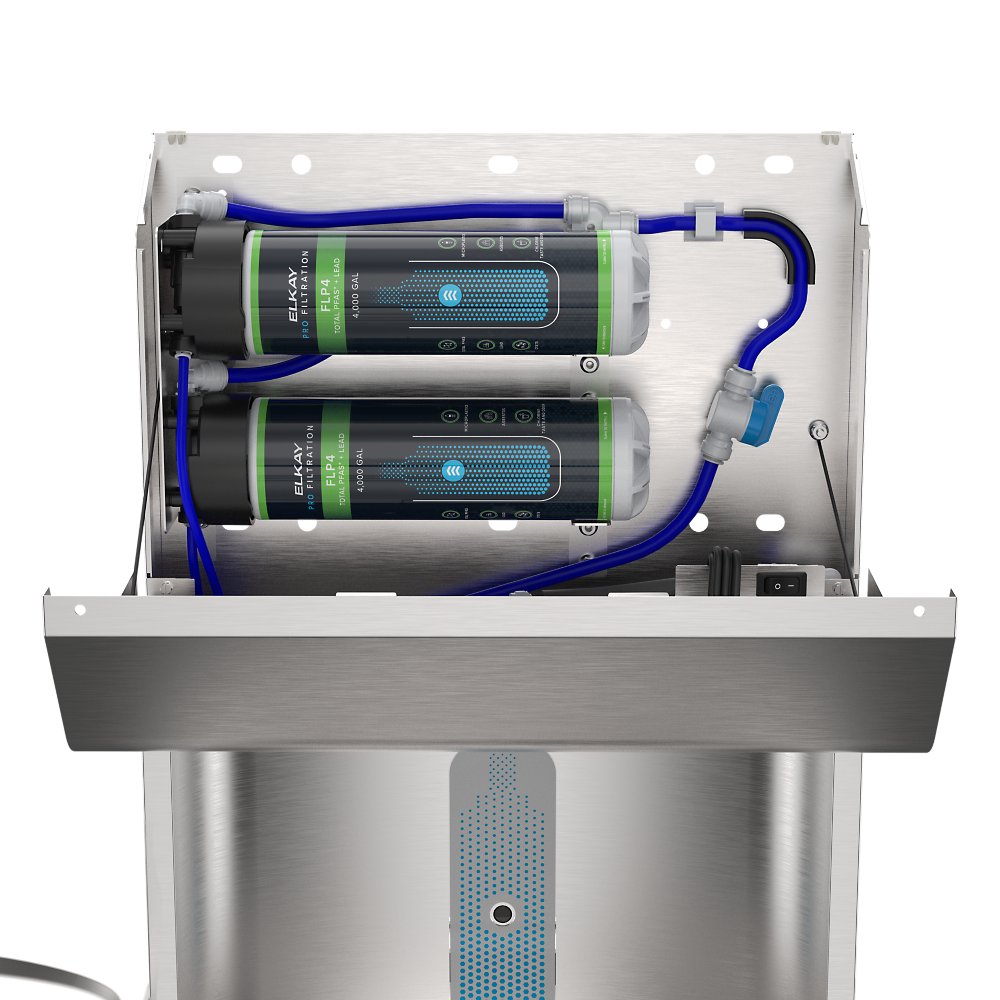

- Smart Maintenance Efficiency: Top-mount quick filter change design with automatic filter recognition and flushing reduces service time significantly, while cloud connectivity enables remote monitoring and management via plumbSMART Gateway.
- Vandal-Resistant Durability: Stainless steel alcove construction with tempered glass display cover and mechanical front bubbler button backup ensures long-lasting performance in high-traffic environments.
- Enhanced User Experience: Touchless sensor-activated bottle filling at 1.0 GPM with laminar flow minimizes splash while Green Ticker™ display shows environmental impact through bottles saved counter.
FAQ
Q: What contaminants do the dual Total PFAS + Lead filters remove?
A: The LVRCTL8WSPRO-2FLP4 includes two 4,000-gallon filters that are NSF/ANSI 42, 53, and 401 certified to reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, chlorine taste and odor, and other harmful contaminants for safer drinking water.
Q: How does the cloud connectivity feature work?
A: When paired with a plumbSMART Gateway (sold separately), this unit enables remote monitoring of filter status, performance tracking, maintenance alerts, and system flushing capabilities from anywhere, helping facility managers optimize operations and reduce service costs.
Q: What is the chilling capacity and fill rate of this unit?
A: The refrigeration system provides 8.0 gallons per hour (GPH) of 50°F chilled water based on 80°F inlet water and 90°F ambient temperature. The touchless bottle filler delivers water at 1.0 GPM with laminar flow for quick, splash-free filling.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
