Elkay LVRCTL8WSPRO-2FL10 | Pro Filtration Bi-Level Bottle Filler &a...
Notice: This product will be coming soon

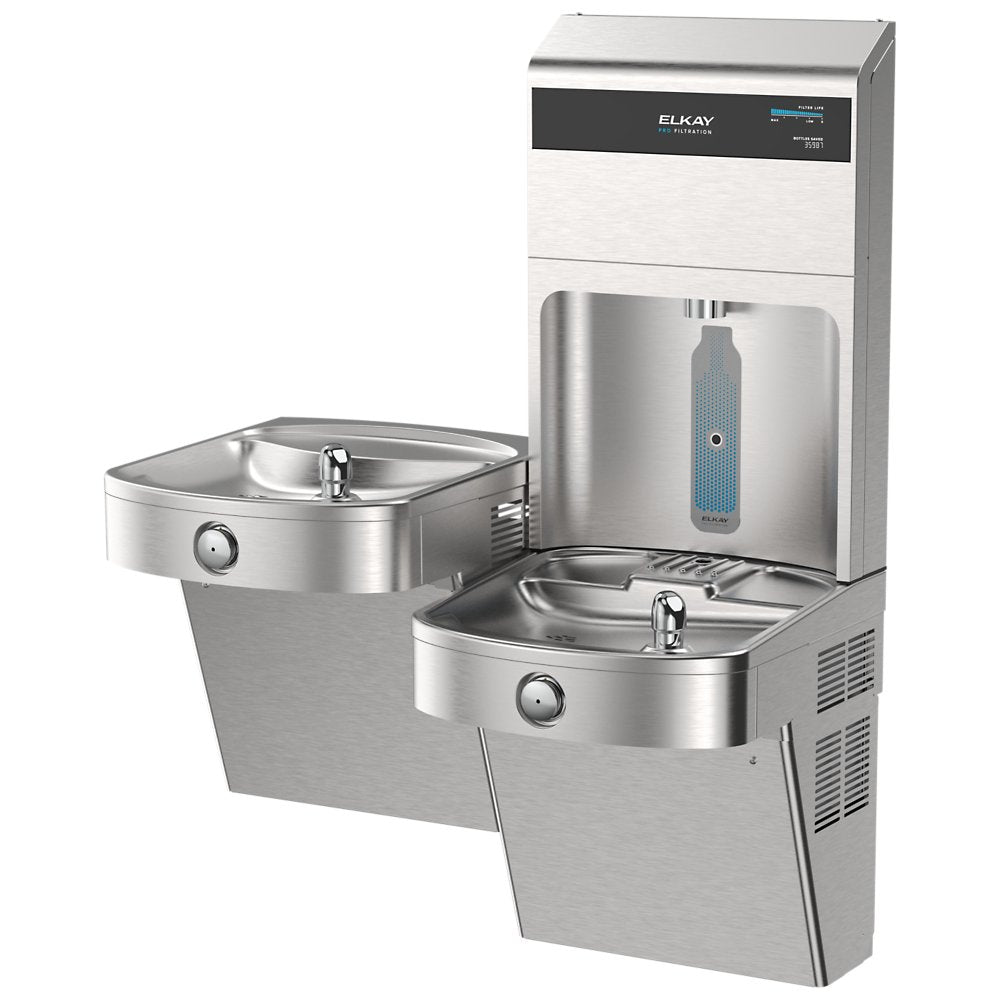

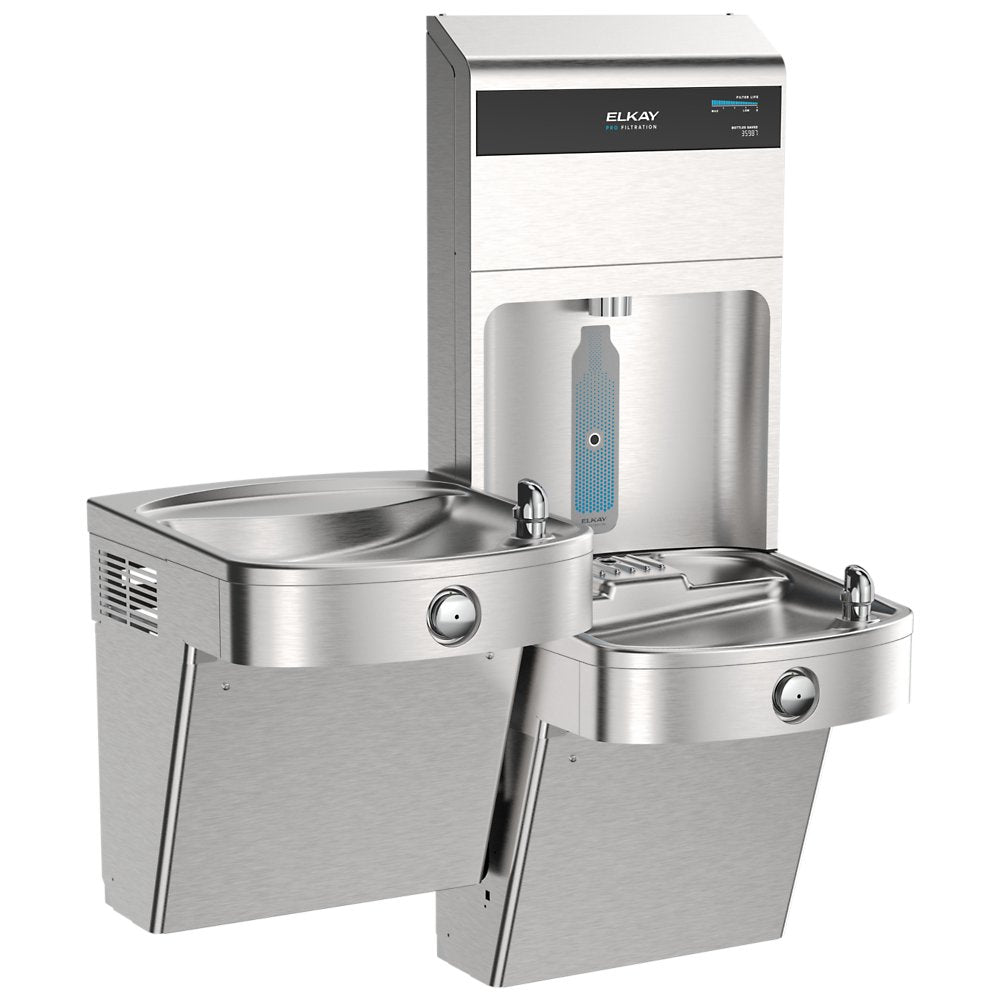

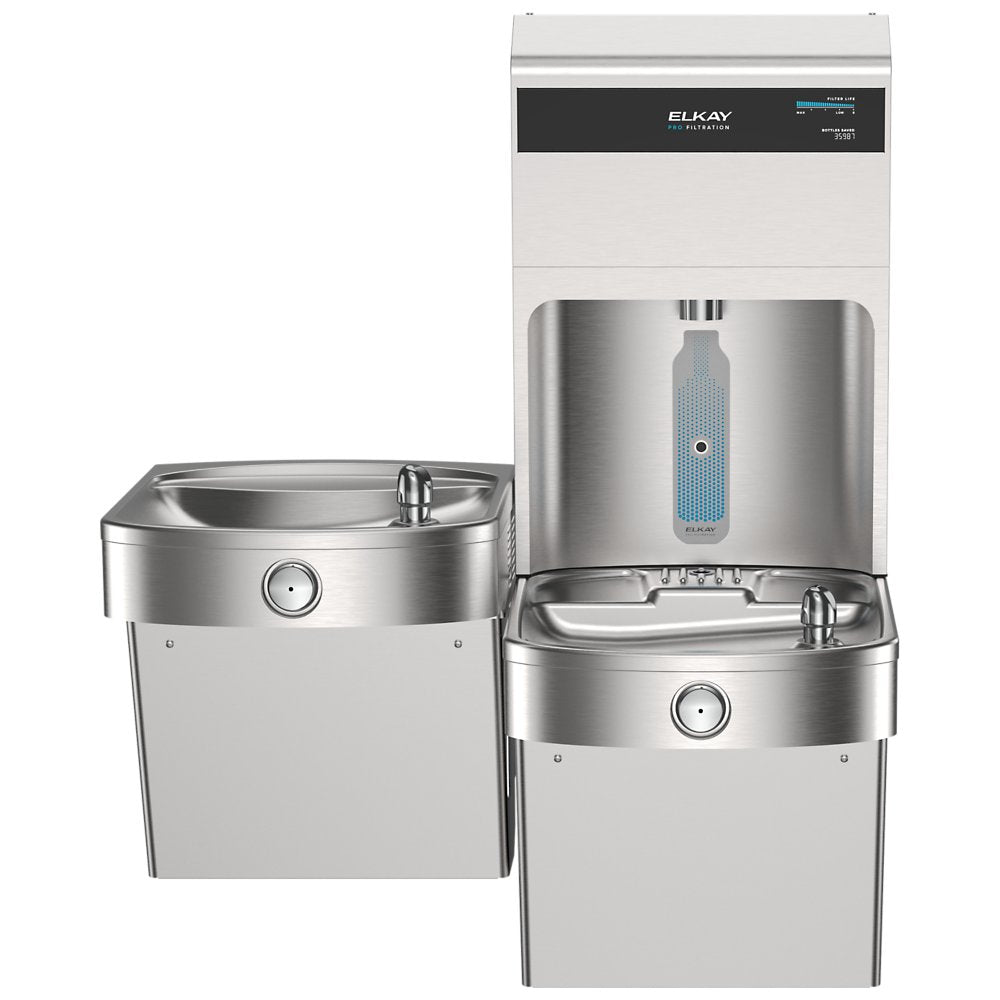

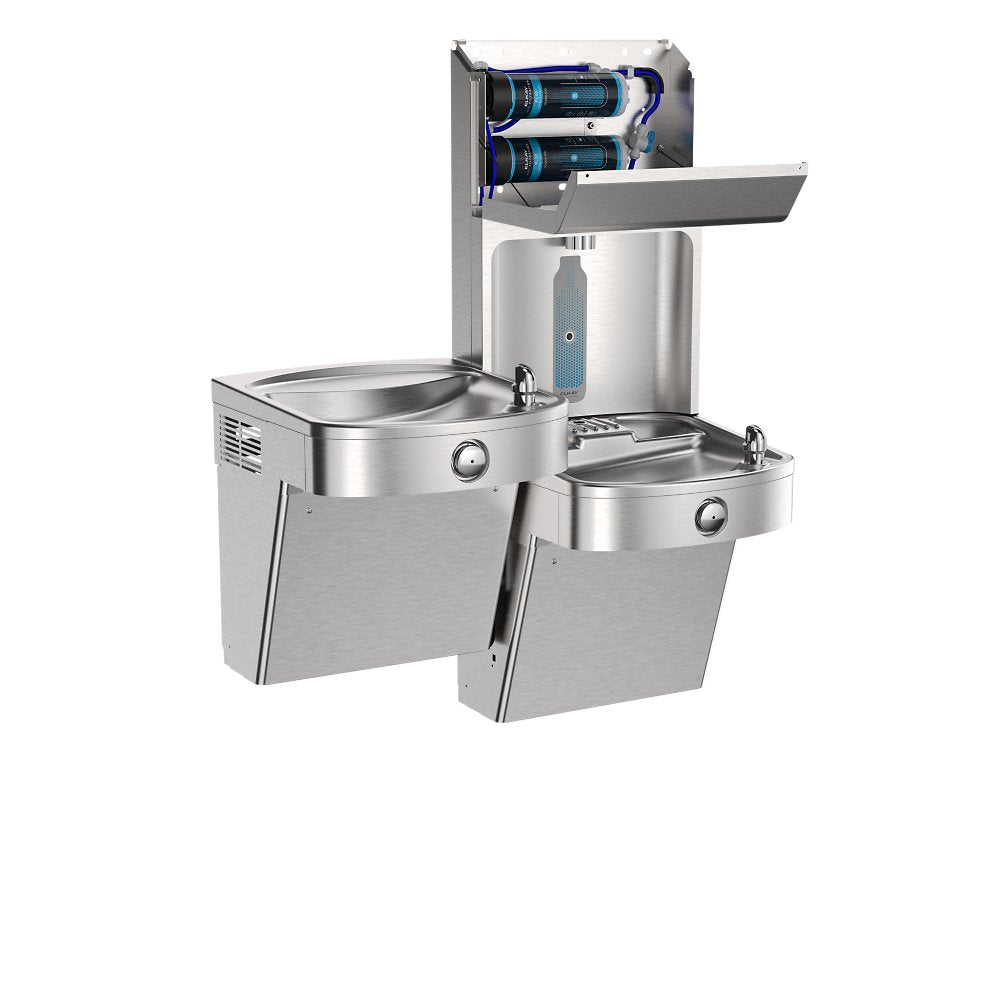

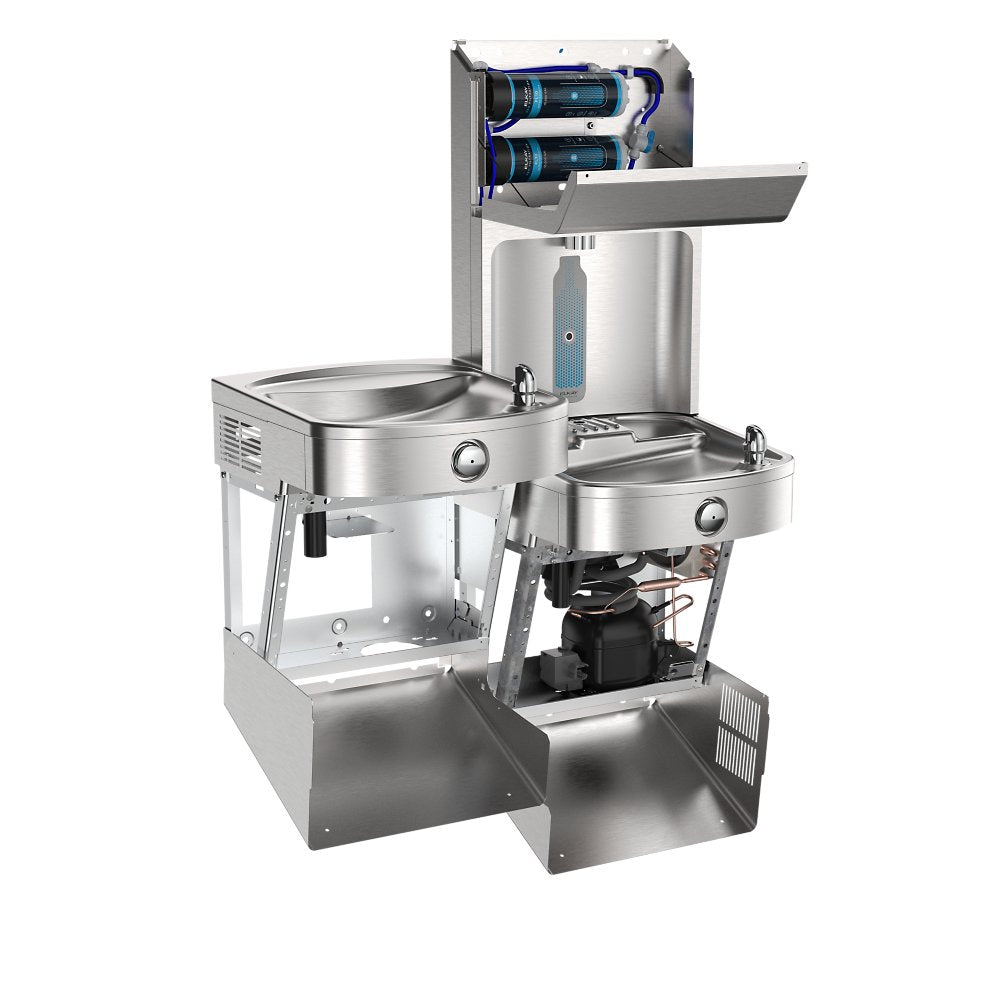

The Elkay LVRCTL8WSPRO-2FL10 is a vandal-resistant bi-level refrigerated water cooler with integrated touchless bottle filling station, dual ultra-capacity filtration (20,000 gal. total), cloud connectivity, and 8.0 GPH chilling capacity for high-traffic indoor environments.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Chlorine Taste & Odor, and other contaminants per NSF/ANSI 42, 53, 401
- Filter Capacity: 2x 10,000 Gal or 20,000 Gal. Total
- Refrigeration: 8.0 GPH chilling capacity (50°F output based on 80°F inlet, 90°F ambient)
- Power: 115V/60Hz, 5 Full Load Amps
Other Related Variants:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction
- LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter
-
LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection

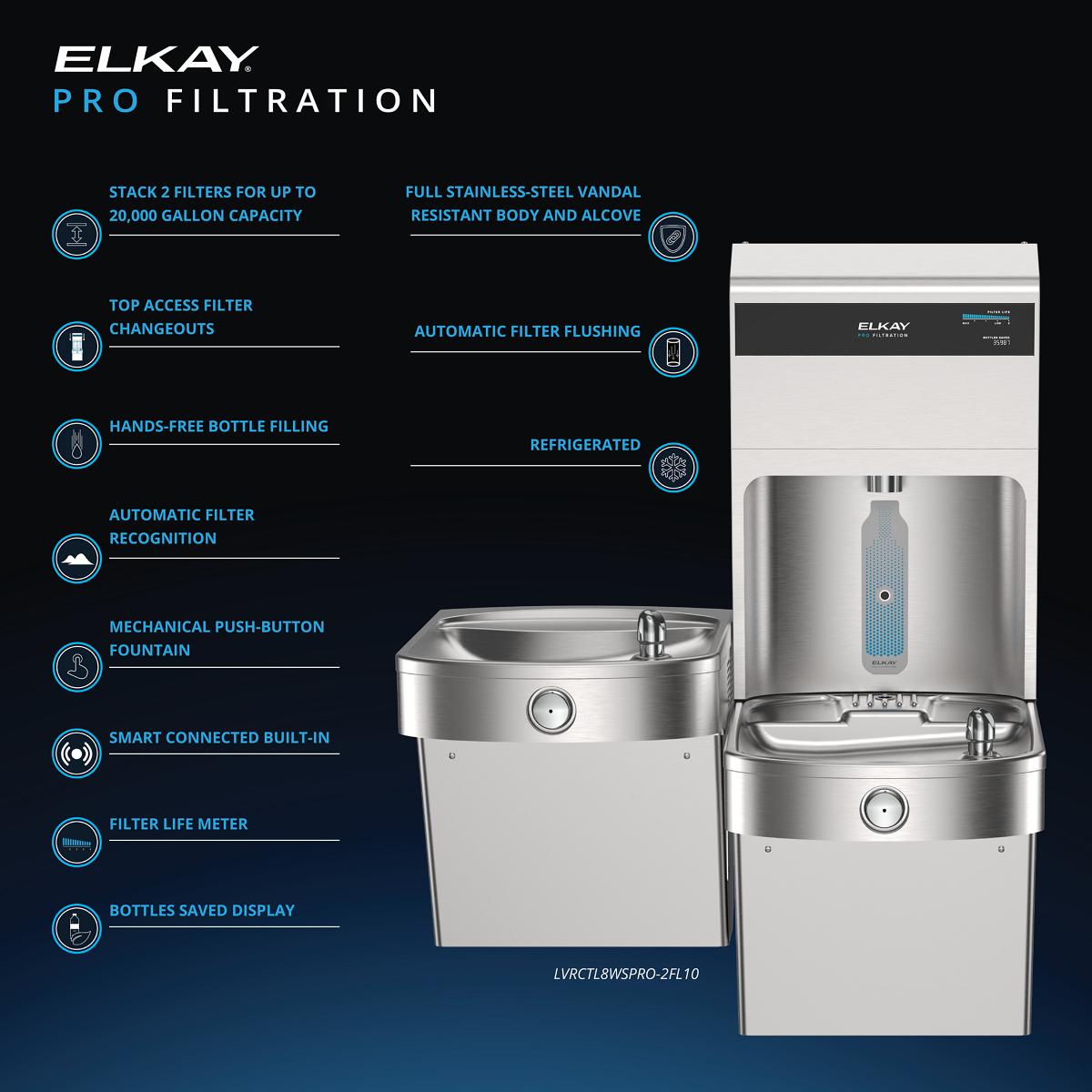

Features & Benefits:
- Cloud-Connected Monitoring: Track filter status, monitor performance, and flush the system remotely via plumbSMART Gateway, reducing maintenance visits and ensuring optimal operation.
- Dual Ultra-Capacity Filtration: Two 10,000-gallon filters provide 20,000 gallons total capacity with automatic recognition and flushing, delivering safer drinking water while minimizing filter replacement frequency in high-traffic areas.
- Vandal-Resistant Design: Stainless steel alcove, tempered glass display cover, and mechanical bubbler backup ensure durability and reliability in demanding public environments.
- Sustainability & User Engagement: Green Ticker display shows bottles saved from waste, encouraging eco-friendly hydration habits while touchless sensor activation and laminar flow provide hygienic, splash-free operation.
FAQ
Q: What certifications do the included filters have?

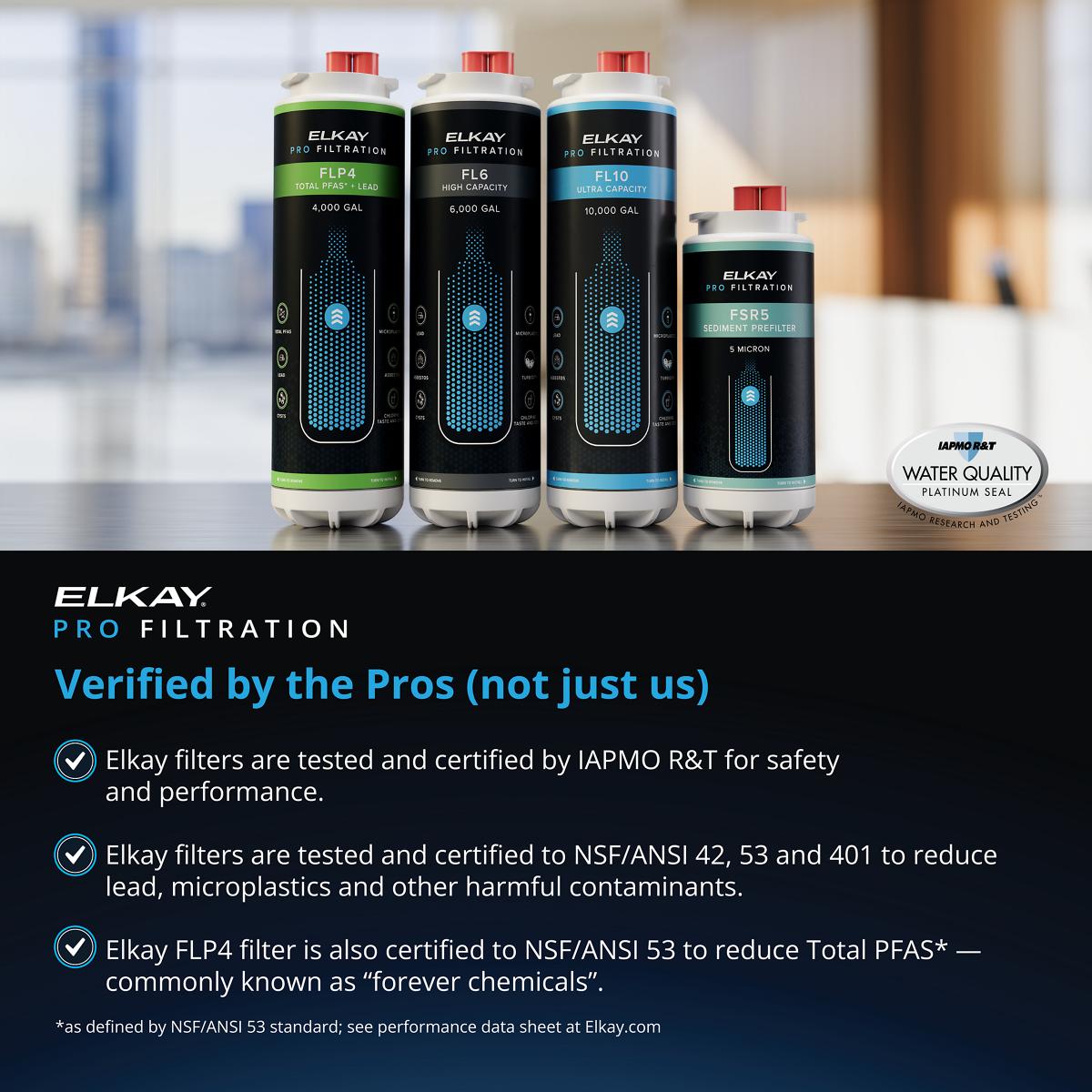

A: The dual FL10 Ultra-Capacity filters included with the Elkay LVRCTL8WSPRO-2FL10 are tested and certified to NSF/ANSI Standards 42, 53, and 401, reducing lead, microplastics, cysts, chlorine taste and odor, and other contaminants for safer drinking water.
Q: How does the cloud connectivity feature work?
A: The Elkay LVRCTL8WSPRO-2FL10 requires a plumbSMART Gateway (sold separately) and account for cloud connection. This allows facility managers to remotely monitor filter life, track performance metrics, anticipate maintenance needs, and flush the system from anywhere.
Q: What makes the filter replacement process easier?

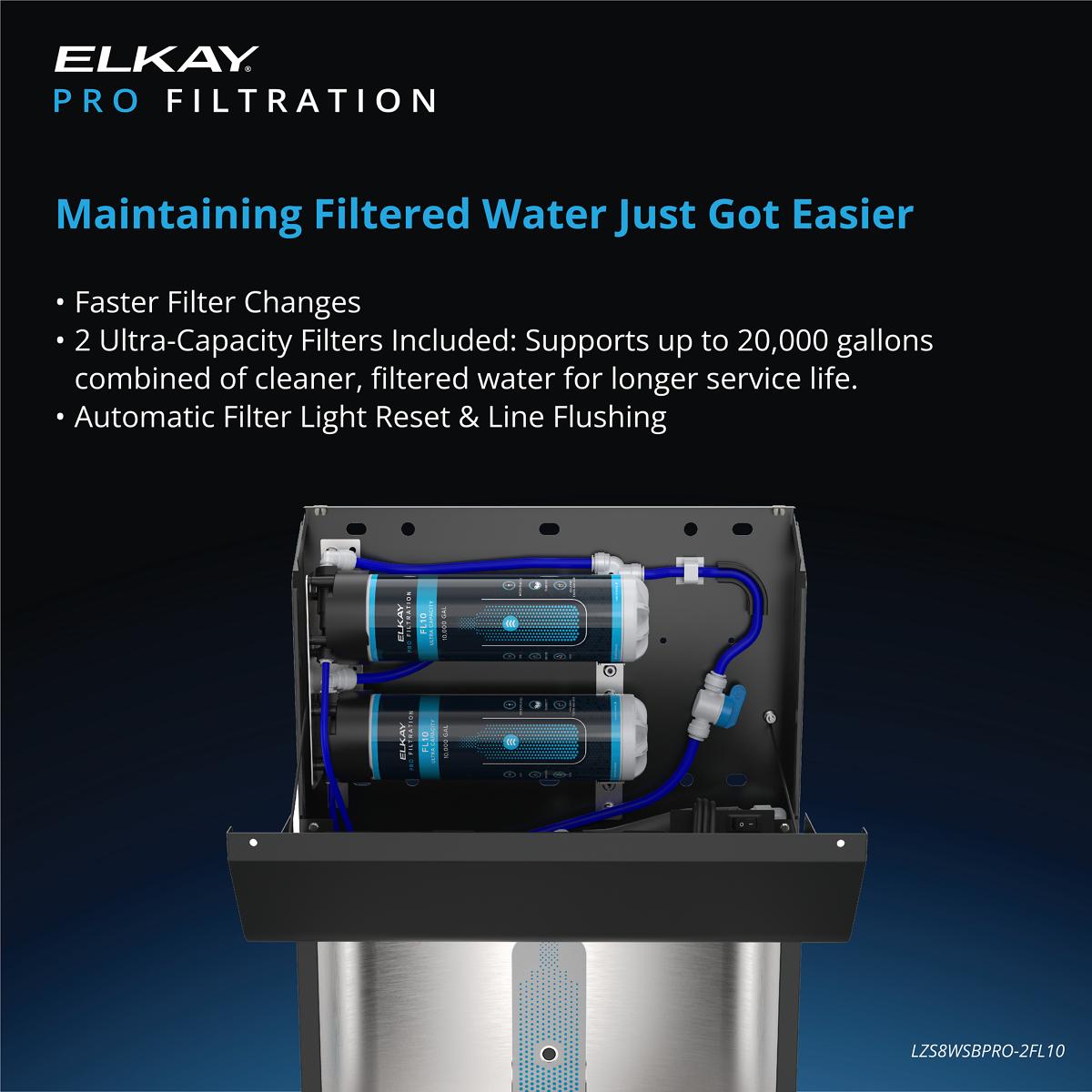

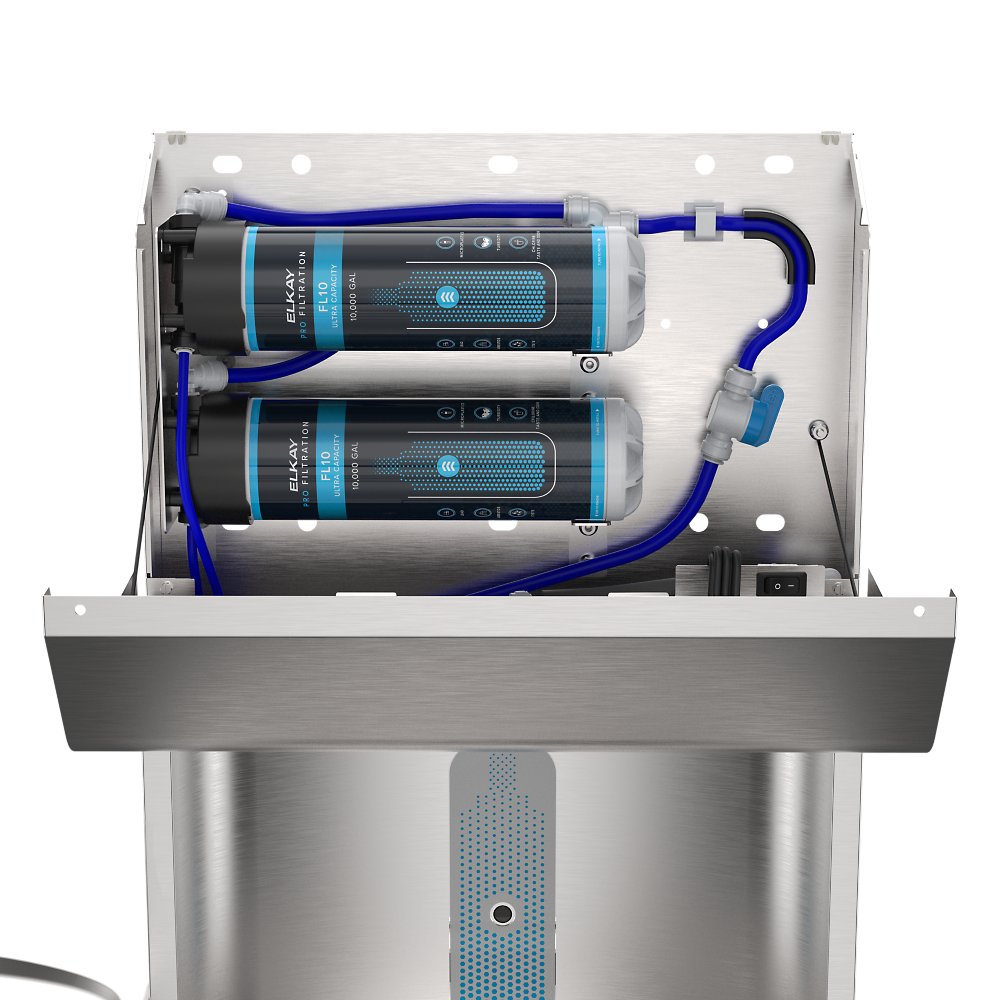

A: Top-mount quick filter change design allows both ultra-capacity filters to be accessed and replaced from the top of the unit. The system automatically recognizes new filters, resets the filter status indicator, and initiates an automatic flush sequence to reduce installation time and effort.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:

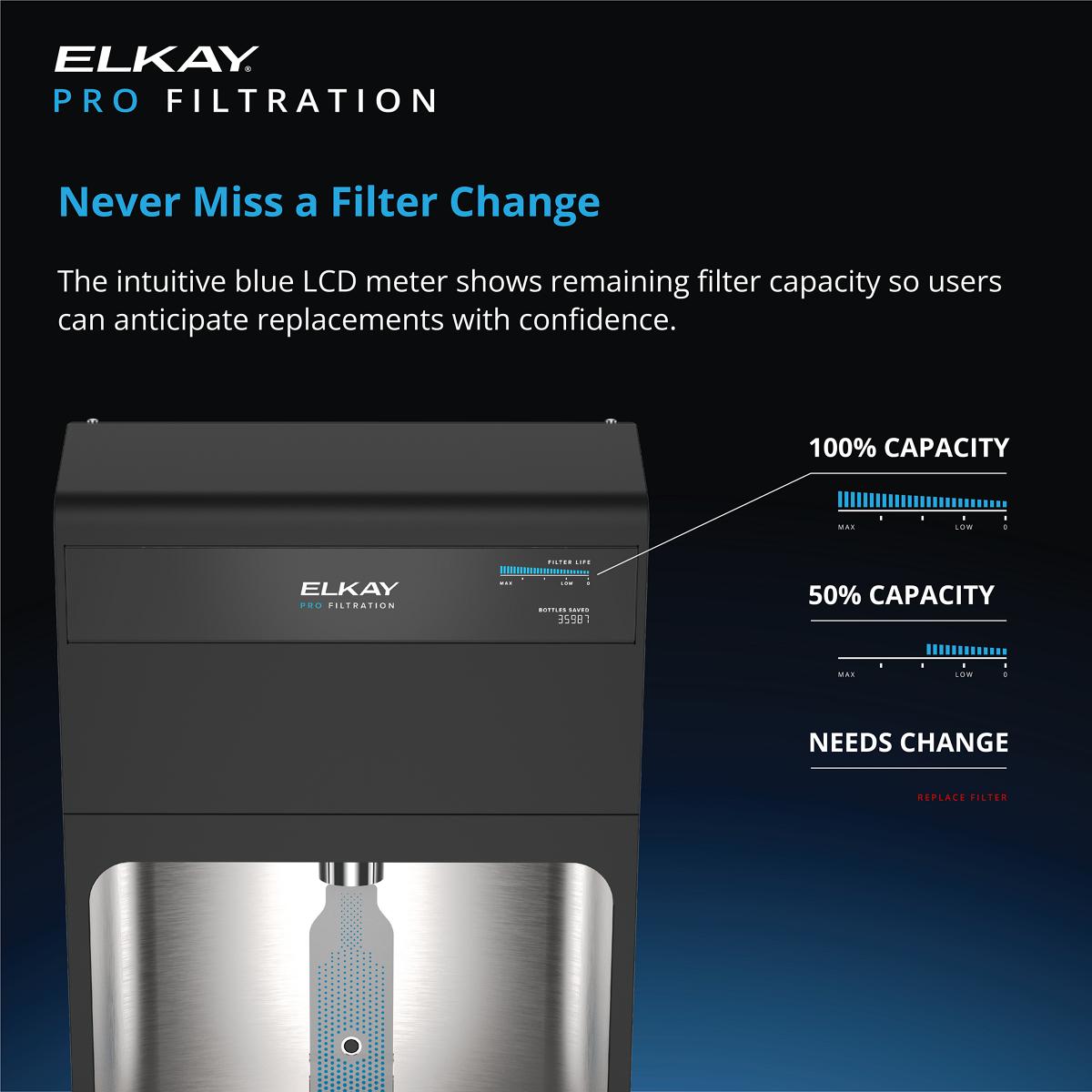

- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
