Elkay LVRC8WSPRO-UV | Pro Filtration Bottle Filler & Cooler | 1...

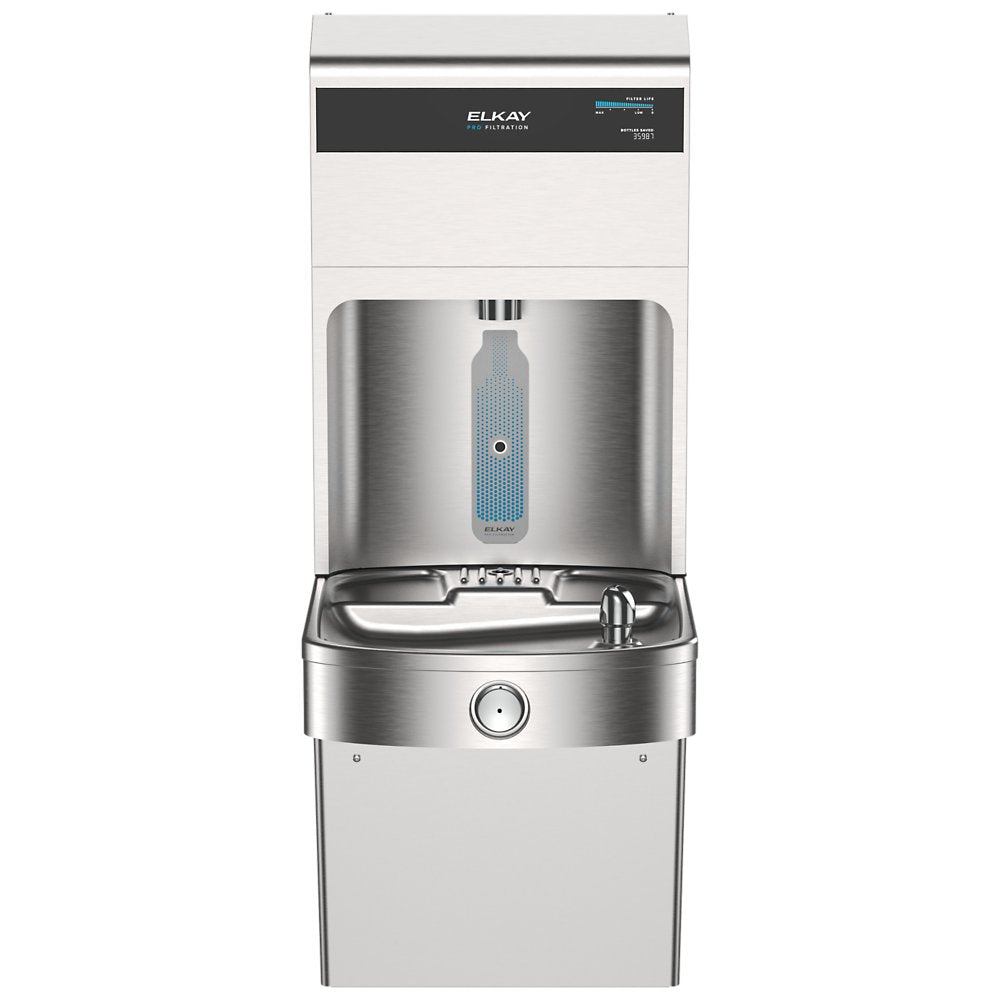

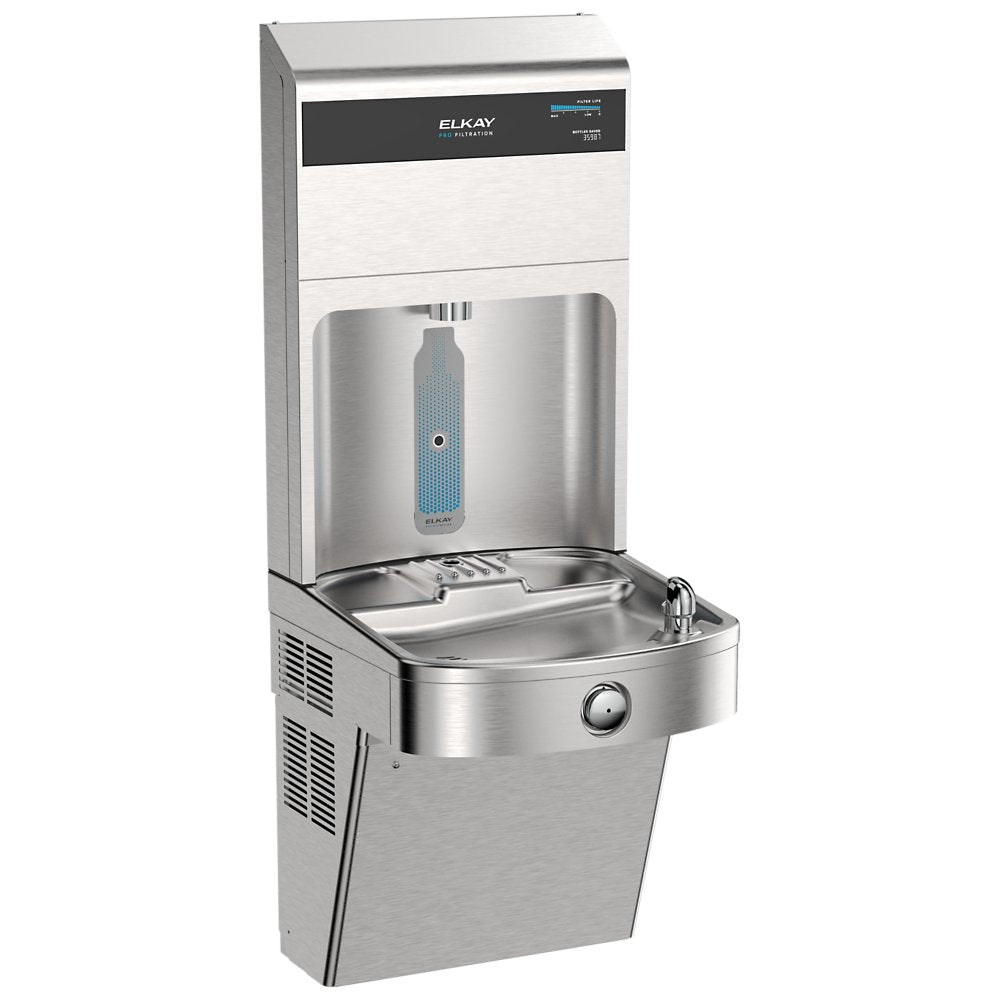

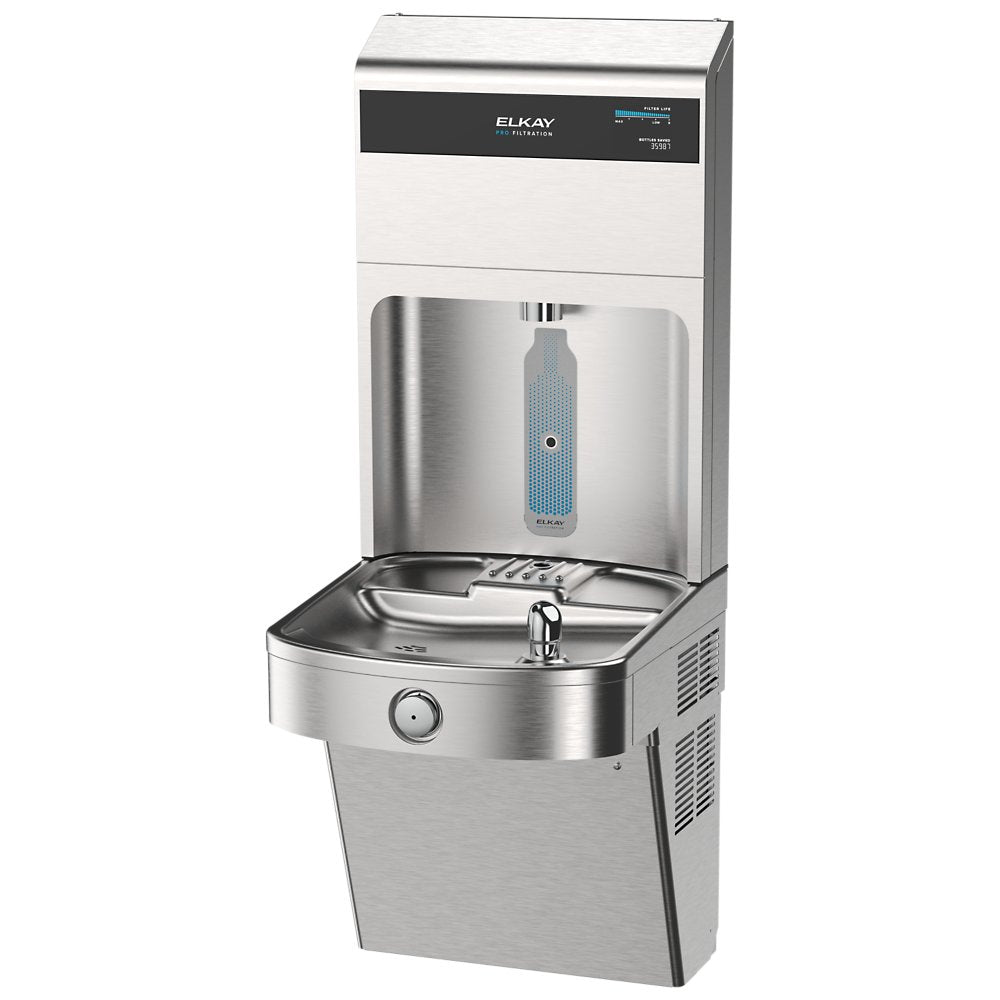

The Elkay LVRC8WSPRO-UV Series is a vandal-resistant connected bottle filling station and water cooler with UV protection and ultra-capacity filtration.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Chlorine Taste & Odor, Cysts
- Filter Capacity: 10,000 Gal.
- Refrigeration: 8.0 GPH Water Chiller Included
- Power: 115V/60Hz
Other Related Variants:

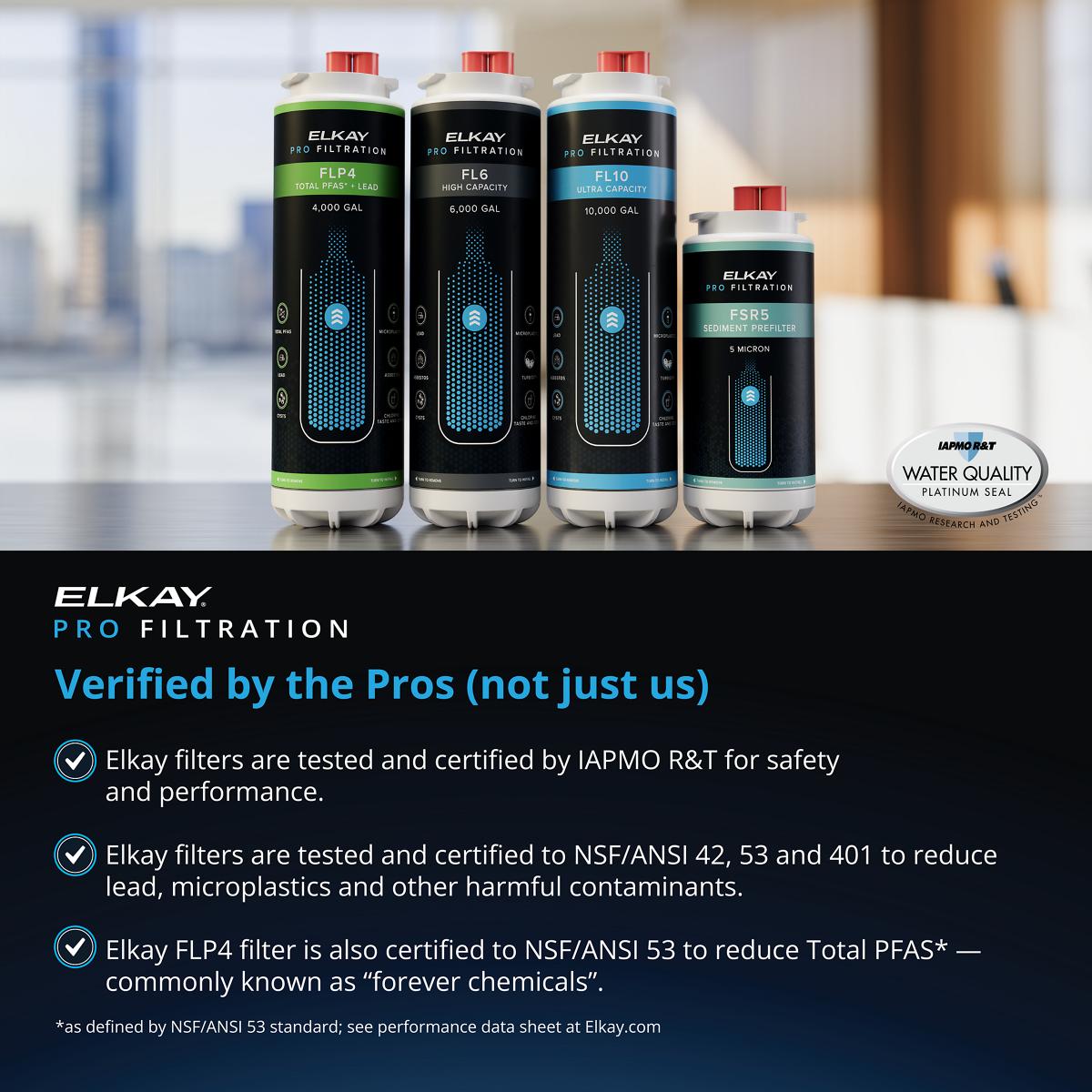

- LVRC8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRC8WSPRO-2FL10: Dual 10,000-gallon filtration system
- LVRC8WSPRO-FLP4: Single Total PFAS + Lead filter (4,000-gallon capacity)
- LVRC8WSPRO-2FLP4: Dual PFAS + Lead filtration system
-
LVRC8WSPRO-FSR5: Two-stage filtration with sediment prefilter
Features & Benefits:

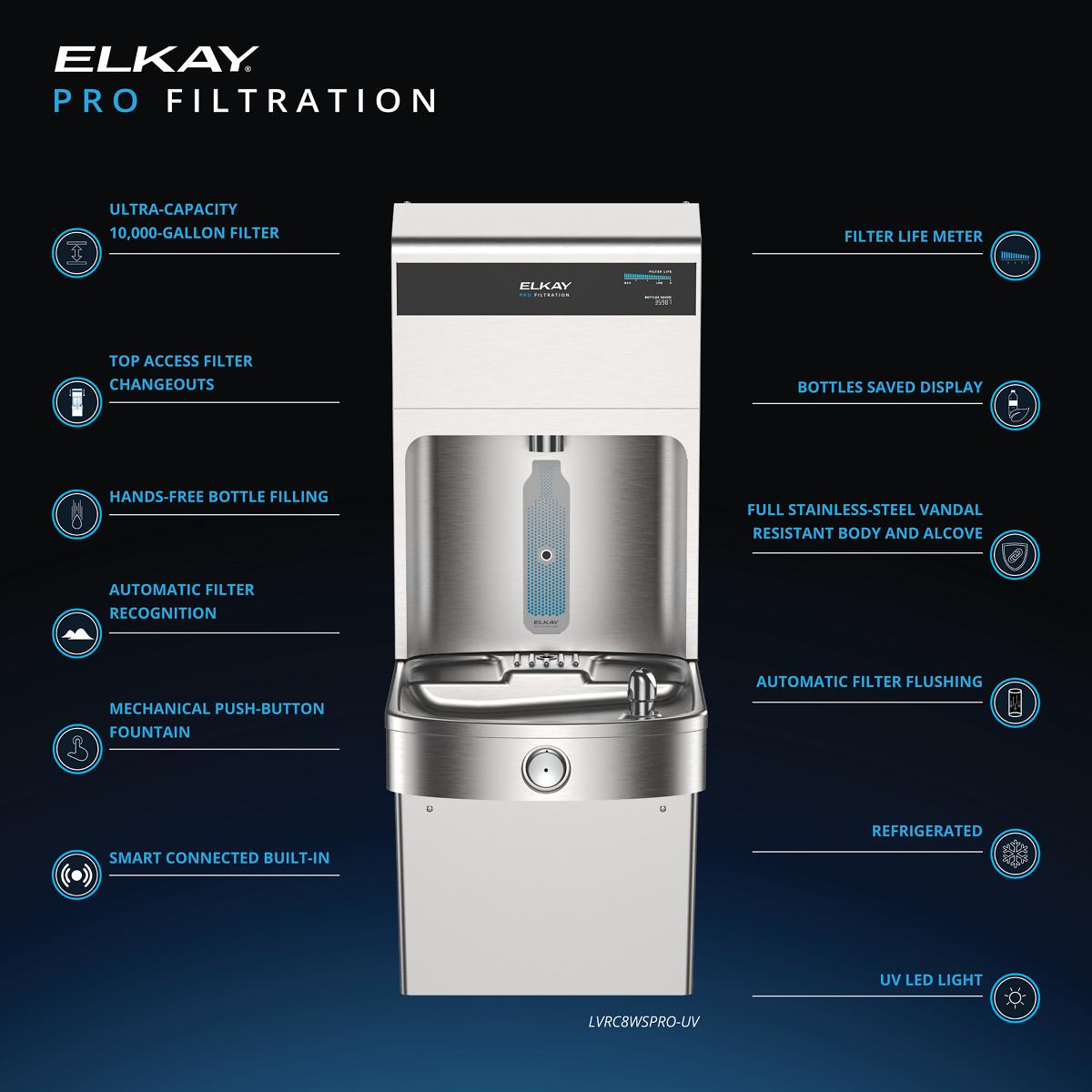

- Advanced Filtration with UV Protection: The LVRC8WSPRO-UV Series combines NSF/ANSI 42, 53 & 401 certified filtration with UV protection, providing an additional layer of microbial defense to reduce lead, microplastics, and other contaminants for safer drinking water in high-traffic areas.
- Smart Connected Technology: Cloud connectivity allows facility managers to remotely monitor filter status, track performance, anticipate maintenance needs, and flush the system from anywhere, saving time and resources while ensuring optimal operation.

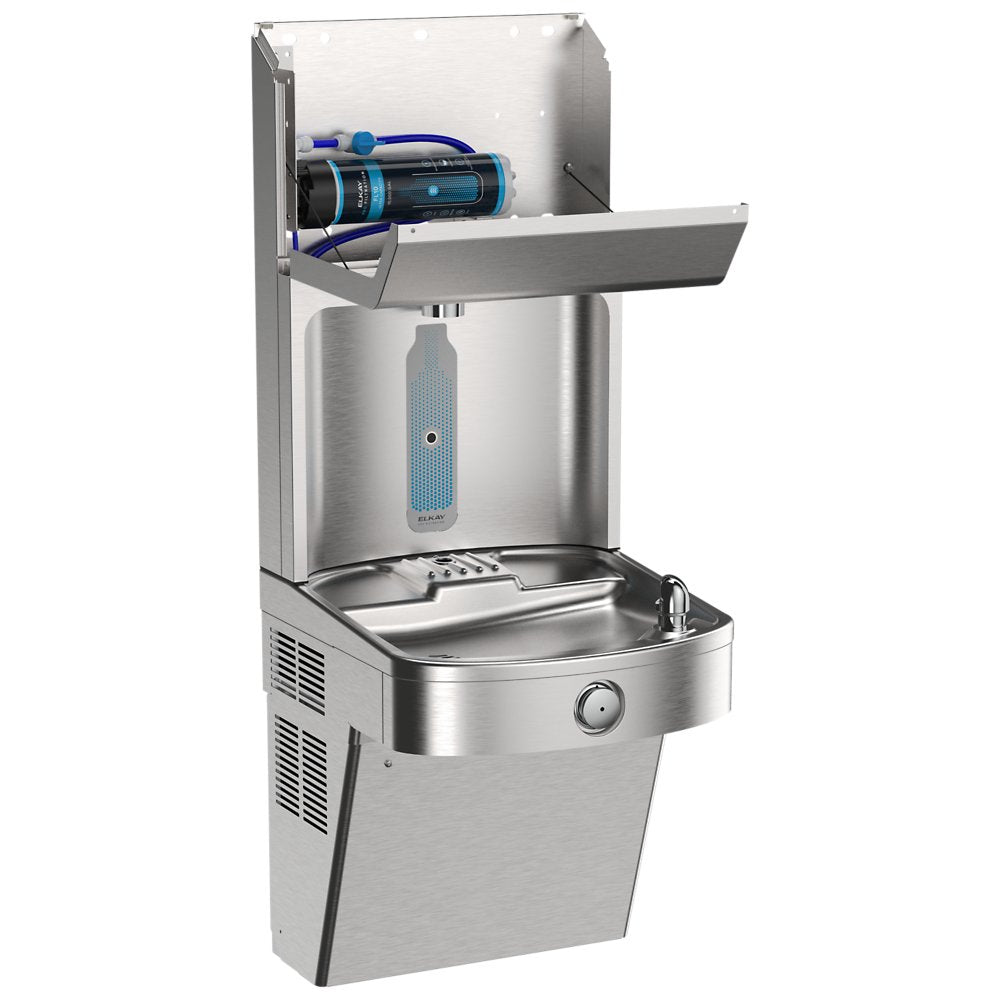

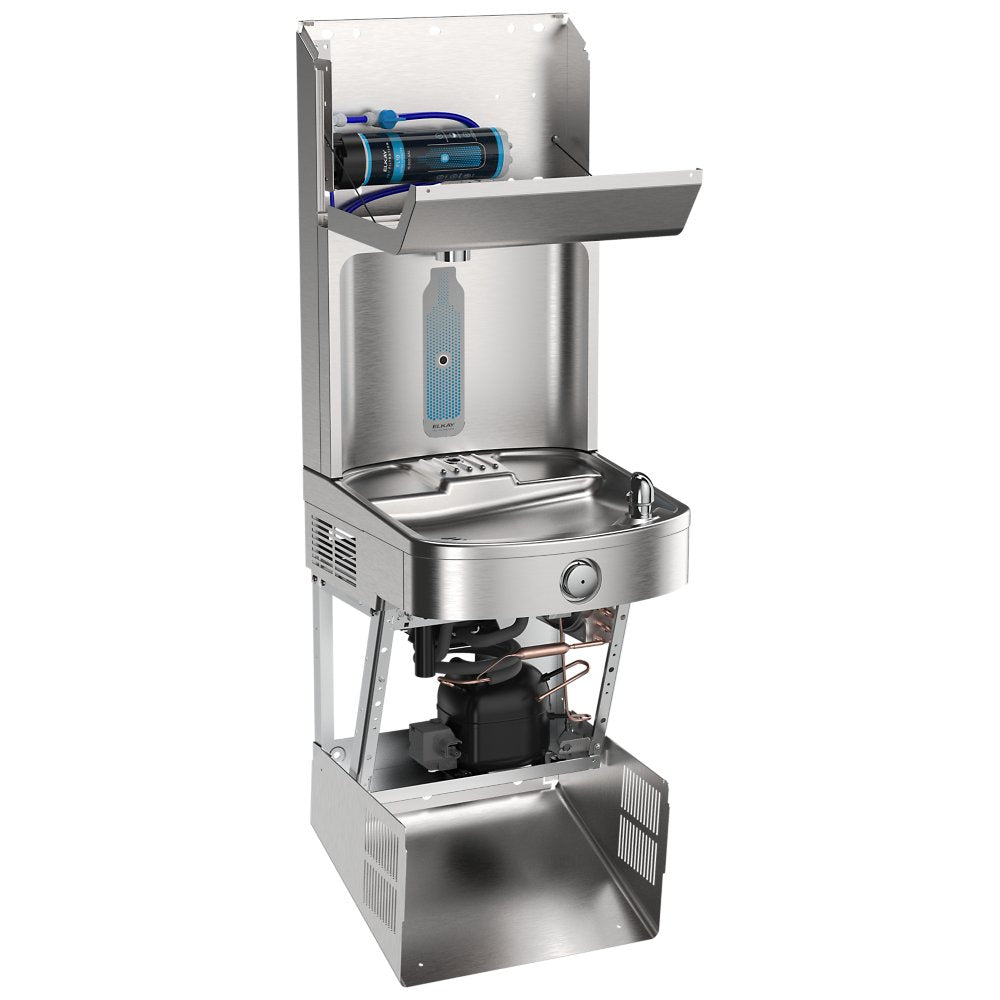

- Effortless Maintenance: Top-mount quick filter change design houses both the stage 1 sediment prefilter and main contaminant filter at the top of the unit, with automatic filter recognition and flushing that resets filter status and cleans debris upon installation for simplified maintenance.
- Environmental Sustainability: The Green Ticker™ display shows the number of 20-ounce plastic bottles saved from waste, encouraging eco-friendly hydration habits while the touchless sensor-activated bottle filler delivers 1.0 GPM with laminar flow for quick, hygienic fills.
FAQ
Q: What makes the LVRC8WSPRO-UV Series vandal-resistant?
A: The unit features a stainless steel alcove, tempered glass display cover, and vandal-resistant mechanical push button bubbler as a backup to the electronic sensor, ensuring durability and continuous operation even in high-use public environments.
Q: What is required for cloud connectivity on this unit?
A: A plumbSMART Gateway (sold separately, model ZGW-LORA-W1-LTE) and associated account are required to enable cloud connection features including remote monitoring, filter status tracking, and system flushing capabilities.
Q: How does the UV protection feature work?
A: The UV protection system provides an added layer of microbial defense that works in conjunction with the standard filtration system to help reduce microorganisms in the water, offering enhanced protection beyond traditional filtration alone.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

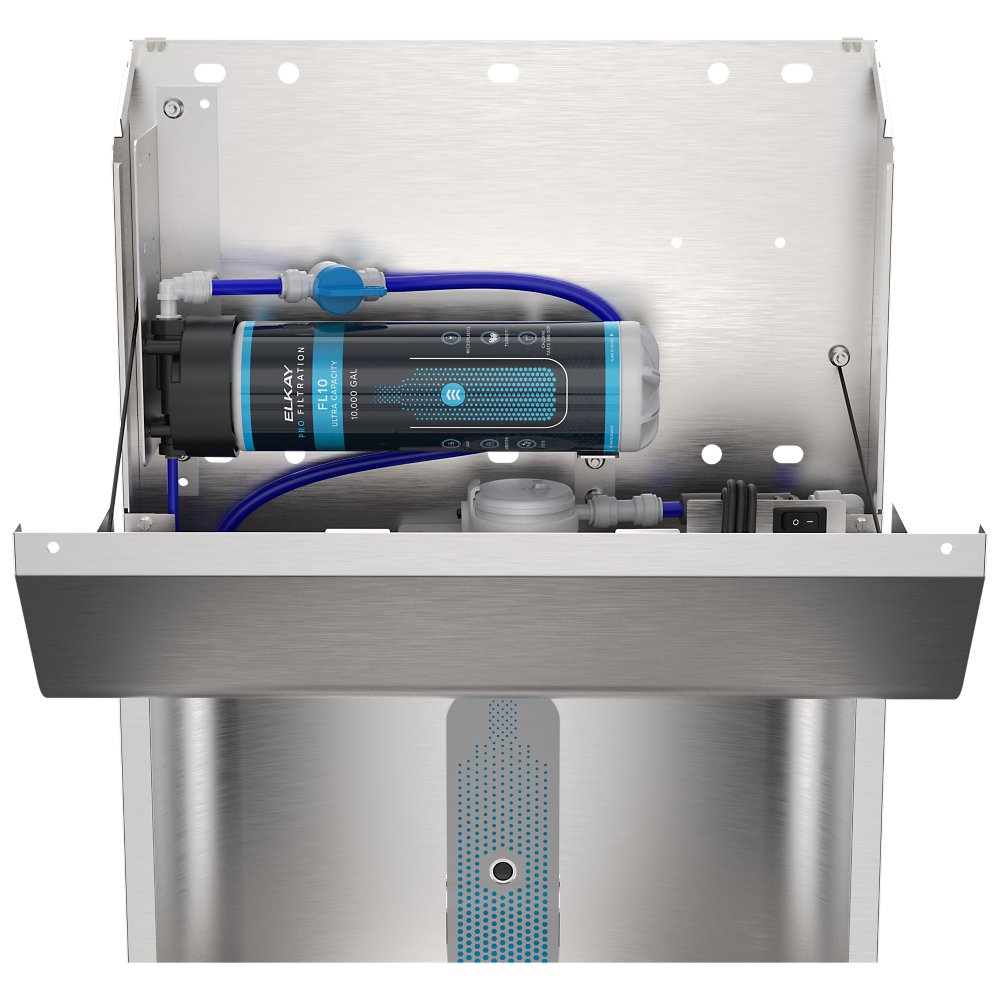

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
