Elkay LVRC8WSPRO-FSR5 | Pro Filtration Bottle Filler & Cooler |...

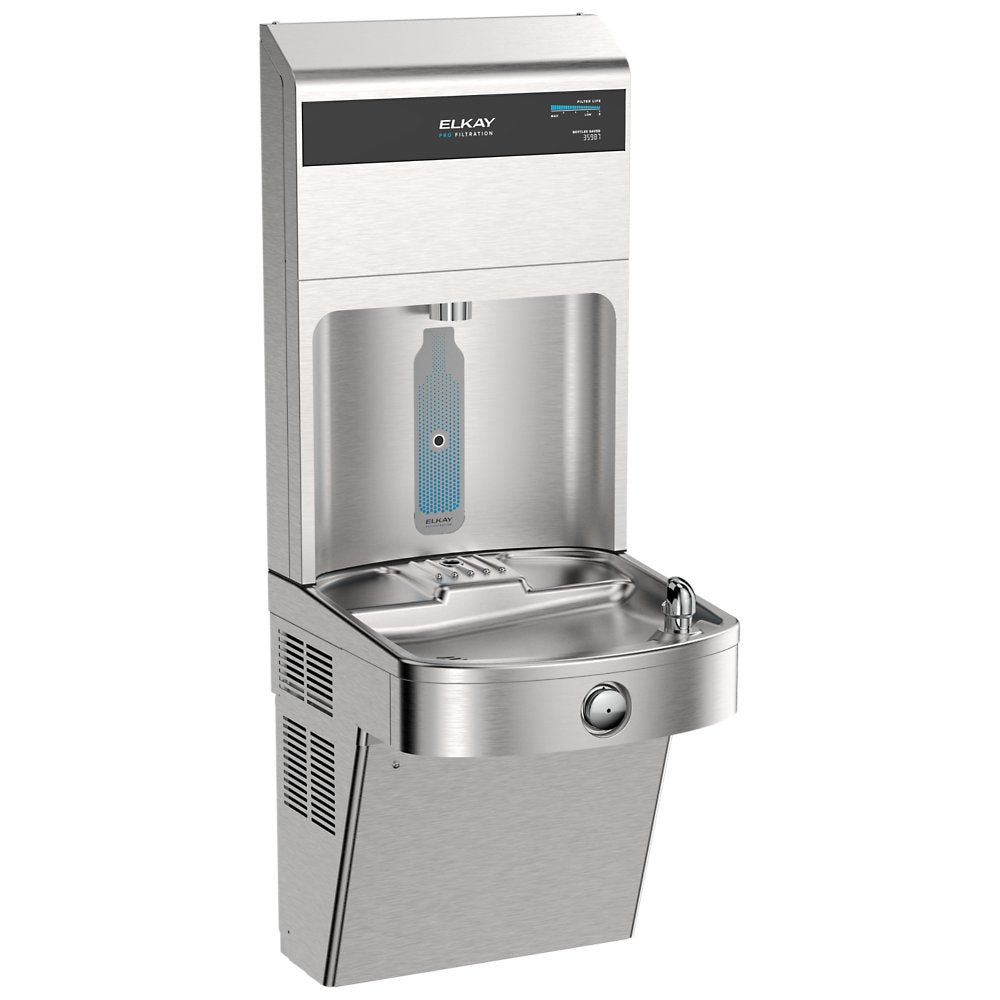

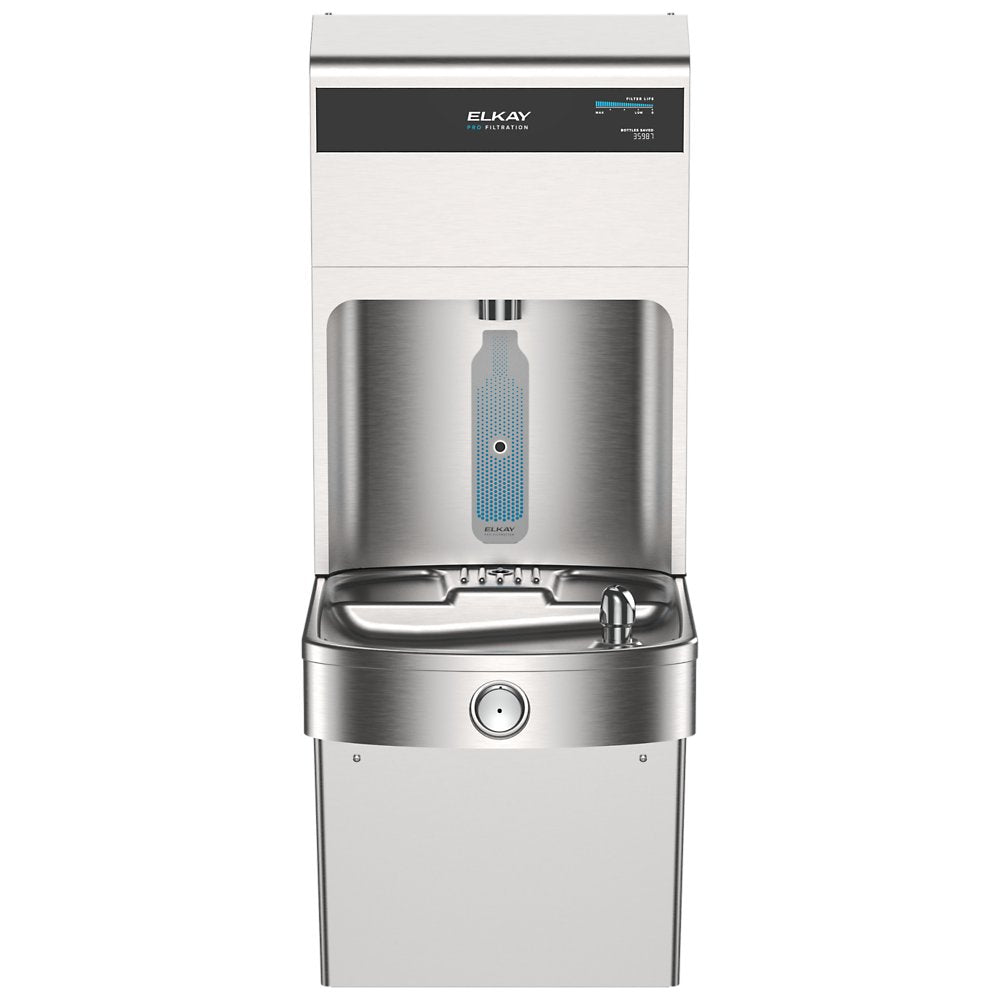

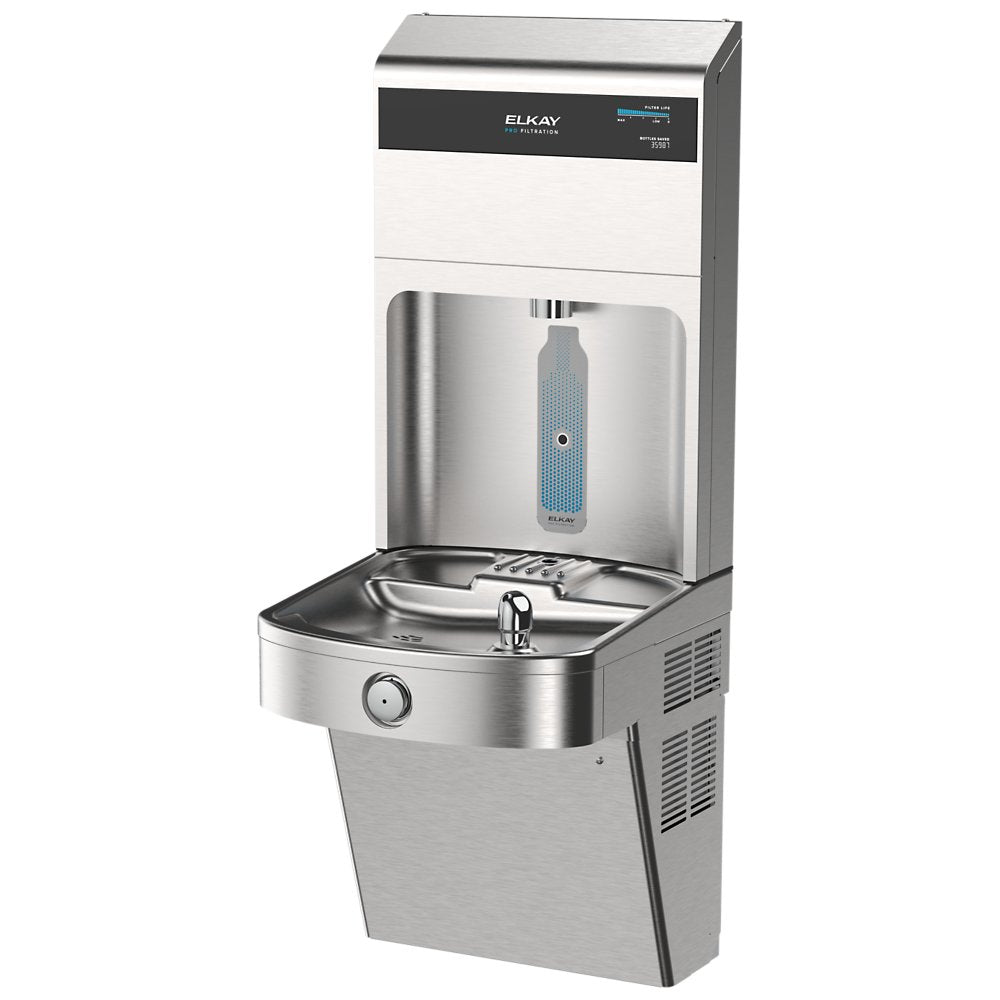

Cloud-connected vandal-resistant bottle filling station with refrigerated water cooler, featuring two-stage filtration with 10,000-gallon ultra-capacity lead filter and sediment prefilter for high-traffic applications.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Chlorine Taste & Odor, Cysts
- Filter Capacity: 10,000 Gal. Ultra-Capacity Filter with Stage 1 Sediment Prefilter
- Refrigeration: 8.0 GPH Chilling Capacity
- Power: 115V/60Hz
Other Related Variants:
- LVRC8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRC8WSPRO-2FL10: Dual 10,000-gallon filtration system
- LVRC8WSPRO-FLP4: Single Total PFAS + Lead filter (4,000-gallon capacity)
- LVRC8WSPRO-2FLP4: Dual PFAS + Lead filtration system
-
LVRC8WSPRO-UV: UV protection with advanced filtration

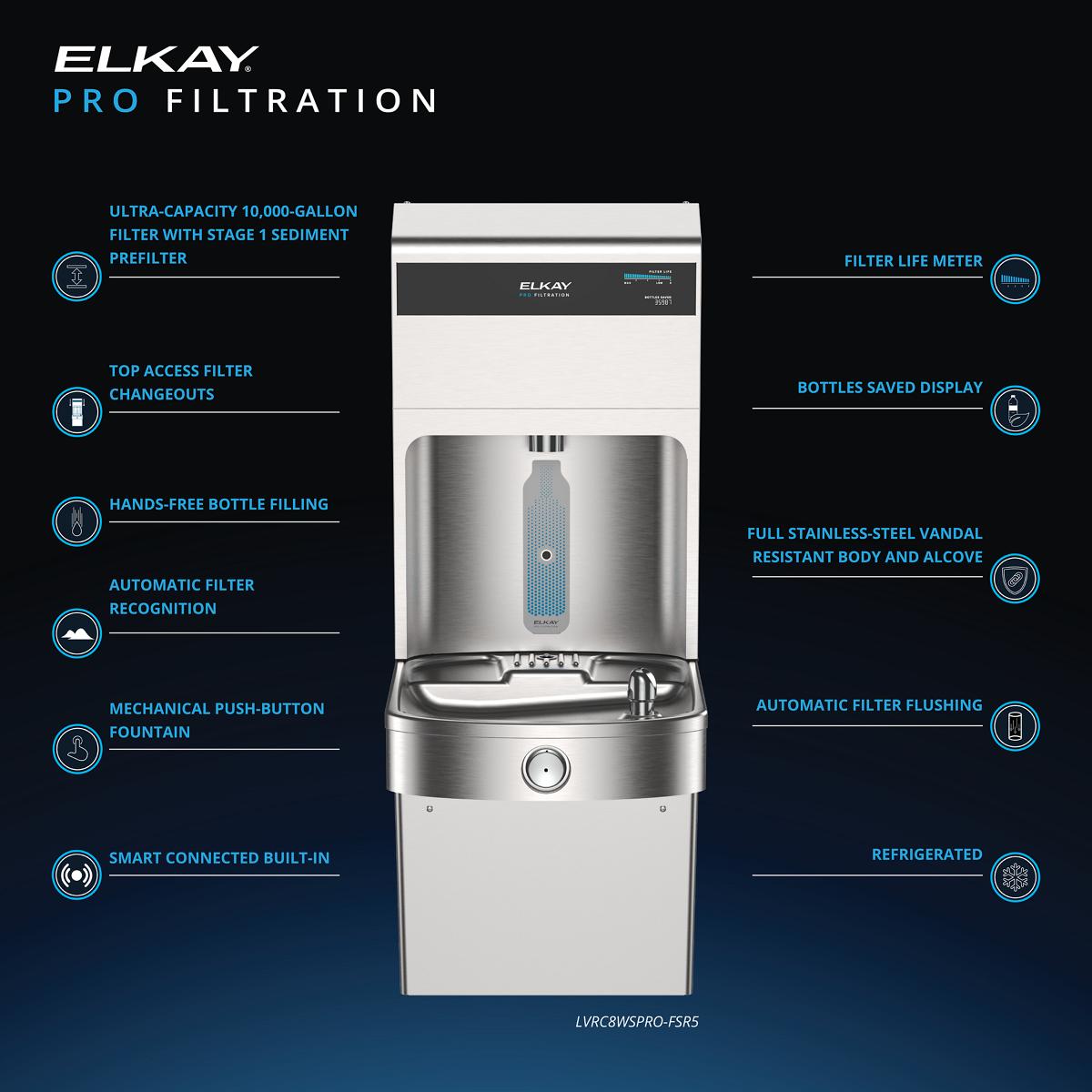

Features & Benefits:

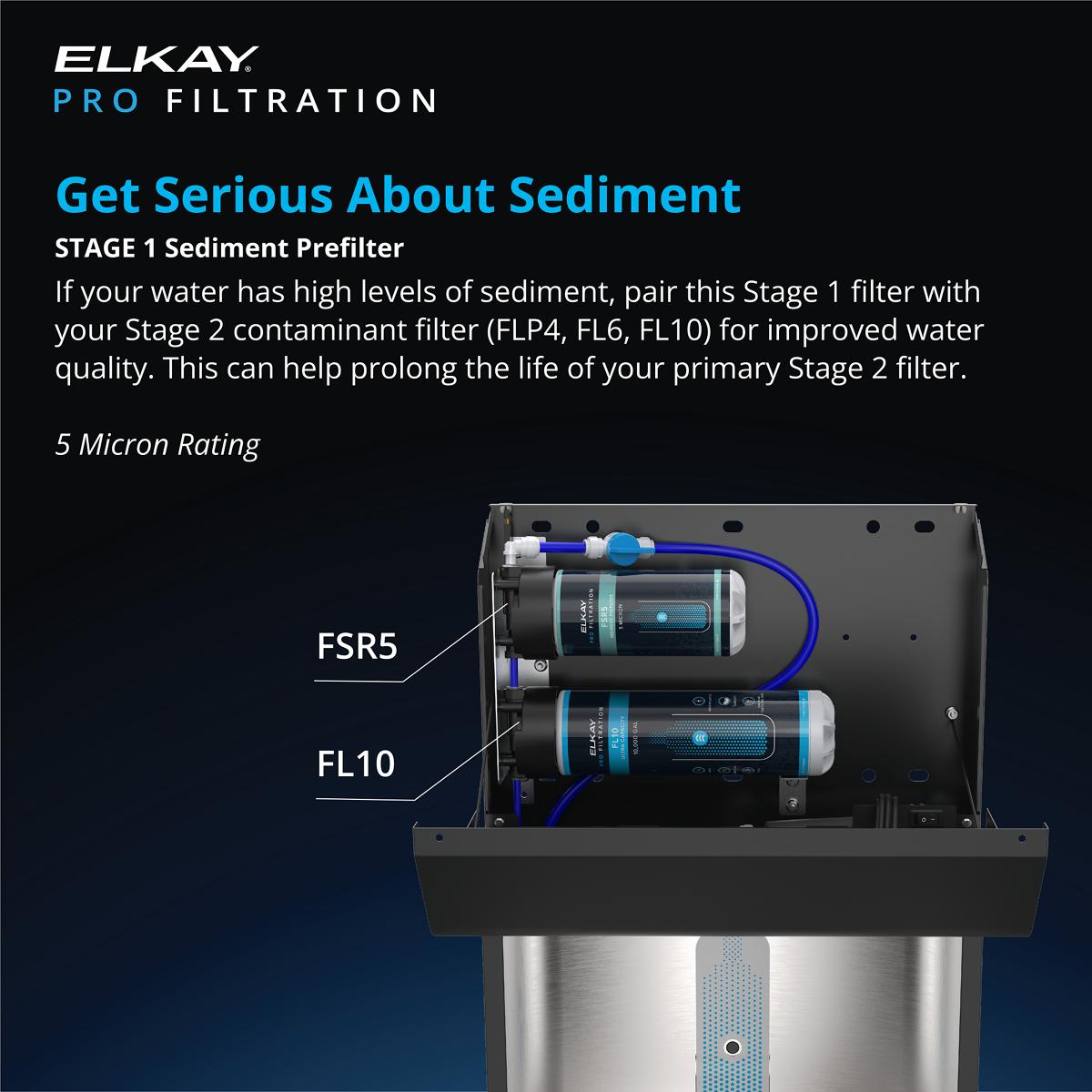

- Advanced Two-Stage Filtration: The LVRC8WSPRO-FSR5 combines a 10,000-gallon ultra-capacity filter with a sediment prefilter to deliver superior water quality while extending primary filter life by capturing dirt and particulates before they reach the main filter.

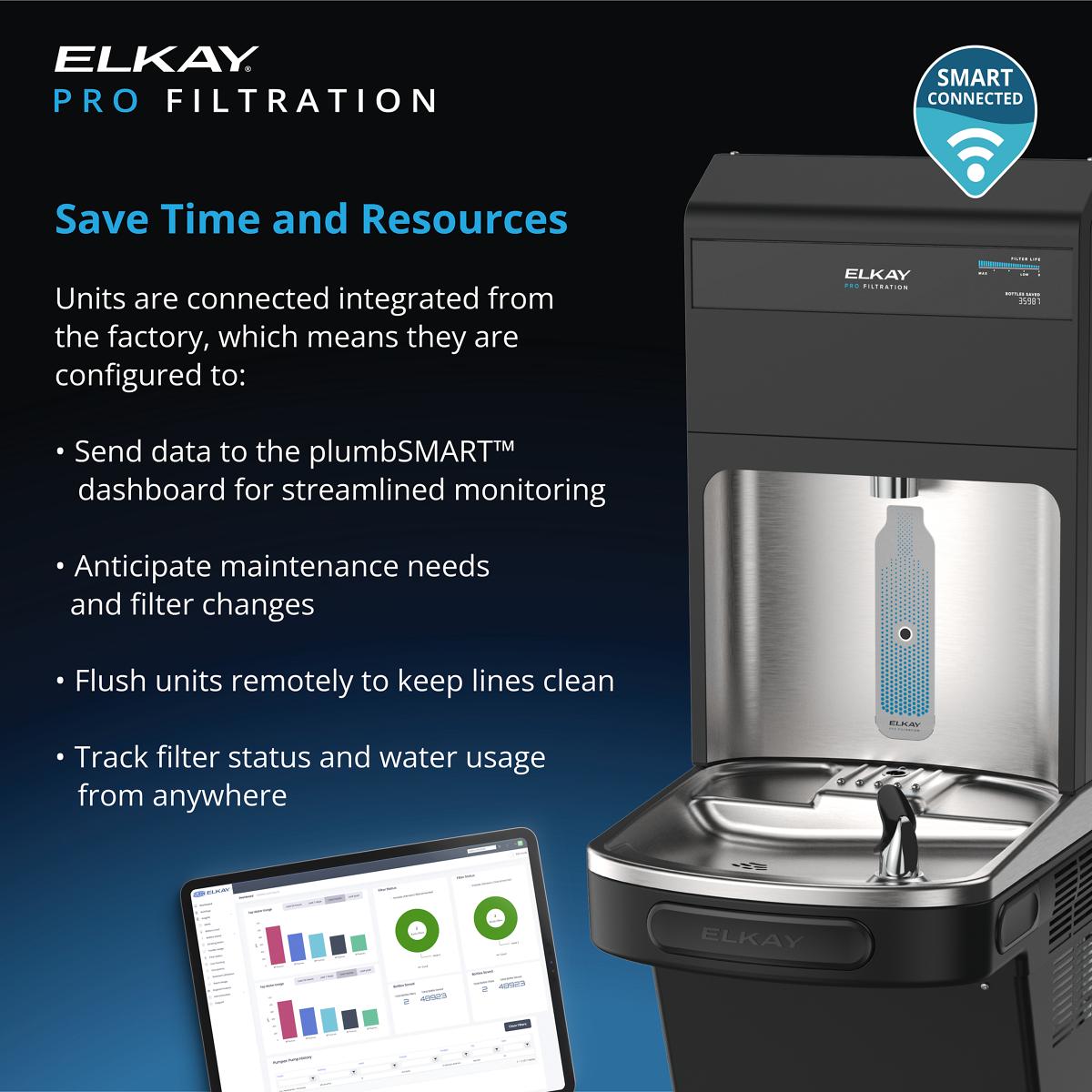

- Cloud-Connected Monitoring: Track filter status, monitor performance, and remotely flush the system from anywhere using the plumbSMART Gateway, saving time and resources while ensuring optimal maintenance scheduling.

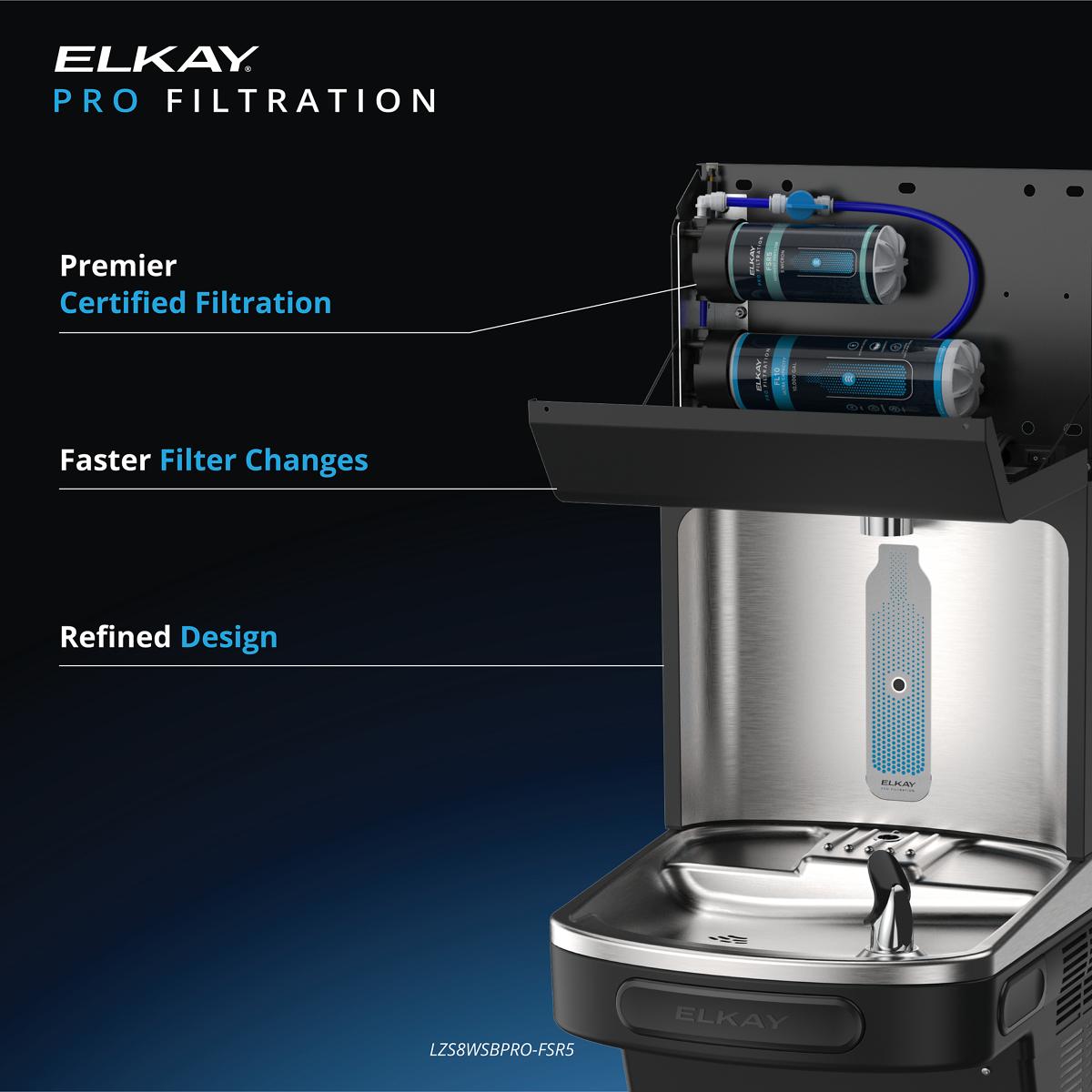

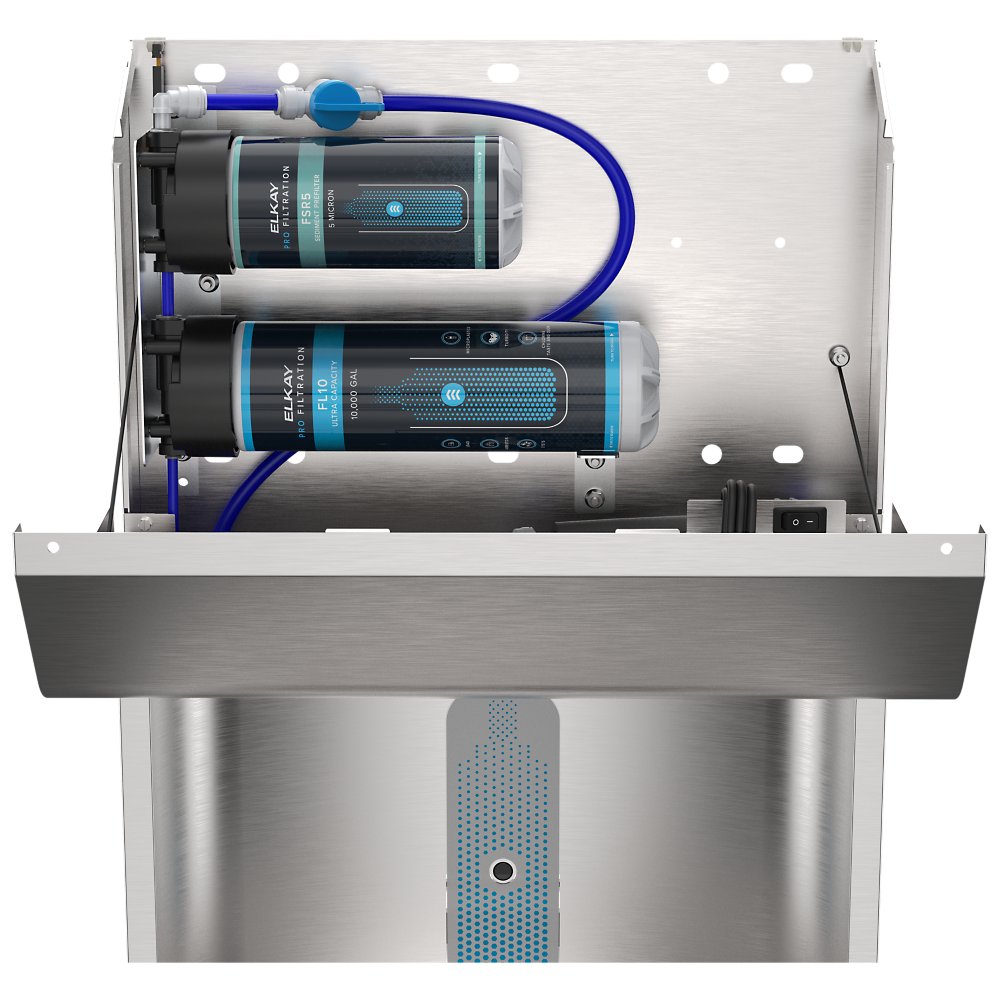

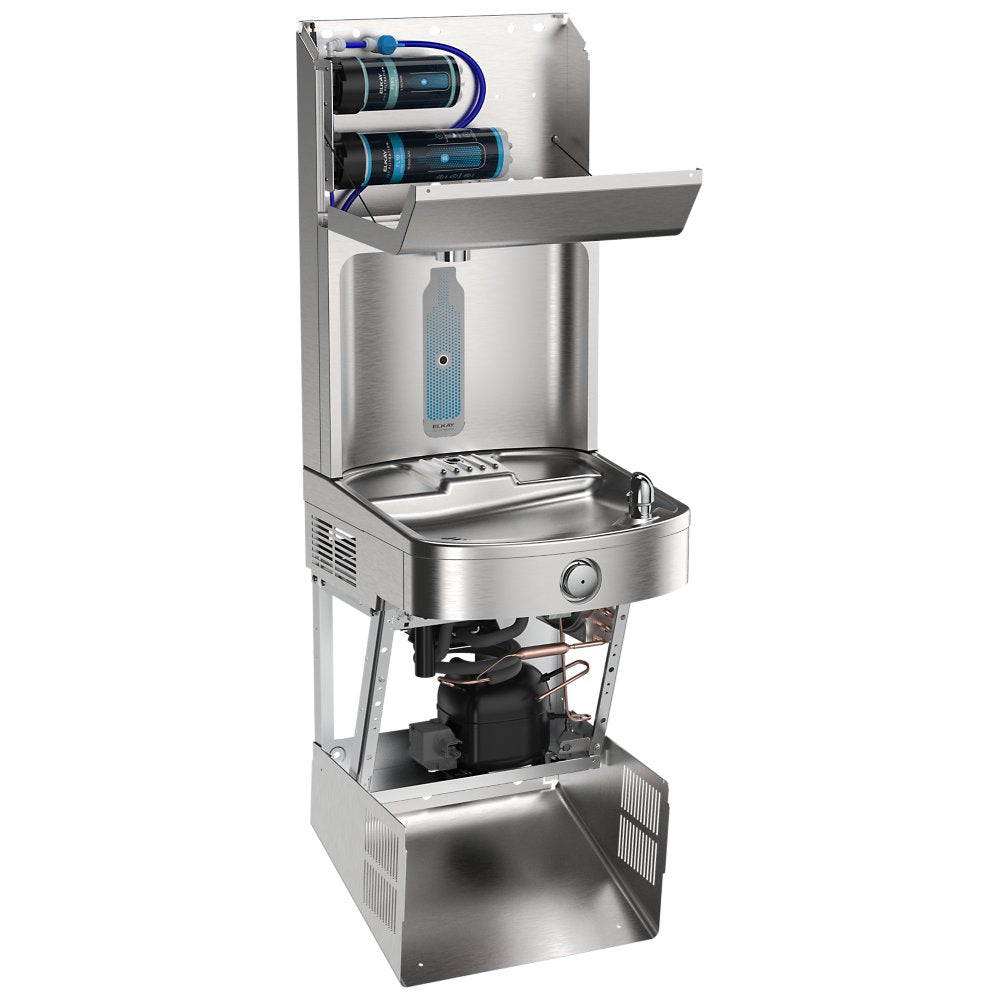

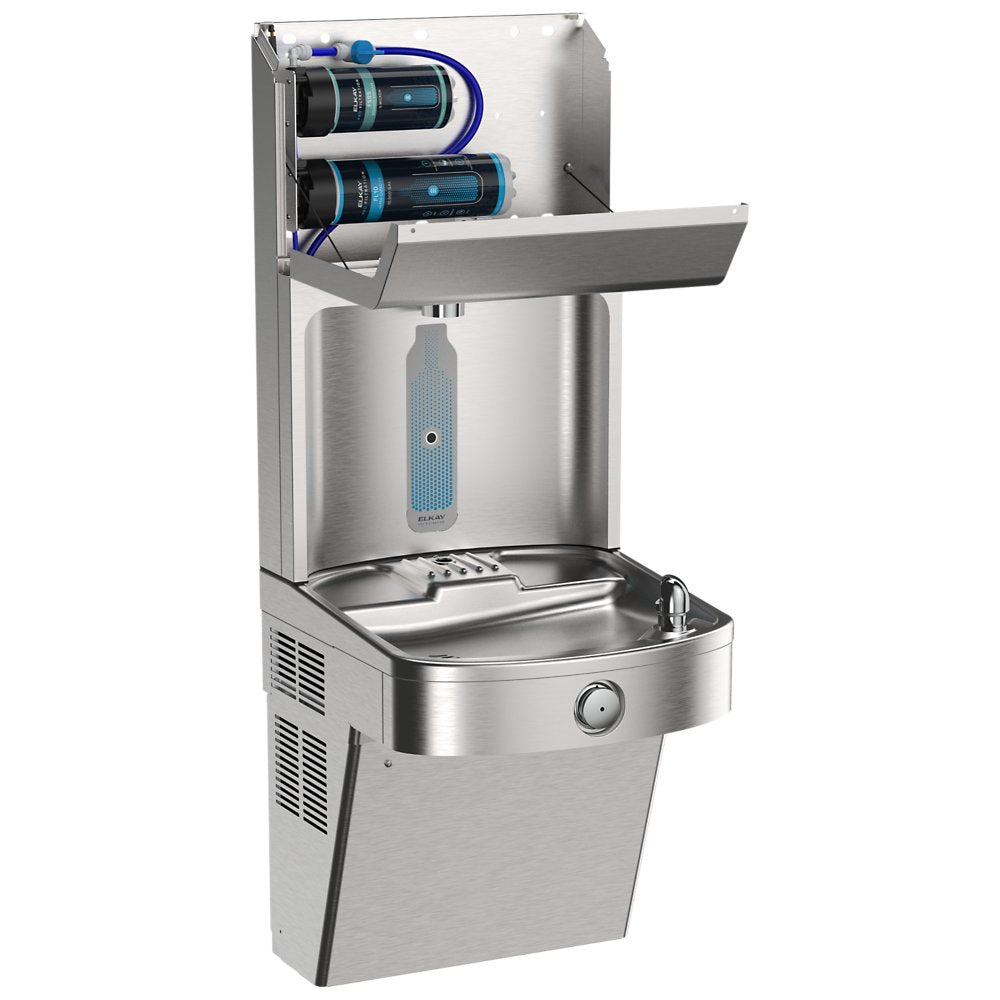

- Simplified Maintenance: Top-mount quick filter change design allows both filters to be replaced easily from the top of the unit, with automatic filter recognition and flushing features that reset status lights and clean the waterway during installation.
- Vandal-Resistant Durability: Built with a stainless steel alcove, tempered glass display cover, and mechanical push button backup, the LVRC8WSPRO-FSR5 delivers reliable performance in high-traffic environments while the Real Drain system eliminates standing water.
FAQ

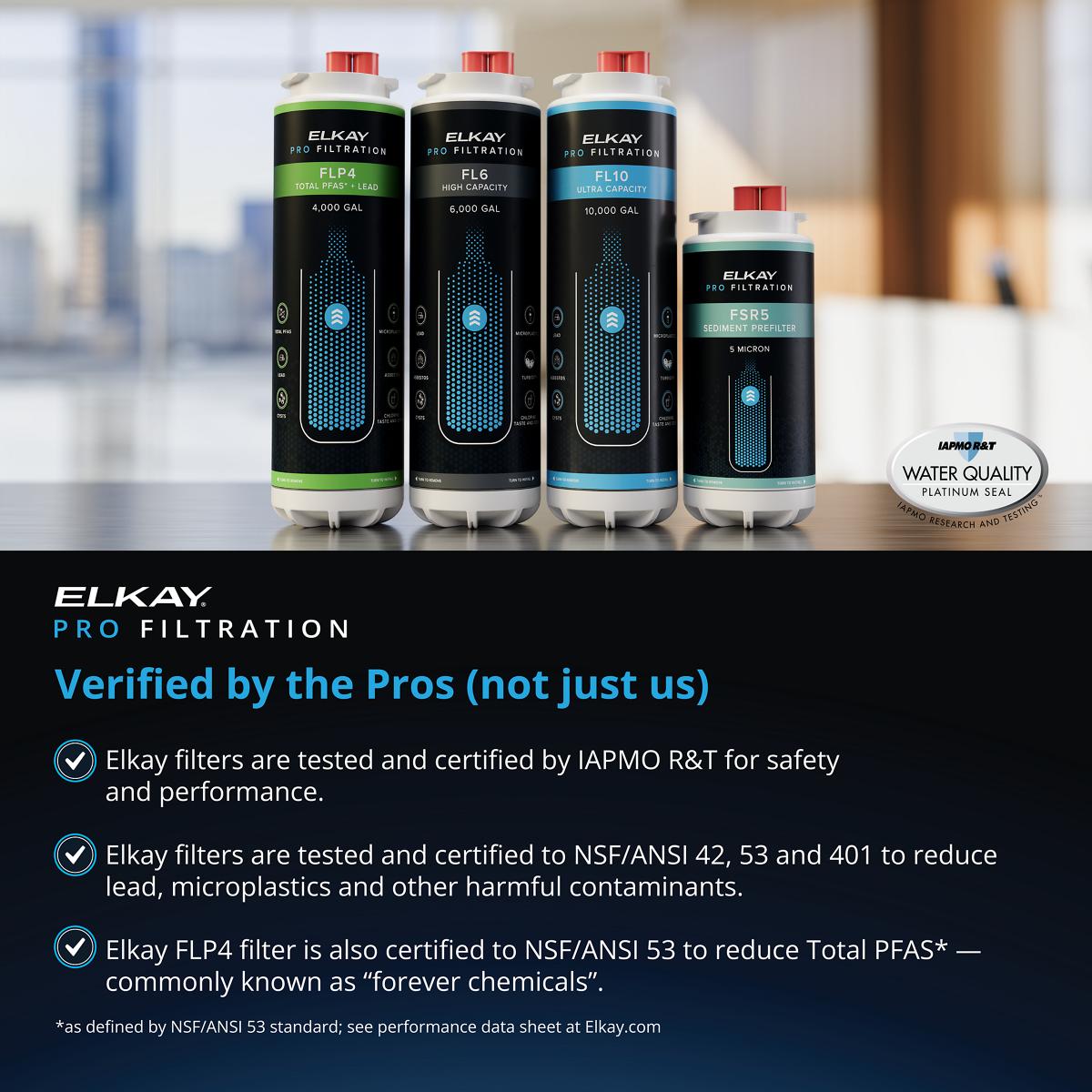

Q: What contaminants does the filtration system reduce?
A: The system is NSF/ANSI 42, 53, and 401 certified to reduce lead, microplastics, chlorine taste and odor, cysts, and other harmful contaminants from drinking water.
Q: How does the cloud connectivity feature work?
A: The unit connects via the plumbSMART Gateway (sold separately), allowing facility managers to remotely monitor filter life, track performance data, receive maintenance alerts, and flush the system from any location with internet access.
Q: What is the bottle fill rate and how does it minimize splash?
A: The touchless sensor-activated bottle filler delivers water at 1.0 GPM with laminar flow technology, providing a quick fill for 20-ounce bottles while minimizing splash and maintaining a clear, consistent stream.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
