Halsey Taylor  |  SKU: HTHBWF-HRF-RF

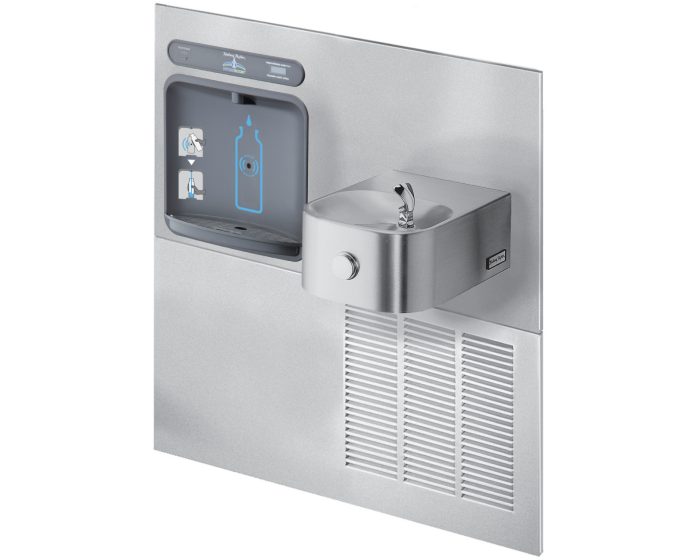

Halsey Taylor HTHBWF-HRF-RF | RETROFIT BOTTLE FILLER KIT | FILTERED, STAINLESS STEEL COLOR FINISH, FOR USE WITH HRF FOUNTAINS

$ 1,870.85
Shipping calculated at checkout.


In Stock
Free Shipping

Requires a minimum of 12" of wall depth for installation.

Do you have an existing bi-level HFR model? If so, the HTHBWF-HRF-RF Halsey Taylor Hydroboost Retrofit is a great option to transform your drinking fountain into a Bottle Filling Station.

We advise that NON-CHILLED fountains less than 10 years old are suitable for a retrofit. We advise that CHILLED fountains less than 5 years are suitable for a retrofit. Not sure how old your model is?  We can find out for you. Email support@bottlefillingstations.com with your existing fountain’s serial #, which you can find at the bottom of your fountain. Please note existing fountain(s) must have been installed per spec.

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Filtered with 3000 gallon capacity WaterSentry 55898C

Halsey Taylor HTHBWF-HRF-RF resources:

FILTERED?

YES

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION


None

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

Based on existing

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

One drinking fountain

DIMENSIONS

L: 38-1/2"

W: 19-1/4"

H: 40-13/16"

SHIPPING WEIGHT

55 lbs

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • NSF/ANSI 61
  • CAN/CSA 22.2 No. 120
  • NSF 372
  • UL 399
  • Safe Drinking Water Act



Includes:

  • Retrofit Bottle Filler
  • Basin with Drain Assy
  • Water Sentry Filter

WARRANTY

Refrigeration System (IF APPLICABLE)

Halsey Taylor HTHBWF-HRF-RF refrigeration system includes 5-year limited warranty.

Electrical Parts & Water System

Halsey Taylor HTHBWF-HRF-RF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor whichever date falls first.  View more warranty details here.

INSTALLATION NOTES

  • Halsey Taylor HTHBWF-HRF-RF requires installation from a licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Halsey Taylor HTHBWF-HRF-RF MANUAL.

MAINTENANCE

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How long does it take to install this retrofit?

A: Depending on factors such as existing mounting, electrical access, and drainage, installation typically falls between 2-5 hours.

Q: Does this retrofit come with a chiller?

A: No. However, the retrofit will utilize the compressor from your existing fountain (if applicable).

Q: Where is the filter status and bottle counter button located on this retrofit?

A: If properly installed, the programming button should be located in the pushbar of the previously existing fountain.

Q: Does this retrofit come with a Wall Mounting Frame?

A:  Yes, this model comes with an In-wall Carrier Mounting Frame.



*ASSEMBLED IN THE UNITED STATES.

Experience the benefits of the very popular Halsey Taylor HTHBWF-HRF-RF
Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices.
